Summary of Contents for boso EGOTEST

  • Page 1 Blood Pressure Monitor egotest Users Instructions...

  • Page 2: Contents Of The Kit

    Contents of the kit: 1 blood pressure instrument with cuff 1 set of instructions for use 1 case Preliminary remarks: This blood pressure instrument complies with the European regulations that are the basis for the German Medicinal Products Act (CE marking) and the international standard ISO 81060-1.
  • Page 3 Important: ● Please use only boso cuffs. ● Keep this unit from being knocked or dropped, and protect it from dirt and moisture.. ● Care has to be taken not to puncture the cuff with any sharp instruments (Scissors, Needles).
  • Page 4 The following phases are recommended in the case of auscul- tatory measurement – adults: phase V (K5) – children aged 3 to 12: phase IV (K4) – pregnant women: phase V (K5), except when sounds are audible when the cuff is deflated: in this case phase IV (K4) Korotkoff sounds should be used.

  • Page 5: General Information On Blood Pressure

    General Information on Blood Pressure Your heart, like a pump that works continuously to distribute the blood under pressure to every blood vessel throughout your body, ensures that vital, oxygenated blood ist delivered to all the organs. Blood pressure is determined by the strength of the heartbeat, the elasticity and the diameter of the blood vessels, as well als various other factors.
  • Page 6 With the boso-egotest you can now do your own regular checkups and can considerably contribute to safe-guarding your health and recognising any disorders at the early stage.
  • Page 7 The World Health Organization (WHO) has set the following guideline for the assessing of blood pressure values: Systolic Diastolic Too high over 140 mmHg over 90 mmHg Normal – 130 to 139 mmHg 85 to 89 mmHg borderline Normal 120 to 129 mmHg 80 to 84 mmHg Optimum up to 119 mmHg...

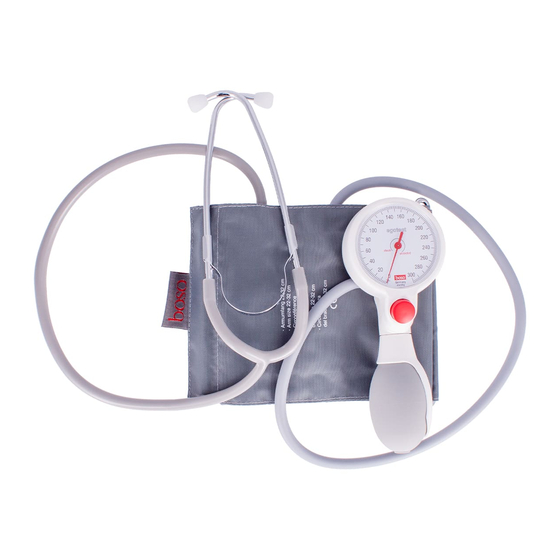

  • Page 8 Stethoscope Membrane Cuff Tube Metal Ring Stethoscope Measuring Unit Velcro Fastening Cuff Scale Ear Pieces Air Release Button Pump Ball...
  • Page 9 Preparing To Take your Blood Pressure It is recommended that you take your blood pressure at the free left upper arm. Care has to be taken, that there is no pressure from pushed- up sleeves, that could influence the actual blood pressure. Any tight clothing should, therefore, be removed.
  • Page 10 Now, gently but firmly, pull tight the cuff end that goes through the metal ring and flip it over and to the outside of your upper arm. With a light pressure the velcro closure is then secured. The cuff must not be too tight; there should roughly be a 2-fin- ger width of space between arm and cuff.

  • Page 11: Taking Your Blood Pressure

    Taking your Blood Pressure Sit yourself comfortably and place your arm, slightly angled and relaxed, onto a table. Important: Your upper arm with the cuff should be roughly in line with your heart. Be sure that you keep your arm perfectly still and that you do not speak whilst you are taking your blood pressure.
  • Page 12 ● Place your thumb with light pressure on the Air Release button and observe the fall of pressure on the scale. By altering the pressure of your thumb onto the button you can regulate the rate by which air is released. The air release rate should be about 2 –...
  • Page 13 ● As the pointer slowly returns, observe the first audible so- First Audible Pulse unds from the stethoscope: At the first pulse you hear = Systole (Korotkoff-Sound) read off the pointer position on the scale: This is your upper blood pressure value (Systolic blood pressure).

  • Page 14: Blood Pressure

    General Notes on Taking your Own Blood Pressure You should take your blood pressure twice daily, in the mor- ning and in the evening, each time in relaxed state. Since physical exertions such as sports, but also eating, smo- king and drinking of alcohol, influence the blood pressure va- lues, you should always avoid these before taking your blood pressure.
  • Page 15 If your doctor diagnoses high blood pressure, please keep strictly to any prescribed medication without a ltering this your- self, should you happen to achieve lower values when you take your own blood pressure.
  • Page 16 Cleaning of Unit and Cuff To clean the unit only use a soft dry cloth. To clean the cuff, first remove the rubber bag and then wash the cuff itself by hand in warm water (maximum 30 degrees Celsius). Disinfection For disinfectant wipes (at least 5 minutes exposure time) of the device and the cuff, we recommend the disinfectant liquid Micro- zid Liquid Sensitiv (Schülke &...

  • Page 17: Technical Data

    Technical Data Measurement range: 0 – 300 mmHg Accuracy of pressure indicated: ± 3 mmHg Storing conditions: –30°C – 70°C, 15 – 85% rel. humidity Operating conditions: 10°C – 40°C, 15 – 85% rel. humidity...

  • Page 18: Warranty Conditions

    Warranty Conditions: We give 3 years warranty from the date of purchase. The purchase date has to be proven by the invoice. Within the war- ranty period defects are eliminated free of charge. After re- pairs the warranty period is not extended on the whole unit, but only to the replaced components.
  • Page 19 Procedure ● Place the cuff with the stethoscope membrane positioned on the main artery of the arm. ● Place the earpieces of the stethoscope into your ears. ● Inflate pressure to 30 – 40 mmHg above the upper blood pressure value. ●...
  • Page 20 0124 BOSCH + SOHN GmbH u. Co. KG Bahnhofstraße 64 D-72417 Jungingen T + 49 (0) 74 77 92 75-0 F + 49 (0) 74 77 10 21 E zentrale@boso.de Internet: www.boso.de...
