    Instructions for use boso TM-2430 PC2 THE MODERN, RELIABLE HEALTH CHECK BOSCH + SOHN GERMANY...
  • Page 2: Table Of Contents

    ..... . Setting up the boso TM-2430 PC2 ......
  • Page 3 Display ............
  • Page 4: Preliminary Information

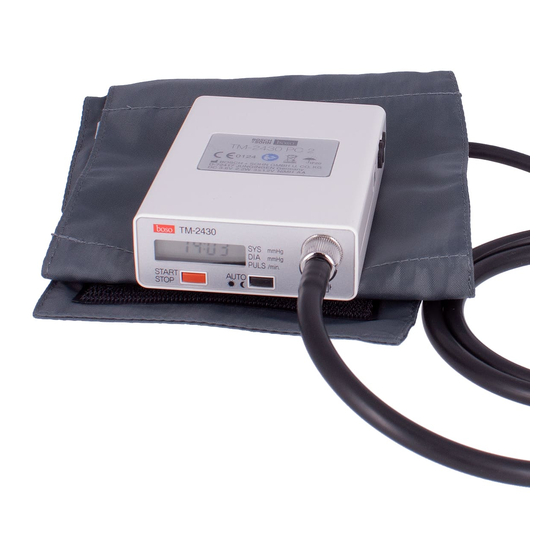

    Preliminary information You have selected the boso TM-2430 PC2 sphygmomanometer, a 24-hour computer controlled blood pressure recorder using state-of-the-art technology. The unit has been specially develo- ped for round-the-clock monitoring and operates on the oscillo- metric principle. The pressure variations (oscillations) resulting from the pulse waves and transmitted by the cuff are stored and evaluated by a microprocessor.
  • Page 5: Area Of Application

    Area of application The boso TM-2430 PC2 sphygmomanometer works on the oscillometric principe and is used in 24-hour monitoring of blood pressure. It is suitable for use in both hospitals and in private practices. The unit is not suitable for use on infants and newborns.
  • Page 6: Equipment And Documentation Supplied

    PC connection cable Setting up the boso TM-2430 PC2 Before you begin working with the boso TM-2430 PC2, you should install the boso profile manager. This software enables the unit to be programmed and the data recorded to be evaluated.
  • Page 7: Important Notes

    Important notes: Please use only storage batteries with 2100mAh, 1,2V, NiMH in order to make sure that the TM-2430 PC2 is working properly for 24 hours. In addition to the three storage batteries which ensure the power supply, the TM-2430 PC2 has an internal battery for the storage of measurements and settings.
  • Page 8: Programming The Measuring Mode, Duration And Interval

    German League for Combating High Blood Pressure). 2. Sleep button By pushing the button on the TM-2430 PC2 in this mode, the patient has the possibility of deciding for himself just when the night and daytime periods should begin. The advantage of this programming mode is that the measurement intervals can be adjusted to suit the needs of the individual patient.
  • Page 9 When the automatic interval control is active, it is, however possible to suppress the display of the readings on the unit. To do this, remove the marker in the corresponding button. Once programming is complete, separate the boso TM-2430 PC2 from the PC connection cable. - 7 -...
  • Page 10: Connecting The Cuff

    Connecting the cuff The air connection plug of the cuff’s air tube is screwed directly onto the air connection socket (see Fig. 1). How to wear the cuff Place the cuff onto your bare upper arm so that the yellow mark lies over the brachial artery.
  • Page 11: Measuring With The Boso Tm-2430 Pc2

    Measuring with the boso TM-2430 PC2 Once the cuff has been correctly positioned a trial measurement with the TM-2430 PC2 can be performed by pressing the START/STOP button. If this measurement is successful, the automatic interval control (see below) can be activated. The trial measurement is included in the data evaluation.
  • Page 12: Cancelling A Measurement

    START/STOP button at any time. Replacing the storage batteries To avoid loss of data, the storage locations in the TM-2430 PC2 are buffered. To replace the storage batteries, proceed as follows (see Fig. 2): 1.
  • Page 13: Recharging The Storage Batteries

    Recharging the storage batteries For information on how to recharge the storage batteries, please refer to the operating instructions of the charger unit supplied. Use the two sets of storage batteries in alternation. Use each set of batteries for one series of measurements only. Please help to keep the environment safe! Empty batteries and storage batteries should not be thrown away with househould waste.
  • Page 14: Display

    Display Sleep mode Automatic Systole interval control Diastole Low battery Pulse indicator Memory full Systolic blood pressure Time Diastolic blood pressure Error indicator Pulse Pulse - 12 -...
  • Page 15: Key

    Display Designation Description Automatic interval control Appears as soon as the automatic interval control is activated Appears as soon as the sleep Sleep mode mode is activated Low battery Appears as soon as the storage batteries are empty No more measurements are possible Memory full Appears as soon as 350 rea-...
  • Page 16: Error Messages And Fault-Finding Guide

    Error Fault corrective action code No setting parameters present Reprogram unit. Zero point adjustment not Completely deflate cuff. possible Low battery Recharge or replace storage batteries. Leak present Remove the cuff from the unit and then reconnect. If the fault recurs, contact your supplier.
  • Page 17 Check and correct the incorrectly programmed automatic interval settings. Serial data transfer not Reconnect the PC connection possible cable with the TM-2430 PC2. If the fault recurs, contact your supplier. Voltage breaks down during Recharge or replace storage data transfer batteries.
  • Page 18: Cleaning And Care Of The Unit And The Cuff

    Cleaning and care of the unit and the cuff To clean the boso TM-2430 PC2 and the cuff, please use a soft cloth which may, if required, be moistened with a mild soap solution. Never use solvents, petroleum or methylated spirits or scouring agents! Accessories Please use only accessories recommended by the manufacturer.
  • Page 19: Technical Data

    Dimensions (W x H x D): 72 mm x 27 mm x 100 mm Accessories: Storage battery charger unit Interference between the boso TM-2430 PC2 and other pieces of equipment is not known. Packaging material and units that are no longer used should be recy- cled and not simply discarded.
  • Page 20: Technical Testing Procedures

    The START/STOP button must remain de- pressed until a ‘0’ starts to blink in the display of the TM-2430 PC2. Wait un- til the ‘0’ in the display is visible and has stopped blinking. Perform both the...
  • Page 21: Emc Notes

    Guidance and manufacturer’s declaration – electromagnetic emissions The boso unit is intended for use in the electromagnetic environment specified below. The customer of the user of the boso unit should assure that it is used in such an environment.
  • Page 22 Guidance and manufacturer’s declaration – electromagnetic immunity The boso unit is intended for use in the electromagnetic environment specified below. The customer or the user of the boso unit should assure that it is used in such an environment. Immunity...
  • Page 23 Edition 09 / 2006 -21-...
  • Page 24 0124 BOSCH + SOHN GMBH U. CO. KG · Fabrik mediz. Apparate Bahnhofstraße 64 · 72417 Jungingen · Germany Telephone: +49 (74 77) 92 75-0 · Fax: +49 (74 77) 10 21 Internet: www.boso.de · e-Mail: zentrale@boso.de...
