IMPORTANT!
Read Installation Instructions before connecting equipment to the mains power supply.
Install Lens & Lens safety cable
1. Remove the plastic cover from the Lens Holder opening.
2. Place the Lens Holder in unlock position. Handle towards electrical socket.
3. Gently insert the lens. Ensure the lens connector matches the electrical socket on the Lens Holder.
4. Insert the lens until the connector seats into the socket.
5. Secure the lens in the Lens Holder. Move the handle into the lock position.
6. Check if the lens touches the front plate of the Lens Holder.
7. Check if the lens is really secured by trying to pull the lens out of the Lens Holder.
8. Install the lens safety cable tightly around the lens. Keep safety cable as short as possible.
9. Attach lens safety cable with projector frame. Keep safety cable as short as possible.

Connect power

Ensure that the power is properly connected to the power input.
(110-130V / 200-240V, 15A, 50-60Hz)

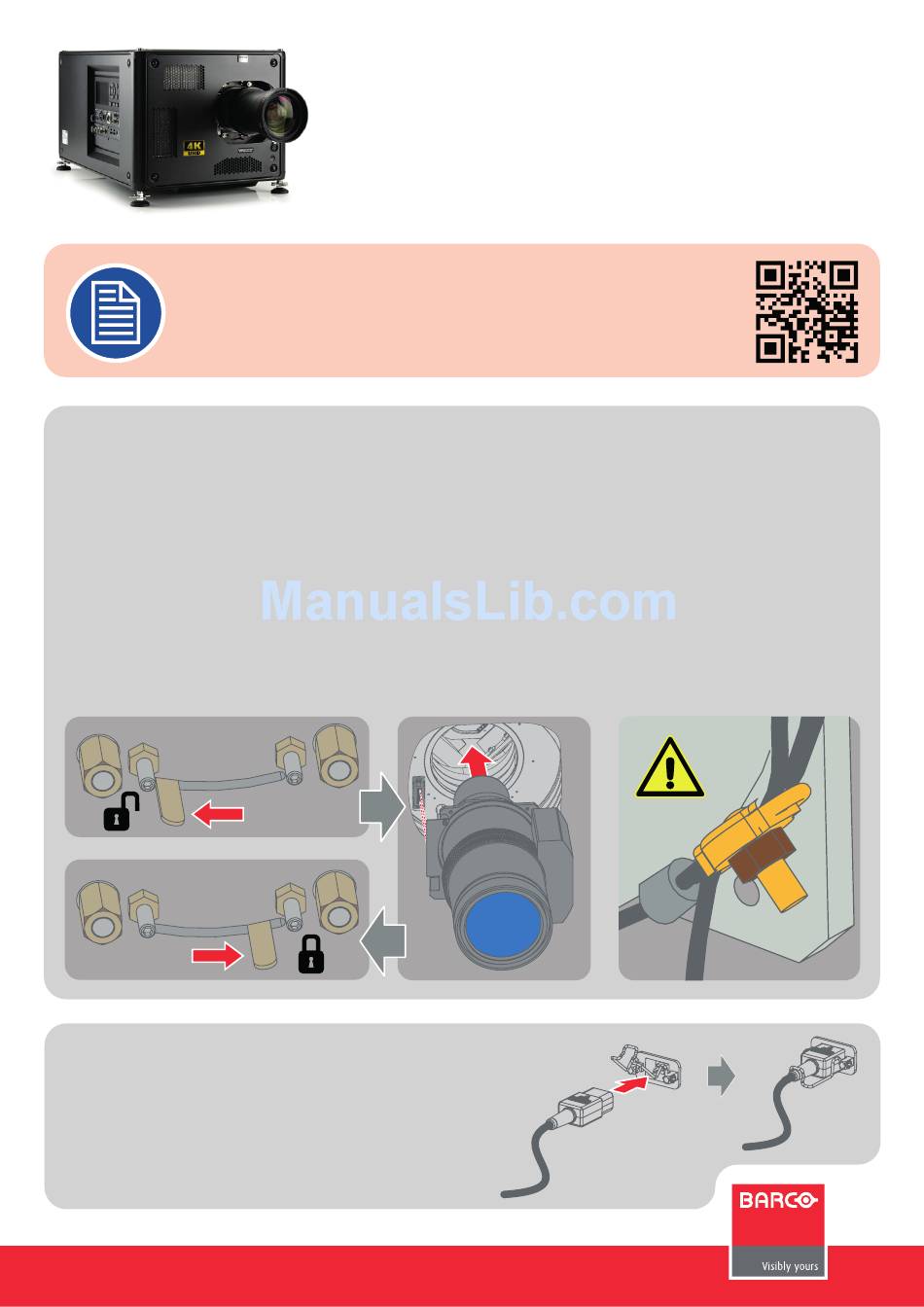

R5906069 /01
HDX 4K

Quick Start Guide

www.barco.com/td/R9012100
!! ONLY USE TLD+ Zoom Lenses !!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDX 4K and is the answer not in the manual?

Questions and answers

Related Manuals for Barco HDX 4K

Summary of Contents for Barco HDX 4K

  • Page 1: Quick Start Guide

    HDX 4K Quick Start Guide Download Product Manual Product manuals and documentation are available online at www.barco.com/td/R9012100 Registration may be required; follow the instructions given on the website. IMPORTANT! Read Installation Instructions before connecting equipment to the mains power supply.
  • Page 2 Startup 1. Power on. Turn the mains switch to on ( I ). - Start up sequence starts. Backlight of the Power on/off button flashes WHITE. 2. Press the Power on/off button. - The backlight of the Power on/off button changes from WHITE to BLUE. - Local LCD displays a start up screen.

  • Page 3: Switch Off

    Switch off 1. Press the Power on/off button for three seconds. 2. Wait until the after-cooling cycle is finished (up to 300 sec.) 3. Turn the mains switch to off (’0’). 4. Unplug the power cord from the projector. 300 s Precautions •...
  • Page 4 RCU buttons Button pressed indicator. Shutter Open. Shutter Close. Touch Panel On/Off. LCD On/Off. Lens Zoom. Lens Shift. Menu Activation. Menu Selection. Menu Navigation. Input Selection. Address button. Numeric buttons. XLR connector. Macro button. Menu Back. Default button. Lens Focus. Color On/Off.

  • Page 5: Communication Panel

    Communication Panel WiFi antenna for wireless IP (optional) RS232 for serial communication 12V 1A output Sync Out Firmware update/USB backup custom settings Sync In Status lights 10/100 base-T for external control over IP and Art-Net DMX interface input IR receive sensor DMX interface output GSM antenna input (optional) XLR input for wired projector control...

  • Page 6: Led Status

    Error RED toggles on/off ORANGE toggles on/off Warning IR signal received GREEN IR signal acknowledged Tel.: - USA +1 866 374 7878 Support - EMEA +32 56 36 8019 Website www.barco.com/esupport - APAC +86 400 88 22726 - 6 -...
