Barco HDX-W14 Technical Specifications
14,000 lumens, wuxga, 3-chip dlp projector
Hide thumbs
Also See for HDX-W14:
- Installation manual (351 pages) ,
- User and installation manual (340 pages) ,
- Safety & environmental information (17 pages)
Advertisement
Quick Links

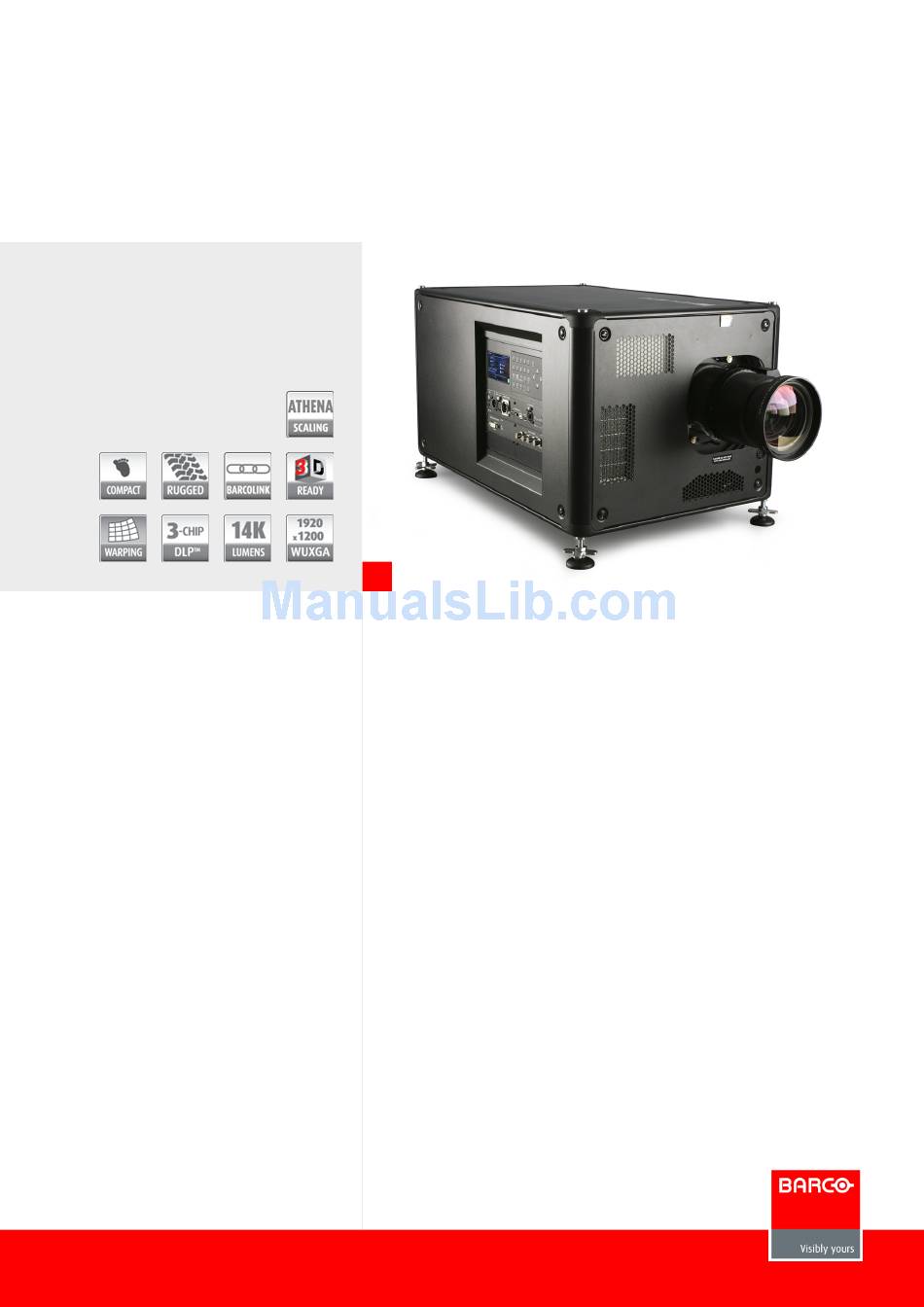

With the HDX series, Barco brings its
expertise in 3D projection to events. The
HDXW14 combines active 3D and both
wired and wireless control options in one
unit. The success of the FLM event
projectors have added considerably to the
design of the HDX projector, while it also
shares image processing and Athena TM
scaling technology with Barco's benchmark
image processing hardware. Its sturdy,
compact design allows the HDXW14 to be
ready for the road in no time, while its
14,000 lumens light output and 3chip DLP
color quality ensure crisp, vivid imagery on
any screen.
14,000 lumens, WUXGA, 3chip DLP projector
Quick preview and wireless control
The HDX's builtin color LCD screen provides you with all the information you
need on your projector's status, and allows you to preview your connected
sources. The projector has a native 3G HDSDI/SDI input, which makes it
compatible with progressive sources over a single BNC cable. In addition, it
offers quick and wireless control via smart phones and tablet computers.
Simple setup and maintenance
Barco designed the HDXW14 with efficiency and quick setup in mind. Its
features just five building blocks that can be removed and replaced quickly, so
that time spent servicing the projector is kept to a bare minimum. In addition,
it can easily be boxed, shipped and fits into standard flight cases.
HDXW14
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Barco HDX-W14
Summary of Contents for Barco HDX-W14
- Page 1 HDX projector, while it also Simple setup and maintenance shares image processing and Athena TM Barco designed the HDXW14 with efficiency and quick setup in mind. Its scaling technology with Barco's benchmark features just five building blocks that can be removed and replaced quickly, so image processing hardware. Its sturdy, that time spent servicing the projector is kept to a bare minimum. In addition,...
- Page 2 14,000 lumens, WUXGA, 3chip DLP projector Fast signal distribution Our proprietary BarcoLink technology guarantees swift signal distribution between Barco’s projectors and image processors. With BarcoLink, signals are distributed over a BNC coax cable, which is not only more durable but also enables you to lower your costs. Barco's HDX series won an InAVation Award for Most InAVative Commercial Projector.
- Page 3 Technical specifications HDXW14 Projector type WUXGA 3chip DLP digital projector Technology 0.96" DMD x3 Resolution 1,920 x 1,200 (WUXGA) Light output 13,000 ANSI lumens / 14,000 center lumens Contrast 1,850:1 (standard) / 2,400:1 (high contrast mode) Brightness uniformity 90% (standard) Aspect Ratio 16:10 ScenergiX Horizontal and vertical edge blending Lens type TLD+ Lens range 0.73:1 ; 1.2:1 ; 1.251.6:1; 1.52.0:1 ; 2.02.8:1 ; 2.84.5:1 ; 4.57.5:1 ; 7.511.5:1 Optical lens shift Vertical: 10% to +110% / Horizontal: 30% to +30% on zoom lenses (memorized) Color correction Lamp 2.5kW xenon Lamp lifetime (typical) 1,750 hours Transport with lamp Lamp house, quick replace Customer bulb replace Lamp warranty (field replace/ factory replace) 90 days, 500 hours / pro rata 750 hours Sealed DLP™ core Standard Optical dowser Standard Pictureinpicture Up to two sources onscreen simultaneously Orientation table ceiling side (portrait) vertical...
- Page 4 Technical specifications HDXW14 Power consumption 2,600 W / STBY Noise level (typical at 25°C/77°F) 50 dB(A) Operating temperature 0 ~ 40°C / 32 ~ 104°F operation humidity no condens 0 80% Dissipation BTU max. 8,871 BTU/h Dimensions (WxLxH) 475 x 725 x 382 mm (18.7"” x 28.54" x 14.96") Weight 50kg (110lbs) Shipping Dimensions (LxWxH) 900 x 650 x 560 mm (35.43" x 25.59" x 22.04") Standard accessories Power cord; wireless/XLR wired rugged remote control Certifications Compliant with UL609501 and EN609501, complies with FCC rules & regulations, part 15 Class A and CE EN55022 Class A, RoHS Warranty 2 years standard, extendable up to 5 years Generated on: 16 Dec 2013 Technical specifications are subject to change without prior notice. Please check www.barco.com for the latest information.
