coM.sat ISDN Basic

3.3.19 Monitor

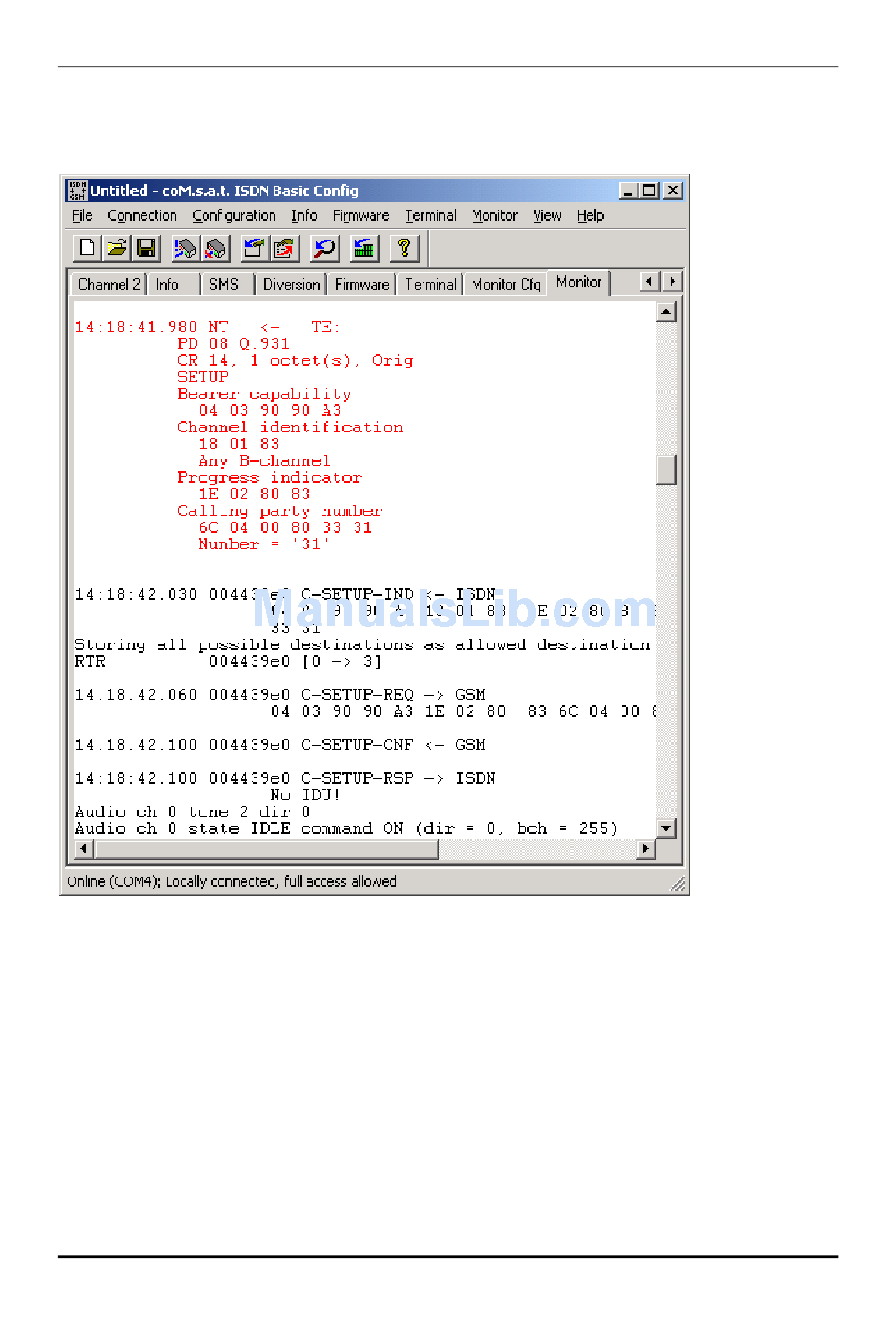

Figure 29: Trace recording

The activities on the S0 connection and between the ISDN Basic and the GSM
modules are displayed on the "Monitor" tab, i.e. a "trace" of the D-channel protocol
and the commands to the GSM modules as well as their responses are recorded.
This data protocol is used both for in situ analysis when it is viewed in the monitor
window as well as for analysis in another environment by saving it together with the
configuration in a "*.cdc" file and opening this file with the coMsat.exe application on
another computer. The ASCII save functionality is only available for using search and
clipboard functions.
