coM.sat ISDN Basic

3.3.8 Statistics

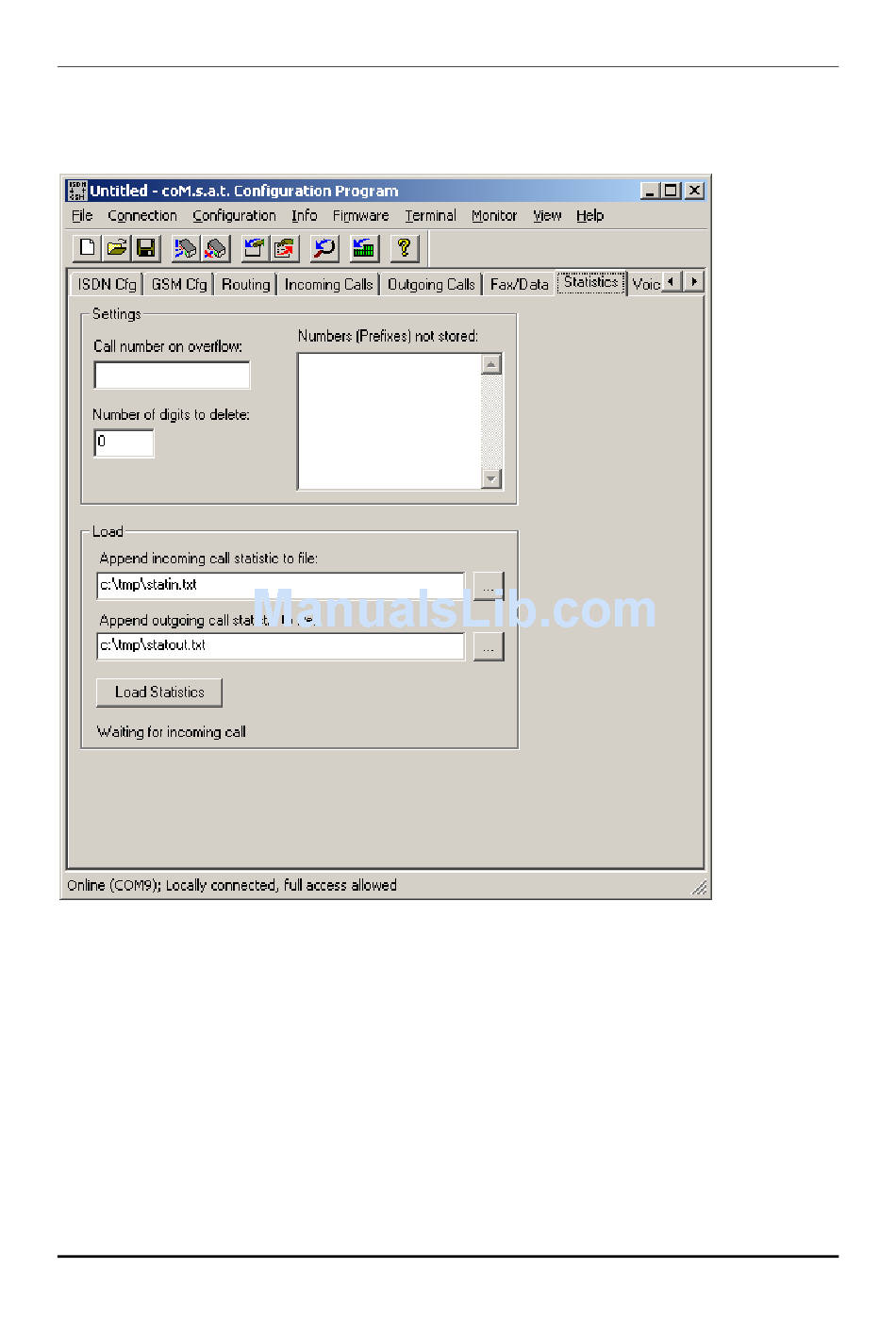

Figure 14: Statistics

The statistic functions are intended for the storing of call data. Incoming and outgoing
calls are registered. The information is stored in two different files. Due to the limited
memory space, call data is stored until the available memory is almost used up.
When it becomes obvious that memory will shortly be full, a data call is set up to the
pre-defined number which is set under "Call number on overflow". This must call a
GSM modem (e.g. another coM.sat ISDN Basic in transparent mode, see 3.3.18) in a
central office that is equipped with a SIM card allowing data transmission. There
must be a PC running coMsat.exe, which is in contact with the GSM modem over a
serial interface and which has the statistics page opened. This enables it to react on
incoming calls (RING). In this case the call is accepted, the statistics read out and the
call terminated again. The current action is displayed beneath the "Load Statistics"
created: page: file:
16/01/09 39 coMsat ISDN Basic Manual V2.7.doc
