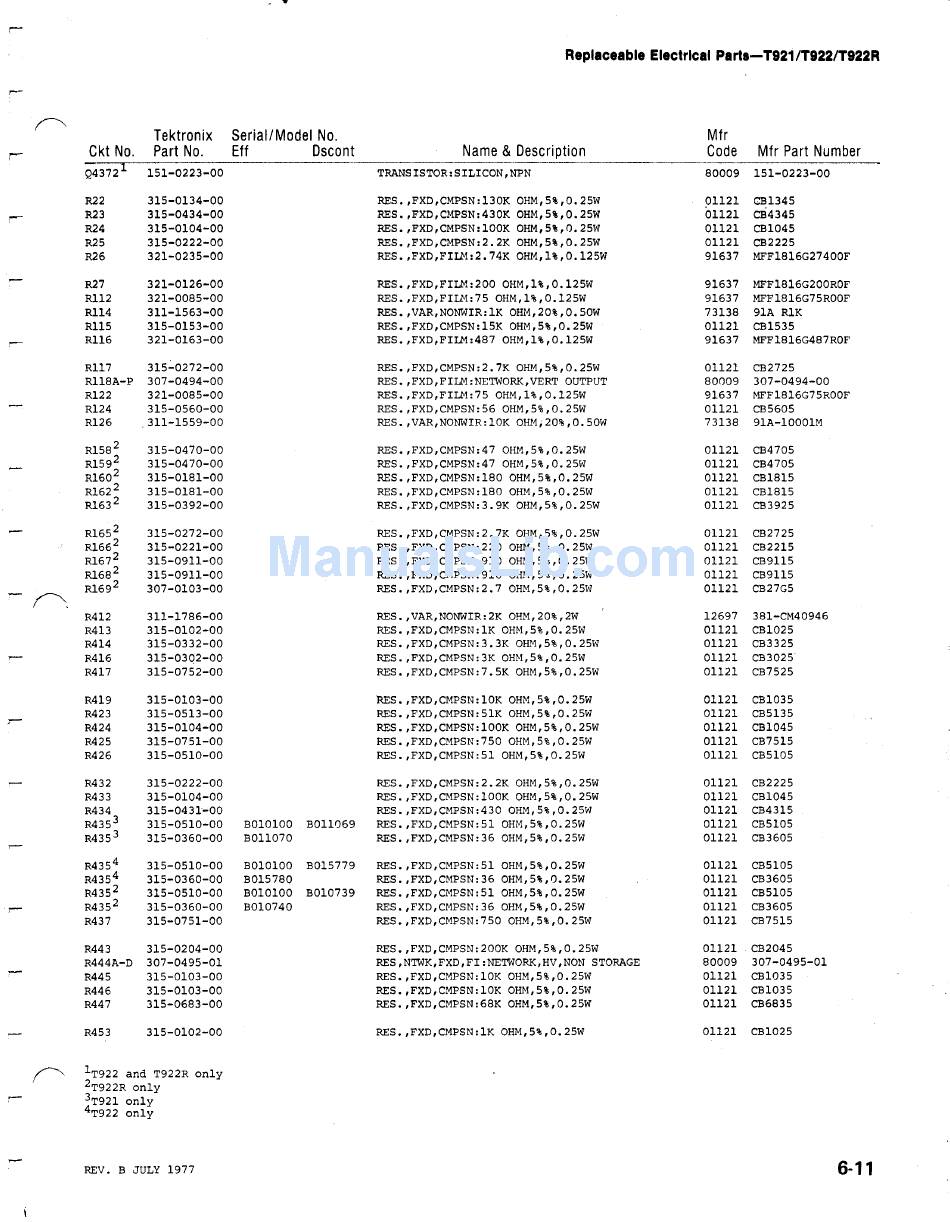

Tektronix T921 Instruction Manual page 91

Replaceable Electrical Parts-T921/T922/T922R
1T922 and T922R only
2T922R only
3T921 only
4T922 only
REV . B JULY 1977
6- 1 1
Ckt No .
Tektronix
Part No.
Serial/Model
Eff
No .
D scont Name & Description
Mfr
Code Mfr Part Number
94372 151-0223-00
TRANSISTOR :SILICON,NPN
80009 151-0223-00
R22 315-0134-00 RES .,FXD,CMPSN :130K OHM,5%,0 .25W 01121 CB1345
R23 315-0434-00 RES .,FXD,CMPSN :430K OHM,5%,0 .25W 01121 CB4345
R24 315-0104-00 RES .,FXD,CMPSN :l00K OHM,5%,0 .25W 01121 CB1045
R25 315-0222-00
RES .,FXD,CMPSN :2 .2K OHM,5%,0 .25W 01121 CB2225
R26 321-0235-00 RES .,FXD,FILM :2 .74K OHM,1%,0 .125W 91637 MFF1816G27400F
R27 321-0126-00 RES .,FXD,FILM :200 OHM,1%,0 .125W 91637 MFF1816G200ROF
8112
321-0085-00 RES .,FXD,FILM :75 OHM,1%,0 .125W 91637 MFF1816G75ROOF
8114 311-1563-00 RES .,VAR,NONWIR :IK OHM,20%,0.50W 73138 91A RlK
8115
315-0153-00 RES .,FXD,CMPSN :15K OHM,5%,0 .25W 01121 CB1535
8116 321-0163-00 RES .,FXD,FILM :487 OHM,1%,0 .125W 91637 MFF1816G487ROF
8117 315-0272-00 RES .,FXD,CMPSN :2 .7K OHM,5%,0 .25W 01121 CB2725
R118A-P 307-0494-00 RES .,FXD,FILM :NETWORK,VERT OUTPUT 80009 307-0494-00
8122 321-0085-00
RES .,FXD,FILM :75 OHM,1%,0 .125W
91637 MFF1816G75ROOF
8124 315-0560-00
RES .,FXD,CMPSN :56 OHM,5%,0 .25W
01121 CB5605
8126 311-1559-00 RES .,VAR,NONWIR :1OK OHM ;20%,0 .50W 73138 91A-10001M
8158 2 315-0470-00 RES .,FXD,CMPSN :47 OIIM,5%,0.25W 01121 CB4705
8159 2 315-0470-00 RES .,FXD,CMPSN :47 OHM,5%,0 .25W 01121 CB4705
8160 2 315-0181-00 RES .,FXD,CMPSN :180 OHM,5%,0 .25W 01121 CB1815
8162 2 315-0181-00 RES .,FXD,CMPSN :180 OHM,5%,0 .25W 01121 CB1815
8163 2 315-0392-00 RES .,FXD,CMPSN :3 .9K OHM,5%,0 .25w 01121 CB3925
R165 2 315-0272-00 RES .,FXD,CMPSN:2 .7K OHM,5%,0 .25W 01121 CB2725
8166 2 315-0221-00
RES .,FXD,CMPSN:220 OHM,5%,0 .25W
01121 CB2215
8167 2 315-0911-00
RES .,FXD,CMPSN :910 OHM,5%,0 .25W
01121 C139115
8168 2 315-0911-00
RES .,FXD,CMPSN:910 OHM,5%,0 .25W 01121 CB9115
8169 2 307-0103-00
RES .,FXD,CMPSN:2 .7 OHM,5%,0 .25W 01121 CB27G5
8412 311-1786-00
RES .,VAR,NONWIR :2K OHM,20%,2W 12697 381-CM40946
8413 315-0102-00 RES .,FXD,CMPSN:IK OHM,5%,0 .25W 01121 CB1025
8414 315-0332-00 RES .,FXD,CMPSN:3 .3K OHM,5%,0 .25W 01121 CB3325
8416 315-0302-00 RES .,FXD,CMPSN:3K OHM,5%,0 .25W 01121 CB3025
8417 315-0752-00 RES .,FXD,CMPSN:7 .5K OHM,5%,0 .25W 01121 CB7525
8419 315-0103-00 RES .,FXD,CMPSN:1OK OHM,5%,0 .25W 01121 CB1035
8423 315-0513-00 RES .,FXD,CMPSN:51K OHM,5%,0 .25W 01121 CB5135
R424 315-0104-00 RES .,FXD,CMPSN:100K OHM,5%,0 .25W 01121 CB1045
8425 315-0751-00 RES .,FXD,CMPSN:750 OHM,5%,0 .25W 01121 CB7515
8426 315-0510-00 RES .,FXD,CMPSN:51 OHM,5%,0 .25W 01121 CB5105
8432 315-0222-00 RES .,FXD,CMPSN:2 .2K OHM,5%,0 .25W 01121
CB2225
8433 315-0104-00 RES .,FXD,CMPSN:100K OHM,5%,0 .25W 01121 CB1045
8434 315-0431-00 RES .,FXD,CMPSN:430 OHM,5%,0 .25W 01121 CB4315
8435 3 315-0510-00 B010100 B011069 RES .,FXD,CMPSN:51 OHM,5%,0 .25W 01121 CB5105
8435 3 315-0360-00 B011070 RES .,FXD,CMPSN:36 OHM,5%,0 .25W 01121 CB3605
8435 4 315-0510-00 B010100 B015779 RES .,FXD,CMPSN:51 OHM,5%,0 .25W 01121 CB5105
R435 4 315-0360-00 B015780 RES .,FXD,CMPSN:36 OHM,5%,0 .25W
01121 CB3605
8435 2 315-0510-00
B010100 B010739 RES.,FXD,CMPSN :51 OHM,5%,0 .25W 01121 CB5105
8435 2 315-0360-00 B010740
RES.,FXD,CMPSN :36 OHM,5%,0 .25w 01121 CB3605
8437 315-0751-00
RES .,FXD,CMPSN :750 OHM,5%,0 .25w 01121 CB7515
8443 315-0204-00
RES .,FXD,CMPSN :200K OHM,5%,0 .25W 01121 CB2045
R444A-D 307-0495-01 RES,NTWK,FXD,FI :NETWORK,HV,NON STORAGE 80009 307-0495-01
8445
315-0103-00 RES .,FXD,CMPSN :1OK OHM,5%,0 .25W 01121 CB1035
8446 315-0103-00
RES .,FXD,CMPSN :1OK OHM,5%,0 .25W 01121 CB1035
8447 315-0683-00 RES .,FXD,CMPSN :68K OHM,5%,0 .25W 01121 CB6835
8453 315-0102-00 RES .,FXD,CMPSN :IK OHM,5%,0 .25W 01121 CB1025
