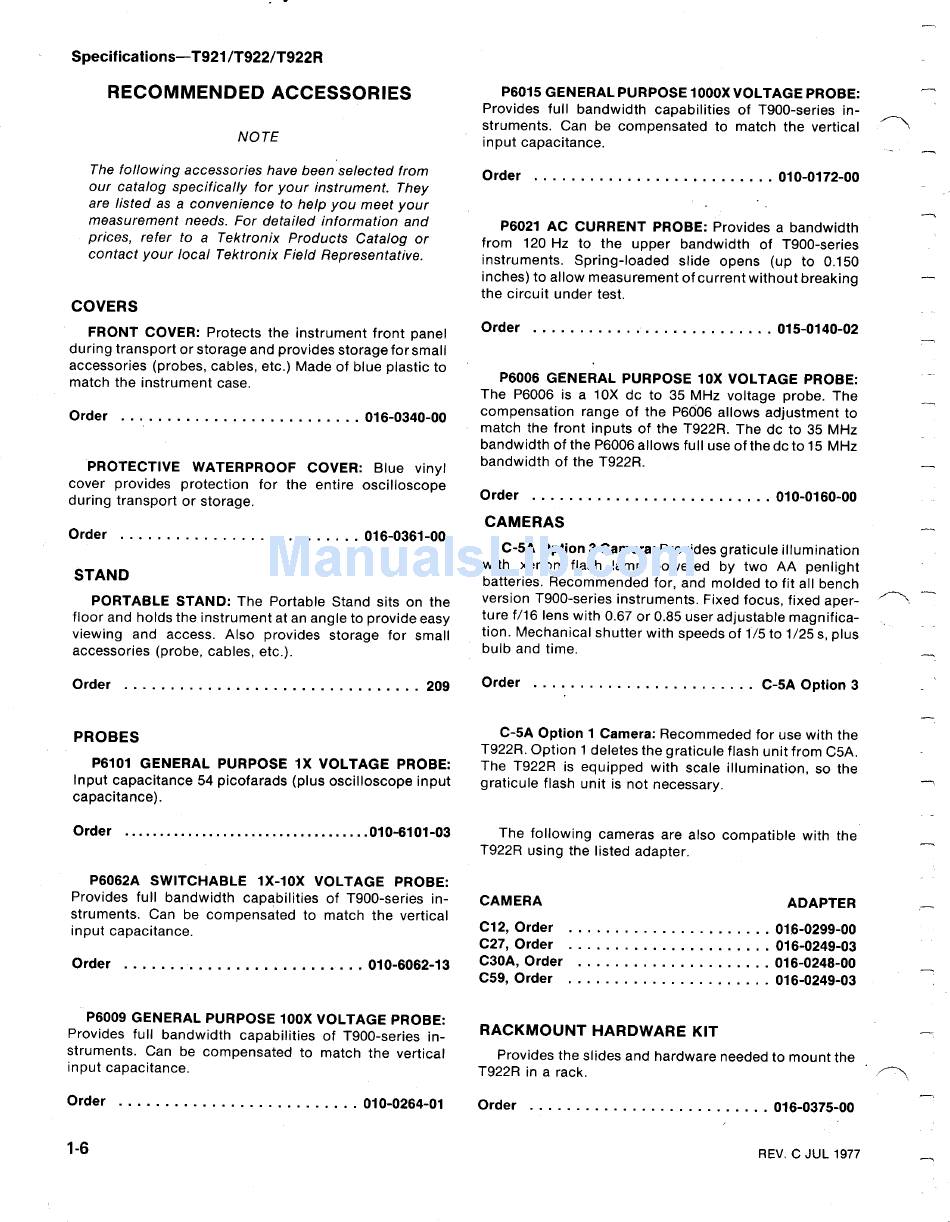

Specifications-T921/T922/T922R
The following accessories have been selected from
our catalog specifically for your instrument. They
are listed as a convenience to help you meet your
measurement needs. For detailed information and
prices, refer to a Tektronix Products Catalog or
contact your local Tektronix Field Representative.
COVERS
FRONT COVER: Protects the instrument front panel
during transport or storage and provides storage forsmall
accessories (probes, cables, etc.) Made of blue plastic to
match the instrument case .
Order . . . . . . . . . . . . . . . . . . . . . . . . . . 016-0340-00
PROTECTIVE WATERPROOF COVER: Blue vinyl
cover provides protection for the entire oscilloscope
during transport or storage.
Order . . . . . . . . . . . . . . . . . . . . . . . . . . 016-0361-00
STAND
RECOMMENDED ACCESSORIES
NOTE
PORTABLE STAND: The Portable Stand sits on the
floor and holds the instrument at an angle to provide easy
viewing and access . Also provides storage for small
accessories (probe, cables, etc .) .
Order . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
PROBES
P6101 GENERAL PURPOSE 1X VOLTAGE PROBE:
Input capacitance 54 picofarads (plus oscilloscope input
capacitance) .
Order . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .010-6101-03
P6062A SWITCHABLE 1X-10X VOLTAGE PROBE :
Provides full bandwidth capabilities of T900-series in-
struments. Can be compensated to match the vertical
input capacitance .
Order . . . . . . . . . . . . . . . . . . . . . . . . . .010-6062-13
P6009 GENERAL PURPOSE 100X VOLTAGE PROBE:
Provides full bandwidth capabilities of T900-series in-
struments. Can be compensated to match the vertical
input capacitance.
Order . . . . . . . . . . . . . . . . . . . . . . . . . . 010-0264-01
P6015 GENERAL PURPOSE 1000X VOLTAGE PROBE:
Provides full bandwidth capabilities of T900-series in-
struments . Can be compensated to match the vertical
input capacitance.
Order . . . . . . . . . . . . . . . . . . . . . . . . . . 010-0172-00
P6021 AC CURRENT PROBE : Provides a bandwidth
from 120 Hz to the upper bandwidth of T900-series
instruments. Spring-loaded slide opens (up to 0 .150
inches) to allow measurement of current without breaking
the circuit under test .
Order . . . . . . . . . . . . . . . . . . . . . . . . . .015-0140-02
P6006 GENERAL PURPOSE 10X VOLTAGE PROBE :
The P6006 is a 10X do to 35 MHz voltage probe. The
compensation range of the P6006 allows adjustment to
match the front inputs of the T922R . The do to 35 MHz
bandwidth of the P6006 allows full use of the dc to 15 MHz
bandwidth of the T922R.
Order . . . . . . . . . . . . . . . . . . . . . . . . . . 010-0160-00
CAMERAS
C-5A Option 3 Camera : Provides graticule illumination
with xenon flash lamp powered by two AA penlight
batteries . Recommended for, and molded to fit all bench
version T900-series instruments . Fixed focus, fixed aper-
ture f/16 lens with 0.67 or 0.85 user adjustable magnifica-
tion . Mechanical shutter with speeds of 1/5 to 1/25 s, plus
bulb and time .
Order . . . . . . . . . . . . . . . . . . . . . . . . C-5A Option 3
C-5A Option 1 Camera : Recommeded for use with the
T922R . Option 1 deletes the graticule flash unit from C5A.
The T922R is equipped with scale illumination, so the
graticule flash unit is not necessary .
The following cameras are also compatible with the
T922R using the listed adapter.
RACKMOUNT HARDWARE KIT
Provides the slides and hardware needed to mount the
T922R in a rack .
Order . . . . . . . . . . . . . . . . . . . . . . . . . . 016-0375-00
REV. C JUL 1977
CAMERA
ADAPTER
C12, Order
. . . . . . . . . . . . . . . . . . . . . . 01,6-0299-00
C27, Order
. . . . . . . . . . . . . . . . . . . . . . 016-0249-03
C30A, Order
. . . . . . . . . . . . . . . . . . . . . 016-0248-00
C59, Order
. . . . . . . . . . . . . . . . . . . . . . 016-0249-03
