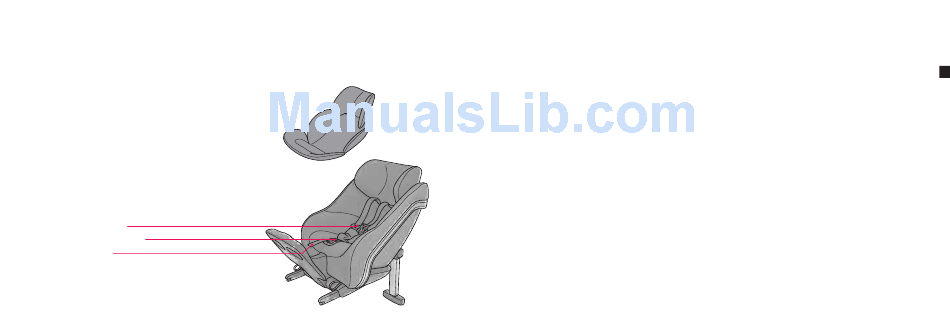

_ OVERVIEW
01
Headrest
02
Size adjustment operation
03
Seat tilt operation
04
Support leg lock
05
Support leg
06
Safety display support leg
07
Baby insert
08
Footrest
09
ISOFIX system release
10
ISOFIX connectors
11
Safety indication ISOFIX system
12
3-Point belt system
13
Central adjusting device
14
Central harness
20
15
Insert for small child
_ INSTALLATION OF THE CONCORD REVERSO
Always install the CONCORD REVERSO WITHOUT your child in it.
1a Position the CONCORD REVERSO on the required seat in the vehicle opposite to the direction of
travel.
1b Push the ISOFIX connectors (10) of the CONCORD REVERSO onto the ISOFIX receptacles of the
vehicle until they audibly engage. Check to make sure that both safety indicators (11) left and
right on the CONCORD REVERSO are GREEN.
1c Release the lock (04) and move the support leg (05) downwards until this stands firmly on the
floor. Engage the lock (04) and check to make sure that the safety indicator of the lock (04) and
safety indicator of the support leg (06) are GREEN.
1d By rotating the control of the seat inclination (03), the inclination of the CONCORD REVERSO can
be variably adjusted. Subsequently, check to make sure that all safety indications
GREEN.
(04
& 06) are
