- Page 1 Keysight U1731C/U1732C/U1733C Handheld LCR Meter Quick Start Guide...
-
Page 3: Quick Start Guide
Keysight Sales Office. The descriptions and instructions in this guide apply to the NO TE U1731C, U1732C, and U1733C handheld LCR meters. The model U1733C appears in all illustrations. All related documents and software are available for download... -
Page 4: Install The Batteries
Discharge the capacitor before testing. Your LCR meter is capable of remote data logging. To use this NO TE feature, you will need an IR-USB cable (U5481A, purchased separately) and the Keysight GUI Data Logger Software (down- loadable from www.keysight.com/find/hhTechLib). U1731C/U1732C/U1733C Quick Start Guide... -
Page 5: The Lcr Meter At A Glance

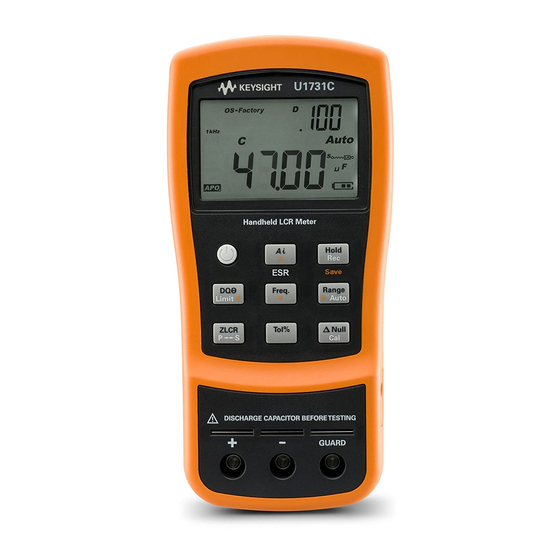

U1731C/U1732C/U1733C Handheld LCR Meter The LCR Meter at a Glance The LCR Meter at a Glance Display screen Keypad Input terminals/socket IR communication port Tilt stand Battery cover (Lift the tilt stand for access) External power adapter input jack (+12 VDC) -
Page 6: Understanding The Keypad
U1731C/U1732C/U1733C Handheld LCR Meter Understanding the Keypad Understanding the Keypad Key response when pressed for: Legend Less than 1 second More than 1 second Turns the LCR meter on or off Enables or disables the ESR Starts or stops the auto identi-... -
Page 7: Performing Lcr Measurements
U1731C/U1732C/U1733C Handheld LCR Meter Performing LCR Measurements Performing LCR Measurements Auto Identification (Ai) Press the button to automatically identify and select an appropriate primary measurement function (L, C, or R), second- θ ary measurement function (D, Q, or ), and measurement mode (parallel or series) for the device-under-test. - Page 8 U1731C/U1732C/U1733C Handheld LCR Meter Performing LCR Measurements Secondary (D/Q/θ) measurements Inductance (L) measurements Inductor Capacitance (C) measurements Capacitor Resistance (R) measurements Resistor U1731C/U1732C/U1733C Quick Start Guide...
-
Page 9: Contacting Keysight
• China Call Center: 800-810-0189 • Europe Call Center: 31-20-547-2111 • Japan Call Center: (81) 426-56-7832 For other countries, contact your country’s Keysight support organization. A list of contact information for other countries is available on the Keysight Web site: www.keysight.com/find/assist Safety Notices... - Page 10 This information is subject to change without notice. © Keysight Technologies 2014 Edition 4, August 2014 *U1731-90070* U1731-90070 www.keysight.com...
