TWISTER
Original Instructions
EN
Original written in UK English
Date Published: 01/03/2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TWISTER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Evolution TWISTER

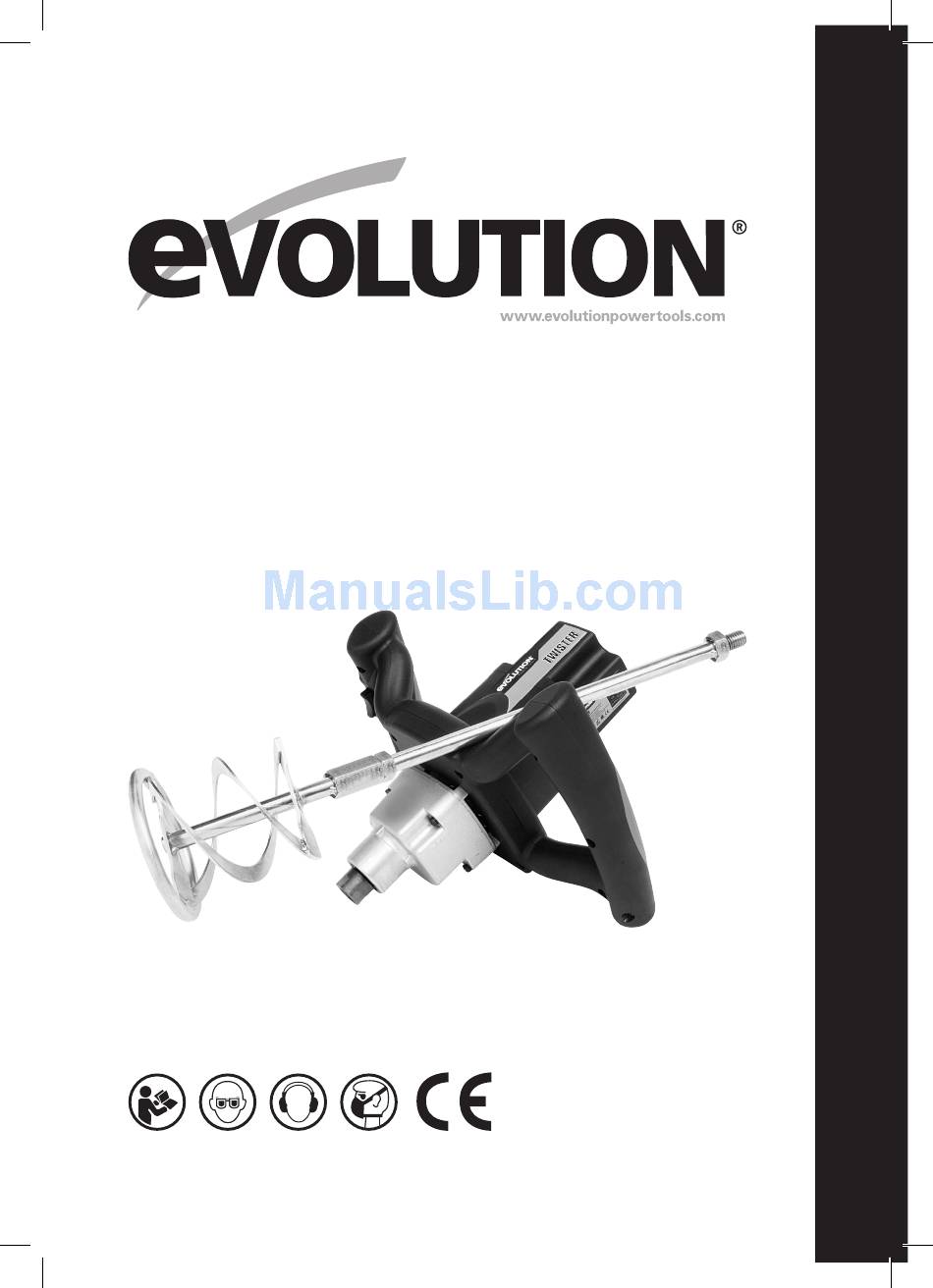

  • Page 1 TWISTER Original Instructions Original written in UK English Date Published: 01/03/2016...
  • Page 2: Table Of Contents

    www.evolutionpowertools.com TABLE OF CONTENTS English Page 2 INTRODUCTION Guarantee Page 3 Machine Specification Page 4 Vibration Page 5 Labels and Symbols Page 5 Intended use of this Power Tool Page 6 Prohibited use of this Power Tool Page 6 SAFETY PRECAUTIONS Electrical Safety Page 7 Outdoor Use...
  • Page 3: Guarantee

    In no event shall period via Evolutions website by entering your Evolution Power Tools be liable for loss or details and thus ensure prompt service if ever damage resulting directly or indirectly from needed.
  • Page 4: Machine Specification

    TWISTER SPECIFICATIONS MACHINE SPECIFICATIONS METRIC IMPERIAL Motor EU (230-240V ~ 50/60 Hz) 1250W Motor UK (110V ~ 50/60 Hz) 1250W 11.5A Motor USA (120V ~ 60Hz) 1250W 10.5A No Load Speed 250 - 750min 250 - 750rpm Weight 8.7 Kg 16-1/4 lbs NOISE &...
  • Page 5: Vibration

    WARNING: Do not operate this machine if warning and/or instruction labels are missing • The measurement and assessment of or damaged. Contact Evolution Power Tools human exposure to hand-transmitted for replacement labels. vibration in the workplace is given in:...
  • Page 6: Intended Use Of This Power Tool

    Symbol Description WARNING: This product is a Hand Held Variable Speed Mixer and has been designed Volts to be used with special Evolution mixing paddles. Only use accessories designed for use in this machine and/or those Amperes recommended specifically by Evolution Power Tools Ltd.
  • Page 7: Electrical Safety

    www.evolutionpowertools.com (1.14) (2.2) ELECTRICAL SAFETY 1) General Power Tool Safety Warnings [Work area safety] a) Keep work area clean and well lit. This machine is fitted with the correct moulded plug and mains lead for the designated market. Cluttered or dark areas invite accidents. b) Do not operate power tools in If the supply cord is damaged, it must be explosive atmospheres, such as in the...
  • Page 8 www.evolutionpowertools.com (2.4) The correct power tool will do the job better 3) General Power Tool Safety Warnings and safer at a rate for which it was designed. [Personal Safety]. b) Do not use the power tool if the switch a) Stay alert, watch what you are doing does not turn it on or off.
  • Page 9: Additional Safety Instructions

    www.evolutionpowertools.com (2.7) ADDITIONAL SAFETY INSTRUCTIONS HEALTH ADVICE • A suitable industrial mixing tub, preferable WARNING: When using this machine, dust plastic, should be sourced and sited on a particles may be produced. In some instances, secure and stable horizontal surface. depending on the materials you are working • The operator should be aware of the with, this dust can be particularly harmful.
  • Page 10: Getting Started Unpacking

    Spanner trapped underneath the machine. (4.3) ADDITIONAL ACCESSORIES In addition to the standard items supplied with this machine the following accessories are also available from the Evolution online shop at www.evolutionpowertools.com or from your local retailer. (4.4) Description Part No...
  • Page 11: Machine Overview

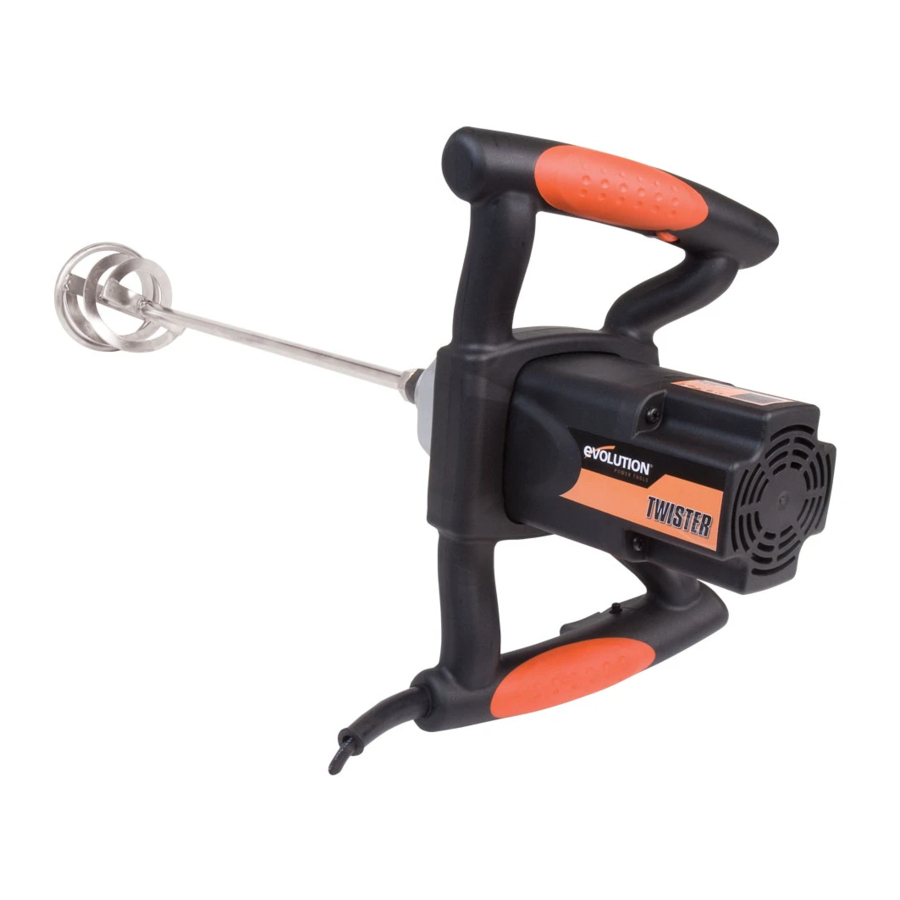

    www.evolutionpowertools.com MACHINE OVERVIEW 1. TWO PIECE MIXING PADDLE 2. ON/OFF TRIGGER SWITCH 3. SPEED CONTROL ADJUSTMENT WHEEL 4. GRIPPING HANDLES 5. MACHINE ARBOR WITH 14MM INTERNAL THREAD FOR PADDLE CONNECTION 6. POWER CABLE...
  • Page 12: Assembly And Preparation

    GETTING STARTED ASSEMBLY The Mixing Paddle Note: The Evolution Twister is supplied with a two (2) piece Mixing Paddle. The two pieces of the Mixing Paddle simply screw together (Fig. 1) Fig. 1 and should be securely tightened using the spanner supplied.
  • Page 13: Operating Instructions

    • Position the Mixing Tub on a horizontal, stable and secure surface. • Place the materials to be mixed in the Mixing Tub in accordance with the recommendations provided by the manufacturer of the materials. • Check the Twister Unit and particularly the security of the attached Mixing Paddle. • Place the Mixing Paddle in the Mixing Tub. • Adopt a secure stance holding the Twister Unit with both hands. • With the lowest speed setting selected depress the Trigger...
  • Page 14: Maintenance

    Note: Any maintenance must be carried out with the machine switched off and disconnected from the mains power supply. Clean the Twister Motor Unit and the Mixing Paddle immediately after use. Follow the advice given by the material manufacturers regarding equipment cleaning and the disposal of surplus material.
  • Page 15: Declaration Of Conformity

    In accordance with EN ISO 17050-1:2004 The manufacturer of the product covered by this Declaration is: Evolution Power Tools, Venture One, Longacre Close, Holbrook Industrial Estate, Sheffield, S20 3FR. The manufacturer hereby declares that the machine as detailed in this declaration fulfils all the relevant provisions of the Machinery Directive and other appropriate directives as detailed below.
  • Page 16 Evolution Power Tools Ltd Evolution Power Tools LLC Evolution Power Tools SAS Venture One 8363 Research Drive 61 Avenue Lafontaine Longacre Close Davenport 33560 Holbrook Industrial Estate Iowa Carbon-Blanc Sheffield 52806 Bordeaux S20 3FR +44 (0)114 251 1022 +1 866-EVO-TOOL...
