Quick Installation Guide (QIG) for Setup Wizard of DSL-G604T
(for Users in Thailand ONLY)
1.
This quick installation guide is applicable to DSL-G604T with firmware version of
V1.00B02T02.EU.20040818 or higher, which includes Setup Wizard for ADSL
installation.
(Refer to Appendix A on [How to identify the firmware version of DSL-G604T])

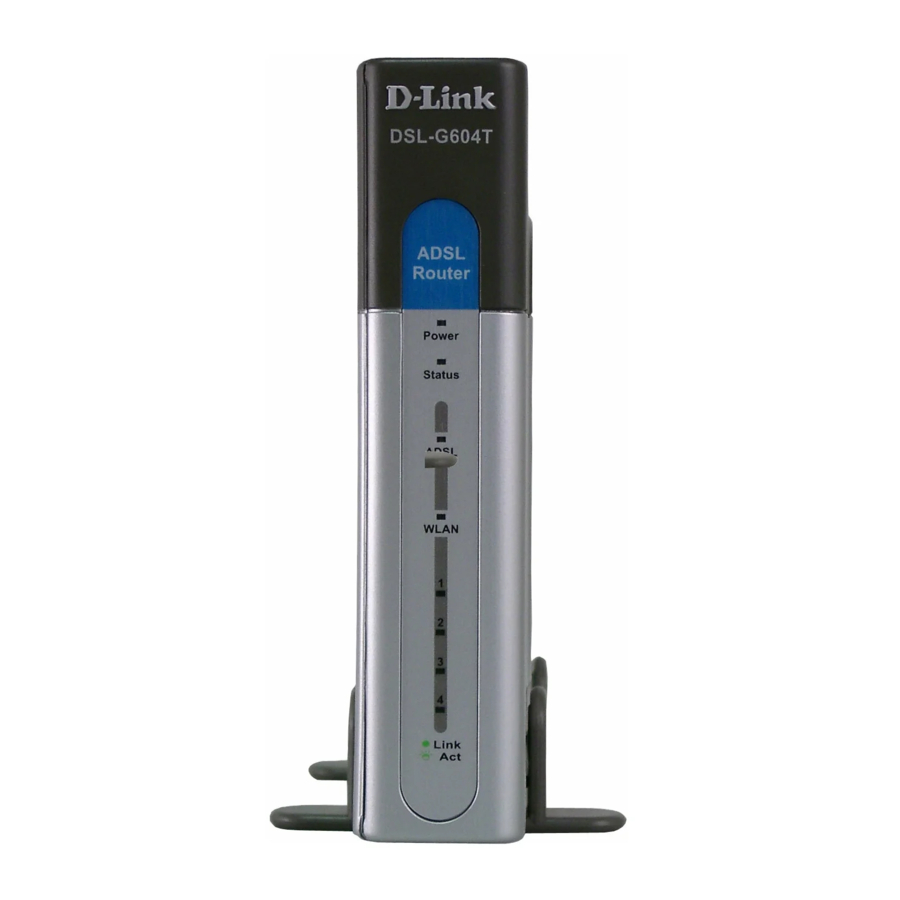

DSL-G604T is a 3-in1 802.11g 54Mbps wireless ADSL router, which has a built-in
ADSL modem. DSL-G604T has integrated 802.11g wireless access point and a four-port
(10/100Mbps) switch. Without additional equipment, DSL-G604T allows all of the
wired & wireless computers in your home or office network to access the broadband
internet at the same time via a single ADSL telephone line.
Follow the steps below to configure DSL-G604T.
igure 1
UTP Straight
Cable
2.
Configure your PC to "Obtain an IP Address Automatically" from DSL-G604T,
which is pre-configured as DHCP server. Connect you PC to DSL-G604T Ethernet port
as shown in Figure 1.
Click Network connection icon at the bottom right hand corner of Microsoft Windows
XP & follow the steps from [i] to [vi]. Once it is completed, the computer is configured
as DHCP client, which will obtain an IP address from DSL-G604T automatically.
Step i
Step iii
QIG for Setup Wizard of DSL-G604T
DSL-G604T
RJ-11 Telephone Cable
Step ii
Step iv
Page 1 of 6
To Telephone
Wall Socket
Micro-Filter
Step v
Step vi
03 Sept 2004
(040903)
