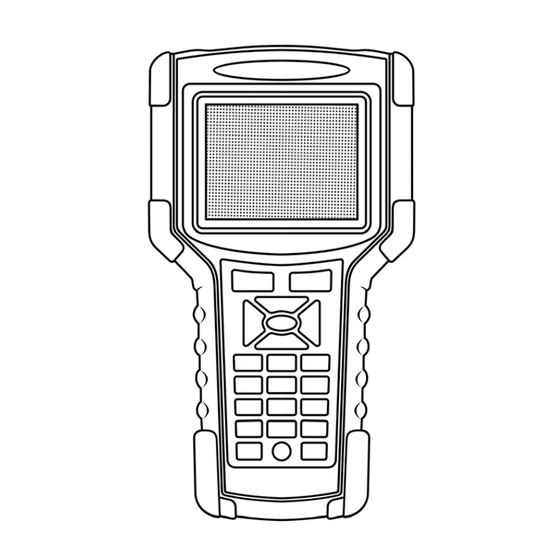

Hanatech MULTISCAN P2 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Summary of Contents for Hanatech MULTISCAN P2

  • Page 3 *Hanatech reserves the right to change, modify the content of this instruction manual for product enhancement both technical and non technical without notice. This may include scan tool graphic displays, vehicle coverage, supported functions both technical, non technical and operating procedures.
  • Page 5 CHAPTER 1 SAFETY AND WARRANTY …………. I. SAFETY INSTRUCTIONS 1 - 2 …………. II. SAFETY PRECAUTIONS 1 - 4 …………. III. WARRANTY SERVICE 1 - 6 …………. FCC RF INTERFERENCE STATEMENT 1 - 8...

  • Page 7: About This Manual

    The information contained in this manual may contain printing errors and is subject to change without notice according to product upgrade. Hanatech shall not be liable for errors contained herein or for incidental or consequential damage in connection with the furnishing, performance, or use of this material.

  • Page 8: Safety Symbols

    USER MANUAL For MULTISCAN P2 I. SAFETY INSTRUCITONS ----------------------- Thank you for purchasing MULTISCAN P2. To get the maximum performance of the equipment, please carefully read this manual first, and keep it at hand. On delivery inspection When the equipment is delivered, a check should be made for any damaged or missing components.
  • Page 9 Chapter 1 Hanatech Co., Ltd. Safety guideline In order to ensure proper operation and satisfactory performance, observe the cautions listed below. DANGER This equipment is designed to comply with IEC61010-1 safety standards, and has been tested for safety prior to shipment. Excessive high voltage measurement or improper operation could result in personal injury, as well as damage to the equipment or the vehicle.

  • Page 10: Ii. Safety Precautions

    USER MANUAL For MULTISCAN P2 II. SAFETY PRECAUTIONS ----------------------- DANGER When an engine is running, keep the workshop area WELL VENTILATED or attach a building exhaust removal system to the engine exhaust system. Engines produce carbon monoxide, an odorless and poisonous gas that causes slower reaction time and may lead to serious injury or death.
  • Page 11 The warning messages above and the safety messages contained hereinafter cover situations Hanatech is aware of. Hanatech cannot know, evaluate or advise you as to all of the possible hazards. You must make sure that any conditions or service procedures encountered do not jeopardize your personal safety.

  • Page 12: Iii. Warranty Service

    III. WARRANTY SERVICE ------------------------- Warranty Period In principle, MULTISCAN P2 is warranted to the customer to be free of defects in material and workmanship for the period of 1 year and 3 years for main board after the date of registration.
  • Page 13 Even in the effective warranty period, if the problem is found to be caused by any of the followings, Hanatech charges the cost for round trip freight and actual cost for the service to the customer, and the shipment back to the customer will be suspended until the customer’s payment is duly made...

  • Page 14: Fcc Rf Interference Statement

    USER MANUAL For MULTISCAN P2 FCC RF INTERFERENCE STATEMENT Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 15: Table Of Contents

    CHAPTER 2 SPECIFICATION AND PARTS …………. I. SPECIFICATION 2 – 1 …………. II. PART LIST 2 – 3 A. Head unit and basic supplies 2 - 3 B. Diagnostic Adapters 2 - 6 C. Software Cartridge 2 - 15 D. Spare Parts 2 - 16 E.

  • Page 17: I. Specification

    Chapter 2 Hanatech Co., Ltd. Specification and Parts Specification ----------------------------------- A. Hardware CPU: 16bit, 33MHz RAM: 1 M byte (SRAM) Program Cartridge Memory: 512MBytes Flash Memory Display: 320×240 Monochrome Graphic LCD with Back Light Key Pad: 20 membrane keys, embossing type...
  • Page 18 USER MANUAL For MULTISCAN P2 C. Mechanical Dimensions Length: 222㎜ / 9" Width: 187㎜ / 7.5" Height: 51㎜ / 2" Weight: 950g / 2.1lb (head unit only) Body Color: Dark Grey Safety Boot Color: Blue All specifications are subject to change without notice for the purpose of product and quality improvement.

  • Page 19: Ii. Part List

    Chapter 2 Hanatech Co., Ltd. II. Part List ----------------------------------------- A. Head unit and basic supplies 1. Head Unit (P/N. 1000-0007) 1) Made of strong ABS resin, each unit has passed internal impact test before shipment. 2) As the inner surface is coated with anti-...
  • Page 20 Includes keys and dial lock 4. Main Data Link Cable (P/N. 3001-0001) Connects vehicle side DLC and MULTISCAN P2 head unit for data transmission. Connecting parts on both ends exactly same,...
  • Page 21 Chapter 2 Hanatech Co., Ltd. removable by unscrewing for the fuse replacement. It may become loose over repeated use, therefore, it is highly recommended to check if it is tightly screwed frequently. A set of plunger parts are included in the basic supplies.

  • Page 22: B. Diagnostic Adapters

    There are two types of adapters: capsulated and wired types. Most of MULTISCAN P2 adapters are capsulated for better durability and storage, however, sometimes it is difficult or almost impossible to connect the capsulated adapter to vehicle side DLC when it is located deep inside beneath the dashboard.
  • Page 23 Improper adapter connection may result in serious malfunction of either control system and MULTISCAN P2 head unit. 4. Honda 3 Pin Adapter and 2 Pin Jump Wire (P/N. 3-pin: 3001-0014, 2-pin wire: 3001-0023)
  • Page 24 USER MANUAL For MULTISCAN P2 5. Mitsubishi and Hyundai 12Pin Adapter (P/N. 3001-0001) Used for the communication with Mitsubishi and Hyundai cars of OBD generation 1. A wire type adapter is provided as the connecting difficulties of capsule type adapter in quite a...
  • Page 25 Check the engraved name and the body color of the adapter carefully before use. Improper adapter connection may result in serious malfunction of either control system and MULTISCAN P2 head unit 9. Subaru 9Pin Adapter (P/N. 3001-0022) Used for the communication with Subaru cars of OBD generation 1.
  • Page 26 Check the engraved name and the body color of the adapter carefully before use. Improper adapter connection may result in serious malfunction of either control system and MULTISCAN P2 head unit 13. Ssangyong 20Pin Rectangular Adapter (P/N. 3001-0005) Used for Ssangyong cars of OBD generation 1.
  • Page 27 16. GM Opel 10Pin Adapter (P/N. 3001-0019) Used for the communication with Opel cars of OBD generation 1. Also available with MULTISCAN P2 Australian Holden, South American Opel European Vauxhall software packages.
  • Page 28 USER MANUAL For MULTISCAN P2 18. Ford EEC-IV (P/N. 3001-0017) Used communication with Australian Ford cars of OBD generation 1, Vehicle side DLC is generally located in the engine compartment. 19. BMW 20Pin Adapter (P/N. 3001-0016) Used for the communication with BMW cars.
  • Page 29 Chapter 2 Hanatech Co., Ltd. 21. Mercedes Benz 38Pin Adapter (P/N. 3001-0015) Used communication with Mercedes Benz cars equipped with 38Pin vehicle side DLC. Applied with C202, CLK208, E210, E124, S140, SL129, SLK170, G463, G461. 22. Mercedes Benz 4Pin Adapter (P/N.
  • Page 30 USER MANUAL For MULTISCAN P2 24. Internal ULTRAPLEXER (P/N. 3001-0032) Chrysler 12+16Pin cable 15Pin D Sub (to Main Cable => Scanner) to 12+16Pin adaptor (to Sebring/Stratus vehicle side adaptor) 25. Fiat 3Pin (P/N. 3001-0031) Used for the communication with OBD1 generation cars of Fiat Group.

  • Page 31: C. Software Cartridge

    2) The appearance and measurements for ULTRASCAN P1 cartridges complies with standard PCMCIA, however, inner circuits are of Hanatech’s own design. Therefore, you can neither use it with the other equipment nor copy its contents to the other standard PCMCIA.

  • Page 32: D. Spare Parts

    Consisted of a software installation CD (P/N. 3005-0002), 5 meter USB cable (P/N. 3000-0014). Enables realtime PC interface of MULTISCAN P2 scanners. Refer to the PC interface section of this manual and the separate HOST- PRO user manual for further information.

  • Page 33: E. Optional Supplies

    Chapter 2 Hanatech Co., Ltd. E. Optional Supplies THERMAL PRINTER 1) A thermal printer (or direct thermal printer) produces a printed image by selectively heating coated thermochromic paper. 2) Two types of Thermal Printer (Size difference) 1) PORTI-SW40/45 (3’’ MOBILE PRINTER) FEATURES •...
  • Page 34 USER MANUAL For MULTISCAN P2 2) PORTI-SC30 (2’’ MOBILE PRINTER) FEATURES • Pocket size (75.5 x 112 x 34mm) • Light weight(224g) for true mobility • Very silent printing thru direct thermal printing method • High speed (80mm/sec, MAX) •...
  • Page 35 CHAPTER 3 OPERATING MULTISCAN P2 …………. GETTING STARTED 3 – 1 A. Head unit 3 – 1 B. Main DLC Cable 3 – 2 C. Power Supply 3 – 3 D. Contrast 3 – 5 …………. CONTROL KEYS 3 – 6 A.

  • Page 37: Getting Started

    Chapter 3 Hanatech Co., Ltd. Operating MULTISCAN P2 Getting Started--------------------------------- A. Head Unit ①. LCD Display ②. Key Pad (may be designed differently) ③. 12V Power Jack Connection ④. 15-pin Main DLC Cable Connection ⑤. USB port ⑥. RS232 Serial Communication Port ⑦.
  • Page 38 USER MANUAL For MULTISCAN P2 B. Main DLC Cable 1. Connection to the head unit a. The male connectors in both ends of the main DLC cable are exactly same and you can connect any of them to the head unit.
  • Page 39 Chapter 3 Hanatech Co., Ltd. C. Power supply 1. Power supplied through DLC adapter 12V battery power is supplied through most of the DLC adapters except GM/Daewoo 10Pin and Mitsubishi/Hyundai 12Pin adapters 2. Cigarette lighter a. Use the cigarette lighter cable when power is not supplied through the DLC adapter.
  • Page 40 Check the red LED on the round socket turns ON. c. Connect the cigarette lighter power cable connector into the battery power cable socket. 4. Power ON MULTISCAN P2 automatically turns on when power is supplied properly.. Chapter 3 - 4...
  • Page 41 Chapter 3 Hanatech Co., Ltd. D. Contrast a. The LCD display is sensitive to the temperature. It may become too faint when it is cold and too dark when it is hot. b. If the screen is too faint or too dark to read, you can adjust the contrast by turning the contrast dial in the right side of the head unit.
  • Page 42 USER MANUAL For MULTISCAN P2 Control Keys ----------------------------------- A. Keypad The keypad is made of chemistry proofing PVC material that prevents contamination and damage from hazardous oily workshop environment. The membrane keypad is designed and tested to maintain its normal operation over a million keystroke for each.
  • Page 43 If differently defined, key instructions will be given in the bottom of the screen. C. Function keys 1. ESC Used to abort an operation of MULTISCAN P2 or to return to the upper level menu. If differently defined, key instructions will be given in the bottom of the screen. 2. HELP...
  • Page 44 USER MANUAL For MULTISCAN P2 Service Data (Live Data Stream) While live data is being displayed on the screen, select a live data item by moving the highlighted bar, and press this key to view the detailed information about the selected item.
  • Page 45 512MB memory card will appear as below: Should you get any update files from your local distributor or from Hanatech website, please compare the version number and last update date to check if the update is necessary.

  • Page 46: Save Configuration

    USER MANUAL For MULTISCAN P2 B. Special functions 1. Download software You can download the software updates from your PC when you select [1. DOWNLOAD SOFTWARE]. Instructions will be given separately whenever an update is available. Contact your local distributor for the availability of update frequently and keep posted of such events.
  • Page 47 CHAPTER 4 FUNCTIONS …………. DIAGNOSTIC TROUBLE CODE 4 – 1 A. DTC Read 4 – 1 B. DTC Erase 4 – 4 C. DTC Help Tips 4 – 5 …………. II. CURRENT DATA 4 – 6 A. Pulse Signal Type 4 –...
  • Page 49 Many of old Toyota, Honda, Mazda, Hyundai and Kia cars until early 90’s support slow pulse signal output for the DTC reading function. As shown below, MULTISCAN P2 shows the pulse signal being received through the DLC adapter in the top and the received DTC numbers.
  • Page 50 For MULTISCAN P2 You have to count the MIL flashing on the dashboard and manually input the DTC number to MULTISCAN P2 to view the details as below: Long flash signals count for tens and short signals for ones. Input two digits for tens and ones in sequence using the numeric keypad.
  • Page 51 Most of the cars built in 1990’s or later support serial communication with a scanner, and the DTC is read by bi-directional communication. b. MULTISCAN P2 sends a command to the control module to reply with the DTC numbers stored in memory, and the control module replies thereupon.
  • Page 52 2. Serial communication type a. MULTISCAN P2 sends a command to the control module to erase DTC information stored in memory, and the control module replies thereupon. b. Check if DTC information is properly removed by reading the trouble...
  • Page 53 Help tips are provided when you press the [HELP] key after locating the highlighted bar on one of the detected trouble code(s). This function is available when MULTISCAN P2 detects one or more trouble code(s) b. Help tips including trouble code definition, conditions and check points are provided for all Korean cars and Malaysian cars as of May 2003.
  • Page 54 USER MANUAL For MULTISCAN P2 II. Current Data ----------------------------------- (= Data Stream, Live Data, Service Data) A. Pulse Signal Type Data stream is not generally supported for this type of old cars because the speed of pulse signal communication is too slow to read the data stream variables.
  • Page 55 Chapter 4 Hanatech Co., Ltd. C. Data Freeze The [Data Freeze] function places the selected data stream variable on top of the LCD screen so that the user can check and compare desired sensor values continually without having to scroll up and down.
  • Page 56 USER MANUAL For MULTISCAN P2 D. Data Graph MULTISCAN P2 provides the [Data Graph] function for more efficient data analysis. When you press the [1] key after locating the highlight bar on the desired sensor, the sensor data graph will be displayed as shown below.
  • Page 57 Chapter 4 Hanatech Co., Ltd. For each sensor data graph, the name of the sensor and its current value will be simultaneously displayed together. To change the sensor, go back to the previous Service Data display by pressing the [Esc] key, and then choose other sensors.
  • Page 58 USER MANUAL For MULTISCAN P2 E. Help tips When you press the [HELP] key after locating the highlight bar on a certain data stream variable, the help message will be displayed. This works the same for detected Trouble Codes in [Self Diagnosis] function.
  • Page 59 Chapter 4 Hanatech Co., Ltd. III. Actuation Test --------------------------------- The actuation test is a very helpful function that temporarily activates or stops a certain actuator such as an injector, a motor or a solenoid by force, so that the user can evaluate the system's condition or the part’s normal operation by observing its reaction...
  • Page 60 USER MANUAL For MULTISCAN P2 A. Menu Selection Choose [ACTUATION TEST] from the function Selection Menu The name of the actuator to be tested, test method and the test condition are shown in the display. Available actuators, test methods and conditions may differ in each vehicle.
  • Page 61 Chapter 4 Hanatech Co., Ltd. while engine is idling, and it will make engine stall or unstable. Testing a fan or an injector is easy to check the proper reaction as it generates distinctive changes in vehicle condition such as fan whining or unstable idling.
  • Page 62 P2 can 'record' data stream during the vehicle drive test and the recorded data can be 'retrieved' later for intensive analysis of vehicle's condition. MULTISCAN P2 has a menu, so called “Record Replay” same as Black Box function and you can understand “Record Replay” as Black Box function A.
  • Page 63 During a normal test, the [Data Stream] frames pass by in rapid succession, and cannot be recalled unless the data has been saved. Thanks to its extensive internal memory, MULTISCAN P2 can record up to 2040 frames of Data Stream for multiple cars.
  • Page 64 D. PID(Live data parameter) selection You are required to select the parameters to record. MULTISCAN P2 will show you the whole live data parameters available in the control system you selected. Locate the highlight bar on the desired parameter and press the [ENTER] key.
  • Page 65 There are three trigger modes in the black box function. Continuous Record Mode (No trigger mode) MULTISCAN P2 will record live data of selected parameters up to 2040 frames or until you press the [ESC] key. Percentile memory usage and sampling time(frequency) will appear in the center of the screen while recording data, and the actual live data values will remain unchanged.
  • Page 66 USER MANUAL For MULTISCAN P2 Automatic Trigger Mode (Triggered by DTC) MULTISCAN P2 will keep recording live data of selected parameters up to 128 frames. Once a DTC is detected or the [ESC] key is pressed by the user, it will proceed with recording remaining frames up to 2,040 or until you abort.
  • Page 67 Hanatech Co., Ltd. Manual Trigger Mode MULTISCAN P2 will keep recording live data of selected parameters up to 128 frames, and once the [ESC] key is pressed by the user, it will proceed with recording remaining frames up to 2040.
  • Page 68 When pressed [YES], a dialog box follows and asks you to input the test date. Enter the date and press the [ENTER] key to save the recorded data to MULTISCAN P2 memory. Pressing the [ESC] key cancels saving data. Date format is DD-MM-YYYY(D-day, M-month, Y-year), and only numeric values are available.
  • Page 69 Chapter 4 Hanatech Co., Ltd. G. Black Box Data Load You can load saved data by choosing [BLACKBOX RECORD LOAD / ERASE] from the [Car Manufacturer Selection] menu as shown below: A list of recorded Black Box Data will follow for your selection...

  • Page 70: Data Format

    2. Data Replay Press the [YES] key then the saved black box data will start replaying. MULTISCAN P2 preserves the refresh time intervals of Black Box data. Therefore, Black Box data is replayed at the same speed as when it was originally recorded.
  • Page 71 Chapter 4 Hanatech Co., Ltd. If you want to go forward or backward faster, press the [◀] or [▶] key while replaying. Replay speed will restore to the original speed when the key is released. Pressing the [YES] key will pause the replay. You can resume replaying from the frame where it was paused by pressing the [YES] key again.
  • Page 72 USER MANUAL For MULTISCAN P2 3. Graph As previously explained in section [3. Service Data], data from up to three selected parameter data can be graphed. Make sure that the Black Box data replay is stopped. If it is being replayed or paused, press the [NO] key to stop replaying completely.
  • Page 73 Chapter 4 Hanatech Co., Ltd. Up to 316 frames can be displayed on a single page. If recorded data has more than 316 frames, you can shift to next or previous page by using the [▲] and [▼] keys. The dotted line indicates from which frame the live data parameter values are being displayed.
  • Page 74 USER MANUAL For MULTISCAN P2 4. DTC You can check the DTC(s) found during recording Black Box Data. Make sure that the Black Box data replay is stopped. If it is being replayed or paused, press the [NO] key to stop replaying completely.
  • Page 75 OBD generation 1 are located quite randomly and sometimes it is very difficult to find. MULTISCAN P2 has the vehicle side adapter location maps for some car make to aid the user in locating the adapters. The locations suggested in this function are purely from Hanatech’s experience, therefore, it may contain incorrect information.
  • Page 76 USER MANUAL For MULTISCAN P2 The maps are provided in the order of most frequently found location. Press Up or Down key to view the next or previous map. Press the [ESC] key to return to vehicle selection menu. Location maps for Korean cars are based on Left Hand Drive vehicles, and the others such as Japanese, Australian and Malaysian cars are based on Right Hand Drive cars.
  • Page 77 Hanatech recommends this function to be used only by the trained and authorized technicians with thorough understanding of the whole procedure, for lawful repair purposes only.
  • Page 78 USER MANUAL For MULTISCAN P2 Read the whole disclaimer by using the [up] / [down] arrow keys, and type in the last 4 digits of the serial number in the bottom of the screen and then press the [YES] key to proceed to the next step.
  • Page 79 LITERAL DEFINITION OF OBD2 5 – 1 …………. II. MORE PRACTICAL NOTES 5 – 2 A. Technical meaning of OBD2 5 – 2 B. Generic and Enhanced OBD2 5 – 3 …………. III. MULTISCAN P2 and OBD2 5 – 5...
  • Page 81 Chapter 5 Hanatech Co., Ltd.. Generic OBD2 Literal definition of OBD and OBD2------- OBD is an abbreviation for On Board Diagnostics. OBD-1 is in reference to Title 13 California Code 1968 titled "Malfunction and Diagnostic System for 1988 and Subsequent Model Year Passenger Cars, Light-Duty Trucks, and Medium-Duty Vehicles with Three-Way Catalyst Systems and Feedback Control."...
  • Page 82 USER MANUAL For MULTISCAN P2 II. More practical notes -------------------------- A. Technical meaning of OBD2 1. Standardization For the technicians and scan tool engineers, OBD2 has its technical meaning as bringing the standardized methods of vehicle diagnosis to the chaotic aftermarket where dozens of car make use different diagnostic adapters and communication protocols of their own.
  • Page 83 Chapter 5 Hanatech Co., Ltd.. B. Generic OBD2 and Enhanced OBD2 1. Generic OBD2 a. OBD2 was implemented for the emission control. Therefore, the standardization is limited to powertrain system that is directly related to emission control. It is not mandatory for the other systems such as ABS and SRS b.
  • Page 84 OBD generation 1 but only the appearance of diagnostic adapter. This is so called MOBD or manufacturer’s OBD. c. With MULTISCAN P2, MOBD communication is supported for all car makes that are included in the coverage list.
  • Page 85 You will find General OBD2 (OBD2/EOBD)category in the initial menu. Selecting [2.OBD2/EOBD] will be followed by the diagnostic adapter suggestion. Press the [ENTER] key to proceed. MULTISCAN P2 then automatically tries to establish communication with the powertrain control module using standard OBD2 communication protocols in turn.
  • Page 86 USER MANUAL For MULTISCAN P2 When succeeded in communicating with the control module with any of these 4 standard protocols, MULTISCAN P2 reports the successful establishment of communication and waits for your command to commence generic OBD2 diagnosis as below:...
  • Page 87 Chapter 5 Hanatech Co., Ltd.. In case the control module does not respond after trying all OBD2 standard protocols, MULTISCAN P2 shows the failure report and check points as below: 2. When to select You may select this General OBD2 when you are sure that the test vehicle is OBD2 compliant but not included in the vehicle coverage list.
  • Page 89 CHAPTER 6 GAS ANALYSER INTERFACE …. 6 – 2 Set Up 6 – 6 II. Operation...
  • Page 91 Gas Analyser Interface The interface between the scanner and the gas analyser is available between Gas analyser and MULTISCAN P2 scanner. HOST-PRO PC interface program is also necessary to add the real-time PC interface features. This chapter of the manual explains the operation of scanner side for the interface.
  • Page 92 USER MANUAL For MULTISCAN P2 I. Set up ------------------------------------------- A. Power supply Refer to Gas analyser manual when using the analyser alone without interfacing with the scanner. This chapter explains the operation when the gas analyser is used in the vehicle interfaced with the scanner.
  • Page 93 B. Cabling 1. Scanner – Gas analyser interface Connect the 9-pin male connector of the gas analyser interface cable to MULTISCAN P2 RS232 adapter. Connect the 9-pin female connector to the gas analyser. 2. Adding PC to the network Using HOST-PRO real-time PC interface, you can connect MULTISCAN P2 with your PC maintaining the interface between the scanner and the gas analyser.
  • Page 94 USER MANUAL For MULTISCAN P2 HOST-PRO is scheduled to be supplied free of charge for MULTISCAN If a printer is installed to the PC, you can print out the measurements with the printer regardless of brand name, model and supported print mode.
  • Page 95 Hanatech Co., Ltd. C. Power supply Connect one end of the secondary power cable that is supplied with the gas analyser to the auxiliary power socket of cigarette lighter plug, and the other end to MULTISCAN P2. Chapter 6 - 5...
  • Page 96 There are two ways you can get the gas readings using scanner interface: Remote control mode MULTISCAN P2 works as a remote control module. All screenplays of the gas analyser are transferred to MULTISCAN P2 and you can control the operation of the gas analyser with the scanner. Data Stream mode MULTISCAN P2 works as a data receiver.

  • Page 97: Menu Selection

    You have to set the gas analyser to be ready for scanner interface by selecting [Scanner communication mode] after pressing the [MENU] key of the gas analyser before initiating MULTISCAN P2 & gas analyser interface function. Refer to the gas analyser manual for further information.
  • Page 98 Gas readings are listed in the last part of the scanner data stream 1. Usual scanner menu selection a. Select a specific model name and system you want to test as usual. The procedure is the same as using MULTISCAN P2 separately. Chapter 6 - 8...
  • Page 99 When you select [Service Data (=data stream, live data)] from the function menu, following query follows when the gas analyser is interfaced with MULTISCAN P2. In case these two machines are not interfaced, MULTISCAN P2 will skip this menu selecting procedure.
  • Page 100 2. Data stream with gas readings Gas readings are available only when the gas analyser is properly interfaced with MULTISCAN P2 and ready for data transmission. Refer to the gas analyser manual for further information. You can find the gas readings in the end of data listing.
  • Page 101 Chapter 6 Hanatech Co., Ltd. 3. Data Freeze / Graph a. You can place up to 5 sensor or gas readings on the top of the screen by pressing the [ENTER] key after locating the highlighted bar on the item.
  • Page 102 MULTISCAN P2 memory using this function. Black box function of MULTISCAN P2 scanner works the same in the gas analyser interface mode as well. Refer to [Chapter 4. Functions] for further information. b. To record data stream and gas readings together, select [Blackbox Data] from the function menu after selecting a system to test.
  • Page 103 Chapter 6 Hanatech Co., Ltd. 5. Host-Pro a. By utilizing HOST-PRO realtime PC interface, you can view the live data stream and gas readings on your PC screen. You can also replay the saved balckbox data. b. Refer to the separate HOST-PRO manual for further information of the...
  • Page 105 CHAPTER 7 TROUBLE SHOOTING …. Would not turn on when the power cable is pressed 7 – 2 7 – 3 Power automatically turns off after turn on 7 – 4 Power doesn’t turn off even the power key is pressed ….
  • Page 107 Please always refer to this troubleshooting guide and do as suggested herein when you have any trouble while using MULTISCAN P2 equipment in advance to calling up your local distributor. The manufacturer keeps endeavoring to minimize the possible troubles, therefore, remedies to prevent listed problems can be made without notice to individual users.
  • Page 108 USER MANUAL For MULTISCAN P2 Scanner would not turn on when the Power key is pressed Check the power cable connection YES. The cable is firmly connected NO. It was not properly connected Reconnect the power cable firmly NO. It still does not work Check if the red LED’s on both...
  • Page 109 Chapter 7 Hanatech Co., Ltd. Power automatically turns off after turned on Check if the user pressed Power key continually It may sound stupid, but it actually happens out there. If the user presses the “Power” key too long, Scanner recognizes the long key input signal as a turning off command.
  • Page 110 USER MANUAL For MULTISCAN P2 Power doesn’t turn off even the Power key is pressed Check if the user pressed Power key shortly If the you press the “Power” key too short, Scanner does not recognize the key input signal as a turning off command.

  • Page 111: Keypad Test

    Chapter 7 Hanatech Co., Ltd. Improper response to Key input Keypad Test In case of any trouble with the keypad operation, please do the keypad test. Press ESC from the initial menu to go to the configuration menu. Choose [Keypad test] function. Refer to Chapter 3.
  • Page 112 USER MANUAL For MULTISCAN P2 LCD screen problems The display is too dim or too dark Adjust the contrast using the contrast wheel on the right side of Scanner LCD stands for Liquid Crystal Display, and it is very sensitive to temperature.
  • Page 113 Chapter 7 Hanatech Co., Ltd. LCD screen problems Backlight doesn’t turn on Press the [Backlight] button When you press the [Backlight] button marked [ ], the backlight must be turned-on with a faint ticking sound. Please contact your local distributor for further assistance if the key doesn’t...
  • Page 114 USER MANUAL For MULTISCAN P2 System fails promptly after showing brand logo System fails with continuous BEEP sound and erratic display Remove power then turn ON again No, it doesn’t work. It stops again. Remove power. Remove the cartridge from the slot then Turn power ON.
  • Page 115 Chapter 7 Hanatech Co., Ltd. Communication Error Check the cable connection Check the followings Main data link cable is firmly connected to the Scanner head unit The correct adapter is firmly connected to the main data link cable The adapter is firmly connected to the vehicle side connector.
  • Page 116 Automotive Diagnostic Solutions Global Standard MULTISCAN P2 CE Marked Hana-B/D, 1032-39, Wonpyeong-dong, Gumi-si(Gumi city), Gyeongsangbuk-do(Gyeongbuk), Korea. Postal Code: 730 924 Phone: +82-54-454-9009 Fax: +82-54-454-8554 Website: http://www.hanatech.net © Copyright 2010 by Hanatech Co., Ltd. Published in Korea Chapter 7 - 10...
