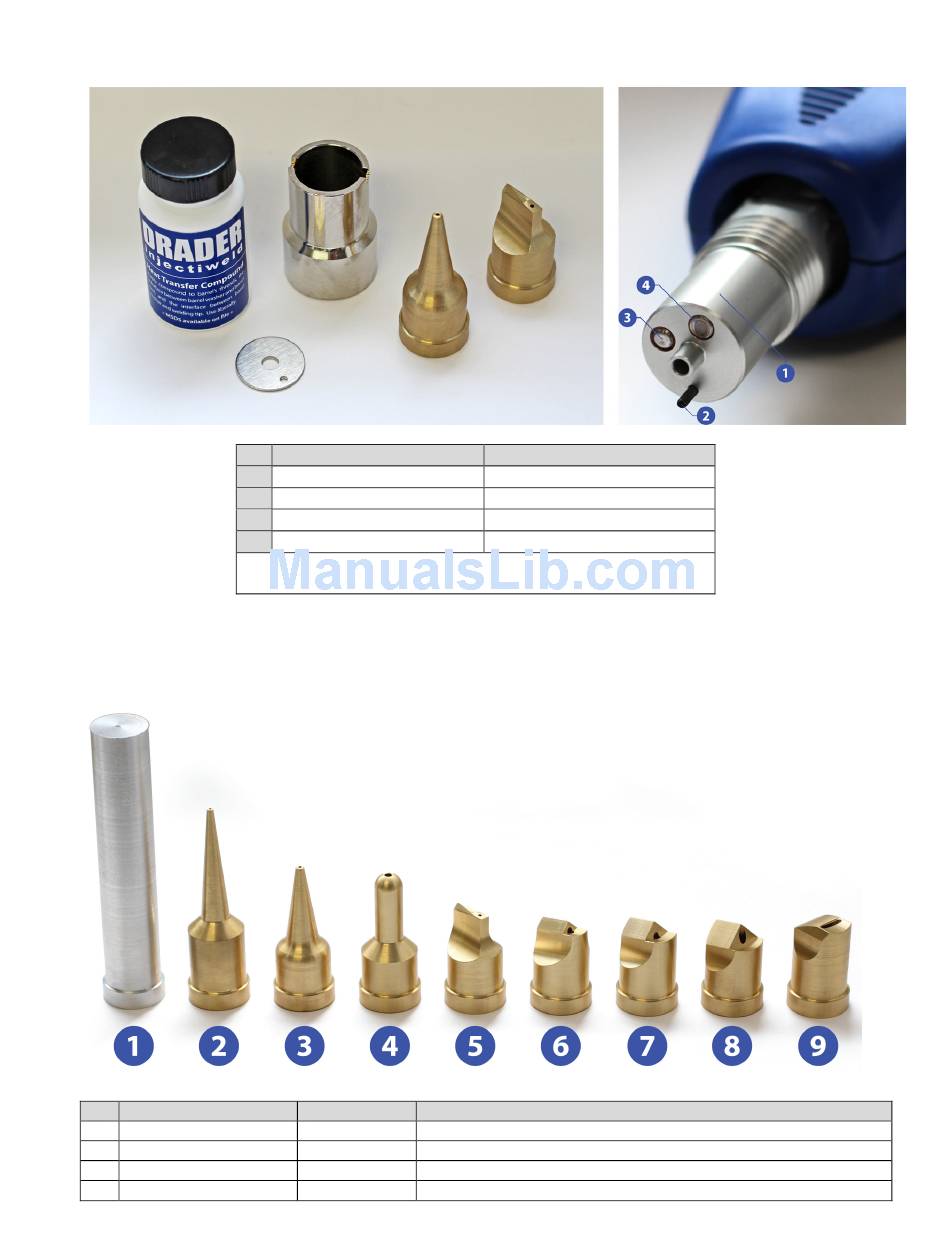

The heated barrel and tip system

#
1 W30000 Barrel
2 Indexing Pin
3 RTD Sensor
4 Heater
Please note, there are other barrel parts that are not listed here

Welding tip selection

The correct tip will make a difference on quality and appearance of the weld. There are different tips for
various applications. The two welder kit tips are the repair tip (# 2 in photo) and the 3/16" fillet weld tip
(# 5 in photo).
# Description
1 Blank Tip
2 Prototyping Tip
3 Repair Tip
4 Bull-Nose Tip
Description
Item ID Main Usage
ITIP-2BL-5.5 Custom tips; design your own for your special application
ITIP-2PR Prototyping, repairs, filling holes, spot welding tight areas
ITIP-2RP Repairs, filling holes, spot welding tight areas, prototyping
ITIP-2BN Repairs, filling holes, filling voids
Item ID #
IPAR-A-BARW30
(Shop Supply)
IPAR-A-RTDSEN
(Various ID numbers)
Pg. 7
