SSS Siedle AS-Ta-64/1 System Manual

SSS Siedle AS-Ta-64/1 System Manual

1+n system
Hide thumbs Also See for AS-Ta-64/1:
Table of Contents

Advertisement

Quick Links

System Manual
1+n technology
Issue 2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AS-Ta-64/1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SSS Siedle AS-Ta-64/1

Summary of Contents for SSS Siedle AS-Ta-64/1

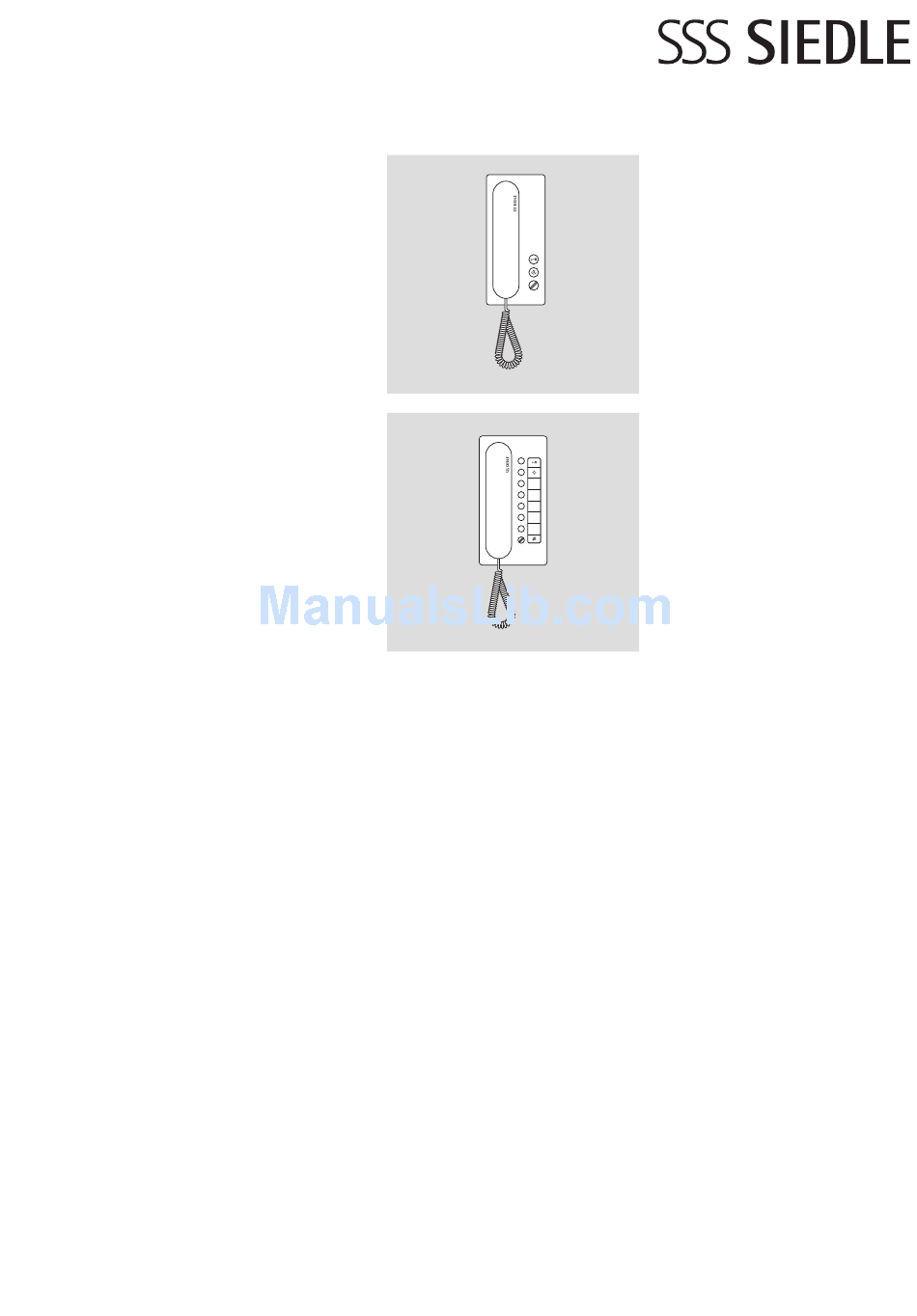

  • Page 1 System Manual 1+n technology Issue 2013...

  • Page 2: Table Of Contents

    NS 711-… Pilfer safeguard DSC 602-… 5 Installation Staircase light/Outside light Door station installation 14-15 LED actuation, potential-free buttons AS-Ta-64/1 Siedle Vario AS-Ta-64/1 Siedle custom-fit door loudspeaker 7 Servicing Exchange/extension AS-Ta-64/1 Siedle Classic AS-Ta-64/1 Siedle Steel Measured values AS-Ta-64/1 Siedle Vario...

  • Page 3: Safety Remarks

    1 1+n technology 2 Safety remarks System description Wire-saving 1+n technology Configuration Mounting, installation and servicing The wire-saving 1+n system is based work on electrical devices may only on an installation with a common be performed by a suitably qualified core and a call core ãn“...

  • Page 4: Configuration, Conductor Lengths

    3 Configuration, conductor lengths 1+n technology Configuration of the 1+n system Functions The basic installation is performed • Door call: Ringing at the front as a side circuit installation.The door door (door station) and speech con- stations and in-house telephones nection are routed to the sub-distributor.
  • Page 5 For the entire conductor length in the 1+n system, the following applies: with cable material YR or J-Y(St)Y with 0.8 mm diameter • max. 500 m/1640 ft between the door station and the most distant in- house telephone • max. 100 m/328 ft between the line rectifier and the most distant door station •...

  • Page 6: Overview

    3 Configuration, conductor lengths Overview Parallel door stations Connection of the telephone Secondary signal unit Up to 8 door stations can be con- system A secondary signal unit NS 711-… nected in parallel without the need One or more door stations using 1+n can be connected in parallel to for any further accessories.

  • Page 8: Device Overview

    4 Device overview Door loudspeakers, call buttons TLM 612-02 can be triggered directly from the Door loudspeaker module for the in-house telephone via the wire- wire-saving 1+n system. saving side circuit installation. con- Front louvre made of weather- and nection facility for SFC 602-... and UV-proof polycarbonate, tropical- CTÖ 602-...

  • Page 9: Door Station

    4 Device overview Door station Siedle Classic 5 mA, 12 V AC. Acoustic feedback CL A 01 N-02 - CL A 08 N-02 when the call button is pressed. Door station with stainless steel front. Door loudspeaker and illu- minated call buttons. Integrated door release contact (DR), contact load max. 15 V AC, 30 V DC, 2A, switching time DR fixed at 3 sec-...

  • Page 10: Power Supply, Line Rectifiers

    4 Device overview Power supply, line rectifiers Controller NG 602-... Bus line rectifier in a 6-grid housing. Primary: 230 V AC, 50/60 Hz Secondary: 12 V AC, 1.6 A and 23.3 V DC - 0.3 A stabilized. Supply to the 1+n system, door release and lighting for the call button modules. TR 603-...
  • Page 11 4 Device overview Controller SFC 602-... Switching/remote controller in 3-grid housing for the execution of 4 switching/control functions. 1 relay with changeover contact and 3 relays with 1 working contact each. Actuation using buttons 1–6, light or door release possible. Supply 12 V DC, max. 250 mA Max. contact load 24 V, 2 A AC/DC ETC 602-...

  • Page 12: Doorcom

    4 Device overview DoorCom DCA 612-... DoorCom-Analog for connection of one or more door stations to an analog PBX extension of a telephone system. Up to 3 call buttons can be connected. 12 V AC supply to terminals b/c, connection to the 1+n system using cores 1 and 7.1-7.3.

  • Page 13: In-House Telephones, Accessories

    4 Device overview In-house telephones, accessories HTS 811-0 Standard in-house telephone with the functions: • Calling, speech, door release and storey call • Door release and light button • Rotary controller for ring tone volume with integrated muting • Door call as 3-tone call, storey call as 2-tone call •...

  • Page 14: Installation

    5 Door station installation Door station installation The door loudspeaker module (TLM 612-… and call button module TM 612-…) are each inserted in the relevant terminal block. The circuit diagram illustrates the two terminal blocks of the TLM 612-… and TM 612-… Terminal 1 All in-house telephones When switching several doors in parallel the terminal TLn must...
  • Page 15 Block diagram of the call button module TM 612-1 • In the idle status, the in-house telephone is supplied with power via the terminal +. • Potential-free call contact between terminal 6 and 7.1 • The audio privacy device in the door loudspeaker is actuated and communication takes place via ter- minal 11.

  • Page 16: As-Ta-64/1 Siedle Vario

    5 Installation AS-Ta-64/1 Siedle Vario...
  • Page 17 AS-Ta-64/1 Siedle Vario Supplementary functions • Internal speech communication Functional between the in-house telephones Calling and speech between the HTC 811-… and group controller door station and connected in-house GC 612-… is possible. telephones HTS/HTC 811-… An • Switching and control functions existing call cannot be listened in to are possible with the switching/ from other in-house telephones.

  • Page 18: As-Ta-64/1 Siedle Custom-Fit Door Loudspeaker

    5 Installation AS-Ta-64/1 Siedle custom-fit door loudspeaker...
  • Page 19 AS-Ta-64/1 Supplementary functions Siedle custom-fit door loud- • Internal speech communication speaker between the in-house telephones HTC 811-… and group controller Functional GC 612-… is possible. Calling and speech between the • Switching and control functions door station and connected in-house are possible with the switching/ telephones HTS/HTC 811-…...

  • Page 20: As-Ta-64/1 Siedle Classic

    5 Installation AS-Ta-64/1 Siedle Classic...
  • Page 21 AS-Ta-64/1 Siedle Classic Supplementary functions • Internal speech communication Functional between the in-house telephones Calling and speech between the HTC 811-… and group controller door station and connected in-house GC 612-… is possible. telephones HTS/HTC 811-… An • Switching and control functions existing call cannot be listened in to are possible with the switching/ from other in-house telephones.

  • Page 22: As-Ta-64/1 Siedle Steel

    5 Installation AS-Ta-64/1 Siedle Steel...
  • Page 23 AS-Ta-64/1 Siedle Steel Supplementary functions The Siedle-Steel door station STL … • Internal speech communication is fully wired in the factory. Functional between the in-house telephones Calling and speech between the HTC 811-… and group controller If there are several door stations door station and connected in-house GC 612-…...

  • Page 24: As-Ta-64/1 Siedle Vario

    5 Installation AS-Ta-64/1 Siedle Vario with DoorCom Analog DCA 612-…...
  • Page 25 AS-Ta-64/1 Siedle Vario with Supplementary functions d) The maximum distance of the DoorCom Analog DCA 612-… • Internal speech communication DCA 612-… to the NG 602-… is between the in-house telephones 20 m. For greater distances, an Functional HTC 811-… and group controller additional transformer is required Calling and speech between the GC 612-…...

  • Page 26: As-Ta-64/2 Siedle Vario

    5 Installation AS-Ta-64/2 Siedle Vario with 2 door stations...

  • Page 27: With 2 Door Stations

    AS-Ta-64/2 Siedle Vario Supplementary functions with 2 door stations • Internal speech communication between the in-house telephones Functional HTC 811-… and group controller Calling and speech between the GC 612-… is possible. door station and connected in-house • Switching and control functions telephones HTS/HTC 811-…...

  • Page 28: Custom-Fit Door Loudspeaker With 2 Door Stations

    5 Installation AS-Ta-64/2 Siedle custom-fit door loudspeaker with 2 door stations...
  • Page 29 AS-Ta-64/2 Siedle custom-fit door Supplementary functions loudspeaker with 2 door stations • Internal speech communication between the in-house telephones Functional HTC 811-… and group controller Calling and speech between the GC 612-… is possible. door station and connected in-house • Switching and control functions telephones HTS/HTC 811-…...

  • Page 30: As-Ta-64/3 Siedle Vario With 3 Door Stations

    5 Installation AS-Ta-64/3 Siedle Vario with 3 door stations...
  • Page 31 AS-Ta-64/3 Siedle Vario Supplementary functions with 3 door stations • Internal speech communication between the in-house telephones Functional HTC 811-… and group controller Calling and speech between the GC 612-… is possible. door station and connected in-house • Switching and control functions telephones HTS/HTC 811-…...

  • Page 32: As-Ta-74/1 Siedle Vario, Internal Speech Communication

    5 Installation AS-Ta-74/1 Siedle Vario, internal speech communication...
  • Page 33 AS-Ta-74/1 Siedle Vario, Supplementary functions internal speech communication • Switching and control functions are possible with the switching/ Functional remote controller SFC 602-… Calling and speech between the • A secondary signal unit NS 711-… door station and connected in-house is possible in parallel with an in- telephones HTC 811-…...
  • Page 34 5 Installation AS-Ta-84/1 Siedle Vario 1 main door station, 1 storey door station...

  • Page 35: As-Ta-84/1 Siedle Vario

    AS-Ta-84/1 Siedle Vario Supplementary functions 1 main door station, • Internal speech communication 1 storey door station between the in-house telephones HTC 811-… and group controller Functional GC 612-… is possible. Calling and speech between the • Switching and control functions door station and connected in-house are possible with the switching/ telephones HTS/HTC 811-…...

  • Page 36: As-Ta-85/1 Siedle Vario 3 1 Main Door Station

    5 Installation AS-Ta-85/1 Siedle Vario 1 main door station, 1 storey door station, internal speech communication...
  • Page 37 AS-Ta-85/1 Siedle Vario Connection of additional in-house f) In the in-house telephones 1 main door station, telephones or door stations possible HTC 811-… DIL switch 5 must be 1 storey door station, without switchover device. To ensure set to OFF. For more information on internal speech communication tamper-proof connection of the the group controller GC 612-…...

  • Page 38: As-Ta-94/1 Siedle Vario, Group Switching With Internal Speech Communication

    5 Installation AS-Ta-94/1 Siedle Vario, group switching with internal speech communication...
  • Page 39 AS-Ta-94/1 Siedle Vario, Supplementary functions group switching with internal • Switching and control functions speech communication are possible with the switching/ remote controller SFC 602-… Functional • A secondary signal unit NS 711-… Calling and speech between the is possible in parallel with an in- door station and connected in-house house telephone HTS/HTC 811-…...

  • Page 40: Supplementary Functions Group Controller Gc

    6 Supplementary functions Group controller GC 612-… The group controller GC 612-… in Speech connection • DIL switch 8 the 6-grid housing is used for the For each group controller, only one Control functions 5 and 6 connection of a group of max. 6 call can be held.
  • Page 41 Application Activate the programming mode at Assignment of door call inputs the GC 612-…, the status LED starts 7.1–7.6 to in-house telephones 1–6. to flash. When reprogramming door calls, the same applies to new programming, i.e. the existing programming is Select the relevant telephone using overwritten.

  • Page 42: Switching/Remote Controller

    6 Supplementary functions Switching/remote controller SFC 602-… The switching/remote controller in • 1 rotary switch for setting the Specifications a 3-grid housing is used to execute switching time, when relays 1 and Operating voltage: 12 V AC a maximum åof 4 central switching 2 are used as timers.
  • Page 43 Appliance requirement Remarks Connection of an SFC 602‑… in the circuit AS‑Ta/64‑1. All connected in‑house telephones can initiate switching functions of the SFC 602‑…...

  • Page 44: Storey Controller Etc 602

    6 Supplementary functions Storey controller ETC 602-… The storey controller in the 6-grid Call differentiation HTC 811-… housing is used to connect a storey at ETC 602-… door station. Up to a maximum of Main (side circuit) door call: 3-tone 7 storey door stations can be con- call nected to a storey controller.

  • Page 45: Secondary Signal Controller

    6 Supplementary functions Secondary signal controller NSC 602-… Using the secondary signal controller NSC 602-… an additional secondary signal unit or a radio chime can be actuated in parallel with the door and storey call. There are 2 poten- Door call tial-free work contacts available for this purpose which have a common Storey call...

  • Page 46: Controller Door Release Ctö 602

    D+/D- of the Siedle door loud- 0 °C to +40 °C speaker TLM 612-… or TLE 061-… Horizontal pitch (HP): 3 Dimensions (mm) W x H x D: For selective actuation of the door 53.5 x 89 x 60 release, one CTÖ 602-… is required per door loudspeaker. AS-Ta-64/1 with CTÖ 602-… Appliance requirement Remarks...
  • Page 47 AS-Ta-64/2 with CTÖ 602-… Both door releases have a tamper- proof connection. The mode of operation and func- tional characteristics are identical to AS-Ta-64/2 on page 28. Appliance requirement Remarks...

  • Page 48: Parallel Switching In-House Telephones

    6 Supplementary functions Parallel switching in-house telephones Parallel switching HTS/ HTC 811-… Using 1+n technology, a maximum of 2 in-house telephones can be operated in parallel. Accessories NSC 602-… and NS 711-… also count as parallel devices. Via a GC 612-… it is possible to call up to 6 in-house telephones in parallel.

  • Page 49: Pilfer Safeguard Dsc 602

    6 Supplementary functions Pilfer safeguard DSC 602-… Pilfer safeguard for Vario mod- ules Bistable magnet for integration in mounting frame MR 611-… Application To secure valuable modules such as camera modules, code lock modules or to ensure tamper-proof operation of the door release. A stable metal plate locks the opening mechanism and prevents modules from being removed.

  • Page 50: Staircase Light/Outside Light

    6 Supplementary functions Staircase light/Outside light Light actuation Using the light button in in-house telephones HTS/ HTC 811-… the light contact is closed in the door loudspeaker for 0.8 seconds. The reference for this contact is terminal c. Pick-up at terminal Li. Following completion of the installation, this function is active without any further...

  • Page 51: Led Actuation, Potential-Free Buttons

    6 Supplementary functions LED actuation, potential-free buttons LEDs The in-house telephones HTC 811-… are equipped with two LEDs. The LEDs are located under the buttons 3 and 4, actuation can take place using direct or alternating voltage. • La1 and La2: 10–15 V AC, max. 10 mA •...

  • Page 52: Exchange/Extension

    7 Servicing Exchange/extension The in-house telephones HTS/ HTC 811-… can be used in existing 1+n systems with the predecessor models HTS/HTC 711-… Exchange of HTS/HTC 711-… units for HTS/ HTC 811-… units is possible. The terminal designations of the in- entfällt house telephones are identical. The HTC 811-…...

  • Page 54: Measured Values

    7 Servicing Measured values Measured values in the 1+n system, for measurement using a digital multimeter Idle status Voltage door station Voltage in-house telephone Description Terminal 1 and 7… Terminal 1 and 7 22–24 V DC 0 V DC No in-house telephone connected, core interrupted, in-house telephone defective.
