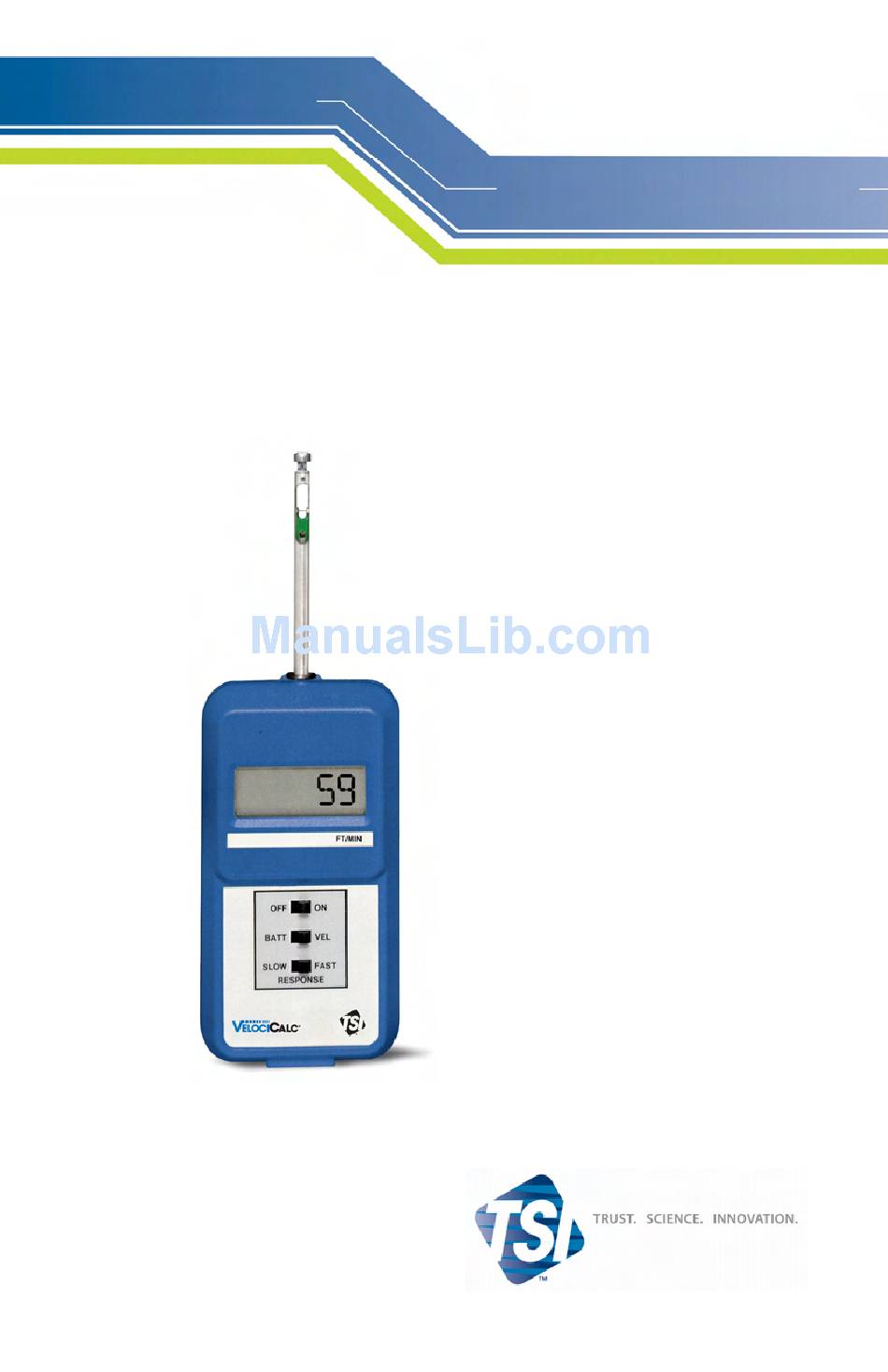

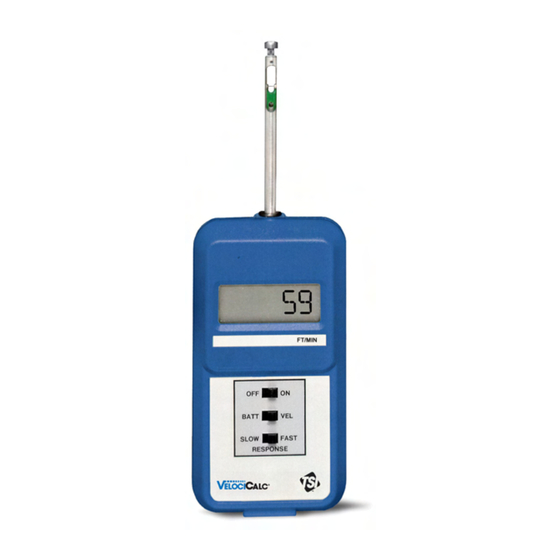

- Page 1 ENERGY AND COMFORT Ventilation Testing ® ELOCI Air Velocity Meter Model 9525 Operation and Service Manual...
- Page 2 Copyright© TSI Incorporated / May 2007 / All rights reserved. Address TSI Incorporated / 500 Cardigan Road / Shoreview, MN 55126 / USA Fax No. (651) 490-3824 LIMITATION OF WARRANTY AND LIABILITY (effective July 2000) Seller warrants the goods sold hereunder, under normal use and service as described in the...
-
Page 3: Table Of Contents
CONTENTS CHAPTER 1 UNPACKING AND PARTS IDENTIFICATION .... 1 CHAPTER 2 SETTING-UP..............3 Supplying Power to the Model 9525..........3 Installing the Batteries ...............3 Using the Telescoping Probe ............3 Extending the Probe ..............3 Retracting the Probe..............3 CHAPTER 3 OPERATION ..............5 Keypad Functions ................5 CHAPTER 4 MAINTENANCE............ -
Page 5: Chapter 1 Unpacking And Parts Identification
Chapter 1 Unpacking and Parts Identification Carefully unpack the instrument and accessories from the shipping container. Check the individual parts against the list of components below. If anything is missing or damaged, notify TSI immediately. 1. Carrying case 2. Instrument... -
Page 7: Chapter 2 Setting-Up
Chapter 2 Setting-up Supplying Power to the Model 9525 V Air Velocity ELOCI Meter The Model 9525 is powered with four size AA batteries. Installing the Batteries Install batteries by loosening the screw in the battery access cover located on the back of the instrument. Insert four AA-size alkaline batteries in the battery tubes according to the polarity indicated on the instrument case under the battery access cover. -
Page 9: Chapter 3 Operation
Chapter 3 Operation Keypad Functions ON/OFF Switch The ON/OFF switch is used to turn on or turn off power to the Model 9525. When the Model 9525 is turned on, it will display approximate battery life in percent for five seconds. BATT/VEL Switch This switch is used to change the display to read air velocity or approximate percentage of... -
Page 11: Chapter 4 Maintenance
Please contact one of TSI’s offices or your local distributor to make service arrangements and to receive a Return Material Authorization (RMA) number. To fill out an online RMA form, visit TSI’s website at http://service.tsi.com. U.S. & International TSI Incorporated 500 Cardigan Road Shoreview MN 55126-3996 Tel: (800) 874-2811 (651) 490-2811... -
Page 13: Chapter 5 Troubleshooting
Chapter 5 Troubleshooting Table 5-1 lists the symptoms, possible causes, and recommended solutions for common problems encountered with the Model 9525. If your symptom is not listed, or if none of the solutions solves your problem, please contact TSI. Table 5-1: Troubleshooting the Model 9525 Symptom Possible Causes Corrective Action... -
Page 15: Appendix A Specifications
Appendix A Specifications Specifications are subject to change without notice. Velocity: Range: 0 to 2000 ft/min (0 to 10 m/s) 1&2 Accuracy ±5% of reading or ±5 ft/min (±0.05 m/s), whichever is greater Resolution: 1 ft/min (0.01 m/s) Instrument Temperature Range: Operating (Electronics): 40 to 113°F (5 to 45°C) Operating (Probe):... - Page 17 TSI Incorporated – 500 Cardigan Road, Shoreview, MN 55126 U.S.A Tel: +1 800 874 2811 E-mail: info@tsi.com Website: www.tsi.com Tel: +44 149 4 459200 E-mail: tsiuk@tsi.com Website: www.tsiinc.co.uk France Tel: +33 491 95 21 90 E-mail: tsifrance@tsi.com Website: www.tsiinc.fr Germany Tel: +49 241 523030 E-mail: tsigmbh@tsi.com Website...
