Philips HR 8358 Service Manual

Philips Domestic Appliances and Personal Care
Service Manual
PRODUCT INFORMATION
- Maximum air displacement
- Maximum vacuum water column
- Power consumptio (IEC) 225V
- Dust storage capacity
- Cord length (depends on version)
- Filter system
- Dimensions cleaner
- Weight accessoiries
- Noise
- Colour
- Electronic controled motor rpm
- Cordwinder build-in with fl at cord
- Dustbag-full indicator in dustcover
OPTIONAL
Exhaust air fi lter
Sydney cotton dustbag
Sydney 3M dustbag
Sydney paper dustbags
This product meets the requirements regard-
ing interference suppression on radio and TV.
Published by Philips Domestic Appliances and Personal Care
4322 277 00264
02/03
Impact
: 30 l/sec
: 300 cm
: 1100 W
: 2 litres
: 5.3 m
: 5 fi lters
: 37 x 28 x 23 cm
: 4.8 kg
: 80 dB
: Yellow / Dark purple
HR 6932 (8836 932 01210)
HR 6997 (8836 997 01010)
HR 6999 (8836 999 90010)
HR 6999 (8836 999 01010)
Printed in the Netherlands

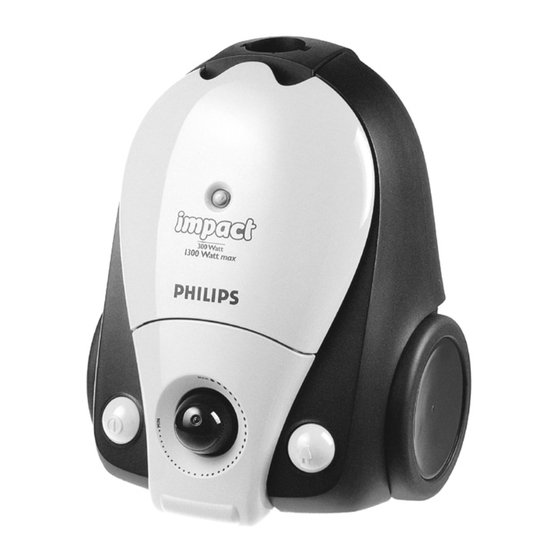

Vacuum cleaner
SERVICE INFORMATION
- To open the appliance, fi rst remove the screws A,B,C,D.
- To reach the motor remove the screws E.
- To disassemble the cordwider use Torx screw driver no T10,
which is one of set consisting of T20, T15, T10, T9, T8, T7 and
T6 = 4822 395 50145.
- Give attention that the contact fi ngers (item 45) are placed on the
cord-winder shaft in such a way that the pressure point of the
cordwinder knob to the cord winderlever (item 40) is vertical.
- The spare parts have been standardized as much as possible.
- Component confi guration on exploded view may differ in case
of specifi c versions, however, the actual components are distin-
guished by means of code numbers.
- Item 1 Cotton dustbag is used in those countries where paper
dustbags are not available
- Item 41 Cord-winder spring unit is provided with a long spring,
both long and short cords can be used in combination with this
spring.
- Cordwinder spring has to be tensioned till maximum minus
approx. 1,5 revolution.
After the product has been repaired, it should
function properly and has to meet the safety
requirements as offi cially laid down at this
moment.
© Copyright reserved
HR 8358
Subject to modification
