Audiovox VOH802 Owner's Manual

Audiovox VOH802 Owner's Manual

Audiovox electronics cor owner's manual 8" lcd overhead tv/monitor voh802
Hide thumbs Also See for VOH802:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual

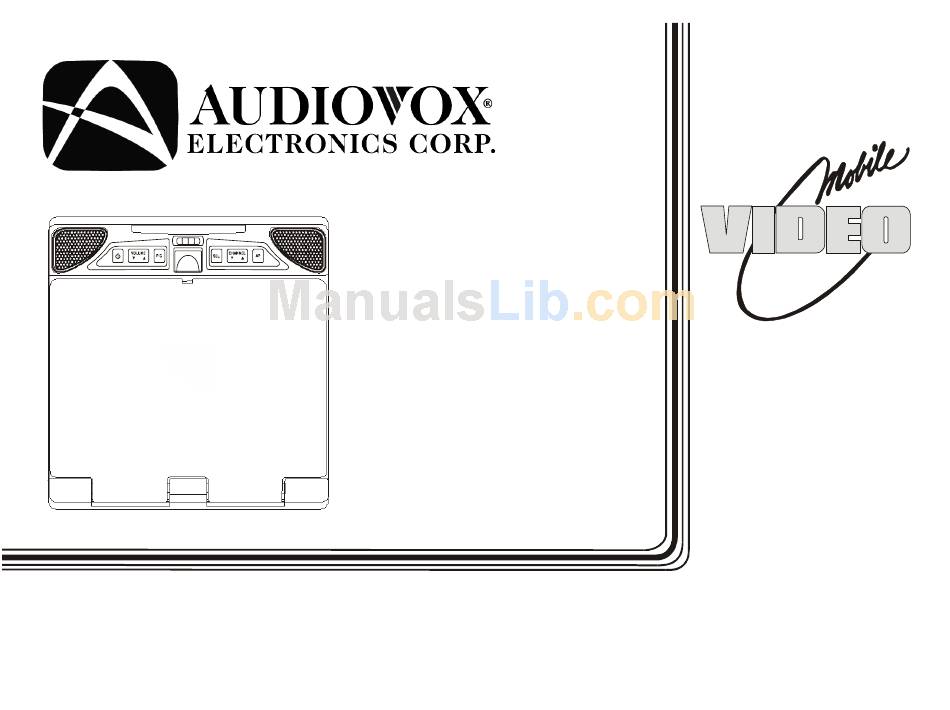

VOH802 DL
8" LCD
OVERHEAD
TV/MONITOR
OWNER'S
MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VOH802 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Audiovox VOH802

Summary of Contents for Audiovox VOH802

  • Page 1 VOH802 DL 8” LCD OVERHEAD TV/MONITOR OWNER’S MANUAL...

  • Page 2: Important Notice

    In the interest of safety, the VOH802 DL should never be installed where it will be visible, directly or indirectly, by the operator of the motor vehicle.

  • Page 3: Safety Precaution

    Congratulations on your purchase of the Audiovox VOH802 DL drop down TV/Video Monitor. VOH802 DL has been designed to give you and your family many years of video entertainment in the mobile environment. Please read the directions that follow to familiarize yourself with the product and to ensure that you obtain the best results from your equipment.
  • Page 4 FRONT PANEL FEATURE Figure 1 3 4 5...

  • Page 5: Front Panel Features

    FRONT PANEL FEATURES – 1. SENSOR EYE – Allows the remote control to operate the VOH802 DL’s OSD system (On Screen Display), volume to Wired Headphone Jacks (and optional external speakers), and for control of Video Media Player and other accessories.

  • Page 6: Remote Control Operation

    (+ or -) is observed. 3) Slide the cover back until it clicks into position. The Remote Control will operate the VOH802 DL, Audiovox Televisions and Video Media Players. It is not a universal remote control and will not control equipment from other manufacturers.
  • Page 7 REMOTE CONTROLLED TV FUNCTIONS 1. POWER ON/OFF Press this button to turn the VOH802 DL on. The channel number or current video source will be displayed on screen, and the picture will appear in a few seconds. Press the button again to turn the VOH802 DL off.
  • Page 8 “GREEN” on the screen, and the erased channels are in “RED”. When skip mode is on, the VOH802 DL will tune to only the stored channels when using the CHANNEL UP/DOWN buttons.

  • Page 9: Channel Tuning Setup

    0-9 buttons on the Remote Control. 2. To ERASE a channel, press the ERASE/WRITE channel Auto- TURNING THE VOH802 DL ON AND OFF built-in 1 Sliding the screen release lock forward viewing will note each...

  • Page 10: Operation

    OPERATION OVERHEAD DOME LIGHTS A three-position slide switch controls the Dome Lights on the VOH802 DL. Sliding the switch to the ON position will turn the Dome Lights ON. The OFF position will prevent the Dome Lights from turning ON at all times and the auto position will allow the Dome Lights to turn ON and OFF with the vehicle’s...

  • Page 11: Optional Accessories

    AUX inputs, the VIDEO INPUT 2 will be temporarily bypassed. Once the connections have been made, turn the VOH802 DL on and press the source button on the VOH802 DL or the TV/Video button on the remote control until “Video 2” is displayed on the screen.

  • Page 12: Video Output

    OFF will allow for normal radio reception. VIDEO OUTPUT The VOH802 DL provides a video output for an optional Video monitor(s). This output will provide a video signal that duplicates the signal displayed by the VOH802 DL to an additional Monitor or Video display.

  • Page 13: Typical System Connections

    TYPICAL SYSTEM CONNECTIONS T ’ White RCA(Audio Left) Yellow RCA(Video) Red RCA(Audio Right) Accessor Harness 4 PIN 2 PIN IR Power Connector Connector IR Transmitter LED -12- Negative Dome Light Switching Lamp Auto Purple/Brown Constant 12V Black/Red Lamp ON Red/Black Positive Dome Light Switching Lamp Auto Purple/Brown...

  • Page 14: Troubleshooting

    Troubleshooting PROBLEM • Poor TV Reception Perform auto programming of the tuner • Verify antenna condition. • NOTE: Due to the nature of TV signals, direction the vehicle is facing, distance from the transmitter, nearby weather may adversely affect conditions may result in the following: picture roll, “snowy”...
  • Page 15 AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 36 months from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor.
  • Page 16 For Customer Service Visit Our Website At .audiovox.com Product Information, Photos, FAQ’s Owner’s Manuals © 2002 Audiovox Electronics Corp., Hauppauge, NY 11788 128-6327...

This manual is also suitable for:

Voh802 dl
