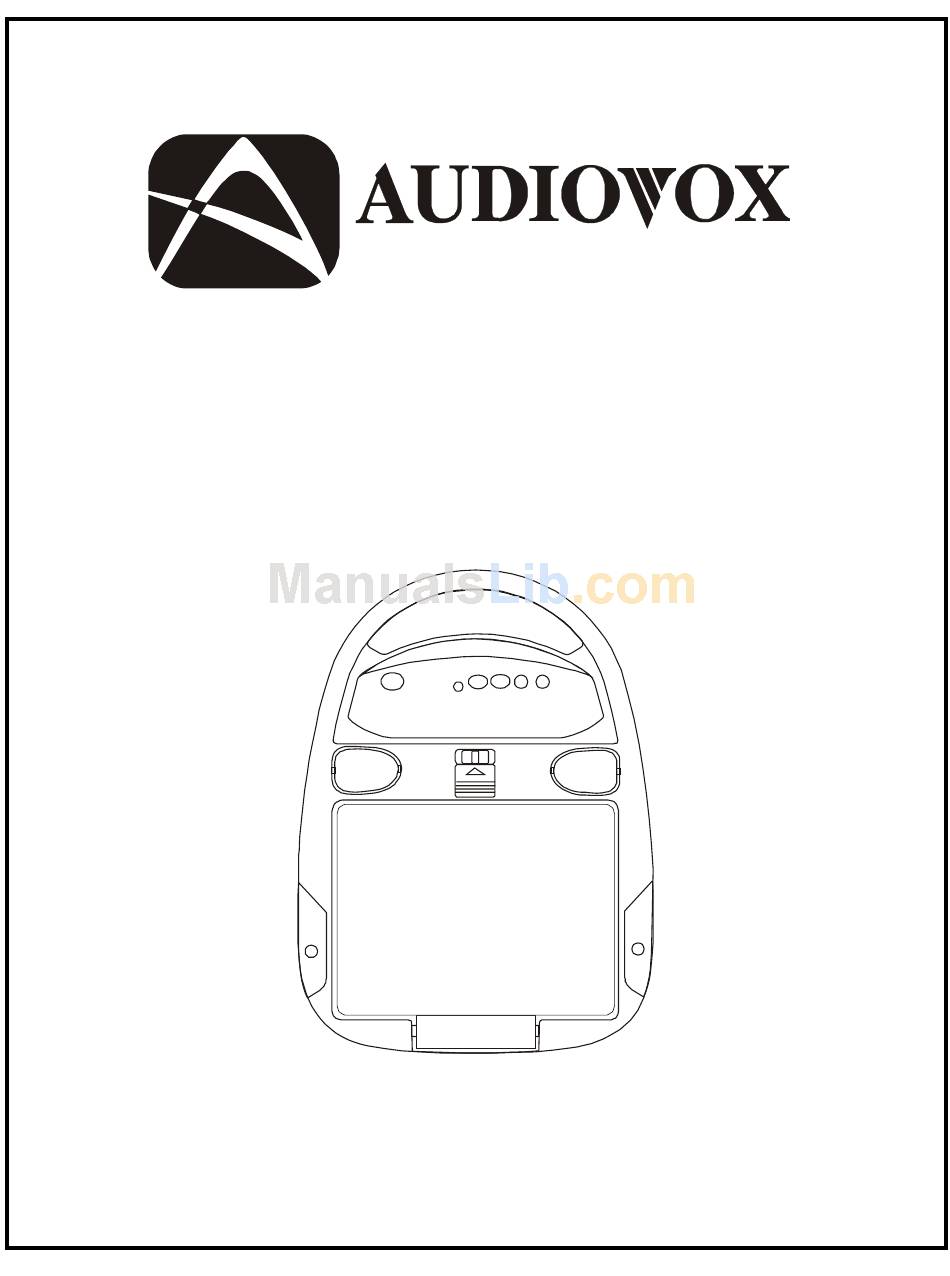

- Page 1 ® ELECTRONICS CORP . VOH560PKG Drop Down Video Monitor and Video Cassette Player System Installation and Operation Manual...
-
Page 2: Important Notice
Important Notice It is unlawful in most jurisdictions for a person to drive a motor vehicle which is equipped with a television viewer or screen that is located in the motor vehicle at any point forward of the back of the driver's seat, or that is visible directly or indirectly to the operator of the motor vehicle. -
Page 3: Materials Included In This Package
MATERIALS INCLUDED IN THIS PACKAGE: 1)VOH560 Video Monitor with out TV Tuner (1 pc) 2)VCP Harness (P/N 112C3035) (1 pc) 3)12 Pin Power / Signal harness (P/N 112B2821) (1 pc) 4)2 Pin Power Wire Harness with choke (P/N 112B2824) (1 pc) 5)Hardware Package for VOH560 #4 x 3/8”... -
Page 4: General System Configuration
GENERAL SYSTEM CONFIGURATION: The following is intended to give a rough guideline of system configuration that are possible with the VOH560PKG Drop Down Video System: System : Video Monitor without tuner (VOH560), VCP (AVP756). -
Page 5: Vehicle Preparation
VEHICLE PREPARATION: Locate a constant power source (+12v at all times) and an accessory power source (+12v when key is in the acc. and run positions, and 0v when key is off). Generally, these wires can be found at the ignition switch or fusebox. The mounting method and location will vary from vehicle to vehicle, so this manual will only focus on the installation of the video monitor and related console accessories. - Page 6 MINI CONSOLE INSTALLATION: This page only covers special installation considerations for the mini console installation. If the video monitor is to be installed with a custom full sized overhead console, refer to page 3. If the video monitor is to be installed in a vehicle with the mini console (P/N 102D3595), this console may need to be trimmed to fit the contour of the vehicle headliner.
- Page 7 MOUNTING THE MINI CONSOLE Roof Roof support Headliner 5"x9"x3/4" Plywood Block or Optional VOHBKT (4) #8x1" self drilling screws (not supplied) Mini-Console Video unit (4) #8 Flat washers (not supplied) (4) #8x3/4" self tapping screws (not supplied)
- Page 8 VOH560 R e d: + 1 2 V D C (A c c es s o r y C ir.) B la c k : Gro un d 12 V D C Pow e r an d Groun d Am /Fm Antenn a FACTO RY RAD IO...
-
Page 9: Connecting The Dome Lights
CONNECTING THE DOME LIGHTS The dome lights in the video monitor require three connections to the vehicle's wiring. There are two common types of dome light circuits used, positive or negative switched. Positive systems supply voltage to the interior lights to turn them on, negative switched systems apply ground to illuminate the bulbs. -
Page 10: Troubleshooting
Negative Switched Dome lighting To 12 pin connector on Monitor Factory Dome light circuit Troubleshooting: Symptom: No power at Video Monitor Power but no video or sound Picture, but no sound No Infrared remote functions for VCP (or other compo- nents) Red / black - Lamp on Black / red - Lamp common... -
Page 11: Front Panel
Front Panel 1. Infrared Transmitter – Used to transmit audio to wireless headphones. 2. Power Button – (Bright red when system is On, dim when OFF). 3A. Forward Remote Sensor Eye – Allows the remote control to operate the VOH560 OSD (On Screen Display), control volume to wired headphone jacks (and optional external speakers), and to control the Video Cassette Player and other accessories. - Page 12 VCP756 FRONT AND BACK VIEW POWER STOP/EJECT Dust Cover – Protects VCP from dust and abuse access. Power Button – (Bright red when system is On, dim when Off). Stop / Eject Button – Used to stop the tape, and press it once more to eject the tape. (Fast) Rew Button : –...
-
Page 13: Battery Installation
2) Install two “AAA” batteries as shown. Make sure that proper polarity (+ or -) is observed. 3) Slide the cover back until it clicks. The remote control will operate the VOH560PKG, It is not a universal remote control and will not control equipment from other manufacturers. -
Page 14: Operation
Remote Controlled VCP Functions 5. REPLY BUTTON Pressing this button will rewind tape and immediately begin playback when the tape is fully rewound. 6. “REW” REWIND BUTTON If this button is pushed while the tape is stopped, the tape will rewind. If this button is pushed while the tape is playing, the VCP will go into rewind search mode. -
Page 15: Optional Accessories
VOH560 and VCP to be controlled simply by pointing its remote control at the remote sensor eye. This provides control of auxiliary equipment such as an Audiovox DVD. The infrared sensor can reply signals to auxiliary source that is connecting to monitor din connector #2, such as a DVD player. In this case you must use the remote control supplied with the DVD player. - Page 16 Wired FM Modulator Your video system may be equipped with an RF modulator, that allows you to listen to the VOH560’s audio signal by tuning your vehicle’s radio to the selected frequency, (88.7 or 89.1 - check with your installer) and turning on the remote mounted RF modulator switch. (In most cases this toggle switch will be located underneath the driver’s side of the dash, check with your installer for the exact location.) Whenever the RF modulator is on, broadcast radio reception will be poor.
- Page 17 Warnings Do not use any solvents or cleaning materials when cleaning the video system. Do not use any abrasive cleaners, they may scratch the screen. Use only a lightly dampened lint free cloth to wipe the screen if it is dirty. Lock the LCD screen in the fully closed position when not in use.
- Page 18 Visit O u r W eb site A t P ro duc t Inform a tio n, P h otos , FA Q ’s O w ner ’s M a nua ls © Copyright 2001 Audiovox Electronics Corp. 150 Marcus Blvd. Hauppauge, NY 11788 128-6065...
