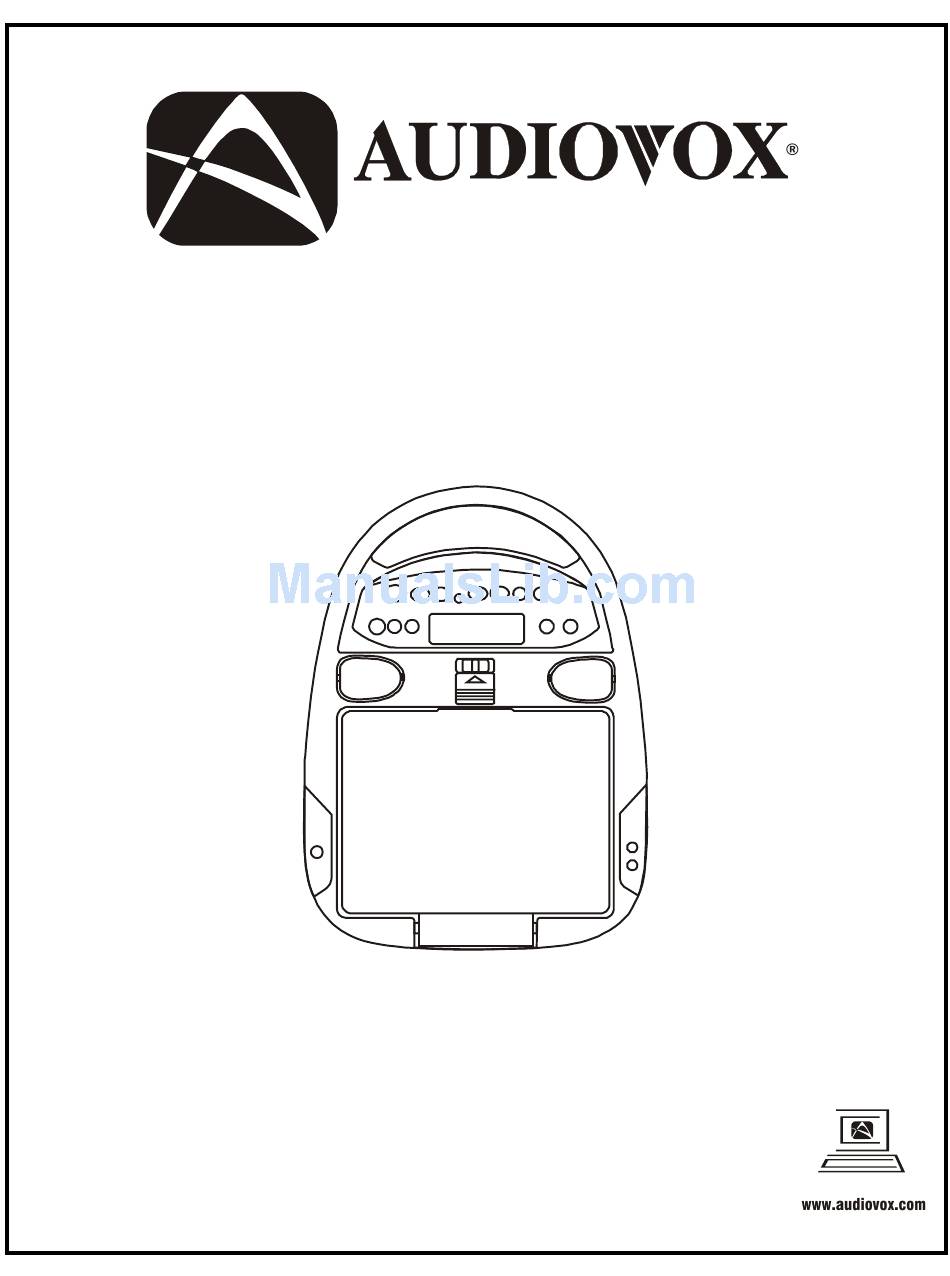

ELECTRONICS CORP . VOH683 Drop Down Video Monitor VOH684 Drop Down TV / Video Monitor VOH704 Drop Down TV / Video Monitor Installation Guide F o r C ustom er S ervice V is it O u r W e b site A t P ro du ct Info rm atio n , P h oto s, FA Q ’s O w ner ’s M a nu als...
Important Notice It is unlawful in most jurisdictions for a person to drive a motor vehicle which is equipped with a television viewer or screen that is located in the motor vehicle at any point forward of the back of the driver's seat, or that is visible directly or indirectly to the operator of the motor vehicle.
MATERIALS INCLUDED IN THIS PACKAGE: 1) VOH683 Video Monitor with out TV Tuner / VOH684 or VOH704 Video Monitor with TV Tuner (1 pc) 2) Accessory Harness (P/N 8010730) (1 pc) 3) 12 Pin Power / Signal harness (P/N 112B2821) (1 pc)
GENERAL SYSTEM CONFIGURATIONS: The following is intended to provide some of the system configurations that are possible with the VOH683, VOH 684 and VOH704 series Drop Down Video Systems: System 1: Video Monitor without TV tuner (VOH683), with VCP and FM radio.
VEHICLE PREPARATION: Locate a constant power source (+12v at all times) and an accessory power source (+12v when key is in the ACC. and run positions, and 0v when key is off). Generally, these wires can be found at the ignition switch or fuse-box. The mounting method and location will vary from vehicle to vehicle, so this manual will only focus on the installation of the video monitor and related console accessories.
MINI CONSOLE INSTALLATION: This page only covers special installation considerations for the mini-console installation. If the video monitor is to be installed with a custom full sized overhead console, refer to page 3. If the video monitor is to be installed in a vehicle with the mini console (P/N 102D3595), this console may need to be trimmed to fit the contour of the vehicle headliner.
Page 7
MOUNTING THE MINI-CONSOLE Roof Roof Support Headliner 5"x9"x3/4" Plywood Block or Optional VOHBKT (4) #8x1" self drilling screws (not supplied) Mini-Console Video Unit (4) #8 flat washers (not supplied) (4) #8x3/4" self tapping screws (not supplied)
Page 8
VOH683 Note: cables exiting the pod should be routed as shown. 12 Pin Power signal Po w er H a rn e ss R e d : + 1 2 VD C Harness Item #3 It em # 4 Mini-Din Connectors (A cce s so ry C ir.
Page 9
VOH684/VOH704 N ote: cables ex iting the pod s hould be routed as sho w n. 12 Pin Power signal P o w e r H a rn e s s R e d: + 1 2 V D C Item # 4 Mini-D in C onnec tors (A ccess o r y C ir.)
Page 10
NOTE: The TV Atenna is not used on VOH683 Figure C. NOTE: The TV Atenna is not used on VOH683 Figure D.
CONNECTING THE DOME LIGHTS The dome lights in the video monitor require three connections to the vehicle's wiring. There are two common types of dome light circuits used, positive or negative switched. Positive systems supply volt- age to the interior lights to turn them on, negative switched systems apply ground to illuminate the bulbs. To determine which system you have you must locate the wires at the dome light.
