Summary of Contents for Audiovox VOH681A
-

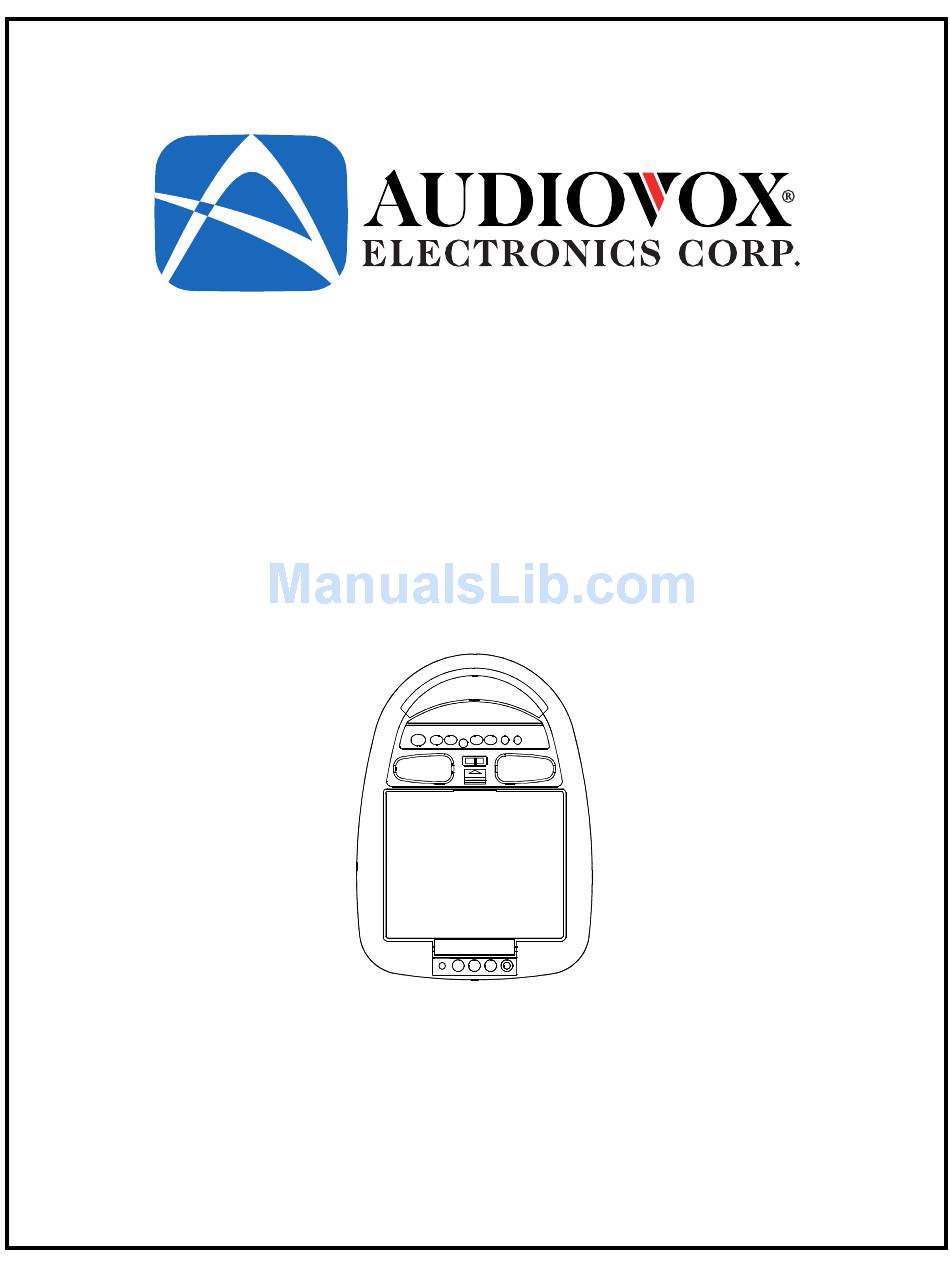

Page 1: Installation Guide

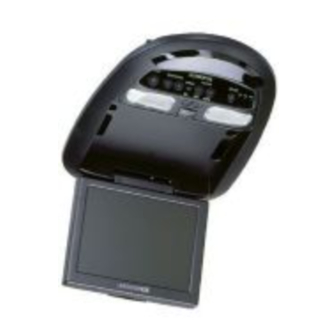

VOH681A Drop Down Video Monitor VOH682A Drop Down TV / Video Monitor AUTO OPEN Installation Guide... -
Page 2: Important Notice
Important Notice It is unlawful in most jurisdictions for a person to drive a motor vehicle which is equipped with a television viewer or screen that is located in the motor vehicle at any point forward of the back of the driver's seat, or that is visible directly or indirectly to the operator of the motor vehicle. -
Page 3: Materials Included In This Package
MATERIALS INCLUDED IN THIS PACKAGE: 1) VOH681A Video Monitor with out TV Tuner / VOH682A Video Monitor with TV Tuner (1 pc) 2) Accessory Harness (P/N 8010730) (1 pc) 3) 12 Pin Power / Signal harness (P/N 112B2821) (1 pc) 4) 2 Pin Power Wire Harness with choke (P/N 112B2824) (1 pc) 5) RCA “Y”... -
Page 4: General System Configurations
Additional speakers can be added to a VOH682A system using the speaker outputs. Refer to the wiring diagram on p7. -The VOH681A and VOH 682A video systems are only intended for an overhead, drop down installation. It is not intended for seat back or any other type of mounting. The hinging mechanism is designed for horizontal, drop down use only. -
Page 5: Vehicle Preparation
VEHICLE PREPARATION: Locate a constant power source (+12v at all times) and an accessory power source (+12v when key is in the acc. and run positions, and 0v when key is off). Generally, these wires can be found at the ignition switch or fusebox. The mounting method and location will vary from vehicle to vehicle, so this manual will only focus on the installation of the video monitor and related console accessories. -
Page 6: Mini Console Installation
MINI CONSOLE INSTALLATION: This page only covers special installation considerations for the mini console installation. If the video monitor is to be installed with a custom full sized overhead console, refer to page 3. If the video monitor is to be installed in a vehicle with the mini console (part number 1181300), this console may need to be trimmed to fit the contour of the vehicle headliner. - Page 7 MOUNTING THE MINI CONSOLE Roof Roof support Headliner 5"x9"x3/4" Plywood Block or Optional VOHBKT (4) #8x1" self drilling screws (not supplied) Mini-Console Video unit (4) #8 Flat washers (not supplied) (4) #8x3/4" self tapping screws (not supplied)
- Page 8 VOH681A Power Harness Red: +12 VDC Item # 3a (Accessory Cir.) Black: Ground Optional Hard Wired FM Modulator Output 12 VDC Power and Ground Am/Fm Antenna Modulator FACTORY 1070610 RADIO Dash Radio *Refer to Instructions with the RF Modulator Kit for further details.
- Page 9 VOH682A Red: +12 VDC (Accessory Cir.) Black: Ground Optional Hard Wired FM Modulator Output 12 VDC Power and Ground Am/Fm Antenna Modulator FACTORY 1070610 RADIO Dash Radio *Refer to Instructions with the RF Modulator Kit for further details. 12 VDC Power and Ground OPTIONAL ADDITIONAL Auxillary...
-
Page 10: Connecting The Dome Lights
CONNECTING THE DOME LIGHTS The dome lights in the video monitor require three connections to the vehicle's wiring. There are two common types of dome light circuits used, positive or negative switched. Positive systems supply voltage to the interior lights to turn them on, negative switched systems apply ground to illuminate the bulbs. -
Page 11: Troubleshooting
Negative Switched Dome lighting To 12 pin connector on Monitor Factory Dome light circuit Troubleshooting: Symptom: No power at Video Monitor Power but no video or sound Picture, but no sound Static on TV Stations (Tuner Version Only) No Infrared remote func- tions for VCP (or other com- ponents) Red / black - Lamp on... - Page 12 © 2001 Audiovox Electronics Corp. 150 Marcus Blvd. Hauppauge, NY 11788 128-5622B...
