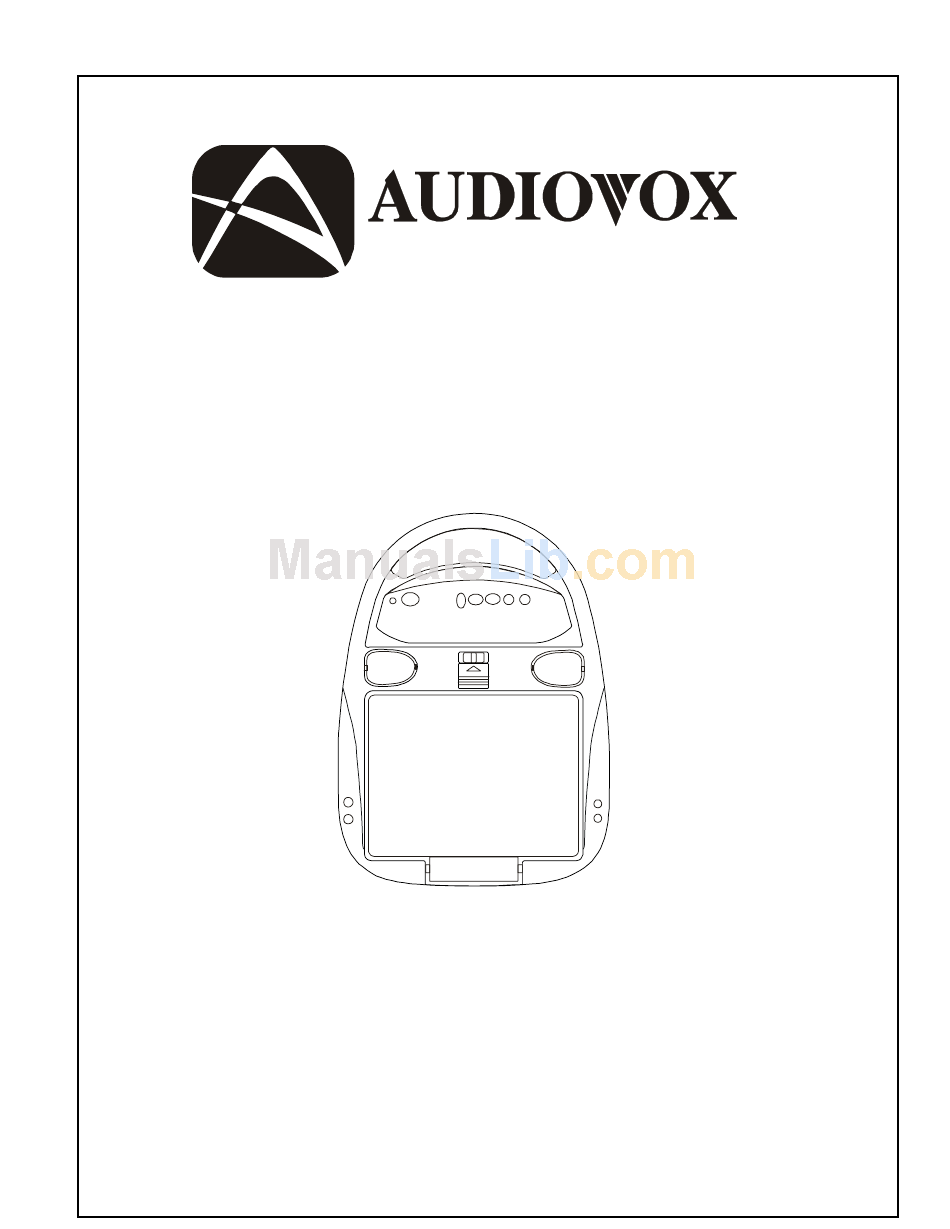

Page 1: Installation Guide
® ELECTRONICS CORP . VOH701 7" Drop Down Video Monitor Installation Guide... -
Page 2: Important Notice
Important Notice It is unlawful in most jurisdictions for a person to drive a motor vehicle which is equipped with a television viewer or screen that is located in the motor vehicle at any point forward of the back of the driver's seat, or that is visible directly or indirectly to the operator of the motor vehicle. -
Page 3: Materials Included In This Package
MATERIALS INCLUDED IN THIS PACKAGE: 1) VOH701 Video Monitor (1 pc) 2) Accessory Harness (P/N 8010730) (1 pc) 3) 2 Pin Power Wire Harness with choke (P/N 112B2824) (1 pc) 4) A/V Adapter Cable (112B3227) 5) Hardware Package #4 x 3/8” Screws (5 pcs) #8 x 5/8”... -
Page 4: General System Configurations
Remote headphone jacks can be added to a VOH701 system. Refer to the wiring diagram on page 6. -The VOH701 video systems are only intended for an overhead, drop down installation. It is not intended for seat back or any other type of mounting. The hinging mechanism is designed for horizontal, drop down use only. -
Page 5: Vehicle Preparation
VEHICLE PREPARATION: Locate an accessory power source (+12v when key is in the ACC. and run positions, and 0v when key is off). Find a suitable location that will provide a good ground. Generally, these wires can be found at the ignition switch or fuse-box. The mounting method and location will vary from vehicle to vehicle, so this manual will only focus on the installation of the video monitor and related console accessories. - Page 6 MINI CONSOLE INSTALLATION: This page only covers special installation considerations for the mini-console installation. If the video monitor is to be installed with a custom full sized overhead console, refer to page 3. If the video monitor is to be installed in a vehicle with the mini console (P/N 1181300), this console may need to be trimmed to fit the contour of the vehicle headliner.
- Page 7 MOUNTING THE MINI-CONSOLE Roof Roof Support Headliner 5"x9"x3/4" Plywood Block or Optional VOHBKT (4) #8x1" self drilling screws (not supplied) Mini-Console Video Unit (4) #8 flat washers (not supplied) (4) #8x3/4" self tapping screws (not supplied)
- Page 8 VOH701 Red: +12 VDC (Accessory Cir.) Black: Ground 12 VDC Power and Ground Am/Fm Antenna FACTORY RADIO Dash Radio *Refer to Instructions with the RF Modulator Kit for further details. 1) Make the connections to the vehicle for the 2 pin wiring harness.
-
Page 9: Connecting The Dome Lights
CONNECTING THE DOME LIGHTS The dome lights in the video monitor require three connections to the vehicle's wiring. There are two common types of dome light circuits used, positive or negative switched. Positive systems supply volt- age to the interior lights to turn them on, negative switched systems apply ground to illuminate the bulbs. To determine which system you have you must locate the wires at the dome light. -
Page 10: Troubleshooting
Negative Switched Dome lighting Factory Dome light circuit Troubleshooting: SYMPTOM: No power at Video Monitor Power but no video or sound Picture, but no sound No Infrared remote func- tions for VCP (or other com- ponents) Red / black - Lamp on To 12 pin Black / red - Lamp common connector... - Page 11 N O T E S...
- Page 12 For Customer Service Visit Our Website At .audiovox.com Product Information, Photos, FAQ’s Owner’s Manuals 128-6882 © Copyright 2003 Audiovox Electronics Corp. 150 Marcus Blvd. Hauppauge, NY 11788...
