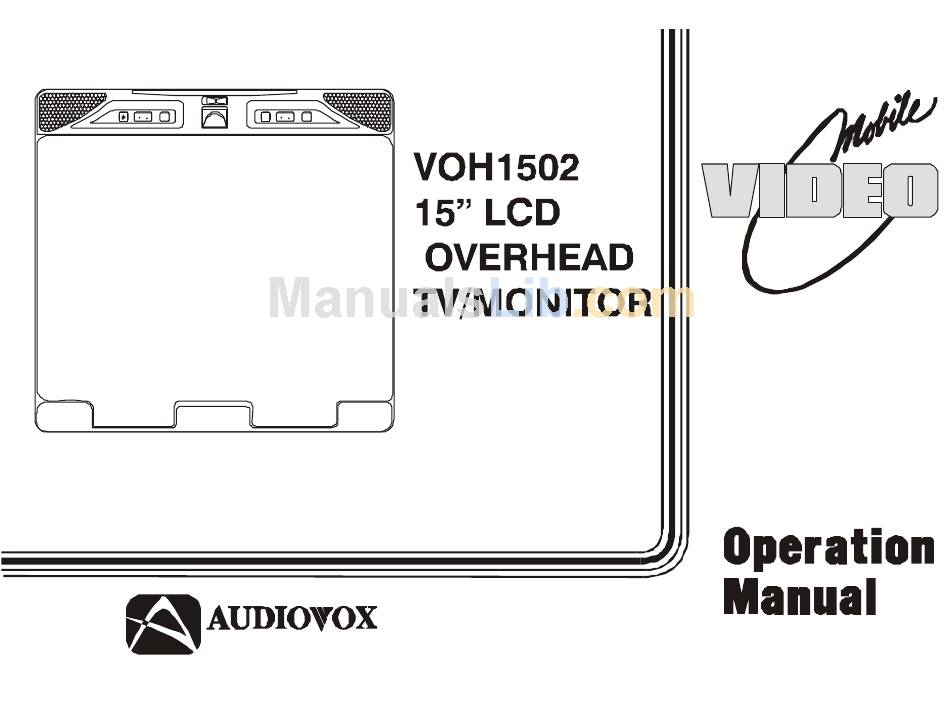

- Page 1 ON OFF AUTO V O L U M E C H A N N E L TV/AV M E N U E N T E R ® ELECTRONICS CORP .
-
Page 2: Important Notice
Congratulations on your purchase of the Audiovox VOH1502 drop Monitor. The VOH1502 has been designed to give you and your family many years of video entertainment in the mobile environment. Please read the directions that follow to familiarize yourself with the product and to ensure that you obtain the best results from your equipment. -
Page 3: Television Reception
TELEVISION RECEPTION This entertainment system is designed primarily for viewing pre-recorded movies or playing video games. Television reception in a moving vehicle will be limited and in some areas will not be possible due to weak and variable signal strength. Television viewing in a stationary vehicle will result in an improvement, but may still be marginal due to signal strength. -
Page 4: Front Panel Controls
FRONT PANEL CONTROLS 1. POWER 2. VOLUME 3. TV/AV 4. INFRARED RECIEVER AND INFRARED TRANSMITTER 5. THREE POSITION DOME LIGHT SWITCH 6. SCREEN RELEASE 7. MENU 8. CHANNEL 9. ENTER 10. DOME LIGHT Figure 1. FRONT PANEL CONTROLS... - Page 5 TV, AV1, AV2 and AUX. 4. Sensor Eye – Allows the remote control to operate the VOH1502’s OSD system (On Screen Display). Also used to control A/V accessories that are connected to the VOH1502 using the accessory cable (P/N 8010703).
-
Page 6: Battery Installation
Make sure that proper polarity (+ or -) is observed. 3) Slide the cover back until it clicks into position. The Remote Control will operate the AUDIOVOX VOH1502 as well as AUDIOVOX Televisions and VCP’s. It is not a universal remote control and will control equipment manufacturers. -
Page 7: Remote Control Operation
REMOTE CONTROL OPERATION (See Figure 3) Monitor Controls: 1. TV POWER Press this button to turn on the VOH1502. Press the button again to turn the set off. 2. Direct Access (0-9,1--) Number Buttons Use these buttons to select a channel. The channel number chosen will be displayed on the screen for about four seconds. -
Page 8: Enter Button
The stored channel numbers are displayed in GREEN on the screen and the erased channel numbers are displayed in RED. NOTE: This function is also available in the menu options under “Auto-Program” 9. AUTO PROGRAM Button Select the correct antenna input (see page 12, Setting the “Antenna Input”) Press the AUTO PROGRAM button. -
Page 9: Replay Button
VCP CONTROLS 1. VCP POWER Button This button is used to turn an optional AUDIOVOX VCP ON and OFF. 2. ”REW” REWIND Button If this button is pushed while the tape is stopped, the tape will rewind. If this button is pushed while the tape is playing, the VCP will go into rewind search mode. -
Page 10: Adjusting The Picture
ADJUSTING THE PICTURE When watching TV programs, the quality of the picture can be adjusted to suit your taste. 1. Press MENU. The main menu appears. M E N U MAIN MENU SELECT VIDEO CLOSED CAPTION SET PICTURE AUTO-PROGRAM ANTENNA INPUT V-CHIP PROTECT SET PASSWORD p or q... - Page 11 Description Of Adjustment Items: ITEM Adjustment Press VOLUME - to Decrease picture contrast for Increase picture contrast for CONTRAST soft color vivid color Darken the picture Brighten the picture BRIGHTNESS Decrease picture sharpness Increase picture sharpness SHARPNESS Make skin tones becomes Mark TINT Reddish...
-
Page 12: Setting Closed Captioning
SETTING CLOSED CAPTIONING CLOSED CAPTIONING Closed captioning lets you display the audio portion of a program as text on the TV screen. This is useful to the hearing impaired or anyone who wants to watch a program without the sound. There are two types of closed captioning available: C1 (Caption 1) and C2 (Caption 2). - Page 13 CABLE TV (CATV) OPERATION In addition to normal broadcast reception of VHF and UHF channels, if you are a cable TV subscriber, your new TV is capable of receiving many unscrambled cable channels without the use of a converter box. When set to broadcast TV it receives channels 2~69.
-
Page 14: Setting The V-Chip
SETTING THE V-CHIP An age limitation can be set to forbid children to see and hear violent scenes or pictures. The V-CHIP responds to “TV RATING” and “MOVIE RATING”. To use the V-CHIP function, you must register a password. 1. Press MENU. The Main Menu will appear MENU MAIN MENU SELECT VIDEO... - Page 15 TO SET THE V-CHIP 1. Press MENU. The Main Menu will appear. MENU MAIN MENU SELECT VIDEO CLOSED CAPTION SET PICTURE AUTO-PROGRAM ANTENNA INPUT V-CHIP PROTECT SET PASSWORD 2. Press the CHANNEL ? highlight the function. Make sure the highlight bar is V-CHIP PROTECT and then press ENTER.
- Page 16 When you select TV-Y7, TV-PG, TV-14 or TV- MA, press either CHANNEL ? or ? buttons to select the contained rating. V/FV-VIOLENCE S – SITUATIONS. L – LANGUAGE D – DIALOG Press VOLUME + or – to adjust contained rating. NOTE: The V-CHIP function is activated only on programs and tapes that are encoded with a rating signal.
- Page 17 OPERATION OVERHEAD DOME LIGHTS A three-position slide switch controls the Dome Lights on the VOH1502. Sliding the switch to the ON position will turn the Dome Lights ON. The OFF position will prevent the Dome Lights from turning ON at all times and the auto position will allow the Dome Lights to turn ON and OFF with the vehicle’s interior lighting.
-
Page 18: Video Output
VIDEO OUTPUT The VOH1502 provides a video output for an optional Video monitor(s). This output will provide a video signal that duplicates the signal displayed by the VOH1502 to an additional Monitor or Video display. Please see your installer for more information. - Page 19 NOTE: AUDIOVOX Wireless Headphones (P/N MVIRHS) are for use with the “A” channel only. If both A and B channels are used, AUDIOVOX Headphones (P/N IR2CHS) will be required. The VOH1502 has a Jack labeled “to FM Transmitter”, this Jack is for connection of an...
- Page 20 Antenna Accessory Harness IR Transmitter LED 2 PIN IR Connector Yellow RCA(Video) White RCA(Audio Left) 4 PIN Power Red RCA(Audio Right) Connector Negative Dome Light Switching Lamp Auto Purple/Brown Constant 12V Black/Red Lamp On Red/Black Positive Dome Light Switching Lamp Auto Purple/Brown Ground Black/Red...
-
Page 21: Typical System Connections
TYPICAL SYSTEM CONNECTIONS Troubleshooting PROBLEM SOLUTION Poor TV Reception Perform auto programming of the tuner Verify antenna condition. NOTE: Due to the nature of TV signals, direction the vehicle is facing, distance from the transmitter, nearby weather may adversely affect reception. -
Page 22: 12 Month Limited Warranty
Applies to Audiovox Mobile Video Products AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at the Company's option) without charge for parts and repair labor. - Page 23 NOTES...
- Page 24 For Customer Service Visit Our Website At .audiovox.com Product Information, Photos, FAQ’s Owner’s Manuals © 2002 Audiovox Electronics Corp., Hauppauge, NY 11788 128-6618...
