Superabrasive



LAVINA





Tech Support Line: 800-987-8403 | www.superabrasive.com | info@superabrasive.us
User Manual
Original Language
L25M-S User Manual
®

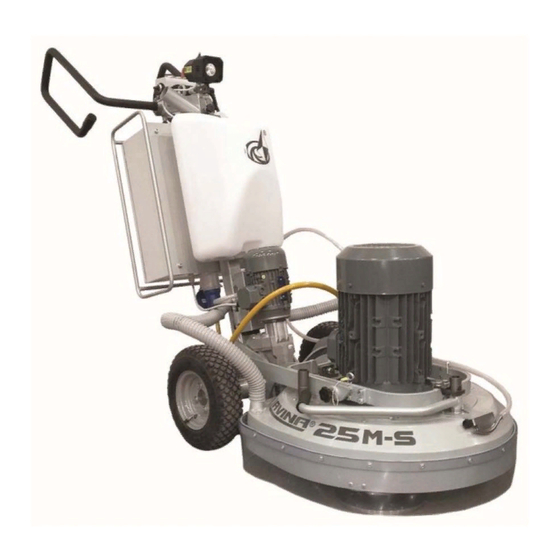

Lavina® 25M‐S/ Lavina® 25M‐S‐HV



11/2014


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LAVINA L25M-S and is the answer not in the manual?

Questions and answers

Summary of Contents for Superabrasive LAVINA L25M-S

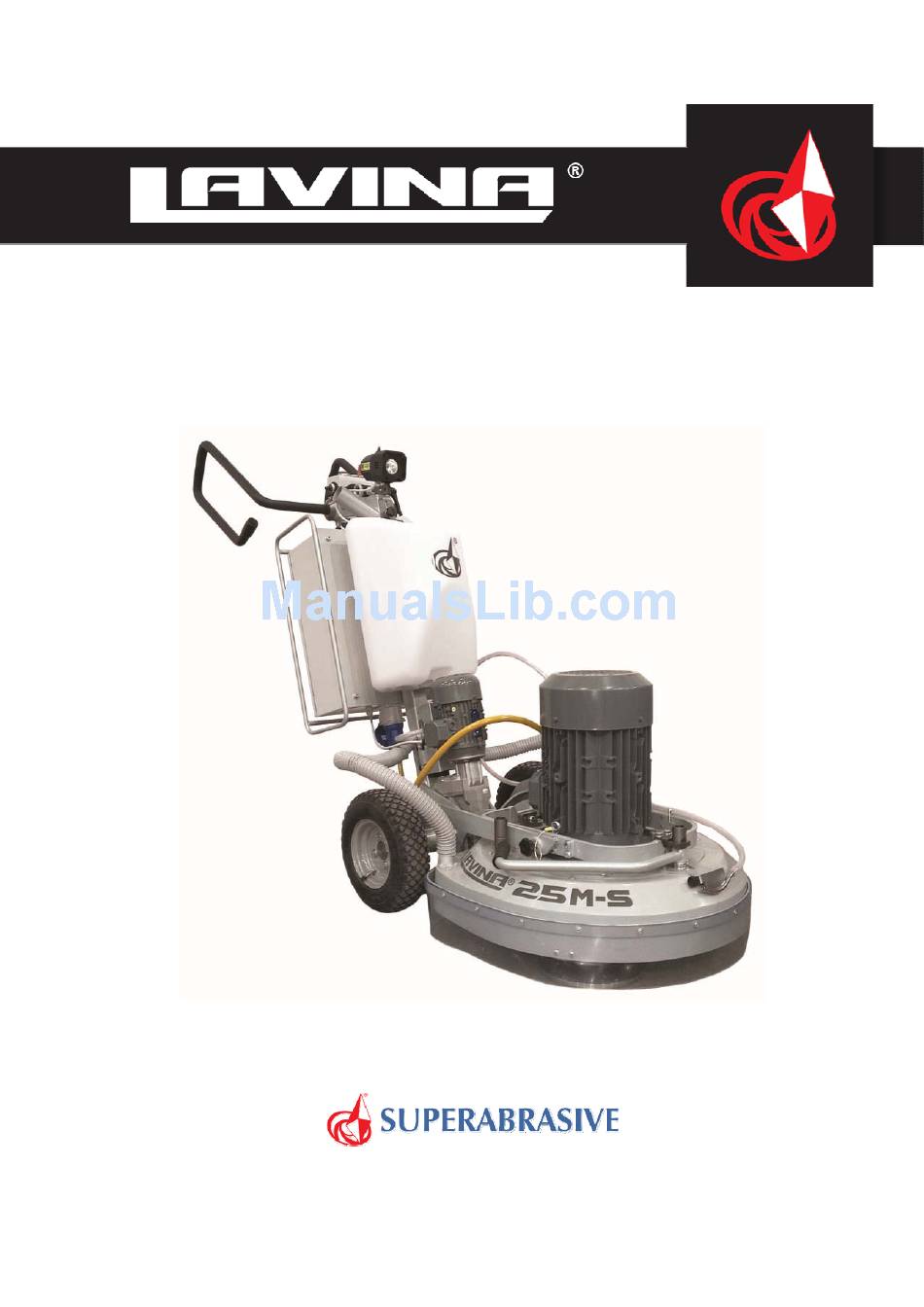

  • Page 1 Superabrasive    User Manual   Original Language  Lavina® 25M‐S/ Lavina® 25M‐S‐HV    11/2014      LAVINA L25M-S User Manual ®                 Tech Support Line: 800-987-8403 | www.superabrasive.com | info@superabrasive.us  ...
  • Page 2 Superabrasive    User Manual   Original Language  Lavina® 25M‐S/ Lavina® 25M‐S‐HV    11/2014  2   ...
  • Page 3 Superabrasive. Thereafter, the customer will have to cover the shipping charges to Superabrasive and back. Superabrasive will not warranty Goods after a period of 2 years from the time of delivery and receipt by the original customer, or 600 operating hours on the machine - whichever occurs first.
  • Page 4: Table Of Contents

    Superabrasive    User Manual   Original Language  Lavina® 25M‐S/ Lavina® 25M‐S‐HV    11/2014    WARRANTY AND RETURNS       1. GENERAL INFORMATION  Carriage Exploded View (Fig.7.8)        14  Tool Holder Exploded View (Fig.7.9)      14  Manufacturer          5    General Description          5  8. MAINTENANCE AND INSPECTION  Machine Characteristics        5  Main Design       ...
  • Page 5: Superabrasive User Manual Original Language

    Superabrasive    User Manual   Original Language  Lavina® 25M‐S/ Lavina® 25M‐S‐HV    11/2014  1. GENERAL INFORMATION  This owner’s manual is intended for the operator of the Lavina® 25M‐S machine, the servicing technician as well as for anyone  involved with operating or servicing the machine. We recommend that you read the instructions very carefully and follow them  strictly. The manual includes information about assembling, using, handling, adjusting and maintaining your Lavina® 25M‐S  floor  grinding and polishing machine.    MANUFACTURER  Superabrasive  was founded in 1987, as a manufacturer of high quality diamond tools for the stone and concrete industry. Today,  Superabrasive is one of the world’s leading companies in the production of diamond tools and floor grinding machinery. At  Superabrasive, we strive to deliver the very best solutions to our customers, and enable them to work more efficiently.    GENERAL DESCRIPTION  The Lavina® 25M‐S  machine is intended for grinding, polishing and buffing concrete, marble, granite, limestone and terrazzo   surfaces with diamond tools. The machine is driven mechanically and the operator only has to direct it without  pushing forward.  The Lavina® 25M‐S  machine is a three‐disc machine, which can be used dry as well as wet.  For best results, use only tools manufactured or recommended by Superabrasive and its distributors. Additionally, the machine  could be used for grinding wood floor surfaces.    The Lavina® 25M‐S machine is manufactured and fitted for the   above‐mentioned applications only! Every other use may possess risks to the persons involved.     MACHINE CHARACTERISTICS  The Lavina® 25M‐S machine is made of two main component sections:    MAIN DESIGN  The two main component sections, the carriage and main head.  The handle (Fig.1.1) on the frame is adjustable in height and allows the operator to work in   a correct and safe working posture. ...
  • Page 6: Vacuum Connection

    Superabrasive    User Manual   Original Language  Lavina® 25M‐S/ Lavina® 25M‐S‐HV    11/2014  VACUUM CONNECTION  A connection for a vacuum dust extractor is located on the carriage. The Lavina® 25M‐S  machine does not include a vacuum  dust extractor. The customer must purchase the vacuum dust extractor separately. The hose of the vacuum extractor must be   Ø 50 mm and can be glided over the pipe. The vacuum dust extractor must be adapted for floor grinders and have a minimum  air displacement of 320m3/h with a negative vacuum of 21 kPa.    TECHNICAL DATA    Lavina® 25M‐S  Lavina® 25M‐S‐HV  Voltage/Hz  1 or 3 ph x 200‐240V 50‐60Hz 3 ph x 380‐480V 50‐60Hz  Amperage  Max 30 Amps Max 16 Amps  Power  7,5 kW  10 HP 7.5 kW 10 HP  Tool holder rpm  300‐1100 rpm 300‐1100 rpm  Working width  655 mm  25” 655 mm 25”  Tool diameter (QC Plate)  3x 225 mm ...
  • Page 7: Preparation For Work

    Superabrasive    User Manual   Original Language  Lavina® 25M‐S/ Lavina® 25M‐S‐HV    11/2014  radiation the QuickChange pads.  .  the QuickChange pads.  PREPARATION FOR WORK   The emergency break must be clear and working   Close the work area, so that no person unfamiliar with   The tool protector must be working  operating the machine can enter the area.    The machine must be clean   The tool plate and tools are adjusted to the machine properly.    Never operate the machine in the rain!    There are no missing parts of the machine   Confirm that there are no missing parts especially after   The machine is in upright working position.    The protection devices are working properly.  transportation, repair or maintenance.   Before filling the water tank with water make sure the machine    The electrical cable is free to move and follow the machine  is not working and the main switch is turned off.  easily. ...
  • Page 8: Handling And Transportation

    Superabrasive    User Manual   Original Language  Lavina® 25M‐S/ Lavina® 25M‐S‐HV    11/2014  3. HANDLING AND TRANSPORTATION  PREPARING THE MACHINE FOR TRANSPORTATION                             Figure 3.1 Figure 3.2 Figure 3.3 Unplug the motor cable plug from the control box and disconnect the water hose from the main head by pulling it out (Fig.3.1)  (Fig.3.2). Wind the electrical cable on the carriage. Release the pin sets which attach the head to the carriage. Pull out the vacuum  hoses (Fig.3.3), and dismount the head from the carriage.  The head of the LAVINA® 25M‐S machine has one bar and a support used as handles intended for easy moving and transportation.    LIFT THE MACHINE FROM WORKING TO  TOOL MOUNTING POSITION  Push the front handle down and swivel it to the  front (Fig.3.4). Pull the handle up and ensure  the head is in a stable upright position for  mounting/dismounting the tool. Ensure that the  water tank is empty before flipping the  machine. Pull the head in the upright position  (Fig.3.5). The machines manufactured after  Figure 3.5 Jan.1 2014 are with changed locking of the ...
  • Page 9: Storage

    Superabrasive    User Manual   Original Language  Lavina® 25M‐S/ Lavina® 25M‐S‐HV    11/2014    STORAGE  Always store and transport the Lavina®  S   machine in a dry place. Never transport the  Lavina®  S  machine unprotected; it may be  damaged if transported unprotected during  the rain or snow.     When  storing  the  Figure 3.9 Figure 3.11 Figure 3.10 machine the temperature may fall down to  or to less than 32°F (0°c), therefore you should empty the water from the system using the following steps:   Pull out the hose of the tank (Fig.3.9)   Using compressed air, blow out the water from the system for the two positions of the turn‐clock (Fig.3.10, Fig.3.11)  4. OPERATION  PRELIMINARY CONTROLS  Inspect the working areas as explained in the safety instructions. For wet use, fill in the water tank when the electrical cable is  disconnected. Connect the vacuum extractor and ensure that the vacuum hose is clear and it will follow the machine easily. Plug in  the machine and make sure that the power cord is free to follow the working direction of the Lavina®25M‐S  machine.    WATER FLOW CONTROL UNIT  The operator can choose the water sprayer in the front  when the tap is in the horizontal position (Fig.4.1), the water will  spray under the cover of the machine when the  ...
  • Page 10: Control Board

    Superabrasive    User Manual   Original Language  Lavina® 25M‐S/ Lavina® 25M‐S‐HV    11/2014  THE CONTROL BOARD      1.Power cable plug 2.Digital RPM indicator Indicates the revolution per minute of the   grinding plates (not the revolution per minute of the entire unit).  3.Polishing/Grinding switch  In “Polishing” position, the  operator has the possibility to control the rpm from 300 until  maximum 700 rpm. In “Polishing” position from 300‐1100 rpm  maximum.  4.Lamp cable gland  5.Water pump switch Lights orange when the water pump is   working.  6.Power led lights green when the power is on  7.Forward/Reverse switch choose forward for clockwise rotation of   the grinding plates or reverse for anti‐clockwise rotation of the grinding  plates  Figure 4.6   8.Potentiometer  changes the RPM of the grinding plates from 300‐1100 rpm  9.Reset button resets the alarm of the inverter  10.OFF button stops the motor   11.ON button starts the motor  12.Emergency button used in Emergency situations for stopping the motor  13.Potentiometer  changes the RPM of the forward movement from 0.1‐1km/h  14. Forward/Disengage switch ‐ for the forward movement motor  ...
  • Page 11: Tools And Accessories

    Superabrasive    User Manual   Original Language  Lavina® 25M‐S/ Lavina® 25M‐S‐HV    11/2014  5. TOOLS AND ACCESSORIES       WEIGHTS  Superabrasive offers additional weights for increasing the productivity of the machine (Fig.5.1).  Each additional weight weighs about 64lbs or 29kg. Each individual application, type and condition  of surface, power capacity of the outlet, etc. will determine the number of weights you can use  without tripping a breaker.  The additional weights depend on the tools; it is not always possible to add weights. Some tools  work too aggressively and the machine can stop. The weight can be ordered with item number  A08.00.00.00  Figure 5.1                   Figure 5.2 TOOL HOLDER KEY  The tool holder key (Fig.5.3) is used for adjusting, mounting and dismounting of the foam plates.  Always use the key for mounting.  Item number is A03.00.00.00      Figure 5.3    ...
  • Page 12: Popular Tools

    Superabrasive    User Manual   Original Language  Lavina® 25M‐S/ Lavina® 25M‐S‐HV    11/2014  6. POPULAR TOOLS    RECOMMENDED TOOLS      QuickChange System and Tooling feature extremely fast and convenient tool changes, and a long tool  life, providing  for great long‐term cost savings. The QuickChange pads are produced in four  different  bonds for super hard, hard, medium and soft concrete, in a variety of grit sizes. They are offered with  1 or 2  buttons or rectangular segments, which allows you to customize the aggressiveness of the cut.            Calibra grinding discs: our popular ceramic bond discs are designed for the removal of difficult scratches  and they save you valuable time by eliminating the need for multiple passes with metal tools. They can be used  wet or dry, and are best for hard concrete applications.  They are 3‐inch, with included Velcro back attachment.              ® NATO  polishing discs feature a special resin formula designed for both wet and dry applications and a unique design with  wide channels allowing for work on a cleaner surface and ensuring a quality polish. Available in 3 and 4 in sizes. They are with  included Velcro attachment.       ...
  • Page 13: Exploded View

    Superabrasive    User Manual   Original Language  Lavina® 25M‐S/ Lavina® 25M‐S‐HV    11/2014  7. EXPLODED VIEW    LAVINA® 25M‐S GENERAL EXPLODED VIEW (FIG.7.1)  LAVINA® 25M‐S TOP COVER EXPLODED VIEW 1 (FIG.7.2)  LAVINA® 25M‐S PLANETARY DRIVE EXPLODED VIEW (FIG.7.3)  LAVINA® 25M‐S TOP COVER EXPLODED VIEW 2 (FIG.7.4)                                                Figure 7.1 Figure 7.2  ...
  • Page 14: Bottom Cover Exploded View 1 (Fig.7.5)

    Superabrasive    User Manual   Original Language  Lavina® 25M‐S/ Lavina® 25M‐S‐HV    11/2014    LAVINA® 25M‐S BOTTOM COVER EXPLODED VIEW 1 (FIG.7.5)  LAVINA® 25M‐S BOTTOM COVER EXPLODED VIEW 2 (FIG.7.6)  LAVINA® 25M‐S PULLEY UNITS EXPLODED VIEW (FIG.7.7)  LAVINA® 25M‐S CARRIAGE EXPLODED VIEW (FIG.7.8)  LAVINA® 25M‐S TOOL HOLDER EXPLODED VIEW (FIG.7.9)                                                      Figure 7.5 Figure 7.6...
  • Page 15: Lavina® 25M-S/ Lavina® 25M-S-Hv

    Superabrasive    User Manual   Original Language  Lavina® 25M‐S/ Lavina® 25M‐S‐HV    11/2014  8. MAINTENANCE AND INSPECTION  CLEANING  Keep your machine clean. Cleaning the machine on a regular basis will help detect and solve potential problems before they can  cause damage to the machine. Most importantly, check and clean the tool plate connections, power cords, plugs, vacuum hoses,  and water tank.     CHECK DAILY  After operating the Lavina® 25M‐S‐E machine, the operator should conduct a visual inspection  of the machine. Any defect should be solved immediately. Pay attention to power cords, plugs,  vacuum hoses, loose bolts, and/or screws.   Tool holders: Buffers and spiders are consumables and must be visually checked on a daily basis and  replaced if needed. Make sure flanges or discs are secured well in place. The key lock holders  (butterflies) should also be checked.   Check the rubber buffers and make sure the holders are secure. The flange holding the  buffers (Fig.8.1, 1) has to be firmly secured to the unit. If a gap is seen here, it means that there  are loose screws securing the holder. The screws have to be tightened immediately in order to  safely operate the machine. Working with loose screws can also cause serious damage to the  machine. The tightening force of the screws has to be 25‐30N.m (18‐22ft/lbs).  It is very important that you check the screws on a regular basis (Fig.8.1, 2), that fix the  Figure 8.1 “QuickChange” holder to the safety part, so that the holder will not fly away if the buffers get  damaged. The “QuickChange” should be clean. The tension of the planetary belt can be checked by moving the main head  and feeling the resistance of the moving pulleys, tighten the belt if  necessary.   CHECK AND REPLACE AFTER THE FIRST 15 WORKING HOURS  Check the belt tension after 15 hours working with the machine.  The bottom cover has a control cover (Fig.8.2) that allows fast and easy control and correction  of the belt. It is recommended to check the tension of the belt after the first 15 hours and to  tighten if necessary. For the correct tension, see TROUBLESHOOTING “mounting the belt”.  Every time you open the control cover, mount back all the screws with washers.   CHECK EVERY 200 WORKING HOURS  Every 200 hours, the operator should inspect all parts of the machine carefully. Most  importantly, inspect and clean the tool plate connections, power cords, plugs, vacuum hoses,  water tank, and filter. Also, check the water flow of the pump. Check the guard assembly. Make ...
  • Page 16: Electrical Schemes 200-240 Volt

    Superabrasive    User Manual   Original Language  Lavina® 25M‐S/ Lavina® 25M‐S‐HV    11/2014  LAVINA® 25M‐S ELECTRICAL SCHEMES WITH YASKAWA INVERTER  200‐240 Volt   Figure 8.3 LAVINA® 25M‐S ELECTRICAL SCHEMES YASKAWA CONNECTION  MAIN CIRCUIT TERMINALS                                                Figure 8.5    ...
  • Page 17: Electrical Schemes 380-480 Volt

    Superabrasive    User Manual   Original Language  Lavina® 25M‐S/ Lavina® 25M‐S‐HV    11/2014  LAVINA® 25M‐S‐HV ELECTRICAL SCHEMES WITH YASKAWA INVERTER 380-480 VOLT   Figure 8.7   LAVINA® 25M‐S‐HV ELECTRICAL SCHEMES YASKAWA CONNECTION MAIN CIRCUIT    TERMINALS                                           Figure 8.9  ...
  • Page 18: Replacing Power Cord And Plugs

    Superabrasive    User Manual   Original Language  Lavina® 25M‐S/ Lavina® 25M‐S‐HV    11/2014  9. TROUBLESHOOTING  INDEX OF PROBLEMS AND SOLUTIONS    9.1 REPLACING POWER CORD AND PLUGS   When replacing the power cords or plugs always use cords and plugs with the same specifications as the original ones. Never use  lower quality or different types of cords and plugs.   In addition, take into consideration the distance between the application and the electrical source. The greater the distance, the  greater the resistance and the less current that will be available at the end, there will be a voltage drop and the inverter will sign into  alarm mode. This will also happen if there are several machines working on the same line or when the generator is underrated. In  general, our standard power cable can be doubled in length, if longer lengths are needed then you have to replace all the cables with  cables of a bigger gauge rated for length and amperage.     9.2 DISMOUNTING AND MOUNTING TOOL HOLDER TO CHANGE BUFFERS AND SPIDER, CHANGING V‐RINGS AND FELT‐RINGS          Figure 9.2.2 Figure 9.2.3 Figure 9.2.1         Figure 9.2.6 Figure 9.2.4 Figure 9.2.5  ...
  • Page 19: Tensioning And Replace The Planetary Belt

    Superabrasive    User Manual   Original Language  Lavina® 25M‐S/ Lavina® 25M‐S‐HV    11/2014  9.3 TENSIONING AND REPLACE THE PLANETARY BELT                    Figure 9.3.3 Figure 9.3.2   Figure 9.3.1                           If the belt slips or is broken separate the carriage  from main head, pull out motor plug(Fig.9.3.1),  water‐(Fig.9.3.2) (Fig.9.3). vacuum tubes (Fig.9.3.4).  Take off handles, fork, top frame and weight holders  so you can remove the top cover (Fig.9.3.5).       ...
  • Page 20: Checking The Tension Of The Belt

    Superabrasive    User Manual   Original Language  Lavina® 25M‐S/ Lavina® 25M‐S‐HV    11/2014        Figure 9.5.7 Figure 9.5.8 Figure 9.5.9   Dismount completely the tensioning device (Fig.9.5.1). Make 2 signs on the dismounted belt exactly  10 cm out of each other (belt without tension) (Fig.9.5.2). The purpose is to measure 10.2 cm on the  belt in tension what is a tension of 2%., a maximum of 2.5% is allowed.  ATTENTION: NEVER “OVER”  TENSION THE BELT, THE BELT WILL BE DAMAGED AND IT WILL NEVER RECOVER ITS ORIGINAL  TENSION  Mount the belt back around the planetary pulley; see that the belt is behind the driving pulley  (Fig.9.5.3). Put the belt around the left roller of the tensioning device (Fig.9.5.4). Put the tensioning  device back in place and pull the belt from the roller on the right side (Fig.9.5.5). Put the belt around  the driving pulley (Fig.9.5.6). Begin to tension until the measure of 10 cm between the marks  becomes 10.2 cm (Fig.9.5.7) (Fig.9.5.8). Tighten the tensioning device while turning the bolt move the  planetary head so the belt can slide. (Fig.9.5.8). Do not forget to lock the tensioning device (Fig.9.5.9).  Figure 9.5.10   9.6 CHECKING THE TENSION OF THE BELT    Figure 9.6.1   Figure 9.6.2   Figure 9.6.3 Figure 9.6.4...
  • Page 21: Replacing Of The Pulley Units

    Superabrasive    User Manual   Original Language  Lavina® 25M‐S/ Lavina® 25M‐S‐HV    11/2014    9.7 REPLACING THE PULLEY UNITS  Dismount guard and top cover as previous described.        Figure 9.7.3 Figure 9.7.1 Figure 9.7.2         Figure 9.7.4 Figure 9.7.5 Figure 9.7.6         Figure 9.7.8 Figure 9.7.9 Figure 9.7.7    ...
  • Page 22: Mounting The Belt

    Superabrasive    User Manual   Original Language  Lavina® 25M‐S/ Lavina® 25M‐S‐HV    11/2014    For the other two pulleys, loosen the five bolts for each pulley between the base plate and the motor base disc (Fig.9.7.13). An oil  seal ring (Fig.9.7.14) and a seal (Fig.9.7.15) should be placed on top of the pulley before mounting.       9.8 MOUNTING THE BELT    See here the schematic of the belt on the pulleys (Fig.9.8.1).    To dismount/mount the belt, follow the tensioning instruction in chapter:  Checking the tension of the belt.                        Figure 9.8.1     9.9 MOTOR CONNECTION  In case the motor is being replaced, please follow the cable connections in Figure 9.9.1 and Figure 9.9.2.      LAVINA® 25M‐S   LAVINA® 25M‐S ‐HV  The motor is connected in “Delta”   The motor is connected in “Star”  ...
  • Page 23: Fault Diagnosis Inverter Yaskawa V1000

    Superabrasive    User Manual   Original Language  Lavina® 25M‐S/ Lavina® 25M‐S‐HV    11/2014  9.10 FAULT DIAGNOSIS INVERTER YASKAWA V1000  Pages are referring to   Yaskawa Electric SIEP C710606 18A YASKAWA AC Drive – V1000 Technical Manual    23    ...
  • Page 24    Superabrasive    User Manual   Original Language  Lavina® 25M‐S/ Lavina® 25M‐S‐HV    11/2014      24    ...
  • Page 25: Disposal

         Superabrasive    User Manual   Original Language  Lavina® 25M‐S/ Lavina® 25M‐S‐HV    11/2014          10. DISPOSAL   If your machine after time is not usable or needs to be replaced, send the machine back to Superabrasive or a local  distributor, where a professional disposal complying with the environment laws and directives is guaranteed.     11. MANUFACTURER’S CONTACTS  If you need to contact Superabrasive Inc. with technical support questions, below is the contact information.   Address:  9411 Jackson Trail Road, Hoschton GA 30548, USA  Email:  info@superabrasive.us  Tel.:  706 658 1122  Fax:  706 658 0357  Website:  www.superabrasive.com  25 ...
  • Page 26: Spare Parts

    Superabrasive    User Manual   Original Language  Lavina® 25M‐S/ Lavina® 25M‐S‐HV    11/2014  12. SPARE PARTS   ASSEMBLY AND PARTS SPECIFICATIONS  1. LAVINA® 25M‐S/25M‐S‐HV GENERAL PARTS    FOR MACHINES PRODUCED BEFORE JAN.1  2014/ Model Item No. Description Pcs. 25M-S L25S-10.00.00 Main Head 25M-S MAR8.25 Tube 25M-S 10-16DIN3017 Clamp 25M-S L25MS-20.00.00 Carriage With Electrical Box 25M-S MAR8.20 Tube 25M-S D40L750 Vacuum Hose 5 ...
  • Page 27: For Machines Produced Before

    Superabrasive    User Manual   Original Language  Lavina® 25M‐S/ Lavina® 25M‐S‐HV    11/2014        2. LAVINA® 25M‐S /25M‐S ‐HV TOP COVER PARTS 1     FOR MACHINES  PRODUCED BEFORE  JAN.1  2014/   Model Item No. Description Pcs. L25M-S L25GS-19.00.00 Top Cover Assembly L25M-S M6X10ISO7380F Screw L25M-S L25NSPS-07.00.00.05 Back Weight Holder L25M-S L25SPS-07.00.00.29 Rubber Gasket Buffer L25M-S L25GS-18.00.00...
  • Page 28: Planetary Drive Parts

    Superabrasive    User Manual   Original Language  Lavina® 25M‐S/ Lavina® 25M‐S‐HV    11/2014    3. LAVINA® 25M‐S/25M‐S‐HV  TOP COVER PARTS 2 Model Item No. Description Pcs. 25M-S L25GS-19.00.01 Top Cover 25M-S L25GS-19.10.00 Vacuum Port 25M-S L25GS-19.20.00 Water Fitting 25M-S M12DIN985 25M-S M5DIN125A Washer 25M-S M5DIN127B Spring Washer 25M-S M5DIN934 25M-S L25SPS-04.01.00.00 Vacuum Port...
  • Page 29: Bottom Cover Parts 1

    Superabrasive    User Manual   Original Language  Lavina® 25M‐S/ Lavina® 25M‐S‐HV    11/2014      6. LAVINA® 25M‐S/25M‐S‐HV   BOTTOM COVER PARTS 1    Model Item No. Description Pcs.   25M-S L25LS-14.00.00 Bottom Cover Assembly   25M-S M5X12DIN6921 Bolt   25M-S L25LS-14.00.05 Sealer Inspection Cover   25M-S L25L-10.00.09 Inspection Cover   25M-S M6DIN127B Spring Washer  ...
  • Page 30: Pulley Units Parts

    Superabrasive    User Manual   Original Language  Lavina® 25M‐S/ Lavina® 25M‐S‐HV    11/2014        8. LAVINA®25M‐S/25M‐S‐HV  PULLEY UNIT PARTS    Model Item No. Description Pcs.   25M-S L25L-11.00.00 Pulley Unit Assembly 25M-S M6X20DIN7991 Screw 25M-S L25L-10.00.21   25M-S TRA000650 Rotary Seal   25M-S L25SPS-00.00.00.23 Compensating Ring   25M-S B65DIN471 Retaining Ring  ...
  • Page 31: For Machines Produced

    Superabrasive    User Manual   Original Language  Lavina® 25M‐S/ Lavina® 25M‐S‐HV    11/2014      10. LAVINA®25M‐S / 25M‐S ‐HV  TOOL HOLDER PARTS  Model  No.  Item No.  Description  Pcs.  L25M-S A31.10.00 Quick Change Assembly L25M-S A31.12.00 Keylock Set L25M-S A31.10.02-K Copling 2 with screws L25M-S M6X16DIN7991 Screw   L25M-S A25.00.10-K Buffer with two screw L25M-S...
  • Page 32: For Machines Produced After Jan.1 2014

    Superabrasive    User Manual   Original Language  Lavina® 25M‐S/ Lavina® 25M‐S‐HV    11/2014                                                        11. LAVINA®25M‐S  CARRIAGE PARTS/ FOR MACHINES  PRODUCED AFTER  JAN.1  2014/ Model Item No. Description Pcs.
  • Page 33: Control Box Parts 200-240 Volt

    Superabrasive    User Manual   Original Language  Lavina® 25M‐S/ Lavina® 25M‐S‐HV    11/2014    12. LAVINA® 25M‐S CONTROL BOX PARTS 200‐240 VOLT    12. LAVINA®25M‐S  CONTROL BOX PARTS  200‐240 VOLT  Model Item No. Description Pcs. Item No. Description 25M-S L20NS-30.30.00 Lamp Unit Incl. Cable 17.1 L25S-30.20.10 Plug with Cable 25M-S L20NS-30.10.01 Cable Gland 17.1.1 L20NS-30.02.03 Connector 25M-S L20NS -30.10.02 Plug on Control Board 17.1.2...
  • Page 34: Control Box Parts 380-480 Volt

    Superabrasive    User Manual   Original Language  Lavina® 25M‐S/ Lavina® 25M‐S‐HV    11/2014       13. Lavina® 25M‐S‐HV Control Box Parts 380‐480 Volt     13. LAVINA® 25M‐S‐HV  CONTROL BOX PARTS 380‐480 VOLT  Model Item No. Description Pcs. Item No. Description Pcs. 25MHV-S L20NS-30.30.00 Lamp Unit Incl. Cable 17.1.1 L20NHVS -30.20.11 Plug 25MHV-S L20NS-30.10.01 Cable Gland 17.1.2 L20NHVS-30.20.12 Cable for Electro Motor 25MHV-S L20NHVS-30.10.02...
