Wetif DT 392i Basic Operation Gude

THE DT392/392i
SPECIFICATIONS
Model Item
Display
Display Resolution
Processor
Memory (RAM)
Storage
System Operating Systems
Network Interface
Input and Control
Buttons
Indicator
Input/Output Ports
Audio/Microphone
Enclosure
Protective Grips
Dimensions
(H x W x D)
Weight
Mechanical
Battery Pack
AC/DC Adapter
Power Cords
Stylus
Water and Dust
Resistance
Shock and
Vibration Protection
Environmental
Regulatory
Operating
Temperature
Humidity
8
signage dtri com
DT392 DT392i
8.9" (diag.) TFT LCD with Resistive Touch and LED
backlight; outdoor-viewable option
1024 x 600 (WSVGA)
Intel Atom™ processor Z530 1.6GHz
®
1GB to 2GB DDR2 533MHZ
2GB to 16GB Internal Flash Module,
32GB to 64GB SSD
Microsoft Windows Embedded Standard
® ®
7, Windows 7 Professional, Windows XP
® ®
Embedded, Windows XP Pro for Embedded
®
Systems or Linux
WiFi 802.11a/b/g/n, Bluetooth 2.1
1 Power button, 7 Front buttons and
1 Trigger button
1 Power/ Battery status LED and 1 WLAN active LED
1 DC-in Jack; 1 USB 2.0 port
1 Headphone-out Jack combined with microphone;
Built-in speakers; built-in internal microphone
ABS + PC Plastic
Rubber with handstrap
7.7 x 10 x 1.25 (in);
196 x 256 x 32 (mm)
2.43 lbs (1.1 kg)
Internal (2S2P; 7.4V, 3760mAh)
Optional: External (2S2P; 7.2V, 3900mAh)
Input: 100 – 240V AC
Output: 19V DC@2.36A
North America, EU, UK, China and Japan
Non-electronic tip
IP54 IP64
MIL-STD-810G
FCC Class B, CE, C-Tick, RoHS compliant
Operation: 0°C - 40°C Operation: -20°C - 50°C
Storage: 0°C - 60°C Storage: -20°C - 60°C
0% - 90% non-condensing
DT392392iENG

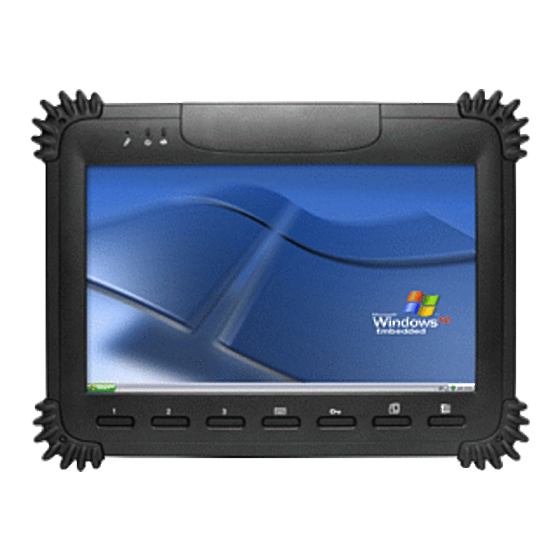

Mobile Tablet
DT 392/392i
BASIC OPERATION GUIDE
ENGLISH
INTRODUCTION
Thank you for acquiring the latest addition to DT
Research's line of mobile tablets— the DT392/392i.
Featuring an IP54 or IP64-rated, slim yet robust enclosure,
the two-pound DT392/392i with 8.9" TFT display is powered by the Intel
processor, offering optimal combinations of performance and power savings. An
external battery expansion option provides approximately 3-4 hours of additional battery
operation for up to eight hours of mobile usage.
The DT392/392i is available with Microsoft
Windows 7 Professional, Windows XP Embedded, Windows
® ®
Systems or Linux operating systems. Each software operating system features web
browser, client/server computing software, media player, accessories, and applications
support.
PACKAGE CONTENTS
• DT392/392i with Internal Battery Pack, Stylus and Bumpers
• AC-DC Power Adapter with Power Cord
• Basic Operation Guide
Major options, depending on configuration:
• Desktop Charging Cradle with DC-in Power Jack and Ethernet/ USB Ports
• External Battery Pack
• External Battery Charger Kit
• Vehicle/ Wall Mount Cradle
• 5-System Gang Charger
* If your DT392 contains MSR, camera or scanner module, please refer to the POS
module operation guide for detailed operation.
Atom™
®
Windows Embedded Standard 7,
® ®
XP Pro for Embedded
®
