Wetif DT 362 Basic Operation Manual

THE DT 362
SPECIFICATIONS
Display
Display Resolution
Processor
Memory (RAM)
Storage
Software
Operating Systems
System
Network Interface
Input and Control
Buttons
Indicator
Input/Output Ports
Audio
Security
Enclosure
Protective Grips
Dimensions
(H x W x D)
Weight
Mechanical
Battery Pack
AC/DC Adapter
Power Cords
Stylus
Regulatory
Operating
Environmental
Temperature
Humidity
BOG112509DT362ENG
8
ENGLISH signage dtri com
8.4" (diag.) TFT LCD with Resistive Touch;
outdoor-viewable option
800 x 600 (SVGA)
Intel Atom™ processor Z530 1.6GHz
®
1GB DDR2 533MHZ
1GB to 16GB Internal Flash Module,
32GB to 64GB SSD
Microsoft Windows CE;
® ®
Windows XP Embedded;
®
Windows XP Pro for Embedded Systems;
®
Windows XP Professional or Linux
®
WiFi 802.11a/g/n, Bluetooth 2.0
1 Power button, 7 Front buttons and
1 Trigger button
1 Power/ Battery status LED and 1 WLAN active LED
1 DC-in Jack; 1 Microphone-in and
1 Headphone-out Jacks; 1 USB 2.0 ports
Built-in speakers
WPA-Personal, WPA2-Personal, WPA-Enterprise,
WPA2-Enterprise, AES-CCMP 128-bit, WEP 128-bit
and 64-bit; 802.1X: EAP-SIM, LEAP, PEAP, TKIP,
EAP-FAST, EAPTLS, EAP-TTLS
ABS + PC Plastic and Magnesium-aluminum alloy
Rubber with handstrap
7.9 x 9.6 x 0.8 (in);
200 x 240 x 18 (mm)
1.9 lbs (0.86 kg)
Internal (2S2P; 7.4V, 2200mAh) or
(2S2P; 7.4V, 3760mAh)
Optional: External (2S2P; 7.4V, 3760mAh)
Input: 100 – 240VAC
Output: 12VDC@3.5A
North America, EU, UK, China and Japan
Non-electronic tip
FCC Class B, CE, C-Tick, RoHS compliant
Operation: 0°C - 40°C
Storage: 0°C - 60°C
0% - 90% non-condensing
Mobile Tablet
DT 362
BASIC OPERATION GUIDE
ENGLISH
INTRODUCTION

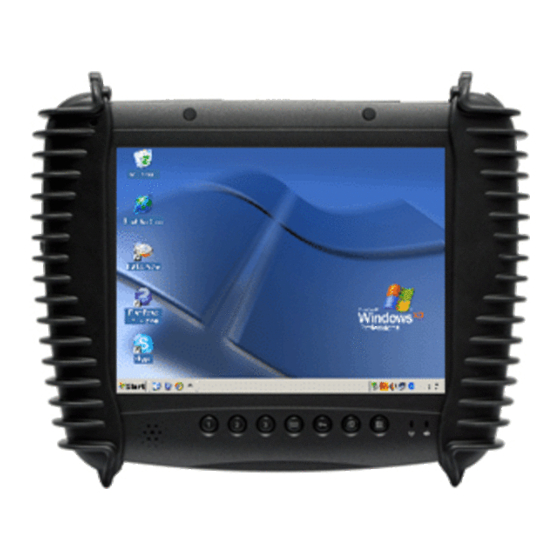

Thank you for acquiring the latest addition to
our line of tablet devices— the DT 362.
Featuring a slim yet robust enclosure, the two-pound
DT 362 with 8.4" TFT display is powered by the Intel
offering optimal combinations of performance and power savings. An external
battery expansion option provides approximately 3-4 hours of additional battery
operation for up to six hours of mobile usage.
The DT 362 is available in Windows CE, Windows
®
XP Professional or Linux operating systems. Each software operating system
features web browser, client/ server computing software, media player,
accessories, and applications support.
PACKAGE CONTENTS
• One DT 362 with Internal Battery Pack (2200mAh), Stylus, Grips and Screen
Cover
• AC-DC Power Adapter with Power Cord
• Basic Operation Guide
Major options, depending on configuration:
• Desktop Charging Cradle with DC-in
Power Jack and Ethernet, USB and
optional VGA Ports
• Internal High Capacity Battery (3760mAh)
* If your DT 362 contains MSR, camera or scanner module, please refer to
the POS module operation guide for detailed operation.
Atom™ processor,
®
XP Embedded, Windows
® ®
• External Battery Pack
• External Battery Charger Kit
