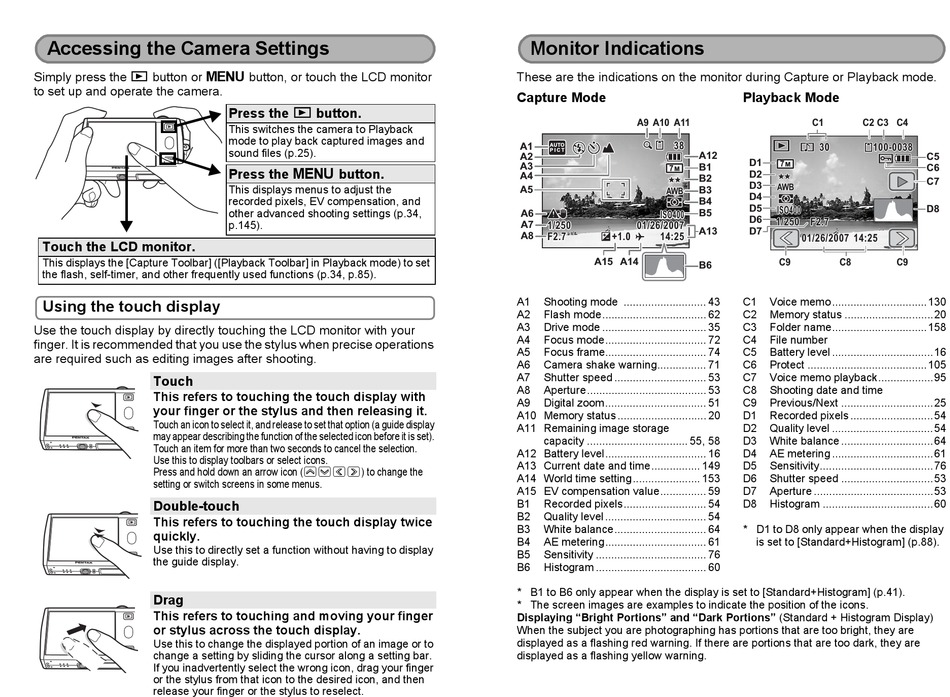

Accessing the Camera Settings
Simply press the Q button or 3 button, or touch the LCD monitor
to set up and operate the camera.
Touch the LCD monitor.
This displays the [Capture Toolbar] ([Playback Toolbar] in Playback mode) to set
the flash, self-timer, and other frequently used functions (p.34, p.85).
Using the touch display
Use the touch display by directly touching the LCD monitor with your
finger. It is recommended that you use the stylus when precise operations
are required such as editing images after shooting.
Touch
This refers to touching the touch display with
your finger or the stylus and then releasing it.
Touch an icon to select it, and release to set that option (a guide display
may appear describing the function of the selected icon before it is set).
Touch an item for more than two seconds to cancel the selection.
Use this to display toolbars or select icons.
Press and hold down an arrow icon (suqr) to change the
setting or switch screens in some menus.
Double-touch
This refers to touching the touch display twice
quickly.
Use this to directly set a function without having to display
the guide display.
Drag
This refers to touching and moving your finger
or stylus across the touch display.
Use this to change the displayed portion of an image or to
change a setting by sliding the cursor along a setting bar.
If you inadvertently select the wrong icon, drag your finger
or the stylus from that icon to the desired icon, and then
release your finger or the stylus to reselect.
Press the Q button.
This switches the camera to Playback
mode to play back captured images and
sound files (p.25).
Press the 3 button.
This displays menus to adjust the
recorded pixels, EV compensation, and
other advanced shooting settings (p.34,
p.145).

Monitor Indications

These are the indications on the monitor during Capture or Playback mode.
Capture Mode
A9 A10 A11
38 38 38
A1
AUTO
P I C T
A12
A2
A3
B1
7
M
A4
B2
A5
B3
B4
A6 B5
ISO400 ISO400 ISO400
A7 1/250 1/250 1/250 01/26/2007 01/26/2007 01/26/2007
A13
A8 F2.7 F2.7 F2.7 +1.0 +1.0 +1.0 14:25 14:25 14:25
A15 A14
B6
A1 Shooting mode ........................... 43
A2 Flash mode.................................. 62
A3 Drive mode .................................. 35
A4 Focus mode................................. 72
A5 Focus frame................................. 74
A6 Camera shake warning................ 71
A7 Shutter speed .............................. 53
A8 Aperture....................................... 53
A9 Digital zoom................................. 51
A10 Memory status ............................. 20
A11 Remaining image storage
capacity ................................. 55, 58
A12 Battery level................................. 16
A13 Current date and time................ 149
A14 World time setting...................... 153
A15 EV compensation value............... 59
B1 Recorded pixels........................... 54
B2 Quality level ................................. 54
B3 White balance.............................. 64
B4 AE metering................................. 61
B5 Sensitivity .................................... 76
B6 Histogram .................................... 60
* B1 to B6 only appear when the display is set to [Standard+Histogram] (p.41).
* The screen images are examples to indicate the position of the icons.
Displaying "Bright Portions" and "Dark Portions" (Standard + Histogram Display)
When the subject you are photographing has portions that are too bright, they are
displayed as a flashing red warning. If there are portions that are too dark, they are
displayed as a flashing yellow warning.
Playback Mode
C1 C2 C3 C4
30 30 30 100-0038 100-0038 100-0038
C5
D1
7
M
C6
D2
C7
D3
D4
D5 D8
ISO400 ISO400 ISO400
D6
1/250 1/250 F2.7 1/250 F2.7 F2.7
D7
01/26/2007 01/26/2007 01/26/2007 14:25 14:25 14:25
C9 C8 C9
C1 Voice memo............................... 130
C2 Memory status .............................20
C3 Folder name............................... 158
C4 File number
C5 Battery level .................................16
C6 Protect ....................................... 105
C7 Voice memo playback..................95
C8 Shooting date and time
C9 Previous/Next ..............................25
D1 Recorded pixels ...........................54
D2 Quality level .................................54
D3 White balance ..............................64
D4 AE metering .................................61
D5 Sensitivity.....................................76
D6 Shutter speed ..............................53
D7 Aperture .......................................53
D8 Histogram ....................................60
* D1 to D8 only appear when the display
is set to [Standard+Histogram] (p.88).
