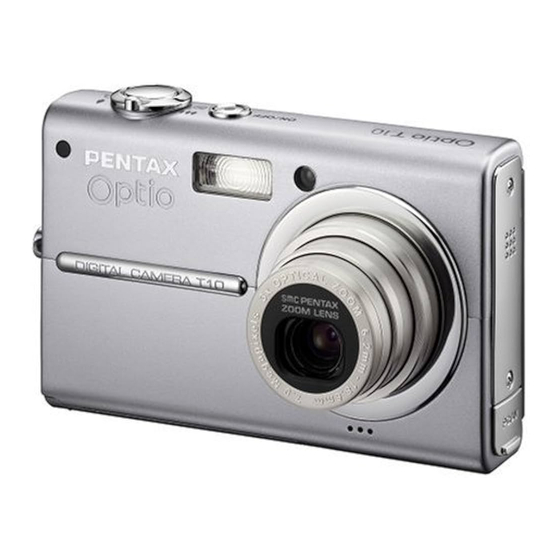

Digital Camera
Operating Manual
To ensure the best performance from
your camera, please read the Operating
Manual before using the camera.
Names of Parts
Zoom lever (p.45)
Shutter release button (p.24)
Power switch, power indicator (green) (p.20)
Touch display (LCD monitor) (p.34, p.74, p.132)
Front
Flash (p.56)
Self-timer lamp/AF illuminator (green)
(p.69, p.66)
Remote control receiver (p.70)
Speaker (p.123)
Lens
PC/AV terminal (p.86, p.130)
Microphone (p.30)
Back
Q button (p.25)
Strap lug (p.13)
DC input terminal (p.139)
3 button (p.34, p.118)
Battery/card compartment cover
(p.15, p.17)
Tripod socket
