Pentax Optio S4 Operating Manual

Pentax operating manual digital camera optio s4
Hide thumbs Also See for Optio S4:
Table of Contents

Advertisement

Quick Links

Digital Camera
Operating Manual
To ensure the best performance from
your camera, please read the Operating
Manual before using the camera.

Advertisement

Table of Contents
loading

Related Manuals for Pentax Optio S4

Summary of Contents for Pentax Optio S4

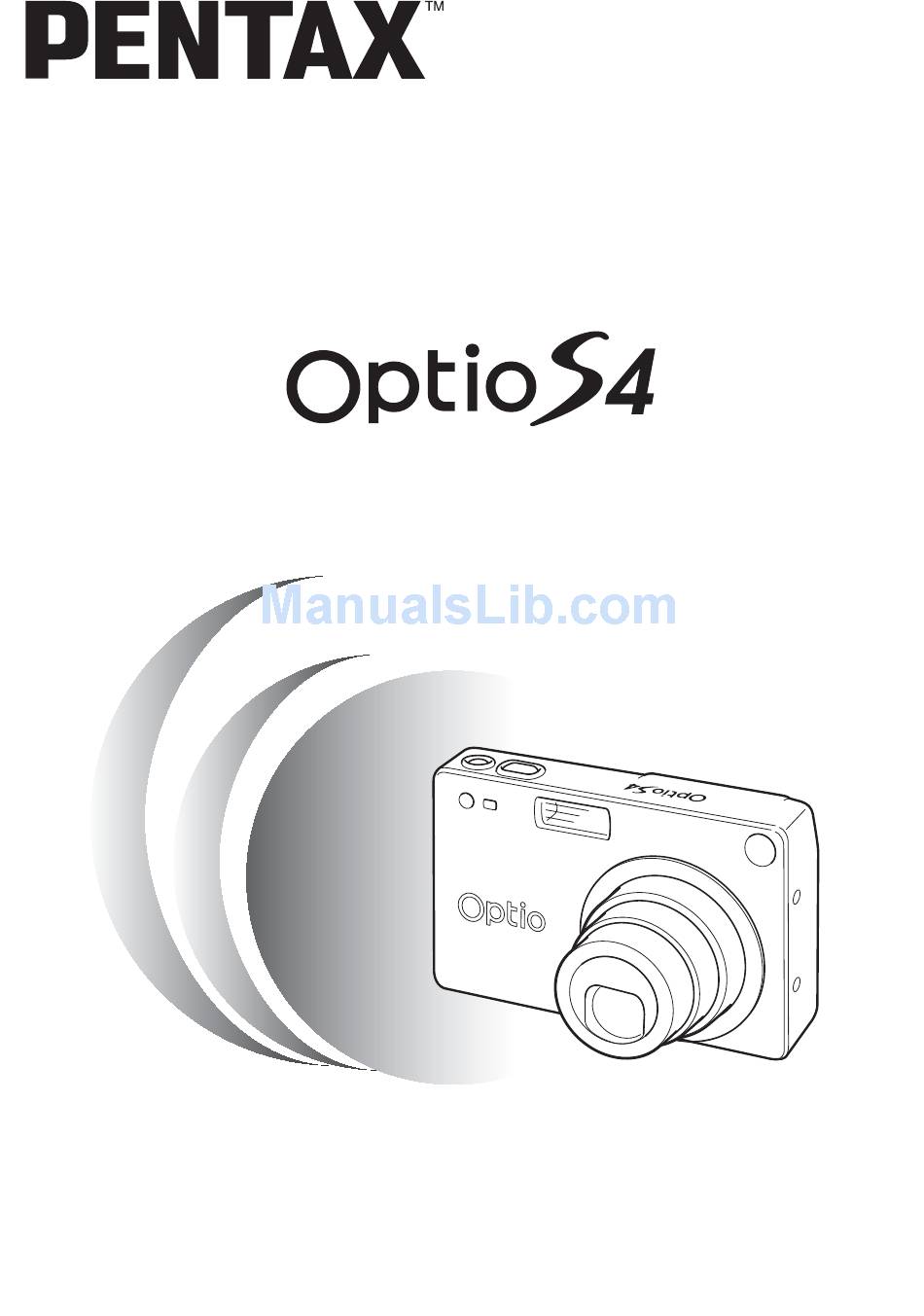

  • Page 1 Digital Camera Operating Manual To ensure the best performance from your camera, please read the Operating Manual before using the camera.
  • Page 2 Regarding copyrights Images taken using the Optio S4 that are for anything other than personal enjoyment cannot be used without permission according to the rights as specified in the Copyright Act. Please take care, as there are even cases where limitations are placed on taking pictures even for personal enjoyment during demonstrations, industrial enterprise or as items for display.

  • Page 3: For Safe Use Of Your Camera

    • If the camera emits smoke or a strange smell, or in the event of any other irregularity, stop using the camera immediately, remove the battery or disconnect the AC adapter and contact your nearest Pentax service center. Continued use of the camera may result in fire or electric shock.

  • Page 4: Care To Be Taken During Handling

    Caution • Never try to disassemble, short the battery. Also, do not dispose of the battery in fire, as it may explode. • Remove the battery from the camera immediately if it becomes hot or begins to smoke. Be careful not to burn yourself during removal. •...
  • Page 5 • When the camera has not been used for a long time, confirm that it is still working properly, particularly prior to taking important pictures (such as at a wedding or during travelling). Pentax is not responsible for consequential damages (costs incurred as a result of taking pictures, loss of benefits that were to be obtained through taking pictures) arising from failure of this product.

  • Page 6: Table Of Contents

    Contents FOR SAFE USE OF YOUR CAMERA ...1 Care to be Taken During Handling ...2 Contents ...4 Contents of the Operating Manual...7 Checking the Contents of the Package ...8 Names of Parts...9 Names of Operating Parts ...10 Getting Started Attaching the Strap...11 Powering the Camera ...12 Charging the Battery...12 Installing the Battery ...13...
  • Page 7 Selecting the Flash Mode ...39 Displaying Shooting Information in Capture Mode ...40 Selecting the Recorded Pixels...41 Selecting the Quality Levels ...42 Adjusting the Color Balance according to Lighting (White Balance) ...43 Changing the AF Area (Focusing Area) ...45 Setting the Light Metering Range to Determine the Exposure (AE Metering) ...46 Setting the Sensitivity ...47 Setting the Instant Review time (Instant Review) ...48...
  • Page 8 Playing Back Movie Pictures ...80 Displaying shooting information in Playback mode ...81 Nine Image Display ...82 Slideshow ...83 Erasing Images ...84 Erasing a Single Image or Voice Memo ...84 Erasing All Images...86 Protecting Images / sound from Deletion (Protect)...87 Viewing Images on a TV ...88 Setting the Printing Service (DPOF)...89 Printing Single Image ...89 Printing All Images...91...

  • Page 9: Contents Of The Operating Manual

    Contents of the Operating Manual This operating manual contains the following chapters. 1 Getting Started ––––––––––––––––––––––––––––––––––––––––– This chapter explains what you need to do after purchasing the camera before you start taking pictures. Be sure to read it and follow the instructions. 2 Quick Start–––––––––––––––––––––––––––––––––––––––––––––...

  • Page 10: Checking The Contents Of The Package

    Checking the Contents of the Package Camera Optio S4 AV cable I-AVC7 (∗) Rechargeable Lithium-ion battery D-LI8 (∗) Operating Manual (PC Connection Manual) About items marked with (∗) ∗ Items marked with (∗) are also available as optional accessories. For other optional accessories, refer to the list on page 111.

  • Page 11: Names Of Parts

    Names of Parts Front Back Power switch Remote control receiver Shutter release button Built-in flash Lens Self-timer lamp DC input terminal Microphone Strap lug PC/AV terminal Terminal cover Viewfinder LCD monitor Battery/Card cover Tripod socket...

  • Page 12: Names Of Operating Parts

    Names of Operating Parts Guide indications A guide to available button operation is displayed on the LCD monitor during operation. The buttons are indicated as shown below. Four-way controller (2) Four-way controller (3) Four-way controller (4) Four-way controller (5) MENU button Zoom f/y button (Only for digital zoom and magnified playback)

  • Page 13: Getting Started

    Getting Started Attaching the Strap Pass the narrow end of the strap through the strap lug and pass the other end through the loop.

  • Page 14: Powering The Camera

    Connect the AC plug cord to the battery charger. Plug the AC plug cord into the power outlet. Place the battery in the charger so that the PENTAX name is visible. The charging indicator lights red while the battery is charging and changes to green when charging is completed.

  • Page 15: Installing The Battery

    Battery charger Installing the Battery Install the battery provided. When using the camera for the first time, charge the battery before installing. Slide the battery/card cover in the direction indicated by the arrow and flip the cover open. Insert the battery with monitor while using the side of the battery to press the battery lock lever in the direction indicated by the arrow.
  • Page 16 Number of recordable images : Approx. 180 (when 50% shooting uses Playback time • The description above is based on Pentax measuring conditions and may vary depending on capture mode and shooting conditions. • Generally, battery performance is temporarily deteriorate as temperature decreases.

  • Page 17: Using The Ac Adapter (Optional)

    To power outlet AC plug cord Using the AC Adapter (optional) If you intend to use the LCD monitor for a long time or connect the camera to a PC, use of the AC adapter D-AC8 (optional) is recommended. Make sure that the camera is turned off and open the terminal cover.

  • Page 18: Installing The Sd Memory Card / Multimediacard

    • The above table indicates the number of images when using a 16MB SD Memory Card. • The above table is based on standard shooting conditions specified by PENTAX and may vary depending on the subject, shooting conditions, capture mode, SD Memory Card, etc. icon on the LCD monitor). Make sure that the...

  • Page 19: Data Backup

    • The data on the SD Memory Card / MultiMediaCard may be erased in the following circumstances. Pentax does not accept any liability for data that is erased • when the SD Memory Card / MultiMediaCard is mishandled by the user.

  • Page 20: Initial Settings

    Initial Settings If the initial settings screen appears when you turn the camera on, follow the procedure below to set the display language, Home Town, DST and current date and time. If the date and time that appear at the bottom right of the LCD monitor when you turn the camera on for the first time is not the current time, follow the instructions for “Changing the Date/Time”...

  • Page 21: Setting The Home Town

    Setting the Home Town You can choose the city (Home Town) in which you will use the camera. Press the four-way controller ( to select the desired city (Home Town). Press the four-way controller ( The screen for setting the D.S.T will be displayed.

  • Page 22: Setting The Date And Time

    Setting the Date and Time Set the current date and time. Use the four-way controller ( to change the month. Press the four-way controller ( will be displayed above and below the day. Use the four-way controller ( to change the day and press the four-way controller ( will be displayed above and below the year.
  • Page 23 When you have finished the settings, press the OK button when the clock reaches 00 seconds. The camera is ready to take a picture. When you set date and time except the initial settings, press the OK button again after pressing the OK button when the clock reaches 00 seconds to return to capture mode.

  • Page 24: Quick Start

    Viewfinder LCD monitor Display button For the simplest procedure to take still pictures: The flash fires automatically depending on the light conditions. Press the power switch. The camera will turn on. Confirm the subject and shooting information on the LCD monitor. The focus frame in the middle of the LCD monitor indicates the zone of automatic focusing.
  • Page 25 Press the shutter release button. The image will be displayed on the LCD monitor for 1 second (Instant Review) and recorded on the SD Memory Card / MultiMediaCard or the Built-in memory. (The green and red lamps on the right of the viewfinder blink alternately while the image is being recorded on the SD Memory Card / MultiMediaCard or the Built-in memory.) Using the Shutter Release Button...

  • Page 26: Playing Back Still Pictures

    Playing Back Still Pictures Playing Back Images You can display the still picture. Press the Playback button after taking a picture. The image taken will be displayed on the LCD monitor. Playing Back Previous or Next Images Still images can be played back one at a time, proceeding either forward or backward.
  • Page 27 Deleting a Displayed Image During this time you can erase the image by pressing the i button (The Delete screen will be displayed.), press the four-way controller (2) to select [Delete], and then pressing the OK button. Press the Playback button again or press the shutter release button halfway to return to capture mode.

  • Page 28: How To View The Recorded Images

    PC and print them out. Viewing Images on the Camera One of the advantages of a digital camera is that it enables you to view your pictures immediately after you have taken them. You can check the composition and brightness and take the picture again if you are not satisfied.
  • Page 29 Viewing Images on a PC Once you have installed the USB driver on your PC, you can view recorded images and edit them on your PC just by connecting the camera to the PC with the USB cable and downloading the images. Or you can remove the SD Memory Card / MultiMediaCard from the camera and transfer the data to your PC using a card reader.

  • Page 30: Common Operations

    Common Operations Turning the Camera On and Off DISPLAY button Press the power switch. (The power switch is illuminated by a green light.) The lens extends when the camera is turned on. Press the power switch again to turn the camera off. Playback Only Mode Press the power switch while pressing the Playback button to activate the Playback Only mode.

  • Page 31: Using The Button Functions

    Using the Button Functions Capture Mode b button Changes the flash mode. ( button Changes the focus mode as follows. ( Macro mode ( p.37) Super macro mode ( Infinity-landscape mode ( Move focusing area ( Zoom button Changes the size of the subject. ( Four-way controller ( Changes the EV compensation in all modes.

  • Page 32: Playback Mode

    Playback Mode button Deletes the image. ( button Protects the image from erasure. ( Zoom/ displays nine images at once. ( – + changes the size of the Zoom Display image, displayed on the LCD monitor. ( p.79) Four-way controller ( ) Sets the DPOF ( ) Displays the image you wish to view.

  • Page 33: Voice Recorder Mode

    Voice Recorder Mode Shutter release button When pressed, starts recording, and when pressed again, stops recording. Four-way controller ) Starts playback. When pressed during playback, pauses playback. ) Selects a recorded file before playback. If there are no recorded indexes: When ( ) is pressed during playback, rewinds 5 seconds.

  • Page 34: Setting The Menus

    Setting the Menus When you press the MENU button, the menus are displayed on the LCD monitor. You can set functions, save the settings, and change the camera settings on these menus. How to Set the Menus When you are making settings from a menu, a guide to operation is displayed on the LCD monitor.

  • Page 35: Example Of Menu Operation

    Example of menu operation MENU button Rec. Mode] Menu Rec. Mode Recorded Pixels 2304 1728 Quality Level White Balance Focusing Area Multiple AE Metering Sensitivity Auto Exit MENU Rec. Mode Recorded Pixels 2304 1728 Quality Level White Balance Focusing Area Multiple AE Metering Sensitivity...

  • Page 36: Menu List

    Menu List • [ Rec. Mode] Menu ···Adjustable × ···Any changes made are invalid. Item Recorded For selecting the size of Pixels recorded pixels For selecting the image Quality Level compression rate. For adjusting the color White Balance balance according to lighting.
  • Page 37 • [ Playback] Menu Item For copying files between the Built-in memory and the Copy image & Sound SD Memory Card / MultiMediaCard. Resize Changes the size of images Trimming For trimming images Alarm For setting the alarm to ring at a specific time Slide Show Recorded images are played successively.

  • Page 38: Taking Pictures

    Taking Pictures Setting the Shooting Functions Changing the Mode Capture mode is for taking pictures and Playback mode is for playing back or erasing images. Switching between Capture Mode and Playback Mode • To change from Capture mode to Playback mode, press the Playback button.

  • Page 39: Selecting The Focus Mode

    Selecting the Focus Mode • Focus Mode Autofocus mode icon) Macro mode Super macro mode Infinity-landscape mode Manual focus mode Adjust focus manually by the four-way controller (23). Focusing area mode The position of the autofocus area is changed. Press the The focus mode changes each time the button is pressed and the setting is displayed on the LCD monitor.
  • Page 40 If you take a picture while looking through the viewfinder when the focus mode is set on Macro and Super Macro, the range of the resulting picture will differ from what was seen in the viewfinder. Be sure to check the image on the LCD monitor. Manual Focus When the mode is set to to full screen on the LCD monitor for focus adjustment.

  • Page 41: Selecting The Flash Mode

    Selecting the Flash Mode Auto flash (No icon) Flash Off Flash On Auto flash + Red-eye reduction Flash On + Red-eye reduction • The flash is off when the Capture mode is set to shooting or infinity-landscape. • The flash discharges a total of 3 times, 2 pre-flashes and the third time to take the picture.

  • Page 42: Displaying Shooting Information In Capture Mode

    Displaying Shooting Information in Capture Mode You can display information on the LCD monitor when shooting. The display mode can be changed by pressing the Display button. Display On Shooting information is displayed. 1 Flash mode 2 Shooting mode 3 Focus mode 4 Capture mode 5 AF frame 6 Card/Built-in memory...

  • Page 43: Selecting The Recorded Pixels

    Selecting the Recorded Pixels You can choose the number of recorded pixels from [2304×1728], [1600×1200], [1024×768] and [640×480]. Suited for printing on A4 paper (8 1/2 × 11) 2304×1728 Suited for printing on A5 paper 1600×1200 Suited for printing on postcards 1024×768 Suited for attaching to E-mails or for creating websites 640×480...

  • Page 44: Selecting The Quality Levels

    Selecting the Quality Levels You can choose the image compression rate. The more stars, the clearer the quality and the larger the volume. The recorded pixels setting also changes the picture volume. C Best Better Good Select [Quality Level] on the [ Use the four-way controller ( to select the size.

  • Page 45: Adjusting The Color Balance According To Lighting (White Balance)

    Adjusting the Color Balance according to Lighting (White Balance) You can take pictures in natural colors by adjusting the white balance according to the light conditions at the time of shooting. Auto Daylight Shade Tungsten Light Fluorescent Light Manual Select [White Balance] on the [ Press the four-way controller ( The white balance screen will be displayed.
  • Page 46 Manual Setting Select [ ] (manual) on the [White Balance] screen. Point your camera at a blank sheet of paper so that it fills the screen. Press the Display button. The white balance is automatically adjusted, [Adjust] is displayed on the LCD monitor and the display returns to the menu screen.

  • Page 47: Changing The Af Area (Focusing Area)

    Changing the AF Area (Focusing Area) You can change the autofocus area.. Normal range Multiple The autofocus range becomes smaller. (Spot) Spot Select [Focusing Area] on the [ Use the four-way controller ( to change the setting. Press the OK button. The camera is ready to take the picture.

  • Page 48: Setting The Light Metering Range To Determine The Exposure (Ae Metering)

    Setting the Light Metering Range to Determine the Exposure (AE Metering) You can choose which part of the screen to use to measure the brightness and determine the exposure. Multi-segment Center-weighted Spot Select [AE Metering] on the [ Use the four-way controller ( to change the metering mode.

  • Page 49: Setting The Sensitivity

    Setting the Sensitivity You can select the sensitivity to suit the brightness of the surroundings. • Sensitivity The camera sets the sensitivity automatically. AUTO • The lower the sensitivity, the sharper the image and the less noise. The shutter speed will be slower in low light conditions. •...

  • Page 50: Setting The Instant Review Time (Instant Review)

    Setting the Instant Review time (Instant Review) You can choose the Instant Review time from 0.5sec., 1sec., 2sec., 3sec., 4sec., 5sec. or off (no display). Select [Instant Review] on the [ Use the four-way controller ( to select the display time. Press the OK button.

  • Page 51: Setting The Image Sharpness (Sharpness)

    Setting the Image Sharpness (Sharpness) You can choose whether you want the image to have sharp or soft outlines. Select [Sharpness] on the [ Use the four-way controller ( to change the setting from [Normal] to [Hard (+)] or [Soft (–)]. Press the OK button.

  • Page 52: Setting The Color Saturation (Saturation)

    Setting the Color Saturation (Saturation) You can set the color saturation. Select [Saturation] on the [ Use the four-way controller ( to change the setting from [Normal] to [Hard (+)] or [Soft (–)]. Press the OK button. The camera is ready to take the picture. Rec.

  • Page 53: Setting The Image Contrast (Contrast)

    Setting the Image Contrast (Contrast) You can set the image contrast. Select [Contrast] on the [ Use the four-way controller ( to change the setting from [Normal] to [Hard (+)] or [Soft (–)]. Press the OK button. The camera is ready to take the picture. Rec.

  • Page 54: Ev Compensation

    EV Compensation You can take pictures that are intentionally over-exposed or under- exposed. Select [EV Compensation] on the [ Use the four-way controller ( to select the EV setting in the range of –2.0 EV to +2.0 EV in 1/3 EV steps.

  • Page 55: Taking Pictures

    Taking Pictures Setting the Functions (Program Mode) In Program mode ( ), the camera automatically sets the shutter speed and aperture for taking still pictures. However, you can select other functions such as the flash mode or continuos shooting mode. Press the four-way controller ( The virtual mode dial appears.

  • Page 56: Selecting The Picture Mode According To The Shooting Scene (Picture Mode)

    Selecting the Picture Mode According to the Shooting Scene (Picture mode) You can select the Picture mode according to the shooting scene. • Picture Mode There are nine available modes in Picture mode. H Landscape I Flower J Portrait M Self-Portrait L Surf &...

  • Page 57: Taking Pictures Of Dark Scenes (Night-Scene Mode)

    Taking Pictures of Dark Scenes (Night-Scene Mode) You can choose settings appropriate for taking pictures of dark scenes, such as nightscapes. Press the four-way controller ( The virtual mode dial appears. Use the four-way controller ( to display the Night-scene mode ) at the top of the dial.

  • Page 58: Taking Movie Pictures (Movie Picture Mode)

    Taking Movie Pictures (Movie Picture Mode) This mode enables you to take moving images and sound. The maximum length of one recording (1 set) is approximately 60 seconds. Press the four-way controller ( The virtual mode dial appears. Use the four-way controller ( Picture mode ( Press the OK button.
  • Page 59 Keeping the shutter release button pressed If you keep the shutter release button pressed for more than one second, pictures will be taken for as long as you keep the button pressed. Shooting stops when you take a finger off from the shutter release button.

  • Page 60: Taking Panorama Pictures (Panorama Assist Mode)

    Taking Panorama Pictures (Panorama Assist Mode) You can take a number of images and join them together to form a panorama picture. The panorama software provided with the camera and a computer that supports Windows are necessary for joining the images.
  • Page 61 Take the first picture. Press the shutter release button to take the first image. The right edge of the image is displayed in transparent form on the left of the LCD monitor. Move the camera to the right and take the second picture. Repeat the above procedure to take the third and subsequent pictures.

  • Page 62: Taking Pictures With Digital Filters (Digital Filter Mode)

    Taking Pictures with Digital Filters (Digital Filter Mode) You can take pictures using digital filters. The filters consist of color filters such as red, blue and green, and a slim filter that produces a slim effect. • Color Filters Eight color filters are provided: black-and-white, sepia, red, pink, violet, blue, green and yellow.
  • Page 63 Setting the slim filter [ ] When you select the slim filter in Digital Filter Mode, the slimness setting screen is displayed. Use the four-way controller ( Decreases slimness. Increases slimness. Press the OK button. The camera returns to digital filter mode. The digital zoom cannot be used when the slim filter is selected.

  • Page 64: Using Preset Function Settings (User Mode)

    Using Preset Function Settings (User Mode) In User mode, you can take pictures using the functions and settings registered in advance in User mode. Press the four-way controller ( in Capture mode. The virtual mode dial appears. Use the four-way controller ( to display the User mode ( the top of the dial.

  • Page 65: Taking Stereo Pictures (3D Image Mode)

    Taking Stereo Pictures (3D Image Mode) You can take 3D pictures using the LCD monitor and view them by the parallel method or cross method (p.65). If you print out the 3D pictures and look at them through the 3D image viewer provided, the image will appear in three dimensions.
  • Page 66 Press the OK button. The screen for taking the first image appears in the left half of the LCD monitor. Take the first image. Hold the camera so that the subject is in the middle of the left half of the screen and press the shutter release button.
  • Page 67 • Viewing 3D pictures by the parallel method and cross method As our eyes are positioned about 6 - 7 cm apart, there is a very slight deviation between what we see with our right eye and what we see with our left eye.
  • Page 68 • How to view 3D pictures using the 3D image viewer Print out the pictures so that they are about 11cm or 12cm wide and place the divider of the 3D image viewer in the middle of the two. As the distance between the left and right eyes differs from person to person, some people may have difficulty obtaining a three- dimensional effect even when looking at prints that are the same size.
  • Page 69 • Example of a 3D Picture...

  • Page 70: Continuous Shooting (Continuous Shooting Mode)

    Continuous Shooting (Continuous Shooting Mode) Pictures are taken continuously while the shutter release button is pressed. Press the four-way controller ( button to display monitor. Press the shutter release button. Pictures will be taken continuously while the shutter release button is pressed.

  • Page 71: Using The Self-Timer

    Using the Self-Timer The picture will be taken 10 seconds after the shutter release button is pressed. Press the four-way controller ( display on the LCD monitor. Press the shutter release button. The self-timer is engaged and the self-timer lamp lights. The picture is taken approximately 3 seconds after the self-timer lamp starts to blink.

  • Page 72: Using The Remote Control Unit (Optional)

    • Life of the Battery for the Remote Control Unit A signal can be sent from the remote control unit to the camera approximately 30,000 times. If the battery needs changing, contact your nearest Pentax customer service center. (A charge is made for changing the battery.) ) on Playing Back Images p.79...

  • Page 73: Using The Zoom

    Using the Zoom You can use the zoom to take pictures in Tele or Wide mode. Press the Zoom button in Capture mode. : makes the subject larger : makes the subject smaller When the digital zoom function is disabled, you can take pictures at up to 3 times magnification using the optical zoom.
  • Page 74 Enabling the Digital Zoom Function Press the MENU button in Capture mode. The [ Rec.Mode] menu will be displayed. Press the four-way controller ( to select [Digital Zoom]. Use the four-way controller ( to select [On]. Press the OK button. The camera is ready to take a picture.

  • Page 75: Taking Time-Lapse Movie Pictures (Fast Fwd Movie)

    Taking Time-lapse Movie Pictures (Fast Fwd Movie) This mode lets you take movie pictures at a delayed frame rate so that when you play the movie back, the action appears speeded up. This function is useful for recording a blooming flowers, etc. Press the MENU button in Movie Picture mode.

  • Page 76: Saving The Settings (Memory)

    Saving the Settings (Memory) Saving the Menu Items (Memory) You can choose whether you want the set values to be saved when the camera is turned off. If you select the status they were in immediately before the camera was turned off. If you select [Off], the settings will be reset to the defaults when the camera is turned off.

  • Page 77: Register Functions In User Mode

    Press the MENU button in Capture mode. Press the four-way controller ( to select [Memory]. Press the four-way controller ( [Memory] menu will be displayed. Use the four-way controller ( to select the item. Press the four-way controller ( to select [On] or Press the OK button twice.

  • Page 78: Recording And Playback

    Recording and Playback Recording Sound (Voice Recorder Mode) You can record sound. The recordable time is displayed on the LCD monitor according to how much space is available on the SD Memory Card / MultiMediaCard. Press the power switch for more than 2 seconds. The power switch is illuminated by a red light.

  • Page 79: Playing Back Sound

    Playing Back Sound You can play back the recording you made in Voice Recorder Mode. Enter the Voice Recorder Mode and press the Playback button. Use the four-way controller ( to select the recording you want to play back. Press the four-way controller ( Playback will start.

  • Page 80: Adding A Voice Memo

    Adding a Voice Memo You can add a voice memo to a captured image. Enter the playback mode and choose the image to which you want to add a voice memo with the four-way controller ( The voice memo screen will be displayed on the LCD monitor while the image is displayed.

  • Page 81: Playback/Erasing/Editing

    Playback/Erasing/Editing Playing Back Images Playing Back Still Pictures See “Playing Back Images” (p.24), or “Playing Back Previous or Next Images” (p.24). Zoom Display You can display images magnified up to a maximum of 4 times. A guide to operation is displayed on the LCD monitor during magnification. (The magnification varies depending on the number of recorded pixels.) Enter the Playback mode and choose the image you want to magnify with the four-way controller (...

  • Page 82: Playing Back Movie Pictures

    Playing Back Movie Pictures You can play back Movie pictures. A guide to operation is displayed on the LCD monitor during playback. You can play back the recording you made in Voice Recorder mode at the same time. Enter the Playback mode and choose the movie picture you want to play back with the four-way controller ( Press the four-way controller ( Playback will start.

  • Page 83: Displaying Shooting Information In Playback Mode

    Displaying shooting information in Playback mode Shooting information can be displayed on the LCD monitor. Pressing the Display button switches the information displayed. Display On Displays shooting information. 1 Voice Memo icon 2 Protect icon 3 Folder name 4 File name 5 Card / Built-in memory icon 6 Four-way controller operation guide 7 Shooting date and time...

  • Page 84: Nine Image Display

    Nine Image Display You can display nine images at the same time. Enter the Playback mode and choose an image with the four-way controller ( Press Nine images will be displayed with the selected image in the center. Choose an image with the four-way controller 2345 When 10 or more images have been...

  • Page 85: Slideshow

    Slideshow You can play back all the images on the SD Memory Card/ MultiMediaCard continuously. Enter the Playback mode and choose the image with which to start the slideshow with the four-way controller ( Press the MENU button. The [ Playback] menu will be displayed.

  • Page 86: Erasing Images

    Erasing Images Erasing a Single Image or Voice Memo Enter the Playback mode and choose the image or voice memo you want to erase with the four-way controller ( Press the The Delete screen will be displayed. Select [Delete] with the four-way controller ( Press the OK button.
  • Page 87 Erasing a Voice Memo only If an image has a voice memo, you can erase the voice memo without erasing the image. Enter the Playback mode and choose the image with the voice memo that you want to erase with the four- way controller ( Press the button.

  • Page 88: Erasing All Images

    Erasing All Images You can erase all the images and sound at once. • Once erased, images cannot be restored. • Protected images/sound cannot be erased. Enter the Playback mode and press the The Delete All screen will be displayed. Select [Delete All] with the four-way controller ( Press the OK button.

  • Page 89: Protecting Images / Sound From Deletion (Protect)

    Protecting Images / sound from Deletion (Protect) You can protect images/sound from being accidentally erased. Enter the Playback mode and choose the image/sound you want to protect with the four-way controller ( Press the button. The Protect screen will be displayed. Select [Protect] with the four-way controller ( Press the OK button.

  • Page 90: Viewing Images On A Tv

    Viewing Images on a TV By using the AV cable, you can capture and play back images on a TV or other equipment with a video IN jack. Make sure that both the TV and the camera are turned off before connecting the cable. Open the terminal cover and connect the AV cable.

  • Page 91: Setting The Printing Service (Dpof)

    Setting the Printing Service (DPOF) You can print the images on the SD Memory Card / MultiMediaCard using a DPOF (Digital Print Order Format) compatible printer or at a printing service. Printing Single Image Set the following items for each image. •...
  • Page 92 Use the four-way controller ( to select the number of prints, then press the four-way controller The frame will move to [Date]. Use the four-way controller ( to select whether to insert the date or not. (On): The date will be imprinted. (Off): The date will not be imprinted.

  • Page 93: Printing All Images

    Printing All Images Enter the Playback mode and press the four-way controller ( Press the Display button. Use the four-way controller ( to select the number of prints. You can print up to 99 copies. Press the four-way controller ( The frame will move to [Date].

  • Page 94: Editing Images

    Editing Images Changing the Image Size By changing the size and quality of a selected image, you can make the file smaller than the original. After changing the size, the image can be saved as a new image or written over the original image. Press the MENU button.
  • Page 95 Press the four-way controller ( pixels]. Press the four-way controller ( The select frame moves to [Quality Level]. Press the four-way controller ( to select [Quality Level]. Press the OK button. Press the four-way controller ( to select [Overwrite] or [Save as]. Press the OK button.

  • Page 96: Trimming Images

    Trimming Images You can trim part of a picture and save it as a separate image. Press the MENU button. Press the four-way controller ( The [ Playback] menu will be displayed. Press the four-way controller ( [Trimming]. Press the four-way controller ( The image that can be trimmed.

  • Page 97: Copying Files

    Copying Files You can copy files from the Built-in memory to the SD Memory Card/ MultiMediaCard and vice versa. When files are copied from the Built-in memory to the card, all the files are copied at once. When files are copied from the card to the Built-in memory, the files are checked one at a time before being copied.

  • Page 98: Settings

    Settings Camera Settings How to recall the [ Formatting a SD Memory Card / MultiMediaCard and the Built-in memory Formatting will delete all the data on the SD Memory Card/ MultiMediaCard if you are using a card, and all the data in the Built-in memory if there is no card inserted.

  • Page 99: Changing The Sound Settings

    Format Sound Start-up Screen Date Style Date Adjust World Time Exit MENU Changing the Sound Settings You can change the volume of the playback and operation sounds ([Start-up Sound], [Shutter Sound], [Key Operation Sound], [Focus Sound] and [Self-timer Sound]). You can also change the type of each sound. Changing the volume of playback and operation sounds Select [Playback Volume] on the Set-up menu.

  • Page 100: Changing The Start-Up Screen

    How to recall the [ Changing the Start-up Screen You can display an image recorded with the camera as the welcome screen when the camera is turned on. Select [Start-up Screen] on the [ Press the four-way controller ( Press the Display button. Use the four-way controller ( you want to display as the start-up screen.

  • Page 101: Setting The Date Style

    Format Sound Start-up Screen Date Style Date Adjust World Time Exit MENU Setting the Date Style You can set the style in which the date is displayed on the camera. Choose [mm/dd/yy], [dd/mm/yy] or [yy/mm/dd]. Select [Date Style] on the [ Use the four-way controller ( style.

  • Page 102: Changing The Date/Time

    How to recall the [ Changing the Date/Time You can change the initial date and time settings. Select [Date Adjust] on the [ Press the four-way controller ( The date screen will be displayed. See “Setting the Date and Time” (p.20) for the setting procedure. Setting the World Time The city and time selected in “Initial Settings”...
  • Page 103 Format Sound Start-up Screen Date Style Date Adjust World Time Exit MENU Switch [ ] and [ : The time in the country selected in World Time will be displayed. : The time in the country selected in Home Time will be dis-played. Press the four-way controller ( If New York is selected as the world time city, then the cross-shapes line is located in New York on the world map, and then...

  • Page 104: Changing The Display Language

    How to recall the [ Changing the Display Language You can change the language in which the menus, error messages, etc. are displayed. Select [Language] on the [ Use the four-way controller ( language. Press the OK button. The camera is ready to take or play back images. Set-up] menu Four-way controller OK button...

  • Page 105: Changing The Video Output Format

    Format Sound Start-up Screen Date Style Date Adjust World Time Exit MENU Changing the Video Output Format You can select the output format (NTSC or PAL) for taking or playing back images on a TV monitor. Select [Video Out] on the [ Use the four-way controller ( output format.

  • Page 106: Sleep Timeout

    How to recall the [ Sleep Timeout You can set the LCD monitor to turn off automatically when no operation is performed for a fixed time. Select [Sleep Timeout] on the [ Use the four-way controller ( [1min], [2min] or [off]. Press the OK button.

  • Page 107: Setting The Quick Delete Function

    Format Sound Start-up Screen Date Style Date Adjust World Time Exit MENU Setting the Quick Delete Function When the Quick Delete function is set to On, the Delete screen will be displayed when [Delete] or [Delete All] is selected. Select [Quick Delete] on the [ Use the four-way controller ( Press the OK button.

  • Page 108: Registering Functions

    How to recall the [ Registering Functions You can register the functions you use most frequently on the four-way controller ( ). The functions can then be set directly by pressing the four-way controller ( Registering a function Select [Fn Setting] on the [ Use the four-way controller ( you want to register.

  • Page 109: Resetting To Default Settings (Reset)

    Format Sound Start-up Screen Date Style Date Adjust World Time Exit MENU Resetting to Default Settings (Reset) You can reset all the settings other than the date and time, language, world time and alarm. Select [Reset] on the [ Press the four-way controller button ( The Reset screen will be displayed.

  • Page 110: Setting The Alarm

    Setting the Alarm You can set the alarm to ring at a specified time and display a selected image. Checking the Alarm Press the MENU button. Press the four-way controller ( The [ Playback] menu will be displayed. Press the four-way controller ( Press the four-way controller ( The list of alarms will be displayed.

  • Page 111: Turning The Alarm Off

    Press the four-way controller ( The list of alarms will be displayed. Press the four-way controller ( to select alarm 1-3. Press the four-way controller ( The screen for setting the alarm mode and time will be displayed. Four-way controller ( Four-way controller ( setting.

  • Page 112: Appendix

    Appendix List of City Names Refer to following list of city and code names for setting the world time.. Code Tokyo Guam Sydney Noumea Wellington Auckland Pagopago Honolulu Anchorage Vancouver San Francisco Los Angeles Calgary Denver Mexico City Chicago Miami Toronto New York Santiago...

  • Page 113: Optional Accessories

    Optional Accessories A number of dedicated accessories are available for this camera. AC adapter D-AC8 USB Cable I-USB7 AV Cable I-AVC7 Camera Case O-CC8 Strap O-ST5 Remote control E Remote control F Rechargeable lithium-ion battery D-LI8 Battery charger D-BC8...

  • Page 114: Messages

    Messages Messages such as the following may be displayed on the LCD monitor during camera operation. Memory Card full Built-in Memory Full No image & sound Camera can not display this image & sound. Battery depleted. Memory card error. This card is not formatted.
  • Page 115 Deleting The image is being deleted. Image folder could The largest file number has been assigned to an not be created. image and no more images can be saved. Insert a new SD Memory Card / MultiMediaCard or format the SD Memory Card / MultiMediaCard or Built-in memory.

  • Page 116: Troubleshooting

    Troubleshooting Problem Power will not Battery is not come on installed Battery is installed incorrectly Battery power is low No image on LCD monitor is set to the LCD monitor Image is displayed but is hard to see Shutter will Flash is charging not release No available space...
  • Page 117 Problem Cause Subject is not Subject difficult to in focus focus on Subject is not in focusing area Subject is too close Focus mode is set on (Macro) or (Super Macro). Flash does Flash mode is set to not discharge The Capture mode is set to , continuous...

  • Page 118: Main Specifications

    Main Specifications Type Effective Pixels Sensor Recorded Pixels Sensitivity File Format Quality Level Storage Medium Image Storage Capacity Recorded Pixels 2304×1728 1600×1200 1024×768 640×480 • When using a 16MB SD Memory Card White Balance Lens Digital Zoom Viewfinder Fully automatic compact-type digital still camera with built-in zoom lens 4.0 megapixels 4.23 megapixels (total pixels), 1/2.5 inch interline transfer CCD with a...
  • Page 119 Battery Life Approx. 160 images (with LCD monitor on, flash fired for 50% of shots and using a rechargeable lithium-ion battery D-LI8, in accordance with Pentax measuring conditions) In/Out Port USB/AV terminal (PC communication type USB 1.1), external power supply terminal...

  • Page 120: Warranty Policy

    Shipping charges are to be borne by the owner. If your Pentax was purchased outside of the country where you wish to have it serviced during the warranty period, regular handling and servicing fees may be charged by the manufacturer's representatives in that country.
  • Page 121 Therefore, we recommend that you review the warranty card supplied with your product at the time of purchase, or contact the PENTAX distributor in your country for more information and to receive a copy of the warranty policy.
  • Page 122 For customers in USA STATEMENT OF FCC COMPLIANCE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 123: Declaration Of Conformity

    The above named party is responsible for ensuring that the equipment complies with the standards of 47CFR §15.101 to §15.109. Product Name: PENTAX Digital Still Camera Model Number: Optio S4 Contact person: Customer Service Manager...
  • Page 124 2-36-9,Maeno-cho, Itabashi-ku, Tokyo 174-8639, JAPAN (http://www.pentax.co.jp/) Julius-Vosseler-Strasse, 104, 22527 Hamburg, GERMANY (HQ - http://www.pentaxeurope.com) (Germany - http://www.pentax.de) PENTAX House, Heron Drive, Langley, Slough, Berks SL3 8PN, U.K. (http://www.pentax.co.uk) 12/14, rue Jean Poulmarch, 95106 Argenteuil Cedex, FRANCE (for Netherlands) Spinveld 25, 4815 HR Breda, NETHERLANDS (http://www.pentax.nl)

This manual is also suitable for:

18283 - optio s4 digital cameraS4 - optio s4 4mp digital camera

Table of Contents
