WSG70n

User Manual

V2.2.X iOS System
Smart Cloud Control Insight Switch Wireless Router
Features:

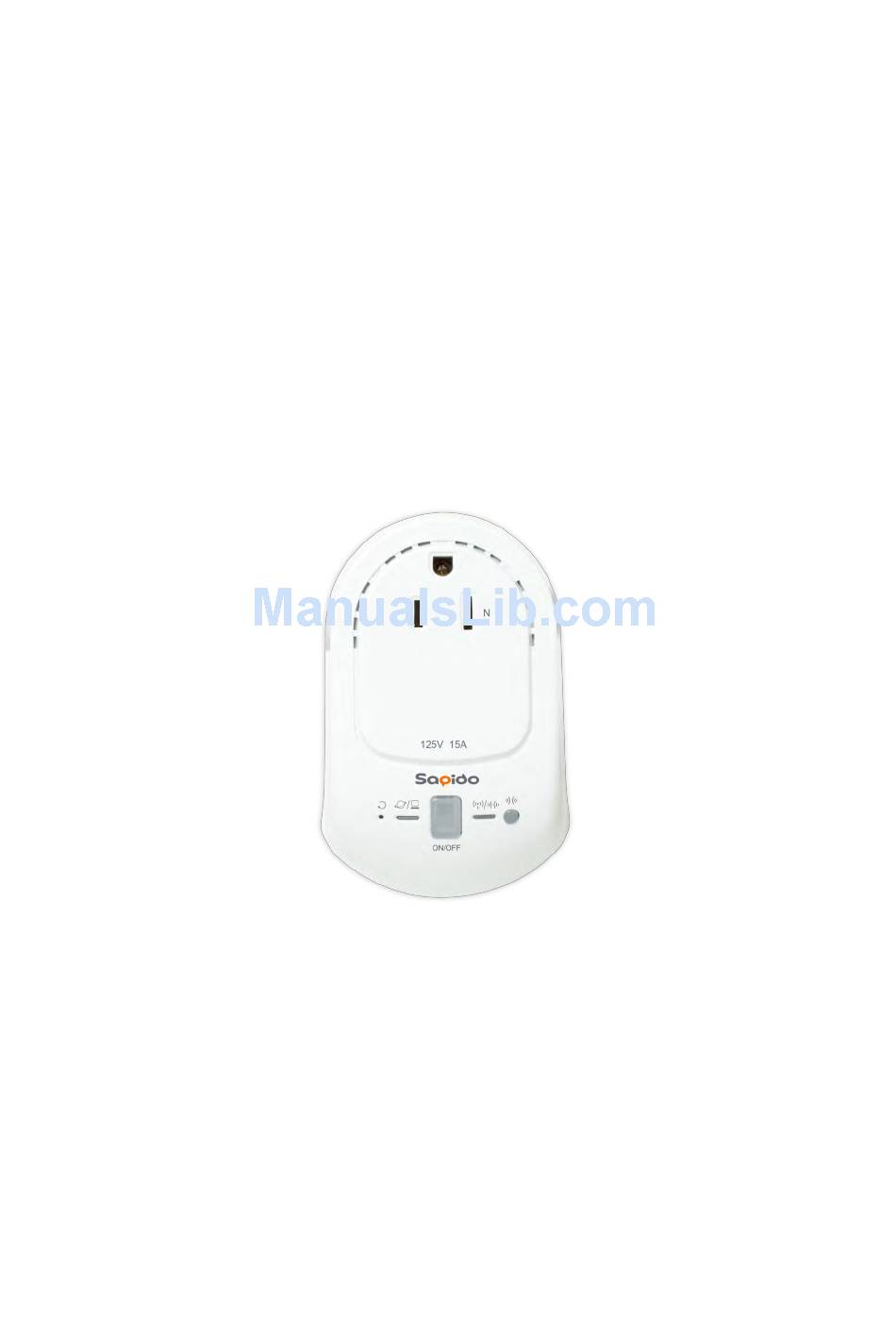

WGS70n is not only a Cloud Control Insight Switch, but also a Wireless Router. Just plug in any non-clip
controlled electric appliance, and you can do the power ON/OFF via Sapido APP Schedule Management
Function. It provides electricity usage consumption and history record function to calculate electricity usage as
the reference. At the meantime, over-heat protection is equipped. Even you are in a frenzy of work, you can
turn the electric appliances On/Off via your smartphone for saving energy and money, giving the experience of
smart life with more convenience.
