V2.2.x ios system
smart home system
security + power saving solution.
11ac home gateway, security alarm,
cloud door & window sensor and cloud motion sensor,smart cloud night vision camera with audio wireless router, smart cloud control insight switch

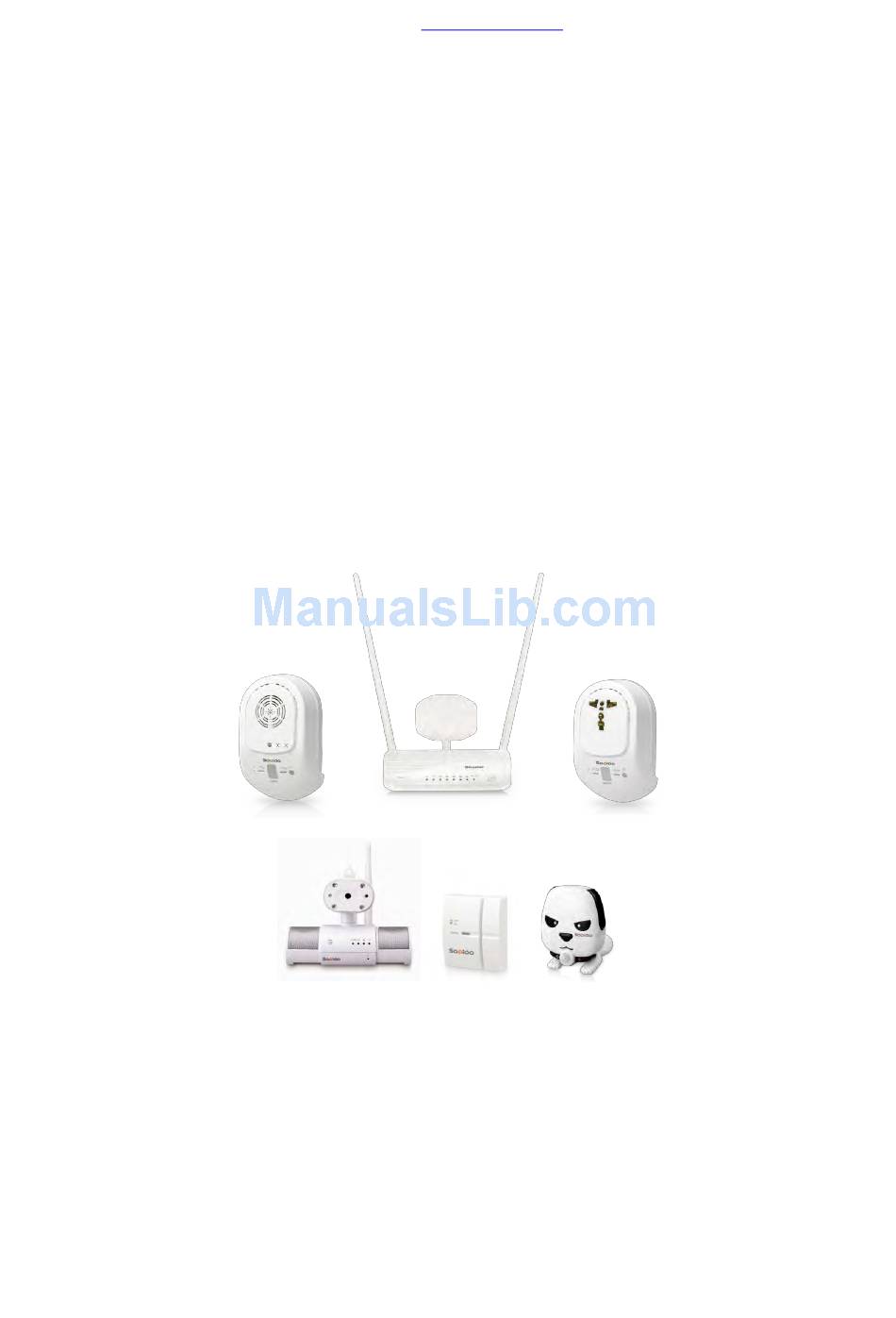

Security + Power Saving Solution Product Introduction: SH106+ is a Smart Home Total Solution and easy to install in your home. Through Sapido APP, you can remote control the security system, monitor your house, turn on/off the electronic appliances, and receive instant push notification when something wrong with your home.
Sapido Technology Inc. www.sapido.com.tw Catalogue Hardware Instruction and Introduction .................... 5 LED guide-light indicator ....................5 Hardware Instruction...................... 10 Hardware Installation ..................... 15 1.3.1 Wi-Fi Application Instruction ………………………..……………….………………………………….………15 1.3.2 Wired & Wi-Fi Application Instruction .……..………………….………………..………..……………….24 APP Download and Network Setup (iOS system) ................324 Wi-Fi Connection Way for APP Installation ..............
Page 3
Sapido Technology Inc. www.sapido.com.tw When the family user’s handheld device is not around the same place as SH106+ ..114 Advanced Settings of SH106+ ...................... 115 How to mute the alarm and the message notification ............115 9.1.1 ZigBee Cloud Motion Sensor (MDKA0z) ..............115 9.1.2...
Page 4
Sapido Technology Inc. www.sapido.com.tw How long is the Door & Window Sensor (DDLA0z)'s battery life? ........173 Will the security system still working while powering cut? ..........173 How to know the battery status? .................. 173 Why both Door & Window Sensor (DDLA0z) and Motion Sensor (MDKA0z) will not make alarm sound after they have been triggered? ................
Sapido Technology Inc. www.sapido.com.tw 1. Hardware Instruction and Introduction 1.1 LED guide-light indicator (1) 11AC Home Gateway(GR267c) Guide-light Light Color Statue Instruction Green Router Connected Properly Power Orange 2.4G Wi-Fi signal normal Wireless Status Blue 5G Wi-Fi signal normal Green...
Page 6
Sapido Technology Inc. www.sapido.com.tw (2) Security Alarm(WDG71n) Guide-light Light Color Statue Instruction Power on is being applied on the device. After 30 Orange seconds, the LED light will be green. WAN/LAN Green Wireless network is connected properly Steady:Security system working properly...
Page 7
Sapido Technology Inc. www.sapido.com.tw (3) Cloud Door & Window Sensor(DDLA0z)and Cloud Motion Sensor(MDKA0z) Product Guide-light Light Color Statue Instruction Connecting with WDG71n DDLA0z ZigBee Green Connected with WDG71n successfully Orange Low Battery Connecting with WDG71n MDKA0z ZigBee Green Connected with WDG71n successfully...
Page 8
Sapido Technology Inc. www.sapido.com.tw (4) Smart Cloud Night Vision Camera with Audio Wireless Router(IPJC2n) Guide-light Light Color Statue Instruction Green IR Recording properly Power Green Wireless network is connected properly Green Wireless network is connected properly Green Wi-Fi signal normal...
Page 9
Sapido Technology Inc. www.sapido.com.tw (5) Smart Cloud Control Insight Switch Wireless Router(WSG70n) Guide-light Light Color Statue Instruction Power on is being applied on the device. After 30 Orange seconds, the LED light will be green. WAN/LAN Green Wireless network is connected properly...
Sapido Technology Inc. www.sapido.com.tw 1.2 Hardware Instruction (2) 11AC Home Gateway(GR267c) Button and Port Function Description Connect to xDSL/Fiber, Static IP, Dynamic IP, PPTP, L2TP, Wi-Fi ISP AP, WiFi-AP * Connecting to on-line equipment, such as personal PC, web-cam, printer server, etc.
Page 11
Please switch to the R mode while the RJ45 cable is connecting to the xDSL modem and WDG71n Please switch to A mode while RJ45 cable is connecting to Sapido router and WDG71n. Please switch to the W mode while connecting to Wi-Fi network by ...
Page 12
Sapido Technology Inc. www.sapido.com.tw (3) Cloud Motion Sensor(MDKA0z)and Cloud Door & Window Sensor(DDLA0z) Product Button Statue Instruction ON:Power On Power Button DDLA0z OFF:Power Off ZigBee LED ZigBee signal connecting ON:Power On Power Button MDKA0z OFF:Power Off ZigBee LED ZigBee signal connecting...
Page 13
* Switch to R mode: connects between xDSL modem and IPJC2n. * Switch to A mode: Connects between Sapido router and IPJC2n. * Switch to W mode: Build WiFi bridge connection to Sapido router. * Connecting with other brand router via Ethernet cord, please switch R/A/W Mode to R mode.
Page 14
Please switch to the R mode while the RJ45 cable is connecting to the xDSL modem and WSG70n Please switch to A mode while RJ45 cable is connecting to Sapido router and WSG70n. Please switch to the W mode while connecting to Wi-Fi network by ...
Sapido Technology Inc. www.sapido.com.tw 1.3 Hardware Installation 1.3.1 Wi-Fi Application Instruction Step 1. Plug in first [2], install both Antenna on Home Gateway (GR267c) [1], and press the white button [3] to start up. Wait for 30 seconds and both (...
Page 16
Sapido Technology Inc. www.sapido.com.tw Step 2. Please switch to W mode on the lateral side of Alarm (WDG71n), then plug on the power outlet. WDG71n is starting up when the WAN/LAN indicator turning red. The system is completely turn on when ZigBee light and all LED lights turn green after 30 seconds. The alarm (WDG71n) can not only deter the intruders by alert sound, but also warn the owner about any unusual circumstances are happening.
Page 17
Sapido Technology Inc. www.sapido.com.tw Step 4. Please tear the double-sided tape and Step 5.Please turn on the power. When the paste on the back of Cloud Door & Window ZigBee light is blinking, which means the Sensor (DDLA0z). Then paste the DDLA0z one DDLA0z is mapping with alarm (WDG71n).
Page 18
Sapido Technology Inc. www.sapido.com.tw Step 9. Open the window, which has installed with Window & Door Sensor (DDLA0z) to trigger the Alarm (WDG71n). Please press the ZigBee button to turn off the alarm manually on Security Alarm (WDG71n).
Page 19
Sapido Technology Inc. www.sapido.com.tw Step 10. Get started to make the WPS wireless (Wi-Fi) connection of Security Alarm (WDG71n) and Home Gateway (GR267c): Please press the WPS button on both Security Alarm Router (WDG71n) and Home Gateway (GR267c) separately. When both of the lights stop blinking, it means the connection is completed.
Page 20
Sapido Technology Inc. www.sapido.com.tw Step 13. Wait for 30 seconds, all will turn green means start-up was successfully. Once your windows or door are opened, your IP Cam (IPJC2n) will make alert to deter the intruder.
Page 21
Sapido Technology Inc. www.sapido.com.tw Step 14. There are two ways to make WiFi connection with IP Cam (IPJC2n) based on distance: (2) Get started to make the WPS wireless (Wi-Fi) connection of IP Cam (IPJC2n) and Home Gateway (GR267c) if they are closer to each other: Please press the WPS button on both IP Cam (IPJC2n) and Home Gateway (GR267c) separately.
Page 22
Sapido Technology Inc. www.sapido.com.tw Step 16. Plug in with the non-electronic control type of household appliances like below: One Switch for one electric appliance only. No extension cord recommend in order to avoid heavy electric tension.
Page 23
Sapido Technology Inc. www.sapido.com.tw Step 17. There are three ways to make WiFi connection with Smart Switch (WSG70n) based on distance: (1) Get started to make the WPS wireless (Wi-Fi) connection of Home Gateway(GR267c) and Smart Switch (WSG70n) if they are closer: Please press the WPS button on both Home Gateway (GR267c) and Smart Switch (WSG70n) separately.
Sapido Technology Inc. www.sapido.com.tw 1.3.2 Wired & Wi-Fi Application Instruction Step 1. Plug in first [2], install both Antenna on Home Gateway (GR267c) [1], and press the white button [3] to start up. Wait for 30 seconds and both (...
Page 25
Sapido Technology Inc. www.sapido.com.tw Step 3. Power on, turns red and blink Step 2. Make sure your IP Cam (IPJC2n) is on A to boot. mode. Step 4. Wait for 30 seconds, all will turn green means start-up was successfully.
Page 26
Sapido Technology Inc. www.sapido.com.tw Step 5. Get an Ethernet cable and connect to both Home Gateway LAN port and IPJC2n anyone port. Shown the picture below: Home Gateway Step 6.Please switch to W mode on the lateral side of Alarm (WDG71n), then plug on the power outlet.
Page 27
Sapido Technology Inc. www.sapido.com.tw Step 7.Please open the lid of the Cloud Door & Window Sensor (DDLA0z), and insert 2 x AAA batteries. Step 8. Please tear the double-sided tape and Step 9.Please turn on the power. When the paste on the back of Cloud Door & Window ZigBee light is blinking, which means the Sensor (DDLA0z).
Page 28
Sapido Technology Inc. www.sapido.com.tw Step 11.When the left light Step 12.After fastening the MDKA0z on the hallway or gate, it (ZigBee) of MDKA0z is will trigger the alarm (WDG71n) if someone approaches the blinking, means the MDKA0z MDKA0z. is connecting properly with WDG71n.
Page 29
Sapido Technology Inc. www.sapido.com.tw Step 14. Get started to make the WPS wireless (Wi-Fi) connection of Security Alarm (WDG71n) and Home Gateway (GR267c): Please press the WPS button on both Security Alarm Router (WDG71n) and Home Gateway (GR267c) separately. When both of the lights stop blinking, it means the connection is completed.
Page 30
Sapido Technology Inc. www.sapido.com.tw Step 16. Plug in with the non-electronic control type of household appliances like below: One Switch for one electric appliance only. No extension cord recommend in order to avoid heavy electric tension.
Page 31
Sapido Technology Inc. www.sapido.com.tw Step 17. There are three ways to make WiFi connection with Smart Switch (WSG70n) based on distance: (4) Get started to make the WPS wireless (Wi-Fi) connection of Home Gateway(GR267c) and Smart Switch (WSG70n) if they are closer: Please press the WPS button on both Home Gateway (GR267c) and Smart Switch (WSG70n) separately.
2. APP Download and Network Setup (iOS system) 2.1 Wi-Fi Connection Way for APP Installation Step 1. Please go to APP Store Step 2. Please click and search by the key word <Sapido>. to download Sapido APP. Click <Free> → <Install>. Step 3. After installing Sapido Step 4.
Page 33
Step 8. Click “New IOT”. signal to connect. Step 9. Sapido APP will show the network device name and user name. All you have to do is to give a name for the network domain in blank and enter the default password “admin” in blank.
Page 34
Sapido Technology Inc. www.sapido.com.tw Step 10. Connecting… Step 11. Click <IOT Settings> Step 12. Entered the IOT Settings, you can see the security system is built-up (as below). : Home Gateway : Door & Window Sensor : Motion Sensor : Security Alarm, IP Cam,...
Page 35
Sapido Technology Inc. www.sapido.com.tw Step 13. In IOT Setting page, Step 14. After typing in the Step 15. Home Gateway you can rename the device. new name, click “Apply” to (GR267c) has been shown with Select Home Gateway (GR267c) confirm.
Page 36
Sapido Technology Inc. www.sapido.com.tw Step 19. Please select the Step 20. After entering the new Step 21. The alarm (WDG71n) Security Alarm router name, please click <Apply>, had been changed to the new (WDG71n) first, then click then it will show the new name.
Page 37
Sapido Technology Inc. www.sapido.com.tw Home Gateway Home Gateway Home Gateway Step 25. To rename the Cloud Step 26. After entering the new Step 27. The Cloud Door & Motion Sensor: Choose the name, please click <Apply>, Window Sensor (DDLA0z_xxx) Cloud Door & Window Sensor...
Page 38
Sapido Technology Inc. www.sapido.com.tw Step 28. To rename the Smart Step 29. After entering the new Step 30. The Smart Switch Switch: Choose the Smart name, please click <Apply>, (WSG70n_xxx) had been Switch (WSG70n_xxx) in IOT then it will show the new changed to the new name.
Page 39
Sapido Technology Inc. www.sapido.com.tw Step 32. Please turn on WiFi to connect the Home Gateway (GR267c) to control the security system. Security Once you are sleeping or go out, please set System the shield as green, which represents the security system is working.
2.2 Both Wi-Fi & Wired Connection for APP Installation Step 1. Please go to APP Store Step 2. Please click and search by the key word <Sapido>. to download Sapido APP. Click <Free> → <Install>. Step 3. After installing Sapido Step 4.
Page 41
Step 8. Click “New IOT”. signal to connect. Step 9. Sapido APP will show the network device name and user name. All you have to do is to give a name for the network domain in blank and enter the default password “admin” in blank.
Page 42
Sapido Technology Inc. www.sapido.com.tw Step 10. Connecting… Step 11. Click <IOT Settings> Step 12. Entered the IOT Settings, you can see the security system is built-up (as below). : Home Gateway : Door & Window Sensor : Motion Sensor : Security Alarm, IP Cam,...
Page 43
Sapido Technology Inc. www.sapido.com.tw Step 13. In IOT Setting page, Step 14. After typing in the Step 15. Home Gateway you can rename the device. new name, click “Apply” to (GR267c) has been shown with Select Home Gateway (GR267c) confirm.
Page 44
Sapido Technology Inc. www.sapido.com.tw Step 19. You will see IOT Network of the IP Cam. Please select the Step20. Please wait for the type of encryption to “WPA2”, and enter the new password (at setup operation. least 8 characters/numbers), click <Apply>. (You can arrange the screen for easier watching manually) Step 22.
Page 45
Sapido Technology Inc. www.sapido.com.tw Step 24. The alarm (WDG71n) Step 25. To rename the Cloud Step 26. After entering the new had been changed to the new Door & Window Sensor: name, please click <Apply>, name. Choose the Cloud Motion...
Page 46
Sapido Technology Inc. www.sapido.com.tw Step 30. The Cloud Door & Step 31. To rename the Smart Step 32. After entering the new Window Sensor (DDLA0z_xxx) Switch: Choose the Smart name, please click <Apply>, had been changed to the new Switch (WSG70n_xxx) in IOT then it will show the new name.
Page 47
Sapido Technology Inc. www.sapido.com.tw Step 35. Please turn on WiFi to connect the Home Gateway (GR267c) to control the security system. Security Once you are sleeping or go out, please set System the shield as green, which represents the security system is working.
Sapido Technology Inc. www.sapido.com.tw 3. Internet Settings Make sure the network environment stable for any of your smartphone and handheld devices using first, this step will let you receive push notification successfully while you go out. Follow the security system set-up steps as below:...
Page 49
(at lease 8 (included) digital characters), and finally click “Apply”. (Please memorize your Wi-Fi security password) Step 7. Back to the Sapido APP Step 5. After setting up, it will If your smart phone Step 6. again, you will see the new...
Page 50
Sapido Technology Inc. www.sapido.com.tw Step 8. The instruction of the symbols from the main page: Guide-light Light Statue Instruction Green- Domain and network is connected. 1. The lights of Gray- Domain and network is device of the disconnected domain Red- Event alert Green- Security System Arm.
In addition, you can control the situation by self via Sapido APP. Click the push notification to enter the APP main page, you will see the shield is red and the will show up in front of the network name.
Sapido Technology Inc. www.sapido.com.tw 4.1 Door & Window Sensor (DDLA0z) Door & Window Sensor has preinstalled the setting of “push notification” and “alert” already. Once it detects abnormal situation, the alarm system will be activated. Default of Door & Window Sensor ...
Page 53
Sapido Technology Inc. www.sapido.com.tw Step 5. If you want your lights Step 6. Select “Switch Mode” Step 7. To face your needed, on while window is opened, you can choose ON, OFF, or just select the Switch. (shown Repeat mode of your Switch.
Page 54
Sapido Technology Inc. www.sapido.com.tw There are two ways to turn off the alarm through Sapido APP when the Door & Windows Sensor (DDLA0z) is triggered. Follow the steps as below. The 1 method to turn off the alarm Step 2. You will see the Step 3.
Page 55
Sapido Technology Inc. www.sapido.com.tw Step 4. Click “Camera” to view Step 5. Click “ Arm” once you find the intruder in the the situation of event right smartphone screen. : Volume adjustor. away. Step 6. Also, you can click “...
Page 56
Sapido Technology Inc. www.sapido.com.tw The 2 method to turn off the alarm Step 1. You will see the Step 2. The event list is sorted by Step 3. Click the silence sign event , and the shield will turn date and time. You can turn off...
Page 57
Sapido Technology Inc. www.sapido.com.tw Step 6. Also, you can click “ Voice Sender” once you find the intruder. And then you can click “Back” to main menu. Step 7. Click “Back “again to main list. You will see the shield back to green...
Sapido Technology Inc. www.sapido.com.tw 4.2 Cloud Motion Sensor (MDKA0z) Cloud Motion Sensor (MDKA0z) has preinstalled the setting of “push notification” and “alert” already. Once it detects abnormal situation, the alarm system will be activated. Default of Cloud Motion Sensor (MDKA0z) Step 1.
Page 59
Sapido Technology Inc. www.sapido.com.tw Step 5. If you want your lights Step 6. Select “Switch Mode” Step 7. To face your needed, on while someone pass the 2 you can choose ON, OFF, or floor entrance(MDKA0z), just Repeat mode of your Switch.
Page 60
Sapido Technology Inc. www.sapido.com.tw There are two ways to turn off the alarm through Sapido APP when the Cloud Motion Sensor (MDKA0z) is triggered. Follow the steps as below. The 1 method to turn off the alarm Step 2. You will see the Step 3.
Page 61
Sapido Technology Inc. www.sapido.com.tw Step 4. Click “Camera” to view Step 5. Click “ Arm” once you find the intruder in the the situation of event right smartphone screen. : Volume adjustor. away. Step 6. Also, you can click “...
Page 62
Sapido Technology Inc. www.sapido.com.tw The 2 method to turn off the alarm Step 1. Open the Sapido APP, Step 2. The event list is sorted by Step 3. Click the silence sign you can enter <Message> to date and time. You can turn off to mute the alarm and click view the situation immediately.
Page 63
Sapido Technology Inc. www.sapido.com.tw Step 4. Click “Camera” to view Step 5. Click “ Arm” once you find the intruder in the the situation of event right smartphone screen. : Volume adjustor. away. Step 6. Also, you can click “...
Page 64
Sapido Technology Inc. www.sapido.com.tw Step 7. Click “Back “again to main list. You will see the shield back to green Also, the event alert will turn to the green dote , which means that the alert is turn off but the security system keep...
At the same time, the Security Alarm Router WDG71n will send you an alert message to tell you the emergency immediately. In addition, you can control the situation by self via Sapido APP. Click the push notification to enter the APP main page, you will see the shield is red , and the will show up in front of the network name.
Sapido Technology Inc. www.sapido.com.tw Sound Sensor Step 1. can adjust the Step 2. Click <Sound Sensor> Step 3. Current alarm alarm sound level based on detected volume (dB) level the level of Decibels (dB) in will show on the right of the <Sensor>...
Page 67
Sapido Technology Inc. www.sapido.com.tw Step 7. There are two different scenarios are provided from the function of "dB" section. You can adjust the sound level between 0dB ~ 110dB. (Increments 5dB a time) Step 8. The preinstall alarm setting is “continuity alarm”, means that the alarm will touch off when the intensity reaches the level of indoor maximum limit.
Page 68
Sapido Technology Inc. www.sapido.com.tw Step 9. There are 5 types of different selectable beep length of "Siren”. When settle down alarm sounds and siren, please press "Done" at the top right of the page to return to the sensing feature page.
Page 69
Sapido Technology Inc. www.sapido.com.tw There is a way to mute the alarm through Sapido APP when the alarm (WDG71n) triggers alarm. Step 1. Open the Sapido APP, Step 2. The event list is sorted Step 3. Click the silence sign to mute the alarm and click you can enter <Message>...
Sapido Technology Inc. www.sapido.com.tw Temperature Sensor Step3. The page of Step1. Click <Sensor>, you Step2. Click <Temperature Temperature Sensor will can set up your Sensor> show the current in room predetermined temperature temperature. The preinstall level to activate the alarm measurement setting is system.
Page 71
Sapido Technology Inc. www.sapido.com.tw Step 7. There are two different scenarios are provided from the function of "Celsius" section. You can adjust the temperature level between 0 ° C ~ 50 ° C. (increments 1° C a time)
Page 72
Sapido Technology Inc. www.sapido.com.tw Step 8. The preinstall setting of "Sensor Alarm" is “Continuity Alarm”, means that the alarm will touch off when the intensity reaches the level of indoor maximum limit. Sirens will continue beeping until you turn off the alarm manually. If you want to change the setting to Define Alarm Sounds, then you can adjust alarm sounding time under any abnormal movement, such as: 1 second, 2 seconds, 5 minutes ...
Page 73
Sapido Technology Inc. www.sapido.com.tw Step 10. If you want your Step 11. Face your needed to Step 12. To face your needed, lights on while window is setup Celsius, for example, you can choose ON, OFF, or opened, just select the higher than 60C to make the Repeat mode of your Switch.
Page 74
Sapido Technology Inc. www.sapido.com.tw There is a way to mute the alarm through Sapido APP when the alarm (WDG71n) triggers alarm. Step 1. Open the Sapido APP, Step 2. The event list is sorted Step 3. Click the silence sign to mute the alarm and click you can enter <Message>...
Sapido Technology Inc. www.sapido.com.tw 5.3 Light Sensor Step1. Click <Sensor> Step2. Click <Light Sensor> Step3. The page of Light Sensor will show the current in room brightness. Step4. Click the <Siren Step5. Select the Step 6. For setting up the Device>...
Page 76
Sapido Technology Inc. www.sapido.com.tw Step 7. There are two different scenarios are provided from high to low for the brightness. You can adjust the brightness level between 0Lm ~ 2000Lm.
Page 77
Sapido Technology Inc. www.sapido.com.tw Step 8. The preinstall setting of "Sensor Alarm" is continuity sounds, means that the alarm will touch off when the intensity reaches the level of indoor maximum limit. Sirens will continue beeping until you turn off the alarm manually. If you want to change the setting to Define Alarm Sounds, then you can adjust alarm sounding time under any abnormal movement, such as: 1 second, 2 seconds, 5 minutes ...
Page 78
Sapido Technology Inc. www.sapido.com.tw Step 11. Face your needed to Step 10. If you want your Step 12. To face your needed, setup Celsius, for example, lights on while window is you can choose ON, OFF, or higher than 400 Lm to make opened, just select the Repeat mode of your Switch.
Page 79
Sapido Technology Inc. www.sapido.com.tw There is a way to mute the alarm through Sapido APP when the alarm (WDG71n) triggers alarm. Step 1. Open the Sapido APP, Step 2. The event list is sorted Step 3. Click the silence sign to mute the alarm and click you can enter <Message>...
Page 80
Sapido Technology Inc. www.sapido.com.tw Step 6. Also, you can click “ Voice Sender” to yield to intruder. : Volume adjustor.
Sapido Technology Inc. www.sapido.com.tw Application of IP Camera 6.1. Surveillance Recording and Browse 6.1.1. Real-Time Recording Step 1. Select “Camera”. Step 2. Click the functional Step 3. Setting, please wait... key「 Record」 Step 5. Video will be Step 4. When the recording Step 6.
Page 82
Sapido Technology Inc. www.sapido.com.tw Step 7. Select the video for Step 8. Click “Exit” when Step 9. Click “Download” if immediate play. finished, and goes back to you want to back up the files the last page. (Rotating the to your smartphone or other device to enlarge for browse) devices.
Page 83
Sapido Technology Inc. www.sapido.com.tw Step 14. Click “Apply” and Step 15. Once the red pot is Step 13. Please Click “ await. disappeared, the recording Stop” to stop recording. has been stopped.
Sapido Technology Inc. www.sapido.com.tw 6.1.2. Personalized Recording Schedule You can set up the recording schedule at different time based on your requirement, such as personalize the recording time during day time or bedtime, the operating method are as below: Step 3. Click “New” to add Step 1.
Page 85
Sapido Technology Inc. www.sapido.com.tw Step 6. After completing the Step 5. Please await..do not Step 7. Click “Camera” schedule added, the screen shut down the APP will automatically go back to home page. Please click the network to log in.
Page 86
Sapido Technology Inc. www.sapido.com.tw Step 10. Set up the 2 recording schedule: Recording from every 10pm to 6am of next morning. Choose “Record Schedule”, and select start time at 00:00, end time at 06:00, and “Everyday” for Day, and finally click “Done” for completion.
Page 87
Sapido Technology Inc. www.sapido.com.tw Step 14. Click “ Schedule” Step 15. You can find the 2 schedule added. in below To modify the schedule, please click To delete the schedule, please click...
Sapido Technology Inc. www.sapido.com.tw 6.2. Real-Time Screenshot and Browse Step 1. Click “Camera” Step 2. Click “Screenshot” in Step 3. Click “View Picture” below to immediate save the to review the screenshot image in your smartphone image. Step 4. The images will be Step 5.
Page 89
Sapido Technology Inc. www.sapido.com.tw Step 7. Rotating the device to full screen review, and click “Exit” to leave.
Sapido Technology Inc. www.sapido.com.tw 6.3. Music Play 6.3.1 Add the music to USB drive of IP Camera IP Camera can be your music player, you are able to store your favorite music in USB drive of IP Camera via “Upload” and bring you more options.
Sapido Technology Inc. www.sapido.com.tw 6.3.2 Play music in USB drive Step 1. Click “Camera” Step 3. Select the music you Step 2. Select “Play” want to upload and click “Change” to choose path. Step 4. Select the “play Step 5. If you want to play Step 6.
Page 92
Sapido Technology Inc. www.sapido.com.tw Step 9. Music play is stopped Step 7. In music play mode, Step 8. Click “Stop ” to stop. you can adjust the volume...
Sapido Technology Inc. www.sapido.com.tw 6.3.3 Schedule Setup of Music Play Step 1. Select “Camera” Step 3. Click “New” Step 2. Click “Schedule ” Step 4. For example, set up automatic music play at every 12:00 pm to 13:00 pm; please first select “Music Schedule”...
Page 94
Sapido Technology Inc. www.sapido.com.tw Step 5. Click “Music” Step 6. First select the music Step 7. Click “Done” in top (or whole folder), and then right corner for completion. “Play” Step 8. Please await for Step 9. Once the setup is Step 10.
Page 95
Sapido Technology Inc. www.sapido.com.tw Step 11. Click “ Schedule” Step 12. You can see the music schedule you just added in in below. the checklist. To modify, please click To delete, please click...
Sapido Technology Inc. www.sapido.com.tw 6.4. Setup for Alarm Siren 6.4.1 Add the siren alarm to IP Camera’s USB IP Cam can broadcast the siren. You can upload the favorite sirens to “Siren” folder of IP camera USB drive via “Upload” for more options.
Sapido Technology Inc. www.sapido.com.tw 6.4.2 Schedule Setup for Alarm Siren First complete the step to add siren (refer to 6.4.1) and enter into schedule setup to select the siren. Step 1. Click “Camera” Step 2. Click “Schedule” in Step 3. Click “New”...
Page 98
Sapido Technology Inc. www.sapido.com.tw Step 5. Select “Siren” Step 6. Click “Done” Step 7. Settings, please await..do not turn off or return. Step 8. After adding the Step 9. Click “Camera” Step 10. Select “ Schedule” schedule, APP will in below...
Page 99
Sapido Technology Inc. www.sapido.com.tw Step 11. New added Alarm Schedules are showed in the checklist. To modify, please click To delete, please click...
7. Smart Switch Application Instruction Sapido creates a new device “WSG70n”, Smart Cloud Switch, matches smartphone (iOS, Android) to control your electric appliances anytime anywhere. In addition, Sapido APP offers numerous functions: power consumption measurement, power switch set-up, schedule making, and start-up timing with the specific electric appliance for historical electric information reference.
Sapido Technology Inc. www.sapido.com.tw 7.1 Cloud Switch APP On/Off and Schedule Set-up If you are out or on the way to work, and forget to turn off the electric appliances, such as fan, and light, etc. You can power ON/OFF the appliances via the Cloud Insight Switch APP power switch mode.
Page 102
Sapido Technology Inc. www.sapido.com.tw Step 5. You can view different Step 6. If you want to change Step 4. Select one specific functions such as: Power on the Switch Mode to “Repeat”, electric appliance Reason, power consumption, click <Switch Mode>.
Page 103
Sapido Technology Inc. www.sapido.com.tw Step 10. Back to the front Step 12. If you want to stop Step 11. After ten minutes in a page, you will see the repeat the repeat mode, click the sign period, the sign will turn to sign at the right next to the and it will turn to grey.
Sapido Technology Inc. www.sapido.com.tw 7.1.2 Schedule Setting Smart Cloud Switch can turn on/off your electric appliances based on the schedule that you have set. You can decrease the trivial events, like turn on/off many electric appliances at home. Smart Cloud Switch will give you an energy-saving life style.
Page 105
Sapido Technology Inc. www.sapido.com.tw Step 7. Select <Day>, you will Step 8. Select <Start & End>, Step 9. Please wait for the set- see the options from Monday for example, from 19:00 to up operation. Do not turn off to Sunday, and Everyday. You 21:00.
Page 106
Sapido Technology Inc. www.sapido.com.tw Step 13. Select <Schedule Step 14. You can see your Step 15. To add a new setting> schedule under the page. To schedule, click <New> on the delete or edit the schedule, top right corner. click “delete ”...
Page 107
Sapido Technology Inc. www.sapido.com.tw 7.1.2.2 Switch Repeat Schedule Setting Examples This function can let your electric appliances follow the schedule of repeating turn on/off in a circle within a period. For example, if you want your electric fan, which plug-in Smart Cloud Switch, working in such the rule: Turn on for 1.5 hours and turn off for 30 minutes within a 5-...
Page 108
Sapido Technology Inc. www.sapido.com.tw Step 7. Please wait for the Step 9. Click <Switch> Step 8. After setting up, it will setup operation. Do not turn pop up on the main page of off or return domain. Step 10. You will see the Step 11.
Sapido Technology Inc. www.sapido.com.tw 7.1.3 Electricity Statistics You can view the data of your specific electric appliance's total daily, weekly, monthly, and annual power consumption for known if your electric appliance saving power or not. Step 1. Click <Switch> Step 2. Select the specific Step 3.
Sapido Technology Inc. www.sapido.com.tw 7.1.4 History You can view the history record of your electric appliances power on/off and working schedule like below: Step 1. Click <Switch> Step 2. Select the specific Step 3. Click <History> electric appliance Step 4. History record of your Step 5.
<Settings> function on your the Home Gateway (GR267c). network that you have set iPhone. Step 5. Open the Sapido APP Step 6. Click <New IOT> Step 4. Please go to APP Store to click and search by the key word <Sapido>. Click...
Page 112
Sapido Technology Inc. www.sapido.com.tw Step 7. APP will Step 8. Connecting, please Once log-in is Step 9. await… success, handheld device automatically show could access the security device name and user system (see below picture). name, please type in the...
Page 113
Sapido Technology Inc. www.sapido.com.tw Step 10. You can see the network nickname set by the family administrator.
User name of Domain: The search, then download account will show up Sapido APP. Open the Sapido automatically, doesn't need to change Password of Domain: Need to enter the default password “admin”...
Sapido Technology Inc. www.sapido.com.tw 9. Advanced Settings of SH106+ Sirens will continue beeping until you turn off the alarm manually. If you want to change the setting to Define Alarm Sounds, then you can adjust alarm sounding time under any abnormal movement, such as: 1 second, 2 seconds, 5 minutes ...
Sapido Technology Inc. www.sapido.com.tw 9.1.2 ZigBee Door & Window Sensor (DDLA0z) Step 1. Click <Security> Step 2. Click <Door & Window Step 3. Enter the alarm system Sensor> to the setting page. Step 6. Cancel all the function. Step 4. Cancel the Step 5.
Sapido Technology Inc. www.sapido.com.tw How to change the security alarm sound 9.2.1 ZigBee Cloud Motion Sensor (MDKA0z) Step 1. Click <Security> Step 2. Click <Motion Sensor> Step 3. Enter the alarm system to the setting page Step 4. Select the Sensor Step 5.
Page 118
Sapido Technology Inc. www.sapido.com.tw Step 7. There are 5 types of different selectable beep length of "Siren”. When settle down alarm sounds and siren, please press "Done" at the top right of the page to return to the sensing feature page.
Page 119
Sapido Technology Inc. www.sapido.com.tw Step 11. There are 5 types of different selectable beep length of "Siren”. When settle down alarm sounds and siren, please press "Done" at the top right of the page to return to the sensing feature page.
Sapido Technology Inc. www.sapido.com.tw 9.2.2 ZigBee Door & Window Sensor (DDLA0z) Step 1. Click <Security> Step 2. Click <Door & Window Step 3. Enter the alarm system Sensor> to the setting page. Step 6. Choose one the Step 4. Select the Sensor Step 5.
Page 121
Sapido Technology Inc. www.sapido.com.tw Step 7. There are 5 types of different selectable beep length of "Sirens”. When settle down alarm sounds and siren, please press "Done" at the top right of the page to return to the sensing feature page.
Page 122
Sapido Technology Inc. www.sapido.com.tw Step 11. There are 5 types of different Step 12. Set up “Video Save” to “Auto” mode selectable beep length of "Sirens”. When settle or other device for saving the 30 seconds down alarm sounds and siren, please press video recording while alarm trigger.
Sapido Technology Inc. www.sapido.com.tw 10. Application for Media Storage 10.1 Upload the files in mobile device to IP Camera USB drive Besides saving the recording image, USB drive of IP Camera is a media storage center, you can upload photos, videos and files, etc. in your mobile device to USB drive for expanding your storage spaces, and share to you family members at the same time.
Page 124
Sapido Technology Inc. www.sapido.com.tw Step 7. Select new added Step 8. Click “Upload” Step 9. Uploading the files… folder. Step 10. Please click “Upload Step 11. Click “Back” to Step 12. APP will memorize more files” after upload select other files. (ex: video) the path of last upload, click succeeded.
Page 125
Sapido Technology Inc. www.sapido.com.tw Step 13. The device will Step 14. If you want to Step 15. Click “Upload” memorize your recent 5 upload to other path, please upload paths as the shortcut. select the device name (nickname) Step 16. Uploading Step 17.
Sapido Technology Inc. www.sapido.com.tw 10.2 File download from USB drive of IP Camera Step 1. Click “Download” Step 2. Select your IP Step 3. Select the files you Camera device name want to download (ex: (nickname) video) and click “Download”...
Page 127
Sapido Technology Inc. www.sapido.com.tw Step 7. During file play, please rotate the smartphone or tablet to enlarge the screen. Step 8. Return to download Step 10. Click “Back” to Step 9. Click right next to succeeded page and click return to the device selected folder to set as “Favorites”.
Page 128
Sapido Technology Inc. www.sapido.com.tw Step 11. Select the files you Step 12. Downloading… Step 13. File download want to download and click succeeded. You can see “Download” at top right contracted photos, select the corner. files and click “Play” at top right corner to browse.
Sapido Technology Inc. www.sapido.com.tw 10.3 Directly stream the files of USB drive in mobile device You can directly stream the files, such as video, music and document, etc. of USB drive via mobile device without downloading. (MP4 and AVI format video are supported; for document browse, such as word, excel, power point and pdf, please first install related APP.)
Page 130
Sapido Technology Inc. www.sapido.com.tw Step 5. You can select more Step 6. During file browse, touch the screen to hide the files to browse functional key bar for full screen browse. Click “Exit” to top and return to the previous page.
Sapido Technology Inc. www.sapido.com.tw 11. Network Security 11.1 Network Security – Network security setup and internet device control Parents can review the website history to monitor, and control children on-line time and website, and enable to remote log in to check and see internet attack status.
Page 132
Sapido Technology Inc. www.sapido.com.tw Step 9. right next to block Step 7. Click “Network Step 8. Click “Client List” device is shown as light gray Security” with “ON”, block setting is succeeded. Step 10. If you want to cancel Step 11. Click “Sure” to Step 12.
Page 133
Sapido Technology Inc. www.sapido.com.tw Step 13. After setting is done, Step 14. Click “Network Step 15. Click “Client List” APP will automatically log Security” out. Please again log in. Step 17. If you want to Step 18. Click “Apply” to Step 16.
Page 134
Sapido Technology Inc. www.sapido.com.tw Step 19. Please wait… Step 20. APP will Step 21. Click “Network automatically log out after Security”. finishing setting, please again log in. Step 22. Click “Client List” Step 23. When the block switch of device shows as...
Sapido Technology Inc. www.sapido.com.tw 11.1.2 2.4G Wireless Schedule Step 1. Click “2.4G Wireless Step 2. Enter into checklist Step 3. Select online start and Schedule” and click “New” on top right end time (in 24-hour time corner. system). Step 4. Setting, please await.
Page 136
Sapido Technology Inc. www.sapido.com.tw Step 7. Click “2.4G Wireless Step 8. You can review the Schedule” list of wireless schedule, and click edit or delete...
Sapido Technology Inc. www.sapido.com.tw 11.1.3 5G Wireless Schedule Step 1. Click “5G Wireless Step 2. Enter into checklist Step 3. Select online start Schedule” and click “New” on top right and end time (in 24-hour corner. time system). Step 4. Setting, please await.
Page 138
Sapido Technology Inc. www.sapido.com.tw Step 7. Click “5G Wireless Step 8. You can review the list of wireless schedule, and click Schedule” edit or delete...
Sapido Technology Inc. www.sapido.com.tw 11.1.4 Keyword Blocked Step 1. Click “Keyword Step 2. Enter the keyword you Step 3. Please wait… Blocked” want to block, such as Yahoo, and click “New” to confirm. Step 4. APP will automatically Step 5. Click “Network Step 6.
Page 140
Sapido Technology Inc. www.sapido.com.tw Step 7. To unlock the blocked Step 8. Please wait… Step 9. APP will automatically keyword, please first select log out after setting, please the keyword you want to again log in. unlock, and click “Unlock” on top right corner.
Sapido Technology Inc. www.sapido.com.tw 11.1.5 Website History Step 1. Click “Website Step 2. Access to the website Step 3. To review all visit History” to review all devices history checklist and select website checklist of device, which are connected to...
Page 142
Sapido Technology Inc. www.sapido.com.tw Step 7. APP will automatically Step 8. Click “Network Step 9. Click “Website log out after setting, please Security” History” again log in. Step 10. You will find added Step 11. To unlock the Step 12. Setting, please wait.
Page 143
Sapido Technology Inc. www.sapido.com.tw Step 13. APP will Step 14. Click “Network Step 15. Click “Website automatically log out after Security” History” setting, please again log in. Step 16. You will see the website which is just unlocked has been removed from the block list.
Sapido Technology Inc. www.sapido.com.tw 11.1.6 Distributed Denial of Service (DDoS) Step 1. Click “Network Step 2. Click “DDoS” Step 3. When your network is Security” after log-in. attacked, you can review the attack type, situation and time. (If there's no event, the list will be blank) 11.1.7...
(JPG, MP3, AVI, quickly browse via this EXE...) and stored in first 5 shortcut. folder (ex: JPG will be automatically stored in “Picture” folder) (If you never download any file via Sapido APP, and no file would be showed those 5 folders.)
Sapido Technology Inc. www.sapido.com.tw 11.2.1 Document Browse Building in video and picture browser in APP, just click the file you want to review. In addition, both video format of MP4 and AVI are supported. Step 1. Click “Camera Roll” Step 2. Select the photos you Step 3.
Page 147
Sapido Technology Inc. www.sapido.com.tw Step 5. Return to “Download Step 6. Directly select the Step 7. During video play, List” and click “Videos” video you want to watch. click “Exit” to stop and return to the previous page. Step 8. Rotate the smartphone or tablet to enlarge the Step 9.
Page 148
Sapido Technology Inc. www.sapido.com.tw Step 10. Directly select the Step 12. Select IP Camera Step 11. Click mark to music you want to play. device name (nickname) choose the play device. Step 14. You can find the Step 15. Return to Download Step 13.
Page 149
Sapido Technology Inc. www.sapido.com.tw Step 16. Directly select the Step 17. During document browse, slightly touch the screen to document you want to hide the functional bar. Click “Exit” to stop and return to the browse. previous page.
Sapido Technology Inc. www.sapido.com.tw 11.2.2 Rename Step 1. First find the file that Step 2. You can find the Step 3. Click the function key you want to rename, and functional keys of Rename in the right hand side to click “Edit”...
Sapido Technology Inc. www.sapido.com.tw 11.2.3 File Edit Step 1. First find the file you Step 2. Function keys of Step 3. You can do the file want to edit, and click “Edit” Rename and Edit will appear and data edit here; please on the top right corner.
Page 152
Sapido Technology Inc. www.sapido.com.tw Step 8. Congratulation! Music Step 9. Return to the Step 7. Click “Paste ” to file has been moved to previous page and continue paste the music file cut in “Favorite” folder other edit. Please select the Step 3 to complete file (Click “Done”...
Page 153
Sapido Technology Inc. www.sapido.com.tw Step 14. The copied photo Step 13. Click “Paste ” in Step 15. Return to the file has been stored in the below function key and paste previous page to continue new folder. the photo file copied in Step other file edit.
Sapido Technology Inc. www.sapido.com.tw 11.2.4 Offline Browse Under the off-line status, you can still access “Download List” for browse and edit the files in Download List. Step 1. When the domain is Step 2. Connecting, please Step 3. Please click “Offline disconnected, the light wait.
Sapido Technology Inc. www.sapido.com.tw 11.3 IOT Network – To review IP Camera and USB device status In IOT network page, you can see IP camera internet connection type and IP information, and review the connection status of IP camera, USB drive and speaker.
Page 156
Sapido Technology Inc. www.sapido.com.tw Step 8. Please refer to 11.1 Step 7. Click to rename the Home Gateway (GR267c), Network Security for detail and click “Apply” to confirm. Click “Back” and return to the function. Click “Back” and Network Security page.
Page 157
Sapido Technology Inc. www.sapido.com.tw Step 13. First select the music Step 12. Click “Speaker ” to Step 14. Select IP Camera you want to play and click play music in smartphone via (nickname). “Change” to select the speaker. speaker device.
Page 158
Sapido Technology Inc. www.sapido.com.tw Step 20. For the application Step 18. Click to upload, Step 19. Click “Camera ” to of Camera, please refer to go “Camera”. see 10.1 Upload. Click 7. Application of IP Camera download, see 10.2 for details.
Sapido Technology Inc. www.sapido.com.tw 11.4 IOT Settings- How to manage security device in system How to give a new name for your security system? Please operate in the IOT Settings page. The IOT Settings page offers several functions like rename, and the symbols of Graphic User Interface (GUI), security sensor update, and PC management.
Do not turn off or log out. right next to one of the sensors, click it and complete the updating. Step 4. Enter Sapido APP then log in your security network Sapido APP then log in your security network. The latest firmware version is successfully upgraded.
Sapido Technology Inc. www.sapido.com.tw 11.4.2 The Function of GUI You can open GUI in IoT Settings page. GUI offers the function of viewing firmware version, today's date & time, time of power-on, and network status. Also, it can setup VPN, SSID...and so Step 1.
Sapido Technology Inc. www.sapido.com.tw 12. “How to set up other sensor device or IP Cam” instruction (DDLA0z) 12.1 Set up a new Door & Window Sensor Even though there is a Door & Window Sensor (DDLA0z) already in a set of Smart Home System (SH106+), you can still have several sensors to make your place more secure.
Page 163
Sapido Technology Inc. www.sapido.com.tw Step 3. Enter Sapido APP then Step 4. You will see the new Step 5. Please select the new log in your security network DDLA0z under the page of IOT DDLA0z, then click <Rename> then click <IOT Settings>...
The Smart Home System (SH106+) can keep your home secure. In addition, you can add another Sapido Smart Cloud Night Vision Camera with Auto Wireless Router (IPJC2n) to improve your cloud security system. With Sapido Smart Repeater Technology, you can easily connect the Sensor Alarm Router (WDG71n) and IPJC2n by pressing WPS buttons.
Page 165
Sapido Technology Inc. www.sapido.com.tw Step 3. Enter Sapido APP then Step 4. You can see the new Step 5. Select IPJC2n, then log in your security network IPJC2n device is already under click <Rename> then click <IOT Settings> the list, it means it is added in your network.
Page 166
Sapido Technology Inc. www.sapido.com.tw Step 9. Camera ten functions Step 10. Please go back to the available below. home page and click <Security> and <Sensor>, you will find the camera.
IPJC2n WAN port. Make sure it is on A (AP) mode. Plug-in and wait for 30 seconds to startup. When turns green, the boot is succeeded. Shown the picture below: Step 2. Enter Sapido APP then Step 3. You can see the new Step 4. Select IPJC2n, then click...
Page 168
Sapido Technology Inc. www.sapido.com.tw Step 5. Enter the new name Step 6. Complete IPJC2n Step 7. IP Camera has been and click <Apply>, then setting with new name shown with new device complete rename the new name. And please click the IPJC2n device.
Page 169
Sapido Technology Inc. www.sapido.com.tw Step 11. Go back to the home Step 9. Camera ten functions Step 10. After setting, click page and click <Camera> for available below. “Back” to the front page. real-time monitoring from your phone. Step 10. Please go back to the home page and click <Security> and <Sensor>, you will find the camera.
12.3 Add a new Smart Switch(WSG70n) SH106+ can keep your home secure. In addition, you can add another Sapido Smart Switch (WSG70n) to improve your power saving system. With Sapido Smart Repeater Technology, you can easily connect the Home Gateway (GR267c) and Smart Switch (WSG70n) by pressing WPS buttons.
Page 171
Please press the WPS button on both Smart Switch (WSG70n) and IPJC2n separately. When both of the lights stop blinking, it means the connection is completed. Step 3. Enter Sapido APP then Step 4. You can see the new Step 5. Select WSG70n, then...
Page 172
Step 8. Go back to the home and click <Apply>, then setting with new name page and click <Switch> to turn complete rename the new ON/OFF through your Sapido WSG70n device. APP. For the application of Switch, please refer to 7. Smart Switch Application...
(EX: xDSL) Q4. How to know the battery status? A4: Sapido APP will send you a push notification to remind you to change battery. Also, you can check byself in “IOT Settings” page. When the battery symbol turn red represents low- power, please change batteries soon.
Sapido Technology Inc. www.sapido.com.tw Guide-light Light Statue Instruction Green-Security System Arm. The light Gray-Security System Disarm. symbols of the Cloud Red-Alarm is triggered. Security (Empty)-No Installed or Security System offline. Q6.How can we make better viewing when we are watching the Camera scream on the handheld...
Need help?
Do you have a question about the SH106+ and is the answer not in the manual?
Questions and answers
