Summary of Contents for Sapido BRD70n

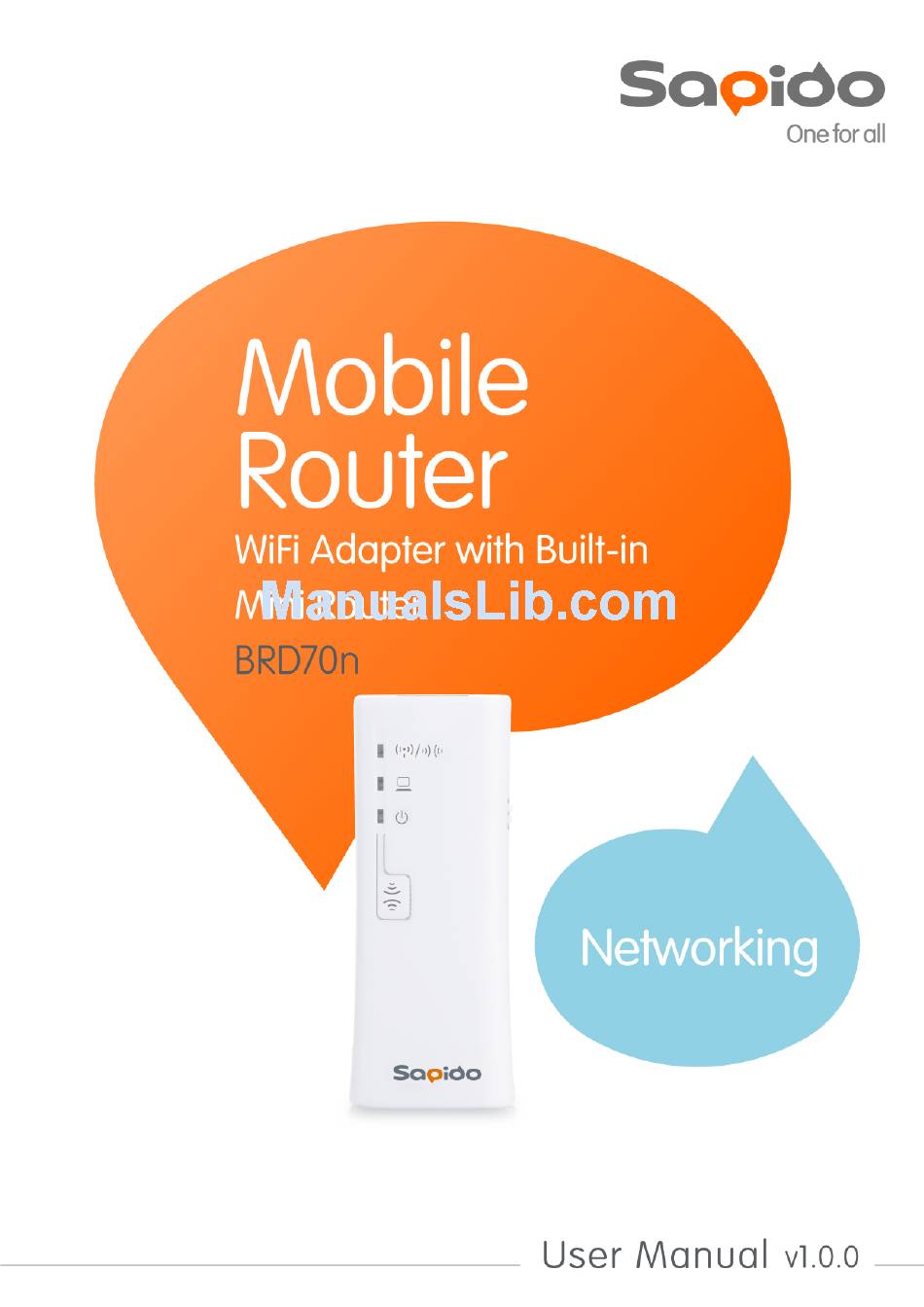

- Page 1 User Manual v1. 0.0 http://www.sapido.com.tw/...
-
Page 2: Table Of Contents
Hardware Features....................6 Product Appearance ................... 7 Chapter 2 Utility ........................8 Chapter 3 System and Network Setup................. 9 Build Network Connection .................. 9 Connecting BRD70N ................... 9 Network setup..................... 9 3.3.1 Windows 2000..................... 9 3.3.2 Windows XP....................10 3.3.3 Windows Vista / Windows 7 .............. - Page 3 Chapter 7 USB to Ethernet + Wireless AP ................. 48 Auto install......................48 Acce ss internet ....................48 If you want to manage BRD70n................. 48 Chapter 8 Wireless dongle ....................49 Auto install......................49 Configuring your wireless network (with Wireless Utility) ........ 49 http://www.sapido.com.tw/...
- Page 4 Configure GUI ....................54 http://www.sapido.com.tw/ User Manual v1. 0.0...
-
Page 5: Fcc Caution
Our product has been tested in typical configuration by Ecom Sertech Corp and was found to comply with the essential requirement of “Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility” (89/336/EEC; 92/31/EEC; 93/68/EEC) http://www.sapido.com.tw/ User Manual v1. 0.0... -
Page 6: Chapter 1 Introduction
Storage Temp.: -20 to 70℃(-4 to 158℉) Requirement Operating Humidity: 10% to 85% Non-Condensing Storage Humidity: 5% to 90% Non-Condensing Power Supply Power Adapter DC5V/0.5A Dimensions 69 (L) x 26 (W) x 19.6 (H) mm http://www.sapido.com.tw/ User Manual v1. 0.0... -
Page 7: Product Appearance
30ms activity Reddish Blinking WPS function in progress Orange 30ms 100Mbps Ethernet is connected Green Blinking 100Mbps Ethernet Tx/Rx activity 30ms 10Mbps Ethernet is connected LAN port activity Green Blinking 10Mbps Ethernet Tx/Rx activity 120ms http://www.sapido.com.tw/ User Manual v1. 0.0... -
Page 8: Chapter 2 Utility
BRD70n support driver and utility auto install Auto install Router mode Install a new usb Ethernet NIC on PC，user can manage BRD70n by this usb Ethernet NIC USB to Ethernet Install a new usb Ethernet NIC on PC，user can access internet by it... -
Page 9: Chapter 3 System And Network Setup
Chapter 3 System and Network Setup The BRD70N is an easy to setup and wireless device for various application and environment, especially for large installs such as hotels, offices space, warehouses, hot-spots and more. To begin with BRD70N , you must have the following minimum system requirements. If your system can’t correspond to the following requirements, you might get some unknown troubles... -
Page 10: Windows Xp
Click “Start” button (it should be located at lower-left corner of your computer), then click control panel. Double-click Network and Internet Connections icon, click Network Connections, then double-click Local Area Connection, Local Area Connection Status window will appear, and then click “Properties”. http://www.sapido.com.tw/ User Manual v1. 0.0... -
Page 11: Windows Vista / Windows 7
Click View Network Status and Tasks, and then click Manage Network Connections. Right-click Local Area Network, then select “Properties”. Local Area Connection Properties window will appear, select “Internet Protocol Version 4 (TCP / IPv4)”, and then click “Properties”. http://www.sapido.com.tw/ User Manual v1. 0.0... -
Page 12: Router Ip Address Lookup
Select “Obtain an IP address automatically” and “Obtain DNS server address automatically”, then click “OK”. Router IP Address Lookup After the IP address setup was completed, please clicks “start” → “run” at the bottom-lower corner of your desktop: http://www.sapido.com.tw/ User Manual v1. 0.0... -
Page 13: Log Into Web Gui（Router Mode
After your computer obtained an IP address from wireless router, please start your web browser, and input the IP address of the wireless router in address bar, and the following message should be shown. Please click “admin” to login the BRD70N . http://www.sapido.com.tw/... -
Page 14: Chapter 4 Internet Connection
Input User Name and New Password, then input Confirm Password again. Chapter 4 Internet Connection This Chapter describes how to setup BRD70N to the internet. The BRD70N is delivered with the following factory default parameters. Default IP address: 192.168.1.1 Default IP subnet mask: 255.255.255.0... -
Page 15: Using As A Broadband Router
Enter the User name and Password into the blank and then click Login. The default values for User Name and Password are admin (all in lowercase letters). Status page Download pdadd Logout Home button menu Click Home button icon to enter MENU as below. http://www.sapido.com.tw/ User Manual v1. 0.0... - Page 16 You could check WAN, LAN, Client net work in status. Factory Default You could reset the current configuration to factory default. Reboot This function is used to reboot Logout This page is used to logout. http://www.sapido.com.tw/ User Manual v1. 0.0...
-
Page 17: Internet Setup
Click Internet Setup icon to enter WAN setup as below. The Int ernet Setup is depended on the service that you contract with the provider. The BRD70N provides five selections for the Internet Mode type, PPPoE, DHCP, Static IP , PPTP and L2TP and HotSpot. -
Page 18: Pppoe
MAC type Select "Universal” or “Specific" Wireless AP Turn on/ off wireless SSID Service S et identifier, users can define to any or keep as default. Encryption Select wireless encryption type form the drop-down list. http://www.sapido.com.tw/ User Manual v1. 0.0... -
Page 19: Static Ip
Input DNS information which is provided by your ISP Wireless AP Turn on/ off wireless SSID Service S et identifier, users can define to any or keep as default. Encryption Select wireless encryption type form the drop-down list. 4.3.4 PPTP http://www.sapido.com.tw/ User Manual v1. 0.0... -
Page 20: L2Tp
Lempel-Ziv (LZ) based algorithm with a continuous history buffer, called a dictionar Wireless AP Turn on/ off wireless SSID Service S et identifier, users can define to any or keep as default. Encryption Select wireless encryption type form the drop-down list. 4.3.5 L2TP http://www.sapido.com.tw/ User Manual v1. 0.0... - Page 21 (OS). Advanced users can set it manually. Wireless AP Turn on/ off wireless SSID Service S et identifier, users can define to any or keep as default. Encryption Select wireless encryption type form the drop-down list. http://www.sapido.com.tw/ User Manual v1. 0.0...
-
Page 22: Gui Function Setup
Select enable to use DDNS function. Each time your IP address to WAN is changed, and the information will be updated to DDNS service provider automatically. Service Provider Choose correct Service Provider from drop-down list, here including DynDNS, TZO, ChangeIP, Eurodns, OVH, NO-IP, ODS, Regfish http://www.sapido.com.tw/ User Manual v1. 0.0... -
Page 23: Firmware Upgrade
BRD70n embedded in User Name/Email User name is used as an identity to login Dynamic-DNS service. Password/Key Password is applied to login Dynamic-DNS servic e. Firmware Upgrade This function can upgrade the firmware of the router. There are two methods for user upgrade firmware: Auto upgrade and Manual upgrade. -
Page 24: Dos
It provide 2 kind of Denial of Service: Home and Enterprise Home: Item Description Home Home Check “ ” to enable DoS function for prevention. You also can No Prevention check “ ” to disable DoS function. Enterprise: http://www.sapido.com.tw/ User Manual v1. 0.0... - Page 25 Item Description Enterprise Enterprise Check “ ” to enable DoS function for prevention. You also No Prevention can check “ ” to disable DoS function. http://www.sapido.com.tw/ User Manual v1. 0.0...
-
Page 26: Remote Management
Enable Web Server Access Allow user access GUI from WAN side on WAN Status You could check WAN, LAN, Client net work in status. WAN Configuration LAN Configuration User can enable/disable wireless、PdNet、web server on WAN from this page. http://www.sapido.com.tw/ User Manual v1. 0.0... -
Page 27: Factory Default
Client Configuration Allow or block client to access internet Factory Default You could reset the current configuration to factory default. http://www.sapido.com.tw/ User Manual v1. 0.0... -
Page 28: Reboot
Reboot This function is used to reboot 5.10 Logout This page is used to logout http://www.sapido.com.tw/ User Manual v1. 0.0... -
Page 29: Chapter 6 Advance Setup
DNS, and enter the DNS provided by your ISP in DNS 1 2 3. Clone Mac Address Some ISPs require MAC address registration. In this case, enter the MAC address registered to the provider to "Clone MA C http://www.sapido.com.tw/ User Manual v1. 0.0... -
Page 30: Dhcp
Some ISPs require MAC address registration. In this case, enter the MAC address registered to the provider to "Clone MA C Address" Save & Apply Click on Save to save the setting dat e, the Apply button for execute current configuration. 6.2.1.3 Static IP http://www.sapido.com.tw/ User Manual v1. 0.0... -
Page 31: Pptp
Some ISPs require MAC address registration. In this case, enter the MAC address registered to the provider to "Clone MA C Address" Save & Apply Click on Save to save the setting dat e, the Apply button for execute current configuration. 6.2.1.4 PPTP http://www.sapido.com.tw/ User Manual v1. 0.0... - Page 32 Some ISPs require MAC address registration. In this case, enter the MAC address registered to the provider to "Clone MA C Address" Save & Apply Click on Save to save the setting dat e, the Apply button for execute http://www.sapido.com.tw/ User Manual v1. 0.0...
-
Page 33: L2Tp
Use this page to set up the local IP address and subnet mask for your router. Please select LAN Interface Setup under the IP Config menu and follow the instructions below to enter the LAN setting page to configure the settings you want. http://www.sapido.com.tw/ User Manual v1. 0.0... - Page 34 Loops are deadly to a network. CloneMACAddress Copy the MAC address from the device you had registered to your ISP if your ISP asks for the specific MAC A ddress. Set Static DHCP： http://www.sapido.com.tw/ User Manual v1. 0.0...
-
Page 35: Ddns
This is the way Internet users can access the router through a domain name instead of its IP address. Note: make sure that you have registered with a DDNS service provider before enabling this feature. http://www.sapido.com.tw/ User Manual v1. 0.0... -
Page 36: Ipv6 Config
WAN is changed, and the information will be updated to DDNS service provider automatically. Service Provider Choose correct Service Provider from drop-down list, here including DynDNS, TZO, ChangeIP, Eurodns, OVH, NO-IP, ODS, Regfish BRD70N embedded in User Name/Email User name is used as an identity to login Dynamic-DNS service. Password/Key Password is applied to login Dynamic-DNS servic e. -
Page 37: Wireless
6.4.1 Basic Settings This page is used to configure the parameters for wireless LAN clients who may connect to your Access Point. Here you may change wireless encryption settings as well as wireless network parameters http://www.sapido.com.tw/ User Manual v1. 0.0... - Page 38 While linking the upper level device in wireless way, you can set SSID to give the bottom layer user search. BRD70n can register up to 4 SSIDs (wireless LAN group). Multiple AP It can be used as if there are multiple wireless LAN access points with one product.
-
Page 39: Advanced Settings
It can reduce the problem when mass packets are transmitting. Short GI Users can get better wireless transmission efficiency when they enable this function. Shut down th e communication betw een th e connected WLAN Partition http://www.sapido.com.tw/ User Manual v1. 0.0... -
Page 40: Security
" , pl eas e s elec t " 1 28 -b it " . WPA / WPA2 W PA / W PA 2 is wir eles s LA N s ec urit y s t an da r d w hic h is http://www.sapido.com.tw/ User Manual v1. 0.0... -
Page 41: Access Control
Access Point in a minute without any hassle. SAPIDO BRD70N could support both Self-PIN or PBC modes, or use the WPS button (at real panel) to easy enable the WPS function. -
Page 42: Firewall
(3). Click PIN from Adapter Utility to complete the WPS process with the wireless router. (4). Wireless dongle should connect to BRD70n Start PBC: (1). Press the BRD70n WPS button and wait for WPS LED blinking (2). Press the dongle WPS button (3). Wireless dongle should connect to BRD70n Firewall 6.5.1... -
Page 43: Change Password
This is especially useful in the event you need to reset the router to its default settings. Save Configuration (1). Click Save (2). Please click “Save” to save the configuration to your computer. (3). Select the location which you want to save file, then click Save. http://www.sapido.com.tw/ User Manual v1. 0.0... -
Page 44: Remote Management
Load configuration file (1). Tap “browse” and select configuration file then click Open (2). Click Upload to upload configuration file to BRD70N . (3). After 60 seconds, BRD70N will reboot automatically. 6.6.4 Remote Management Please refer Remote Management 6.6.5 Time Zone Users can synchronize the local clock on the router to an available NTP server (optional). -
Page 45: Upnp
(data sharing, communications, and entertainment) and in corporate environments for simplified installation of computer components. BRD70N supports UPnP function, and can cooperate with other UPnP devices. When you activate UPnP, please click My Network Places. Users will see an Internet Gateway Device icon. -
Page 46: Vpn Passthough
Static route rule for LA N or WAN interface 6.6.8 VPN Passthough Virtual Private Networking (VP N) is typically used for work-related net working. For VP N tunnels, the router supports IPSec, Pass-through, PPTP Pass-through, and L2TP Pass-through. http://www.sapido.com.tw/ User Manual v1. 0.0... -
Page 47: Wan Type Auto Detection
To allow the L2TP net work traffic to be forwarded to its destination without the network address translation tasks. IPV6 Pass-through Allow IPV 6 packet to be forwarded to its destination without the network address translation tasks. 6.6.9 Wan Type Auto Detection http://www.sapido.com.tw/ User Manual v1. 0.0... -
Page 48: Chapter 7 Usb To Ethernet + Wireless Ap
Plug in internet cable into BRD70n RJ45 ethernet port，then NB/PC can access internet，this mode is a USB ethernet card If you want to manage BRD70n Set PC/NB BRD70n NIC card IP as 192.168.1.x，then open brower and type 192.168.1.254。The detail feature please refer BRD70n router mode http://www.sapido.com.tw/... -
Page 49: Chapter 8 Wireless Dongle
Wireless dongle Auto install HW switch to “USB to Wireless” mode and insert it to PC/NB USB port，it can run auto install process. After that，PC/NB has BRD70n wireless utility Configuring your wireless network (with Wireless Utility) 8.2.1 Double click on the computer with wireless signal icon in your taskbar or the shortcut icon on the desktop. - Page 50 8.2.4 Profile：User can add、remove、edit, duplicate wireless connection profile in this page. http://www.sapido.com.tw/ User Manual v1. 0.0...
- Page 51 Wi-Fi Protect Setup (WPS) WPS is an easy and secure setup solution for Wi-Fi network. Please click the Wi-Fi Protect Setup tab. BRD70N has two methods, PIN (Pin Input Config) and PBC (Push Button Config), to setup the network. 8.2.5.1 Pin Input Config (PIN) ...
- Page 52 BRD70N is waiting for the other AP to start the PBC function. The other AP starts the PBC function should be before BRD70N WPS times out. 2. Once the WPS connected successfully, wireless utility will show the connection status.
- Page 53 Note: The PBC button can click the visual button on the page or push the physical button on AP. BRD70N is waiting for the other AP to start the PBC function. The other AP starts the PBC function should be before BRD70N WPS times out. ...
- Page 54 Configure GUI ） Please refer BRD70n router mode（login IP address：http://192.168.253.1 http://www.sapido.com.tw/ User Manual v1. 0.0...
