Sapido MB-1112 User Manual

Mobile hotspot n+ mobile 3g modem router
Hide thumbs Also See for MB-1112:
Table of Contents

Advertisement

Quick Links

1
http://www.sapido.com.tw/
User Manual 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MB-1112 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sapido MB-1112

Summary of Contents for Sapido MB-1112

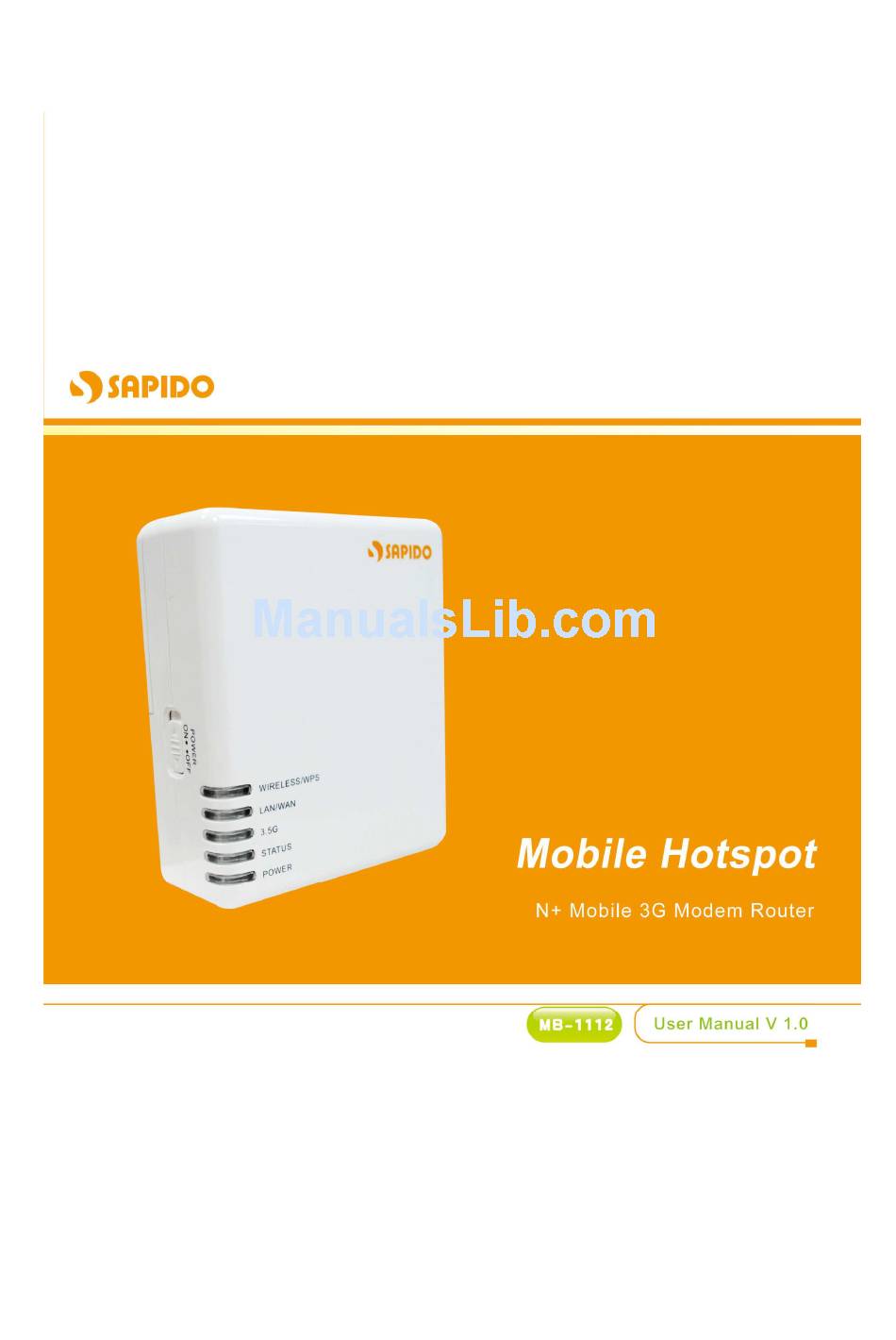

  • Page 1 User Manual 1.0...

  • Page 2: Fcc Statement

    IMPORTANT NOTE FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance20cm between the radiator & your body. http://www.sapido.com.tw/ User Manual 1.0...
  • Page 3 "Council Directive on the Approximation of the Laws of the Member Sates relating to Electromagnetic Compatibility" (89/336/EEC; 92/31/EEC; 93/68/EEC). The Declaration of Conformity can be found at the Sapido regional website. www.sapidotech.de CE Information of Disposal The electric and electronic equipment or unit which is labeled with crossed-out wheeled bin may not be disposed of with household waste.
  • Page 4 An adjustable chair that provides firm, comfortable support is best. Adjust the height of the chair so your thighs are horizontal and your feet flat on the floor. The back of the chair should support your lower back (lumbar region). http://www.sapido.com.tw/ User Manual 1.0...

  • Page 5: Table Of Contents

    Wireless Basic Setup from Web GUI .............. 34 4.1.2.1 Multiple APs ...................... 36 4.1.2.2 Enable Universal Repeater Mode ..............37 Wireless Security ...................... 38 Wireless Access Control ..................41 Security Setup ..........................43 NAT ..........................43 5.1.1 Visual Server..................... 43 http://www.sapido.com.tw/ User Manual 1.0...
  • Page 6 LED ..........................76 IP Address........................77 OS Setting........................77 3.5G Mobile Router Setup ..................79 Wireless LAN ......................81 Support ........................83 Others......................... 84 Appendices ..........................85 Operating Systems ....................85 Browsers........................85 Communications Regulation Information .............. 85 http://www.sapido.com.tw/ User Manual 1.0...

  • Page 7: Introduction

    Automatic WAN type detection to establish the Internet within minutes no expertise required Fail-over backup mechanism to ensure your network connectivity One-touch WPS button for secure wireless network inter-connection UPnP, QoS, VPN pass-through, advanced firewall security with port filter, URL blocking support http://www.sapido.com.tw/ User Manual 1.0...

  • Page 8: Specifications

    Policy-Based IP Packet Filter Firewall MAC address filtering, System logging via Syslog Access control IP filtering , Port filtering, URL filtering, MAC address filtering Management Web-based GUI for remote and local management Available Syslog monitoring support http://www.sapido.com.tw/ User Manual 1.0...

  • Page 9: Product Appearance

    HSPA service is available Connected to a network using HSPA Green: Reset / Firmware updates in STATUS Operation OK progress Green: Battery fully charged Power Green: DC Power input or Battery charging Red: Low battery Side http://www.sapido.com.tw/ User Manual 1.0...

  • Page 10: Power Source

    Note: It normally takes at least 4 hours to fully charge the battery. New batteries or batteries stored for a long time may take more time to charge. Power Source N+ Mobile 3G Modem Router will work from its battery or when plugged into a power source. http://www.sapido.com.tw/ User Manual 1.0...
  • Page 11 Mini USB power from a computer or car charger: Plugged into USB port of a computer via a USB Y cable or a vehicle by a car charger. The battery will charge while it is connected with a vehicle. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 12: System And Network Setup

    Recommended OS: Windows XP, Vista or Win 7 / Linux. Build Network Connection Administrator can manage the settings for WAN, LAN, Wireless Network, NAT, password, User Accounts, Firewall, etc. Please confirmation the network environment or the purpose before setting this product. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 13: Network Setup

    Double-click Network and Dial-up Connections icon, double click Local Area Connection, and Local Area Connection Properties window will appear. Select “Internet Protocol (TCP/IP)”, then click “Properties”. Select “Obtain an IP address automatically” and “Obtain DNS server address automatically”, then click “OK”. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 14: Windows Xp

    Double-click Network and Internet Connections icon, click Network Connections, then double-click Local Area Connection, Local Area Connection Status window will appear, and then click “Properties”. Select “Obtain an IP address automatically” and “Obtain DNS server address automatically”, then click “OK”. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 15: Windows Vista / Windows 7

    Network Connections. Right-click Local Area Network, then select “Properties”. Local Area Connection Properties window will appear, select “Internet Protocol Version 4 (TCP / IPv4)”, and then click “Properties”. Select “Obtain an IP address automatically” and “Obtain DNS server address automatically”, then click “OK”. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 16: Router Ip Address Lookup

    Router IP Address Lookup After the IP address setup was completed, please click “start” “run” at the bottom-lower corner of your desktop: Input “cmd”, and then click “OK”. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 17: Log Into Web Gui

    Log into Web GUI After obtained an IP address from wireless router, please start your web browser, and input the IP address of the wireless router in address bar. Notes: The default IP of the wireless router is 192.168.1.1 http://www.sapido.com.tw/ User Manual 1.0...
  • Page 18 Enter the User name and Password in to the blank and then Click Login. The default values for User Name and Password are admin (all in lowercase letters). http://www.sapido.com.tw/ User Manual 1.0...

  • Page 19: Internet Connection

    3G/3.5G modem card or Ethernet cable to N+ Mobile 3G Modem Router , the router will recognize it automatically. Connect to Internet through web GUI Open a Web browser, and enter http://192.168.1.1 (Default Gateway) into the blank. http://www.sapido.com.tw/ User Manual 1.0...
  • Page 20 Enter the User name and Password in to the blank and then Click “Login”. The default values for User Name and Password are admin (all in lowercase letters). http://www.sapido.com.tw/ User Manual 1.0...

  • Page 21: Wan Interface- 3.5G

    3.2.1 WAN Interface- 3.5G Insert SIM Card before the setting. Select WAN under the IP Config menu, and choose 3.5G for the WAN Interface. Its associated setting will show as below. http://www.sapido.com.tw/ User Manual 1.0...
  • Page 22 SIM PIN Input the PIN code provided by telecomm service provider or select “None” to unlock your SIM. APN (Access Point Name) Enter the access point name. Note: Your network service provider should have given you http://www.sapido.com.tw/ User Manual 1.0...
  • Page 23 Apply Change & Reset Click on “Apply Change” to save the setting date, or you may click on “Reset” to clear all the input data. Rebooting this product is started. Please wait for a while. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 24: Wan Interface- Ethernet Port

    The WAN access type is depended on the service that you contract with the provider. The N+ Mobile 3G Modem Router provides five selections for the WAN access type, Static IP, DHCP Client, PPPoE, PPTP, L2TP. Check with your ISP if you don’t know the WAN type. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 25: Access Type- Static Ip

    MAC address registered to the provider to "Clone MAC Address" Apply Change & Reset Click on “Apply Change” to save the setting date, or you may click on “Reset” to clear all the input data. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 26: Access Type- Dhcp Client

    MAC address registered to the provider to "Clone MAC Address" Apply Change & Reset Click on “Apply Change” to save the setting date, or you may click on “Reset” to clear all the input data. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 27: Access Type- Pppoe

    Three types for select: Continues, Connect on Demand, and Manual. Select Attain DNS Automatically. Or select Set DNS Manually, if you want to specify the DNS, and enter the DNS provided by your ISP in DNS 1 2 3. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 28: Access Type- Pptp

    MAC address registered to the provider to "Clone MAC Address" Apply Change & Reset Click on “Apply Change” to save the setting date, or you may click on “Reset” to clear all the input data. 3.2.2.4 Access Type- PPTP http://www.sapido.com.tw/ User Manual 1.0...

  • Page 29: Access Type- L2Tp

    MAC address registered to the provider to "Clone MAC Address" Apply Change & Reset Click on “Apply Change” to save the setting date, or you may click on “Reset” to clear all the input data. 3.2.2.5 Access Type- L2TP http://www.sapido.com.tw/ User Manual 1.0...

  • Page 30: Wan Interface- Wireless

    Click on “Apply Change” to save the setting date, or you may click on “Reset” to clear all the input data. 3.2.3 WAN Interface- Wireless Select WAN under the IP Config menu, and choose wireless for the WAN Interface. Its associated setting will show as below. http://www.sapido.com.tw/ User Manual 1.0...
  • Page 31 MAC address registered to the provider to "Clone MAC Address" Apply Change & Reset Click on “Apply Change” to save the setting date, or you may click on “Reset” to clear all the input data. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 32: Wireless Setup

    (1) Press the WPS button from N+ Mobile 3G Modem Router and wait for Wireless/WPS LED light (2) changed into red. (2) Press the WPS button from the adapter until the setup window shows up. (3) Open a web browser to check the internet connection. http://www.sapido.com.tw/ User Manual 1.0...
  • Page 33 (2) Press the WPS button from N+ Mobile 3G Modem Router and wait for Wireless/WPS LED light changed into red. (3) Back to the WLAN adapter utility and click its “PBC” button. The utility will start searching the destination connection. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 34: Wireless Basic Setup From Web Gui

    (5) After completes the WPS setup. Please confirm that it can be connected to the Internet. Note: The setup image might be some differences when using other branded Adapter. 4.1.2 Wireless Basic Setup from Web GUI The Wireless Basic Settings include Band, Mode, SSID, Channel Number and other wireless settings. http://www.sapido.com.tw/ User Manual 1.0...
  • Page 35 Service Set identifier, users can define to any or keep as default. Channel Width Please select the channel width, it has 2 options: 20MHZ, and 40MHZ. Control Sideband Enable this function will control your router use lower or upper channel. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 36: Multiple Aps

    LAN access points with one product. Each SSID could be set with different data rate, WMM and access type. Item Description Enable Enable or disable the service. Band Select the frequency. SSID Enter the SSID Data Rate Select the data transmission rate. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 37: Enable Universal Repeater Mode

    Example: When users enable the Universal Repeater to connect to the upper level device, please fill in the upper level device’s channel and SSID. Click on “Apply Changes” to save the settings. (Please disable the DHCP service first) http://www.sapido.com.tw/ User Manual 1.0...

  • Page 38: Wireless Security

    4 encryption types can be selected here, please follow the instructions below for each. Encryption – WEP Enabling WEP can protect your data from eavesdroppers. If you do not need this feature, select “None” to skip the following setting. N+ Mini Router supports both 64-bit and 128-bit http://www.sapido.com.tw/ User Manual 1.0...
  • Page 39 Encryption – WPA (WPA, WPA2 & WPA2 Mixed) The WPA, WPA2 & WPA2 Mixed encrypt each frame transmitted from the radio using the pre-shared key (PSK) which entered from this panel or a key got dynamically through 802.1x. http://www.sapido.com.tw/ User Manual 1.0...
  • Page 40 There are five Encryption types supported: “None”, “WEP”, “WPA (TKIP)”, ”WPA2(AES)”, and “WPA2 Mixed”. Enabling WEP can protect your data from eavesdroppers. If you do not need this feature, select “None” to skip the following setting. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 41: Wireless Access Control

    Take the wireless card as the example. Please select Deny Listed in Wireless Access Control Mode first, and then fill in the MAC address what you plan to block in the MAC Address field. Click “Apply Changes” to save the setting. http://www.sapido.com.tw/ User Manual 1.0...
  • Page 42 The MAC address what you set will be displayed on the Current Access Control List. The wireless client will be denied by the wireless router. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 43: Security Setup

    It will display all port forwarding regulation you made. Table Delete Selected & Delete Click “Delete Selected” will delete the selected item. Click “Delete All” will delete all items in this table. Reset Click “Reset” to cancel. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 44: Dmz

    The port forwarding feature is more secure because it only opens the ports required by that application. Item Description Enable DMZ It will enable the DMZ service if you select it. DMZ Host IP Address Please enter the specific IP address for DMZ host. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 45: Firewall

    Enable Port Filtering Select Enable Port Filtering to filter ports. Port Range Enter the port number that needs to be filtered. Protocol Please select the protocol type of the port. Comment You can add comments for this regulation. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 46: Ip Filtering

    You can click “Reset” to cancel. Port 80 has been blocked as the following illustrate. IP: 192.168.1.x Port: 80-80 5.2.2 IP Filtering When enabled, LAN clients are blocked / filtered from accessing the Internet based on their IP addresses. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 47: Mac Filtering

    Click on “Apply Changes” to save the setting data. Or you may click on “Reset” to clear all the input data. Current Filter Table It will display all ports that are filtering now. Delete Selected & Delete Click “Delete Selected” will delete the selected item. Click “Delete http://www.sapido.com.tw/ User Manual 1.0...

  • Page 48: Url Filtering

    All” will delete all items in this table. Reset You can click “Reset” to cancel. Notes: This function will not be in effect when the Virtual Server is enabled. Please disable Virtual Server before activate the URL Filtering function. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 49: Advanced Setup

    Fill in the start IP address and end IP address to allocate a range of IP addresses; client with DHCP function set will be assigned an IP address from the range Static DHCP Configures how static DHCP address are assigned to client (only available when DHCP server is enabled) http://www.sapido.com.tw/ User Manual 1.0...

  • Page 50: Dynamic Dns Setting

    Select enable to use DDNS function. Each time your IP address to WAN is changed, and the information will be updated to DDNS service provider automatically. Service Provider Choose correct Service Provider from drop-down list, here including DynDNS, TZO, ChangeIP, Eurodns, OVH, NO-IP, ODS, Regfish http://www.sapido.com.tw/ User Manual 1.0...

  • Page 51: Wireless Advanced Setup

    Password is applied to login Dynamic-DNS service. Apply & Cancel Click on Apply button to continue. Click on Cancel button to clear the setting on this page. Wireless Advanced Setup In Advanced Settings page, more 802.11 related parameters are tunable http://www.sapido.com.tw/ User Manual 1.0...

  • Page 52: Wds Settings

    To accomplish this, all wireless routers should be set to the same channel and the MAC address of other AP / Routers should be entered in the table. The WDS explanation is as the following picture. http://www.sapido.com.tw/ User Manual 1.0...
  • Page 53 (1) Please check the MAC address and Channel number from WDS Router A. (2) Set the connection mode to “AP+WDS” from “Wireless Basic Setting”, and then select the channel number (in this example is "6”). Click Apply Changes to save the setting. http://www.sapido.com.tw/ User Manual 1.0...
  • Page 54 (3) Enable WDS function from the page – “WDS Setting”, and then fill in the MAC address of Router B. Click Apply Changes to save the setting data. (4) The WDS AP List will show the WDS device MAC address after reboot. http://www.sapido.com.tw/ User Manual 1.0...
  • Page 55 Move on the setup to WDS Router B (1) Input Router A’s MAC address. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 56: Wps

    Access Point in a minute without any hassle. 3.5G Mimi Router could support both Self-PIN or PBC modes, or use the WPS button (at real panel) to easy enable the WPS function. http://www.sapido.com.tw/ User Manual 1.0...
  • Page 57 Setup Wireless LAN with WPS PIN: (1) Get the WPS PIN number from wireless card and write it down. (2) Fill in the PIN number from the wireless card in Client PIN Number field, and then click “Start PIN”. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 58: System Management

    Please also refer to section 4.1.1 WPS setup for more details. System Management This section including Change Password, Upgrade Firmware, Profiles Save, Time Zone Setting, UPnP Setting, and Language Setting. It is easy and helpful for users making more detailed settings. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 59: Change Password

    Users can set or change user name and password used for accessing the web management interface in this section. Click on Apply Changes to save the setting data. Or you may click on Reset to clear all the input data. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 60: Upgrade Firmware

    5 seconds with a stick. The router will reboot and all settings will be restored to factory default settings. If the problem still exists, you can visit our web site to see if there is any firmware for download to solve the problem. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 61: Profile Save

    Item Description Save Save to computer Upload Upload the file from PC to router Reset Reset to default Save Configuration (1) Click Save (2) Please click “Save” to save the configuration to your computer. http://www.sapido.com.tw/ User Manual 1.0...
  • Page 62 (3) Select the location which you want to save file, then click Save. b. Load configuration file (1) Click Browser (2) Select configuration file then click Open http://www.sapido.com.tw/ User Manual 1.0...
  • Page 63 (3) Click Upload to upload configuration file to N+ Mobile 3G Modem Router . (4) After 90 seconds, N+ Mobile 3G Modem Router will reboot automatically. (C) Reload factory default setting 1. Please click Reset http://www.sapido.com.tw/ User Manual 1.0...

  • Page 64: Time Zone Setting

    Please select to enable NTP client update or not. Automatically Adjust Please select to enable Automatically Adjust Daylight Saving or not. Daylight Saving NTP Server Please select the NTP server from the pull-down list, or you can enter the NTP server IP address manually. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 65: Upnp Setting

    Internet Gateway Device icon. By click the icon, users can enter the GUI of the router. If you do not wish to use UPnP, you can disable it. Enable/Disable UPnP: Select to enable or disable this function. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 66: Language Setting

    When you see the screen message change to the selected language, the setup is completed. Log & Status The category provides Network Config and Event Log status for users to know the operation status. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 67: Network Config

    6.5.1 Network Config Users can check the Internet status under this category, including Firmware version, Wireless setting, Connecting Time, WAN, TCP/IP …information. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 68: Event Log

    Click on Apply Changes to save the setting data. Click on Refresh to renew the system time, or on Clear to clear all the record. Clear * The following figure is an example when users click Apply Changes to record the event log. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 69: Logout

    Logout This function logs out the user. Click on Apply Change to logout. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 70: Ddns Service Application

    If you don’t have a DDNS account, please follow the steps to complete your DDNS with Dynamic IP settings. Step 1. First access the Internet and fill http://www.dyndns.com/ into the address field of your web browser, then click Create Account. http://www.sapido.com.tw/ User Manual 1.0...
  • Page 71 Step 2. Fill in the form as required, and then click on Create Account button. http://www.sapido.com.tw/ User Manual 1.0...
  • Page 72 When you got this account created message, close it, and check your mailbox. You would get a mail from DynDNS website. Step 4. Click on the indicated address within your mail to confirm. Step 5. Click on login. http://www.sapido.com.tw/ User Manual 1.0...
  • Page 73 Step 6. Click Add New Hostname. Step 7. Put in your favorite hostname and service type, and then click Create Host after finished. http://www.sapido.com.tw/ User Manual 1.0...
  • Page 74 Step 8. Your hostname has been created when you see the following page. http://www.sapido.com.tw/ User Manual 1.0...
  • Page 75 “Activate Service” Step 9. Click Step 10. Finish http://www.sapido.com.tw/ User Manual 1.0...

  • Page 76: Installation

    Why does 3.5G Mobile Router shut down unexpectedly? A: Re-plug your power adapter. Then, check the STATUS indicator; if it is off, the internal flash memory is damaged. For more help, please contact with your provider. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 77: Ip Address

    Power down the device in question and ping the assigned IP address of the device. Ensure no other device responds to that address. Check that the cables and connectors or use another LAN cable. Q: Why can't I connect to the router's configuration utility? http://www.sapido.com.tw/ User Manual 1.0...
  • Page 78 5. Select Direct connection to the Internet and click on OK button. 6. Click on OK button. Web page hangs, corrupt downloads, or nothing but junk characters is being displayed on the screen. What do I need to do? http://www.sapido.com.tw/ User Manual 1.0...

  • Page 79: G Mobile Router Setup

    Q: How do I upgrade the firmware of 3.5G Mobile Router? A: Periodically, a new Flash Code is available for 3.5G Mobile Router on your product supplier’s website. Ideally, you should update 3.5G Mobile Router’s Flash Code http://www.sapido.com.tw/ User Manual 1.0...
  • Page 80 A: 3.5G Mobile Router will start to run after the setting finished applying, but the setting isn’t written into memory. Here we suggest if you want to make sure the setting would be written into memory, please reboot the device via Reboot under System Management directory. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 81: Wireless Lan

    Finally, you might want to keep the system you're trying to configure in the same room as the router, at least during the initial configuration, in order to minimize potential interference from concrete walls or steel beams. http://www.sapido.com.tw/ User Manual 1.0...
  • Page 82 RF Shielding: Your environment may tend to block transmission between the wireless stations. This will mean high access speed is only possible when close to the Access Point. Q: Some applications do not run properly when using the Wireless Router. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 83: Support

    Q: Why can’t the NTFS hard disk be used with 3.5G Mobile Router ? A: 3.5G Mobile Router doesn’t support the NTFS hard disk. It only supports EXT3 and FAT32 file systems. Q: What is the maximum number of IP addresses that the XDSL Router will support? http://www.sapido.com.tw/ User Manual 1.0...

  • Page 84: Others

    Q: What can I do if there is already a DHCP server in LAN? A: If there are two DHCP servers existing on the same network, it may cause conflict and generate trouble. In this situation, we suggest to disable DHCP server in router and configure your PC manually. http://www.sapido.com.tw/ User Manual 1.0...

  • Page 85: Appendices

    FireFox ver. 2.0.0.11 and the following related versions.3. Safari ver. 3.04 and the following related versions. Communications Regulation Information Should any consumers need to learn more information, services and supports, please contact the supplier of your product directly. http://www.sapido.com.tw/ User Manual 1.0...
