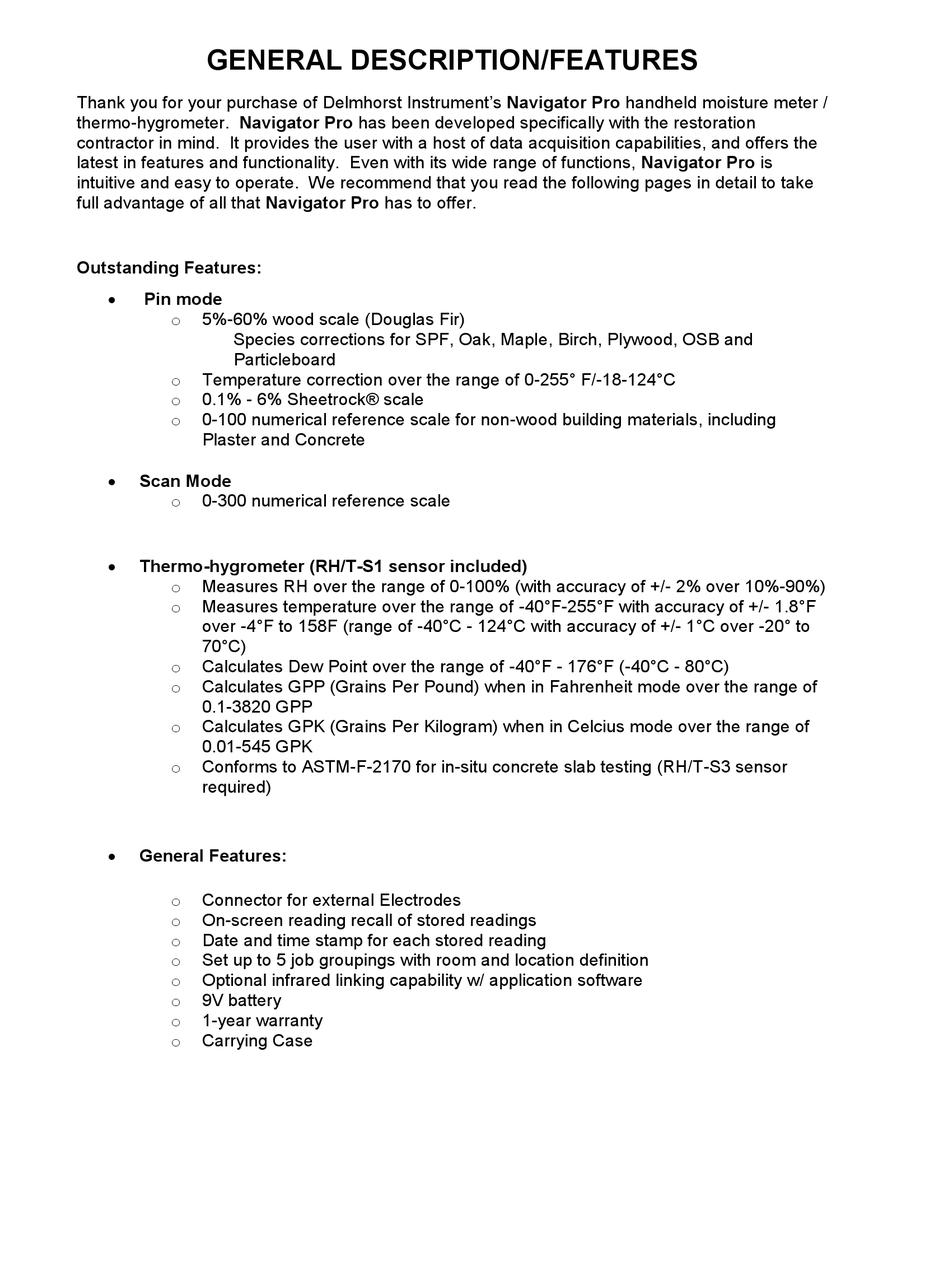

GENERAL DESCRIPTION/FEATURES

Thank you for your purchase of Delmhorst Instrument's Navigator Pro handheld moisture meter /
thermo-hygrometer. Navigator Pro has been developed specifically with the restoration
contractor in mind. It provides the user with a host of data acquisition capabilities, and offers the
latest in features and functionality. Even with its wide range of functions, Navigator Pro is
intuitive and easy to operate. We recommend that you read the following pages in detail to take
full advantage of all that Navigator Pro has to offer.
Outstanding Features:
 Pin mode
5%-60% wood scale (Douglas Fir)
o
Species corrections for SPF, Oak, Maple, Birch, Plywood, OSB and
Particleboard
Temperature correction over the range of 0-255° F/-18-124°C
o
0.1% - 6% Sheetrock® scale
o
0-100 numerical reference scale for non-wood building materials, including
o
Plaster and Concrete
 Scan Mode
0-300 numerical reference scale
o
 Thermo-hygrometer (RH/T-S1 sensor included)
Measures RH over the range of 0-100% (with accuracy of +/- 2% over 10%-90%)
o
Measures temperature over the range of -40°F-255°F with accuracy of +/- 1.8°F
o
over -4°F to 158F (range of -40°C - 124°C with accuracy of +/- 1°C over -20° to
70°C)
Calculates Dew Point over the range of -40°F - 176°F (-40°C - 80°C)
o
Calculates GPP (Grains Per Pound) when in Fahrenheit mode over the range of
o
0.1-3820 GPP
Calculates GPK (Grains Per Kilogram) when in Celcius mode over the range of
o
0.01-545 GPK
Conforms to ASTM-F-2170 for in-situ concrete slab testing (RH/T-S3 sensor
o
required)
 General Features:
Connector for external Electrodes
o
On-screen reading recall of stored readings
o
Date and time stamp for each stored reading
o
Set up to 5 job groupings with room and location definition
o
Optional infrared linking capability w/ application software
o
9V battery
o
1-year warranty
o
Carrying Case
o
