ACCESSORIES

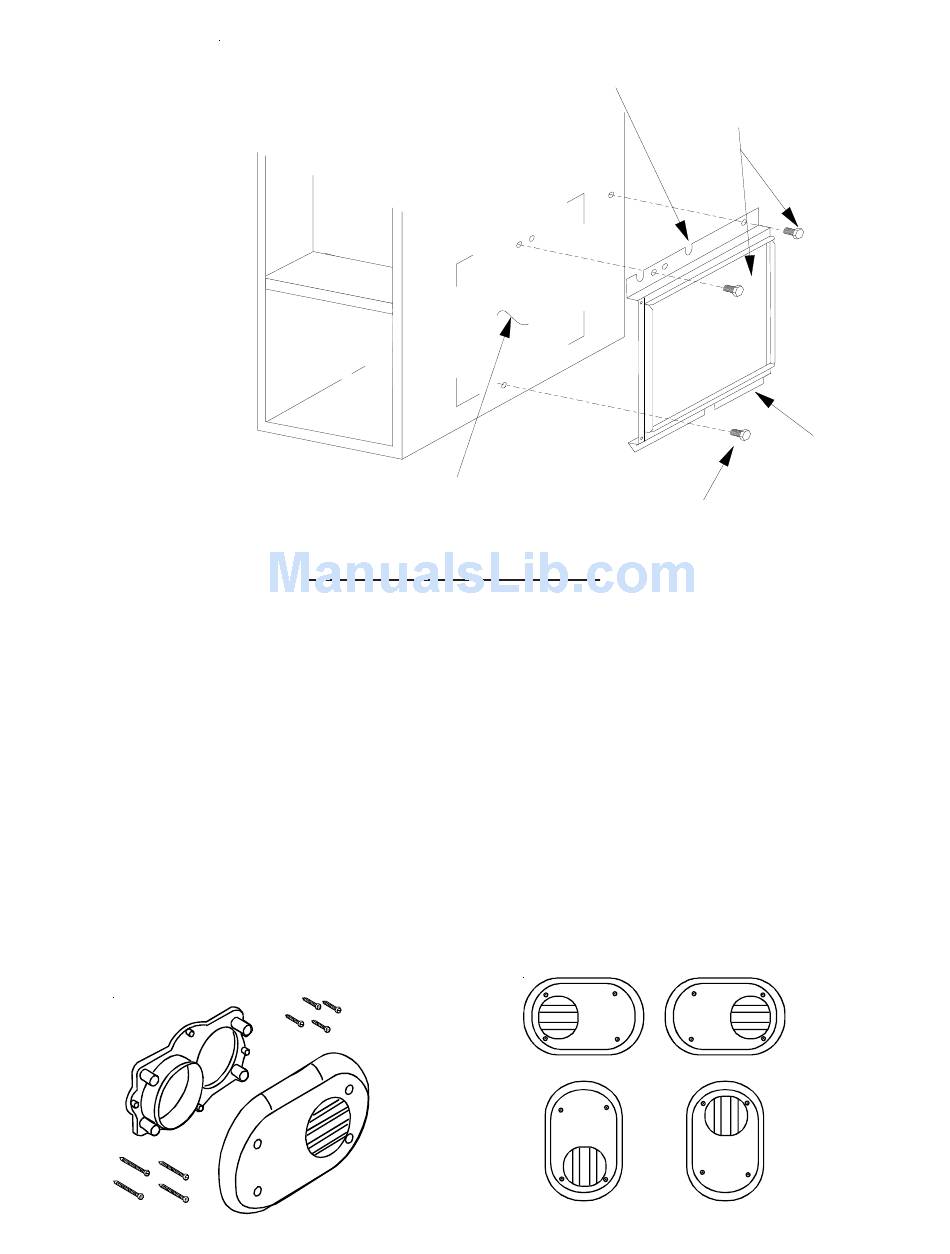

EXTERNAL FILTER RACK (EFR02)
96% Upflow Model Furnaces
SIDE WALL VENT KITS (0170K00000S) (0170K00001S)
Description
0170K00000S
This side wall only vent kit #0170K00000S is to be used with 2" - 3" vent systems. This kit is NOT intended for use with
single pipe (indirect vent) installations.
The vent kit must terminate outside the structure and may be installed with the intake and exhaust pipes located side-by-
side or with one pipe above the other.
See the section in this manual under "Vent Flue and Combustion Air Pipe Terminations" for more information or consult
the Installation Instructions (IO-635).
0170K00001S
This vent kit is to be used with 2" vent systems. The vent kit must terminate outside the structure and may be installed with
the intake and exhaust pipes located side-by side or with one pipe above the other. This kit is NOT intended for use with
single pipe (indirect vent) installations.
See the section in this manual under "Vent Flue and Combustion Air Pipe Terminations" for more information or consult
the Installation Instructions (IO-805).
12
UNIT SIDE
PANEL
FRONT
OF UNIT
BASE
OF UNIT
RETURN AIR
CUTOUT AREA
SLOTS IN FILTER
CLEAR SCREWS
ON UNIT
BLOWER DECK
SCREWS
LOWER EDGE
SCREW
H orizon tal Installation
V e rtical Insta llation
FILTER RACK ASSEMBLY
(FACE FILTER OPENING
TOWARDS FRONT
OF UNIT)
