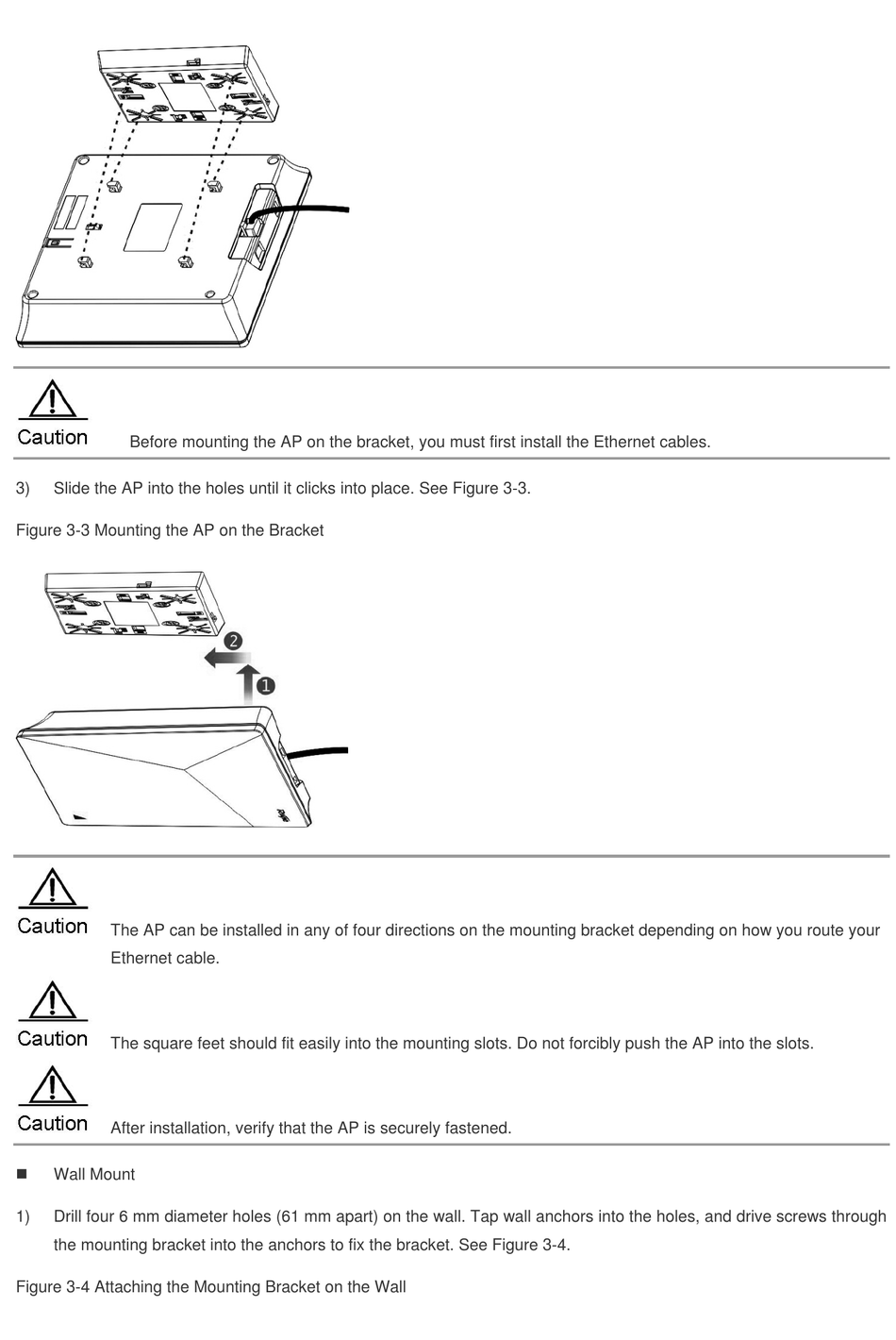

Ruijie Networks RG-AP320-I Series Hardware Installation And Reference Manual page 14

Before mounting the AP on the bracket, you must first install the Ethernet cables.
3) Slide the AP into the holes until it clicks into place. See Figure 3-3.
Figure 3-3 Mounting the AP on the Bracket
The AP can be installed in any of four directions on the mounting bracket depending on how you route your
Ethernet cable.
The square feet should fit easily into the mounting slots. Do not forcibly push the AP into the slots.
After installation, verify that the AP is securely fastened.

Wall Mount
1) Drill four 6 mm diameter holes (61 mm apart) on the wall. Tap wall anchors into the holes, and drive screws through
the mounting bracket into the anchors to fix the bracket. See Figure 3-4.
Figure 3-4 Attaching the Mounting Bracket on the Wall
