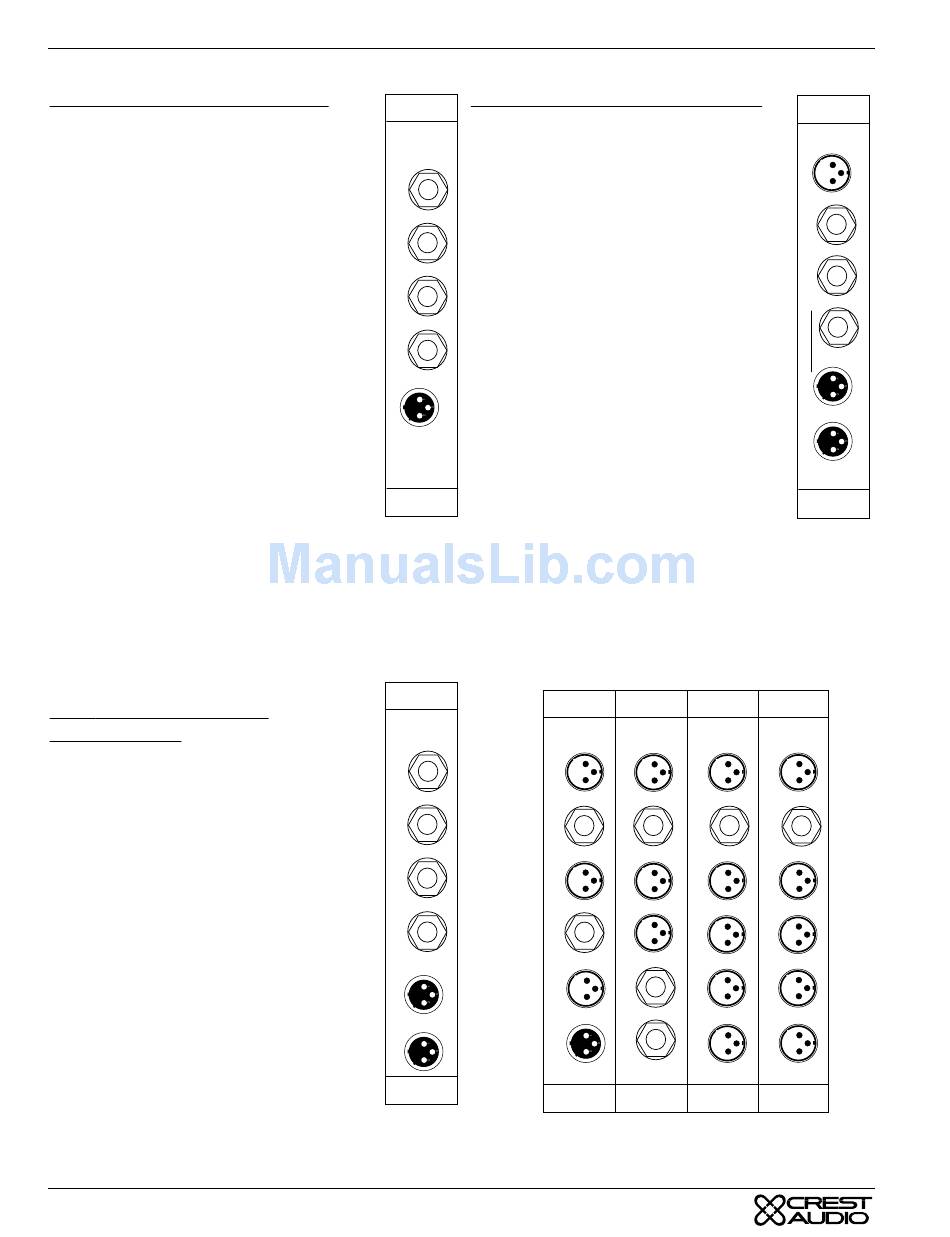

REAR PANEL CONNECTIONS

Input Module Connections
Direct Out
This 1/4-inch balanced TRS jack delivers the direct
output signal (post fader & post mute) from the
associated input channel.
Insert Send
This 1/4-inch jack is used for sending a post-input
preamp, post Hi Pass Filter, pre-EQ signal to an
outboard processor. The signal at this jack is unbal-
anced and always active regardless of the Insert
Switch setting.
Bal Insert Return
This 1/4-inch balanced TRS jack receives it's sig-
nal from an outboard processor. It can also be used
to bring a signal into the channel, bypassing the
input preamp and gain circuit. The return input is
balanced and must be enabled by depressing the
channel Insert switch.
Bal Line In
This 1/4-inch balanced TRS jack accepts an bal-
anced or unbalanced line level input, and delivers it
into the associated input channel.
Mic In
This XLR connector accepts balanced microphone inputs for
the associated input channel.
Stereo Input Module
Connections
Insert L / Insert R
These 'combined send & return' TRS jacks are
used to insert effects or signal processing into the
Left and Right channels of the Stereo Input mod-
ule.It can also be used to bring a signal into the
channel, bypassing the input preamp and gain cir-
cuit. The return input is enabled by depressing the
channel Insert switch.
Bal Line In L / Bal Line In R
These 1/4-inch balanced TRS jacks accept bal-
anced or unbalanced line level inputs, and delivers
them into the associated (Left or Right) input chan-
nels of the Stereo Input.
Bal Mic In L / Bal Mic in R
These XLR connectors accept balanced micro-
phone inputs, and delivers them into the associated
(Left or Right) input channels of the Stereo Input.
P 4
AGE
Group Module Connections
Group Out
This XLR connector carries the post-fader output
DIR OUT
signal from the associated group module.
Group Ins Send
INSERT SEND
This 1/4-inch TRS jack allows for the group sig-
nal to be sent to an effect or signal processor.
BAL INSERT RETURN
Bal Ins Return
This 1/4-inch balanced TRS jack allows for the
BAL LINE IN
return of the effected and/or processed group sig-
nal back into the associated group.
BAL MIC IN
EFX Return
These two connectors allow for effect signals to
be brought back into the board. The 1/4-inch bal-
anced TRS jack accepts a balanced or unbalanced
signal at -10 dB level and delivers the signal to
the EFX return section. The female XLR connec-
tor accepts a balanced signal at +4dB level and
GTx
delivers the signal to the EFX return section of
Input
the group. Signals from both jacks are mixed
Module
together.
Bus In
This XLR connector accepts a balanced signal at +4dB level,
and then sums it with all the other signals assigned to the asso-
ciated groups.
INSERT L
MATRIX A OUT
INSERT R
INSERT A
BAL LINE IN L
MATRIX B OUT
BAL LINE IN R
INSERT B
EXT TB OUT
BAL MIC IN L
EXT TB IN
BAL MIC IN R
GTx
Stereo
Input
Module
C
ENTURY
MONO OUT RIGHT OUT LEFT OUT
MONO INSERT RIGHT INSERT LEFT INSERT
MONITOR L OUT AUX 3 OUT AUX 1 OUT
MONITOR R OUT AUX 4 OUT AUX 2 OUT
STR PGM IN AUX 7 OUT
AUX 5 OUT
OSC/PINK IN AUX 8 OUT
AUX 6 OUT
GTx
Master
Modules
S
ERIES
GROUP OUT
GRP INS SEND
BAL INSERT RTN
EFX RETURN
-10
+4
BUS IN
GTx
Group
Module
