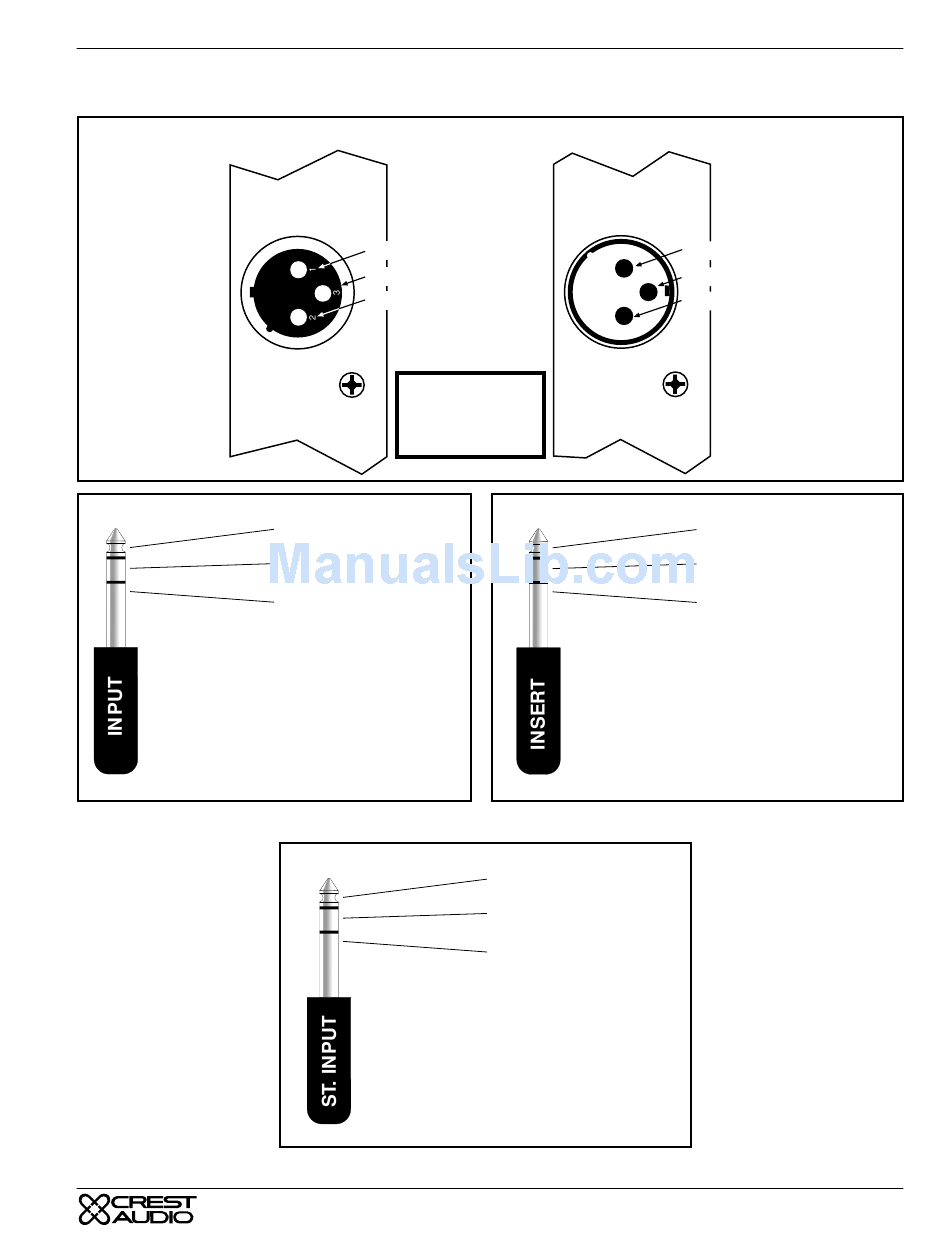

Crest consoles are wired with connectors that are used throughout the professional audio industry. Wiring is as follows:

INPUT XLR

(Tip - Ring - Sleeve)
Input / Output
PIN 1
PIN 3
PIN 2
PIN 1 = GROUND
PIN 2 = POSITIVE
PIN 3 = NEGATIVE
TIP - POSITIVE
RING - NEGATIVE
SLEEVE - GROUND
Standard TRS
1/4" Plug
Stereo Program In
OUTPUT XLR
TIP - LEFT
RING - RIGHT
SLEEVE - COMMON
Standard TRS
(Tip - Ring - Sleeve)
1/4" Plug

Wiring Conventions

PIN 2
PIN 3
PIN 1
TIP - SEND
RING - RETURN
SLEEVE - GROUND
Standard TRS
(Tip - Ring - Sleeve)
1/4" Plug
Insert
