Step Two: Connect Your Gateway

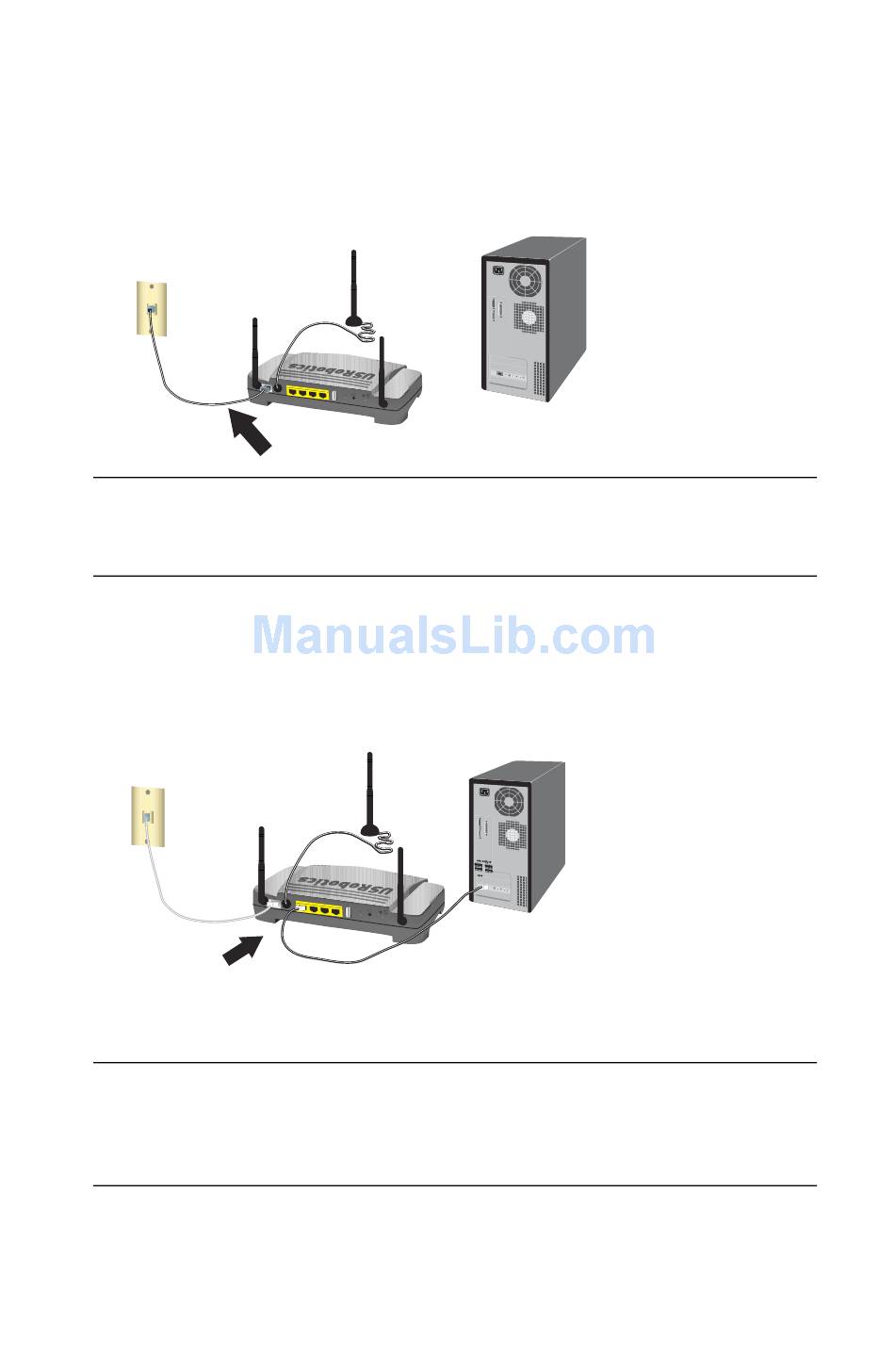

1. Connect your gateway to your ADSL line:
A. Connect the provided antennas to the back of the gateway.
B. Connect one end of the included phone cable to the
gateway.
C. Connect the other end of the phone cable to your wall telephone jack.
N o te : The USB port on the gateway is for connecting a USB printer
only. For instructions on connecting a USB printer to your
gateway, see "Install a USB Printer" on page 8.
2. Connect the gateway to your computer:
A. Power off your computer.
B. Connect one end of the supplied Ethernet cable to your computer's
Ethernet adapter.
C. Connect the other end to one of the gateway's
3. Power up the network:
A. Connect the supplied power adapter to the
N o te : UK Users: With the power adapter unplugged, connect the
appropriate power plug for your country on to the power adapter.
Apply enough pressure to cause a click and firmly seat the plug
before connecting the power adapter to your gateway.
4
port on the
ADSL
ports.
LAN
port on the gateway.
15VDC
