Rose electronics Xtensys Quick Installation Manual
Universal matrix console switch
Hide thumbs
Also See for Xtensys:
- Installation and operation manual (48 pages) ,
- Nstallation and operations manual (50 pages)
Subscribe to Our Youtube Channel
Related Manuals for Rose electronics Xtensys
Summary of Contents for Rose electronics Xtensys

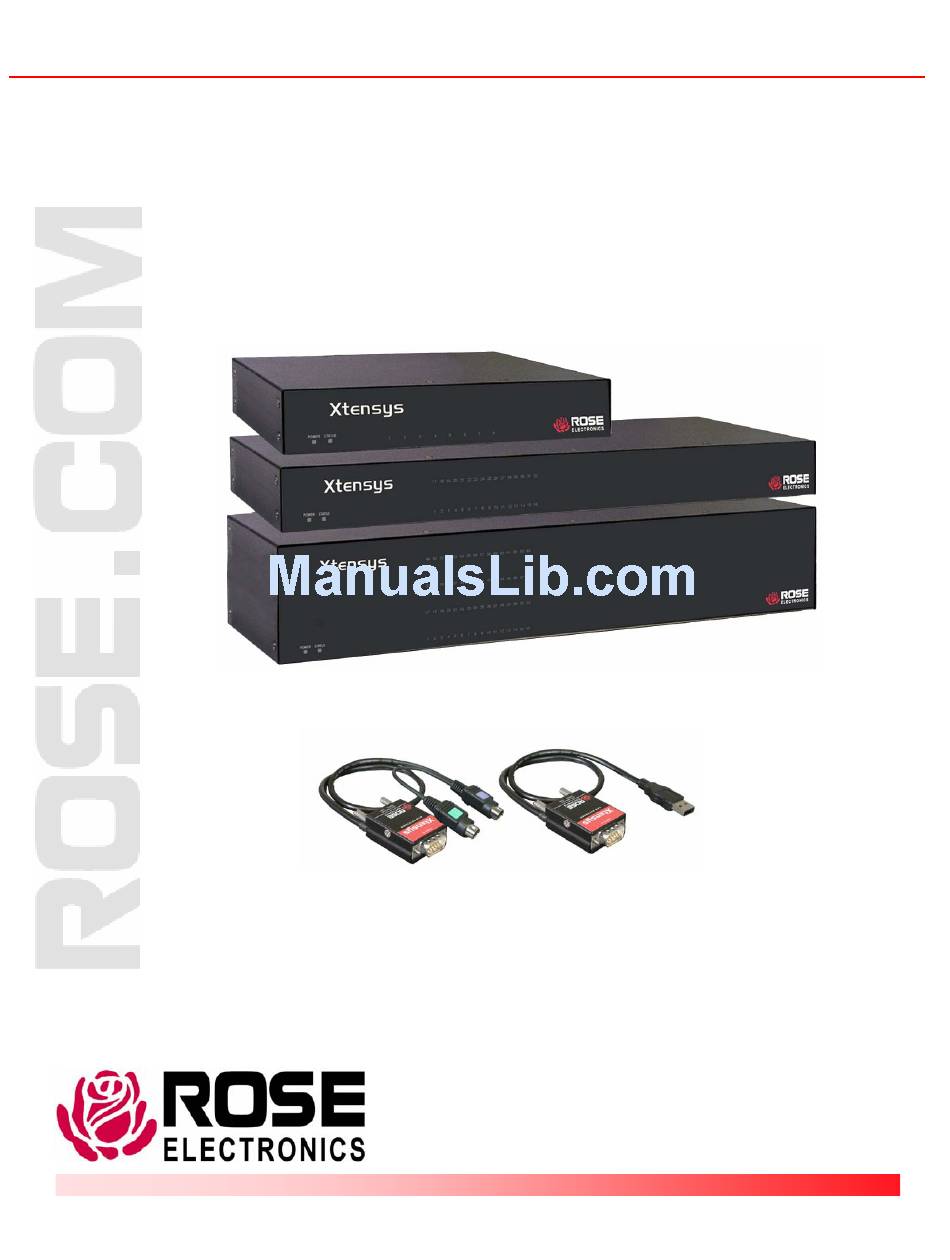

- Page 1 Xtensys UNIVERSAL MATRIX CONSOLE SWITCH Quick Installation Guide 10707 Stancliff Road Phone: (281) 933-7673 Houston, Texas 77099 WWW.ROSE.COM...
- Page 2 These connect directly to the KVM User station ports on the user station. Refer to the below connectivity diagram when installing your Xtensys system. An Xtensys 8 x 32 model is used in the below example. The basic installation is the same for all models, just more or less computer and user station connections..
- Page 3 Each CPU port on Xtensys can be configured for serial using the OSD menu system. When configured, connect a RJ45M to DB9F cable from the RJ45F CPU port on Xtensys to the DB9M serial port on a computer or serial device. Cable length restrictions apply for connecting serial devices.
- Page 4 CPU port #12. Below is a summary of the keyboard commands used by Xtensys. Ctrl Key Sequence is a press and release of the left control key. Enter the command following Ctrl within 2 seconds to initiate that command.
