Summary of Contents for Williams Sound PLA-240

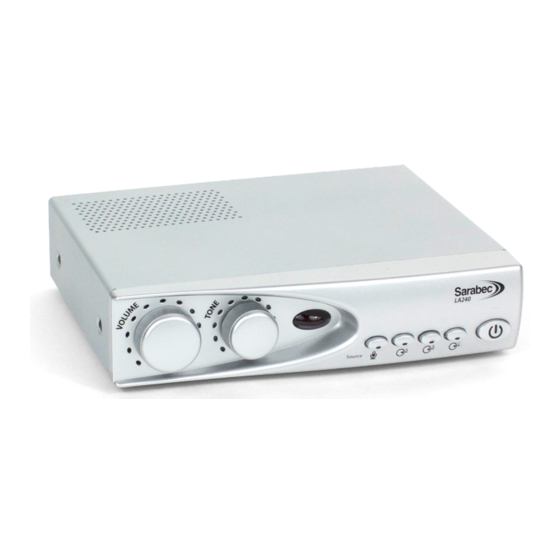

- Page 1 PLA-240 Small Room Loop Amplifier System USER Manual MAN 211A...
-
Page 2: Quick Setup
PLA 240 Small Room Loop Amplifier Overview Thank you for purchasing the PLA 240 Small Room Loop Amplifier System. The PLA 240 Loop System provides a practical solution for hearing aid users to listen more easily to their TV or audio equipment via the “T” or “Loop “ program of their hearing aid. With no direct connection between the user and a TV or Audio equipment the user is able to move freely with the looped area and listen comfortably to a TV or audio equipment without the distractions of normal listening. -
Page 3: Safety Instructions
PLA 240 Small Room Loop Amplifier Safety Instructions Williams Sound cannot be held responsible for damage which is caused by not using this Loop System in compliance with these safety instructions. IF IN ANY DOUBT SEEK EXPERT ADVICE 1. Read and follow these instructions taking note of any warnings. Keep these instructions for future reference. -
Page 4: Product Overview
PLA 240 Small Room Loop Amplifier Product Overview An enhanced microprocessor controlled loop amplifier with outstanding sound quality designed to be used with modern audio and video products to transmit the sound directly to your hearing aid. Your hearing aid must be switched to the “T” or Loop function to use the loop system. - Page 5 PLA 240 Small Room Loop Amplifier left connected to the amplifier. Do not leave spare cable coiled around the spool. Always disconnect the unit from power before making connections. Loop Amplifier Loop Amplifier Connect Loop Wire to the Loop Output Terminals TOSlink/ 3.5 mm Push the tabs in (toward the amplifier) to open the hole and allow the wire in.
- Page 6 PLA 240 Small Room Loop Amplifier Volume Tone IR Receiver Mic Input Line Line Digital Connect Audio Outputs from TV or other audio source to Loop Amplifier Inputs Control Control (Remote control) Switch Input A Input B Input C Switch Switch Switch Power...
-
Page 7: Operation
PLA 240 Small Room Loop Amplifier Microphones If a direct connection is not possible then a microphone can be used to pick up the sound from a TV or other loudspeaker. Microphones can also be used for someone to speak directly into the loop system so they can speak directly to the hearing aid user when they listen to TV. -
Page 8: Volume Control
PLA 240 Small Room Loop Amplifier Volume Volume Power Button Level Level Blue=On Indicator Indicator Audio Level Red=Off LEDs LEDs Indicator Volume Tone IR Receiver Mic Input Line Line Digital Control Control (Remote control) Switch Input A Input B Input C Switch Switch Switch... -
Page 9: Headphone Jack
PLA 240 Small Room Loop Amplifier useful for monitoring a doorbell, or if a partner wants to talk to the hearing aid wearer through the loop. Analog Inputs (Line Input A, Line Input B) Selecting these sources will allow sound from the corresponding jacks on the rear of the amplifier to be heard through the system. -
Page 10: Troubleshooting
PLA 240 Small Room Loop Amplifier Troubleshooting Problem Solution No Sound -Re-Check all connections -Check diagrams -Amplifier not switched on or no power -Microphone or audio source not connected or selected -Check Digital Audio setting on TV is “PCM” -Hearing Aid not on the “T” or Loop Program -Volume is muted - press mute button on remote once to check Low Sound... -
Page 11: Specifications
Williams Sound products are engineered, designed and manufactured under carefully controlled conditions to provide you with many years of reliable service. Williams Sound warrants the PLA 240 amplifier against defects in materials and workmanship for TWO (2) years. During the first two years from the purchase... - Page 12 10300 Valley View Rd • Eden Prairie, MN 55344 800-328-6190 / 952-943-2252 • FAX: 952-943-2174 www.williamssound.com ©2016 Williams Sound • All Rights Reserved MAN 211A...
