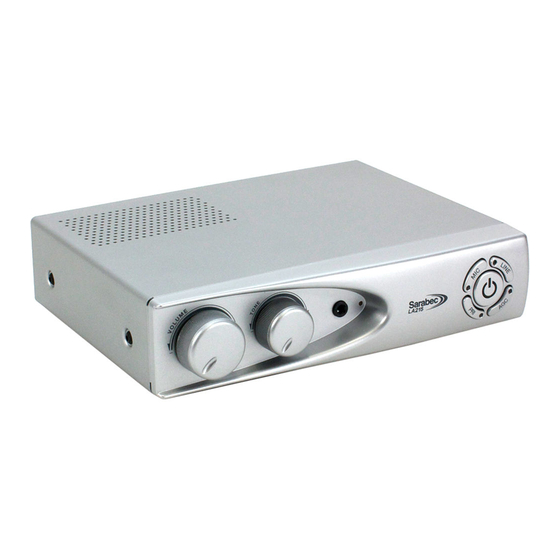

- Page 1 PLA-215 Hearing HotSpot Room Loop ™ Manual and User Guide MAN 172A...
- Page 2 Operating elements – Front panel Volume control Priority button Tone control (treble/bass) Power on/off Headphone connection jack Button for the automatic LOOP LEVEL indicator gain control Microphone button Line input selection button Operating elements – Back panel 10 Power jack 11 Loop connectors 12 LINE input level control 13 LINE input jack (B) line in...
- Page 3 Congratulations on purchasing your LA-215 Volume control VOLUME (1) loop amplifier. You have chosen a modern and reliable system. Tone control (treble/bass) TONE (2) Please read through these operating in- structions carefully. They tell you how to set Headphone connection jack (3): up the system correctly and explain all the To connect a headphone with a 3.5-mm system’s features to you.
- Page 4 Button for the automatic gain control Installation AGC (8): Use the connection cable included with If this function is activated, the volume in the the device to connect an audio source induction loop will be limited to the volume to one of the two line in jacks (13, 14) on selected with the volume control.
- Page 5 Operation Sound distortion 1. Before you insert the power cord into - Loop volume is set too high. Turn the vol- the designated socket on the rear panel ume down. of the inductive loop amplifier, set the - Connection cable is damaged. Replace volume control to its lowest setting.
- Page 6 Warranty Disposal off used electric and elec- The LA-215 loop amplifier is a very reliable tronic units (applicable in the coun- product. Should a malfunction occur de- tries of the Euro pean Union and oth- spite the unit having been set up and oper- er Euro pean countries with a separate col- ated correctly, please contact your dealer or lection system).
- Page 7 Specifications Power connection: 230 V AC 50 Hz 20 VA Loop output power: 2.85 A output power at 100-5000 Hz. The loop is at full output power at a resistance of between 0.5 and 1.5 ohms. Loop cable: Single-wire loop cable 37 m long (0.75 mm thick).
