Hardware Installation

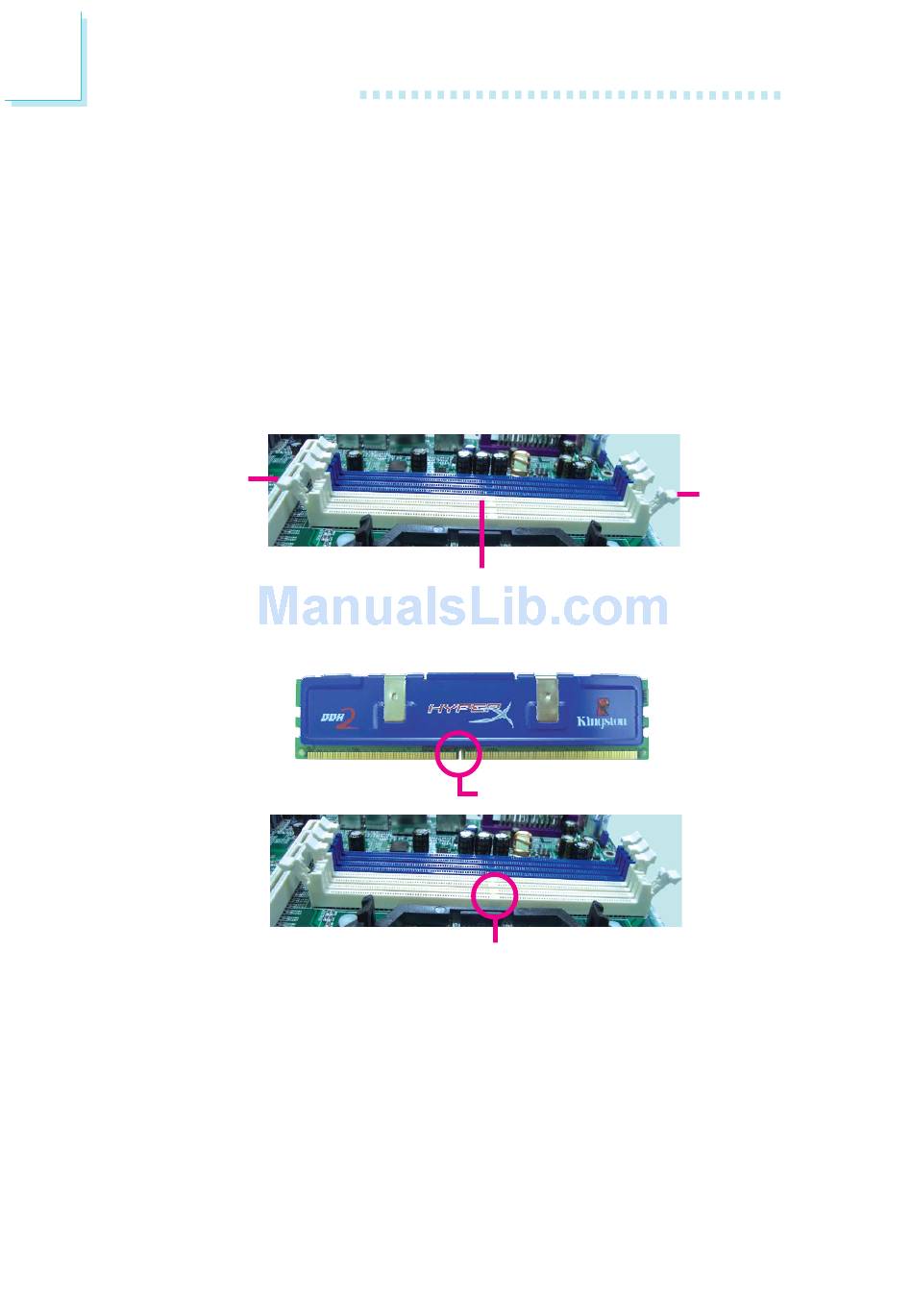

Installing the DIM Module

1. Make sure the PC and all other peripheral devices connected to
it has been powered down.
2. Disconnect all power cords and cables.
3. Locate the DDR2 socket on the system board.
4. Push the "ejector tabs" which are at the ends of the socket to
the side.
Ejector
5. Note how the module is keyed to the socket.
30
tab
DDR2 sockets
Notch
Key
Ejector
tab
