Electrical Schematics - Omcan MS-CN-0170 Instruction Manual

Parts Breakdown
Model MS-CN-0170
Item
Description
No.
Control Slice Thickness Knob for
42754
1A-FS301
42689 Pin for 1A-FS301
42690 Dual Con for 1A-FS301
42691 Pitch Lever for 1A-FS301
42692 Pitch Hook for 1A-FS301
42693 Control the D for 1A-FS301
42694 Food Pusher for 1A-FS301
42695 Plate for 1A-FS301
42696 Plastic Insert for 1A-FS301
42697 Back Board for 1A-FS301
42698 Worm Wheel for 1A-FS301
42699 Power Switch for 1A-FS301
42700 Switch of Plate for 1A-FS301
42701 Potential Device for 1A-FS301
Vario-Switch for Blade Speed for
42702
1A-FS301

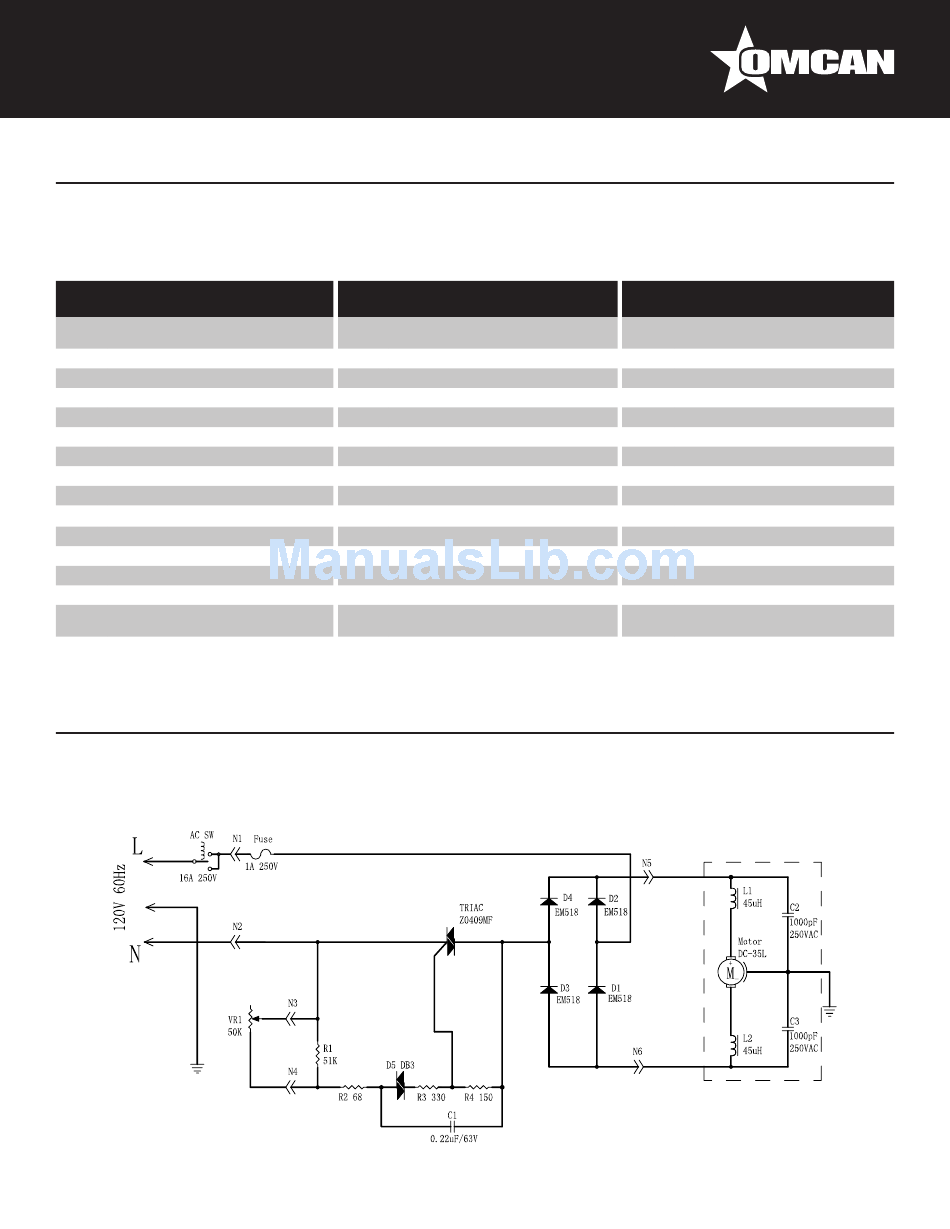

Electrical Schematics

Model MS-CN-0170
39468
Item
Position Description
No.
1 42703 Cover of Switch for 1A-FS301
2 42704 Button for 1A-FS301
3 42705 Spring for 1A-FS301
4 42706 Motor Hoops for 1A-FS301
5 42707 Worm for 1A-FS301
6 42708 Motor for 1A-FS301
7 42709 Motor Stand for 1A-FS301
8 42710 Gear for 1A-FS301
9 42711 Plastic Wrench for 1A-FS301
10 42712 Blade for 1A-FS301
11 42713 Screw for Blade for 1A-FS301
12 42714 Blade Cover for 1A-FS301
13 42715 Terminal Block for 1A-FS301
14 42716 Cord for 1A-FS301
15 42717 Connect Stand for 1A-FS301
39468
Item
Position
No.
16 42718
17 42719
18 42720
19 42721
20 42722
21 42723
22 42724
23 42725
24 42726
25 42727
26 42728
27 42729
28 42730
29 42731
30 42732
10
Description Position
Circuit Board Box for 1A-FS301 31
Circuit Board Cover for 1A-FS301 32
Short Side Board for 1A-FS301 33
Cable Winder for 1A-FS301 34
Long Side Board for 1A-FS301 35
Rubber Stand for 1A-FS301 36
Base for 1A-FS301 37
Protection Board for 1A-FS301 38
Rubber Screw for 1A-FS301 39
Rubber Nail for 1A-FS301 40
Side Board for 1A-FS301 41
Working Table for 1A-FS301 42
Food Tray for 1A-FS301 43
Scraper Blade for 1A-FS301 44
Plate for 1A-FS301 45
