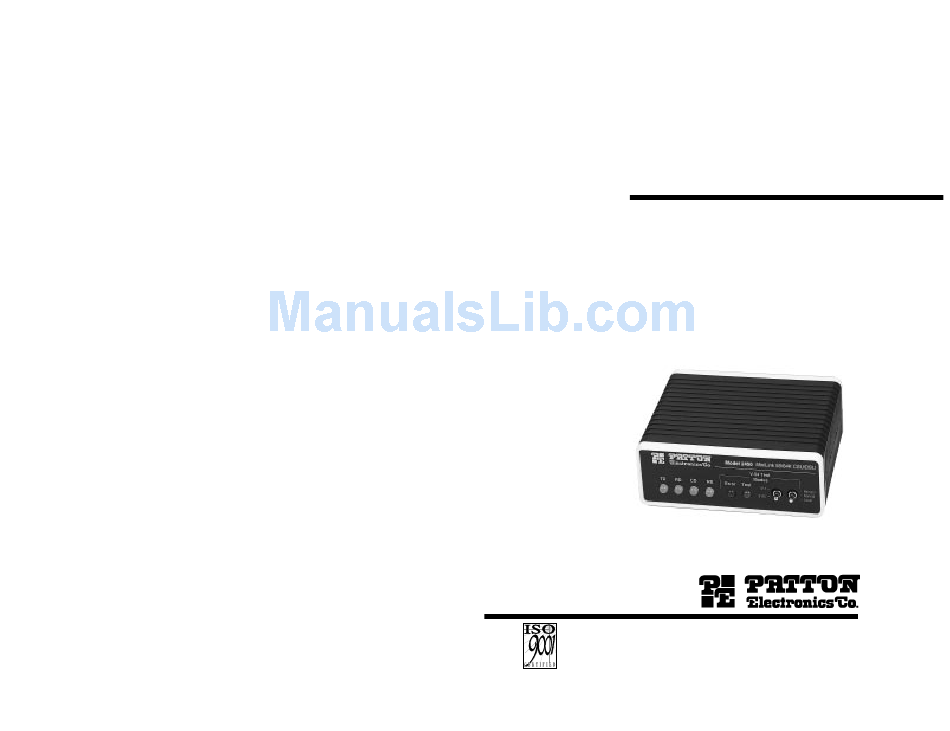

USER MANUAL MODEL 2450 56/64 Kbps, 4-Wire DDS & Clear Channel CSU/DSU SALES OFFICE Part# 07M2450-B Doc# 099051UB (301) 975-1000 Revised 3/12/97 TECHNICAL SUPPORT C E R T I F I E D (301) 975-1007 An ISO-9001 http://www.patton.com Certified Company...
The telephone company may decide to temporarily discontinue your service if they believe your Model 2450 Series may cause harm to the telephone network. Whenever possible, they will contact you in advance. If you elect to do so, you have the right to file a complaint with the FCC.
Page 3
The Model 2450 uses a mini DIP switch package that allows configuration to a wide range of applications. This DIP switch is externally accessible from the underside of the Model 2450 (see Figure 1, below), therefore you do not need to open the Model 2450's case during configuration. REAR FRONT Figure 1.
Page 4
Front Panel Switches S1-7 DTE Loop Control S1-8 Receive RDL Switches S1-1 and S1-2: Clock Mode The setting for switches S1-1 and S1-2 determines the transmitter clocking mode for the Model 2450. S1-1 S1-2 Clock Mode Description External (DTE) Transmit clock derived...
DTE (terminal) interface, and the AC power supply. 4.1 LINE (NETWORK) CONNECTION The RJ-48S port on a Model 2450 CSU/DSU is prewired for a standard TELCO wiring environment (see Figure 4, below). Connect this port to the RJ-48S jack provided by your digital service carrier using a straight through twisted pair cable between 19 and 26 AWG.
Appendix D. 4.3 AC POWER CONNECTION Power is supplied to the Model 2450 by a 10 VAC, 1 A wall mount transformer. This transformer connects to the Model 2450 by means of a cannon jack on the rear panel. The Model 2450 is powered-up as soon as it is plugged into an AC outlet–there is no power switch.
Note: The above V.52 BER tests can be used independently of the V.54 loopback tests. This requires two operators: one to initiate and monitor the tests at the local Model 2450, and one to do the same at the remote Model 2450. In this case, the test pattern sent by each Model 2450 will not be looped back, but will be transmitted down the line to the other Model 2450.
3.96”D APPENDIX B CABLE RECOMMENDATIONS The following statements apply to the Model 2450 when used as a short range modem over private twisted pair: All Patton Electronics Company Short Range Modems (SRMs) are tested to the distances published in our Catalogs and Specification...
Page 10
(APPENDIX D - Continued) MODEL 2450/A DB-25 CONNECTOR (RS-232/V.24), TERMINAL INTERFACE Pin # Signal Frame Ground SGND (Signal Ground) LL (Local Loop) RL (Remote Loop) TM (Test Mode) MODEL 2450/B DB-25 CONNECTOR (RS-422/530), TERMINAL INTERFACE Pin # Signal Frame Ground...
Page 11
Dear Valued Customer, Thank you for purchasing Patton Electronics products! We do appreciate your business. I trust that you find this user manual helpful. We manufacture one of the widest selections of data communications products in the world including CSU/DSU's, network termination units, powered and self-powered short range modems, fiber optic modems, interface converters, baluns, electronic data switches, data-line surge protectors, multiplexers, transceivers, hubs, print servers and much more.
