wallas SafeFlame 96 D Manual

wallas SafeFlame 96 D Manual

Oven and stove
Hide thumbs

Advertisement

Table of Contents

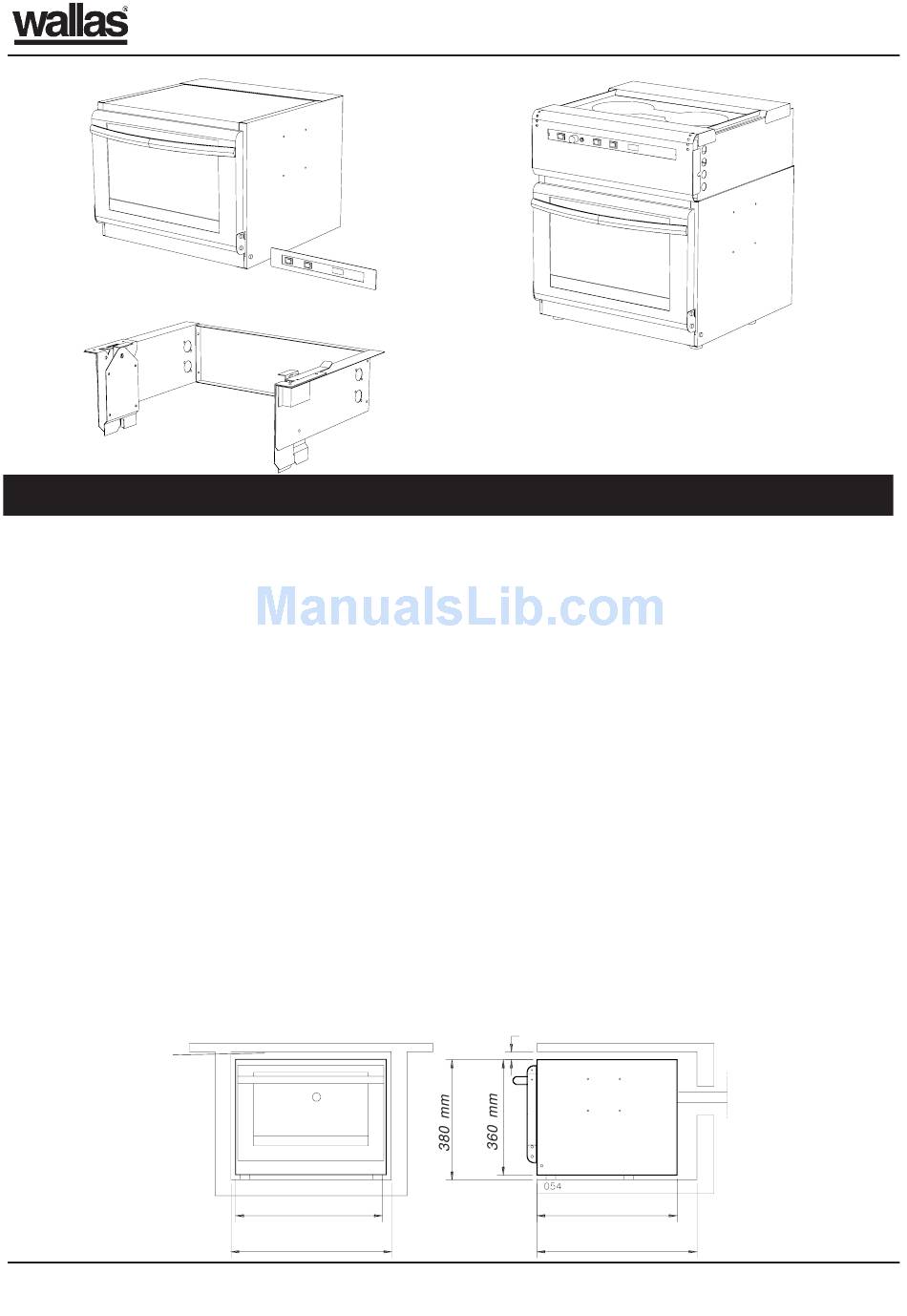

Figure 1: Wallas SafeFlame 96 D Diesel Oven
Figure 3: Optional gimbal-mounting 113 for both the oven
and stove

INSTALLATION INSTRUCTIONS

Considerations on the installation place and on its effect on the installation
Space Requirements
- The dimensions of the space required for installation
are illustrated in figures 4 and 5.
- Drilling cooling air holes in the bottom of the
installation opening is recommended. Collective area
of the holes should be about 30 cm
- The dimensions of the space required for installation
of the 96 D oven's control panel are illustrated in
figure 6.
- The gimbal-mounting frame defines the amount of
space required for a gimbal-mounted appliance.
- To remove the burner unit for service, the oven has to
be removed from its position.
- The installation opening must be manufactured from
a fire-resistant material or be lined with a fire-resistant
material.
- Note that the control panel cable for the basic 96 D
is 1.5 m long.
Fuel hoses
- The maximum length of the fuel hose is 8 m; the
standard fuel hose is 4 m.
Figure 4: Minimum dimensions of the space required for installation. If the oven is mounted in a closed space or covered
by a board, the cooling air opening must be reserved above the oven for air circulation, minimum 100 cm
2
min. 100 cm
2
.
475 mm
min. 500 mm
1
SafeFlame 96 D / 97 D
Figure 2: Wallas SafeFlame 97 D Diesel Stove
A 4-metre long electric cable and a 4-metre long fuel
pipe with a cork and an internal filter are delivered as
standard.
- The recommended position for the fuel tank is 0.5 –
1 m below the oven.
Exhaust pipes
- The maximum length of the exhaust pipe is 4 m.
Exhaust pipe must be insulated with ø 45 mm
insulation pipe.
- The Combination lead-through may be installed into
the hull or deck.
- The hull lead-through should be situated as far aft as
possible, preferably in the stern.
- If it is possible that the deck lead-through
transiently dips under water it has to be used a
sealable deck lead-through (2460).
- Air must be allowed to flow freely past the lead-
through.
- Take care not to blow hot gases against other boats.
Important:
- You must not mount the 95D cooking range and the
96D oven to the same installation opening. 95D and
96D require an installation opening of their own.
min. 20 mm
475 mm
min. 530 mm
2
.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SafeFlame 96 D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for wallas SafeFlame 96 D

Summary of Contents for wallas SafeFlame 96 D

  • Page 1: Installation Instructions

    SafeFlame 96 D / 97 D Figure 1: Wallas SafeFlame 96 D Diesel Oven Figure 2: Wallas SafeFlame 97 D Diesel Stove Figure 3: Optional gimbal-mounting 113 for both the oven and stove A 4-metre long electric cable and a 4-metre long fuel pipe with a cork and an internal filter are delivered as standard.
  • Page 2 SafeFlame 96 D / 97 D Figure 5: Minimum dimensions of the space required for installation of stove. When installing the stove into a fixed position, the width and depth measurements of the installation opening are identical to those shown in the oven installation diagram 495 mm and 530 mm.

  • Page 3: Electrical Connection

    SafeFlame 96 D / 97 D Table 1: Installing the Lead-Through Installation Considerations ) ² - The exhaust pipe should be bent into the shape of a gooseneck to prevent water from splashing into the unit. - The exhaust pipe must be insulated a bendable metal pipe that is larger in diameter than the normal exhaust pipe.

  • Page 4: Important Safety Notes

    SafeFlame 96 D / 97 D OPERATION INSTRUCTIONS Fuel - If necessary, use a liquid cleaner to clean the oven. After using the cleaner, wipe the oven down with a - The main fuels are diesel oil or furnace oil.

  • Page 5: Using The Stove

    SafeFlame 96 D / 97 D Figure 14: 6.The oven is off when the power switch is turned to the OFF position or the running time ends. After this, the oven cools down for about 15 minutes and the display shows ‘Coo’. If the running time is set to...

  • Page 6: Regular Service

    SafeFlame 96 D / 97 D SERVICE INSTRUCTIONS Regular service 4.Remove the glow plug, the burner temperature sensor and fuel needle by opening the fastener screws and - Possible crust from the burner should be cleaned in pulling the parts out of the burner. Figure 16.

  • Page 7: Winter Storage

    SafeFlame 96 D / 97 D Cleaning the Oven’s shutter 9. If the bottom carpet remains intact, it can be re- - Possible dirt between the windows of the shutter used; otherwise, it must be replaced with a new should be cleaned.
  • Page 8 SafeFlame 96 D / 97 D Table 2: Table 3: i c - i t l a t l c t i a t l . t i y l r t a l i c - y l r...

  • Page 9: Technical Specifications

    3. For the guarantee repair, the customer shall deliver prevent electro-chemical corrosion. the equipment to the nearest Wallas Dealer. No guarantee service shall be performed in the field or on-board a vessel.
  • Page 10 SafeFlame 96 D / 97 D ACCESSORIES Accessories for the 96 D Oven and the 97 D Oven with Stove: Pot holders for Ceramic stove. Gimbal-mounting for oven and oven with stove. 11011 Extension suction hose 4 m, to extend the fuel pipe if necessary.
