wallas Safe Flame 800 Installation Instructions Manual

Wallas Safe Flame 800 kerosen stove and 220 heat

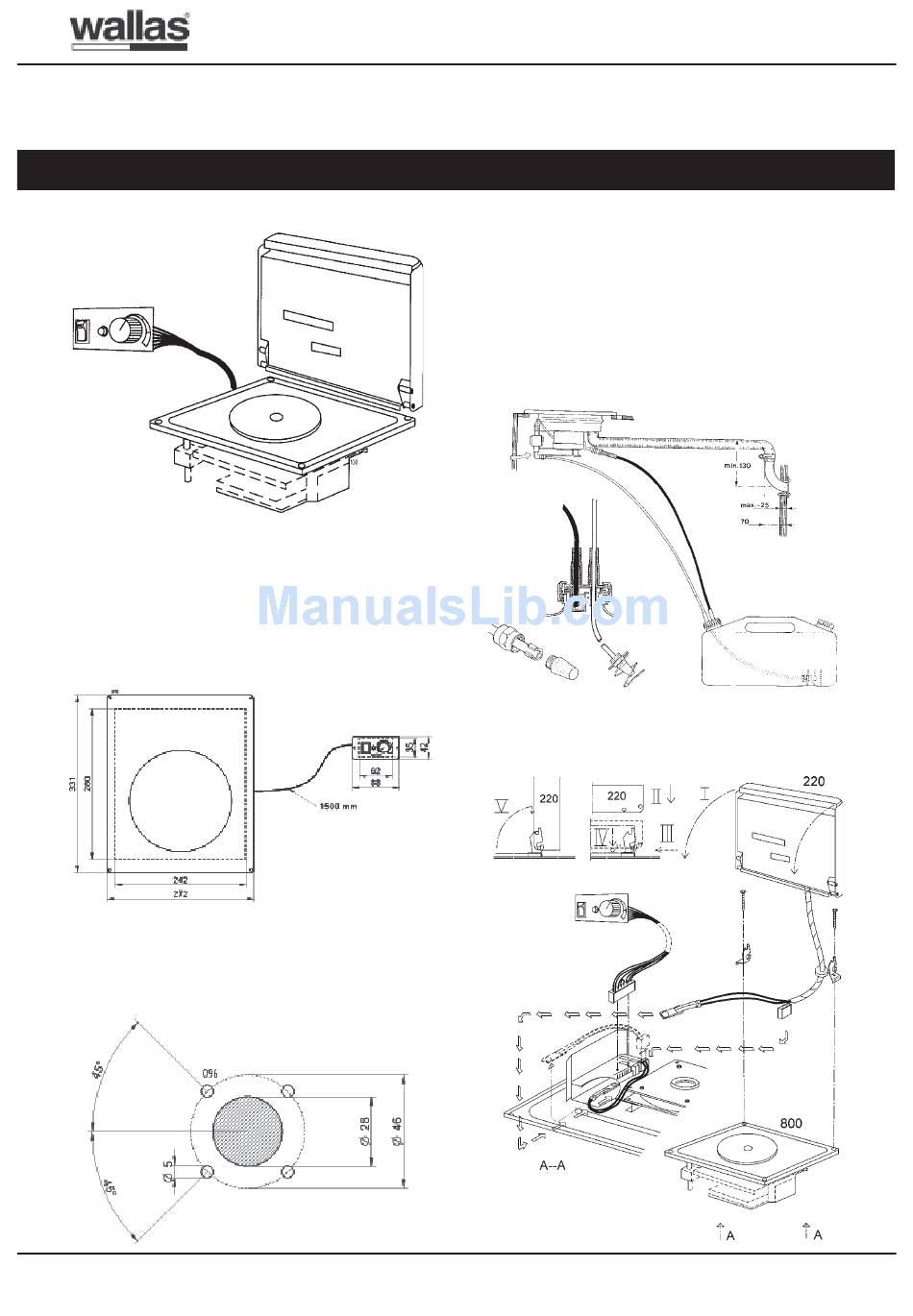

INSTALLATION INSTRUCTIONS

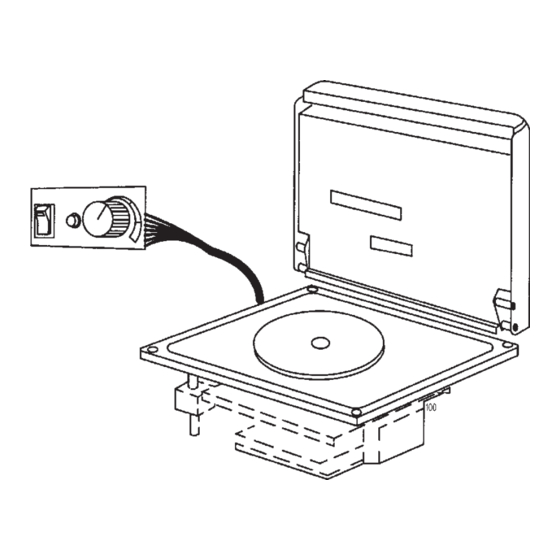

Figure 1:Wallas SafeFlame 800 and Wallas 220.
Figure 2: Flush opening size for stove is 280 x 242 mm
and Control panel opening is 62 x 35 mm. Control cable
length is 1.5 m. The stove requires for its ventilation to
avoid overheating an outlet opening of 30 - 40 cm
the stove top and front of the stove. For example 3 - 4
about ø 2,5 - 3 cm holes or about 1,5 - 2 x 20 cm opening.
Figure 3: The "through hull" exhaust head 1066.
blower lid
Figure 4: 1 Fuel suction line ø 5/2 m. 2 The return fuel
tube must have continuos fall to fuel tank with no loops
upward. All extra length is cut away below the tank adapter.
3 The end of the return tube must reach the bottom nib. 4
Filter head, sinterbronze. 5 Shield spiral hinders water
intake by holding the suction end free from tankbottom.
6 Exhaust tube 1028 ø 31/28 mm. Max length 5 m. 7 The
exhaust head 1066. 8 The fuel tank must always, under
all circumstances lie below the stove bottom level, secured
so it can not tip or come loose.
3
2
behind
Figure 5: Installation of the heat blower lid
1
SafeFlame 800 / 220
6
1
2
4
5
7
8
