Model 3120 Remote Access Server

Administrator's Reference Guide

Sales Ofﬁce:

+1 (301) 975-1000

Technical Support:

+1 (301) 975-1007

E-mail:

support@patton.com

WWW:

www.patton.com

Document Number: 107062U Rev. D

Part Number: O7MD3120-ARG

Revised: February 20, 2004

Table of Contents

Chapters

Table of Contents

Need help?

Do you have a question about the 3120 and is the answer not in the manual?

Questions and answers

Summary of Contents for Patton electronics 3120

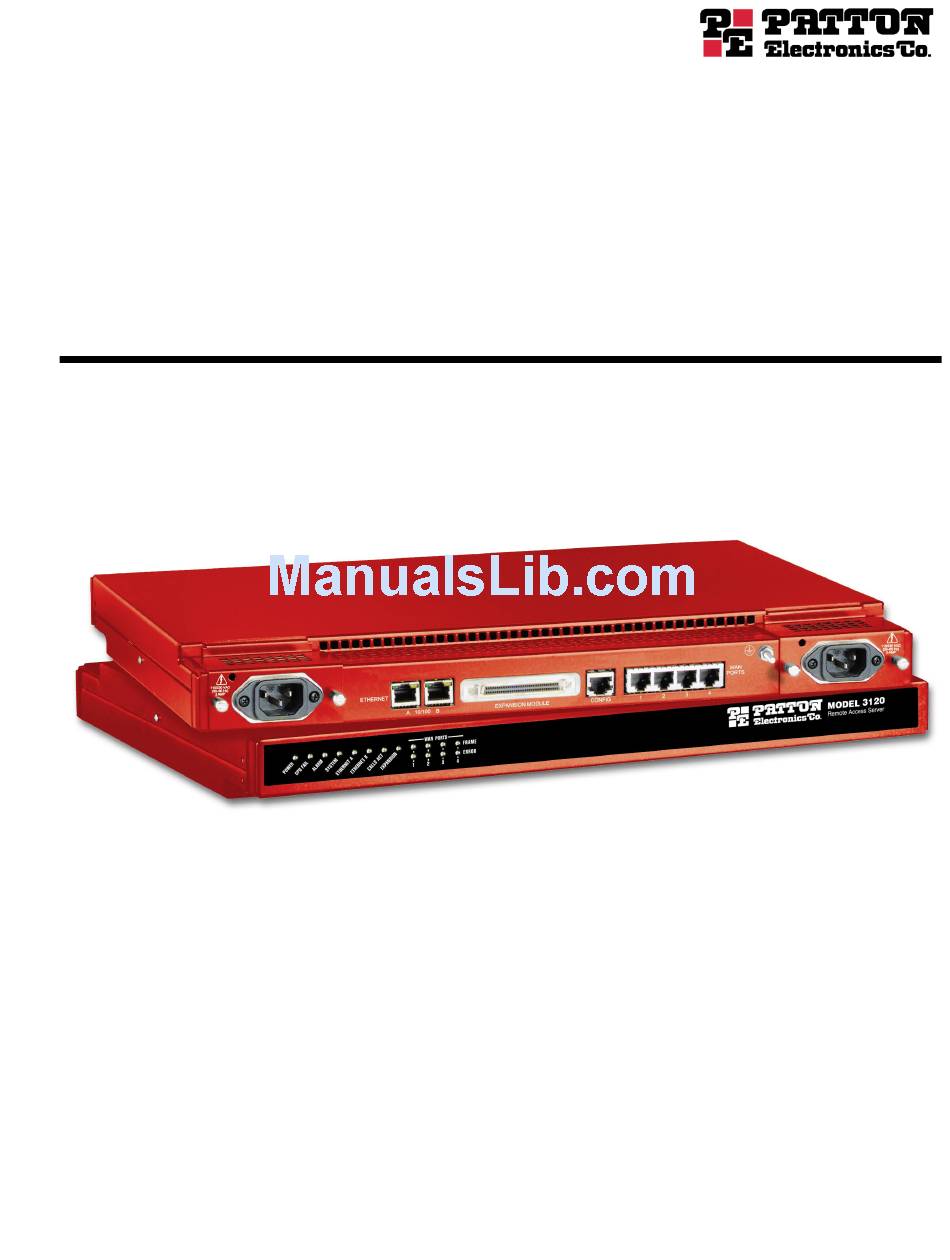

Page 1 Model 3120 Remote Access Server Administrator’s Reference Guide Sales Ofﬁce: +1 (301) 975-1000 Technical Support: +1 (301) 975-1007 E-mail: support@patton.com WWW: www.patton.com Document Number: 107062U Rev. D Part Number: O7MD3120-ARG Revised: February 20, 2004...
Page 2 Patton Electronics Company, Inc. 7622 Rickenbacker Drive Gaithersburg, MD 20879 USA Tel: +1 (301) 975-1000 Fax: +1 (301) 869-9293 Technical Support: +1 (301) 975-1007 Technical Support e-mail: support@patton.com URL: www.patton.com Copyright © 2001–2004, Patton Electronics Company. All rights reserved. The information in this document is subject to change without notice.
Page 3: Table Of Contents
Contents About this guide ...9 Audience... 9 Structure... 9 Typographical conventions used in this document... 10 1 Introduction ... 13 Introduction ...14 Logging into the HTTP/HTML Administration Pages ...14 HTTP/HTML and SNMP Object Format ...14 Saving HTTP/HTML Object Changes ...15 2 Home...
Page 4 Ethernet Main Window ...160 Ethernet A Modify Window...162 Ethernet B Modify Window...163 Ethernet Statistics ...164 13 Filter IP ... 167 Introduction ...168 Defining a filter ...168 Modify Filter ...168 An example of using a filter ...173 Model 3120 RAS Administrators’ Reference Guide...
Page 5 Model 3120 RAS Administrators’ Reference Guide 14 Frame Relay... 177 Introduction ...179 The Frame Relay main window ...179 DLMI Window ...181 DLCI window ...183 15 Interfaces ... 185 Introduction ...186 Interfaces main window...186 Interface Details ...188 16 IP... 191 Introduction ...194 IP main window ...194...
Page 6 A MIB trees... 309 Model 2960 MIB Tree Structure...310 B Technical Reference ... 311 Introduction ...312 Configuring a RADIUS server...312 Using SNMP with the Access Server...318 Configuring Non-Facility Associated Signaling (NFAS) ...321 Configuring Frame Relay ...322 Model 3120 RAS Administrators’ Reference Guide...
Page 7 Model 3120 RAS Administrators’ Reference Guide Contents Configuring DNIS ...328 Configuring a leased line/dedicated line connection ...329...
Page 8 Contents Model 3120 RAS Administrators’ Reference Guide...
Page 9: About This Guide
About this guide This guide describes conﬁguring a Patton Electronics access server. This section describes the following: • Who should use this guide (see “Audience”) • How this document is organized (see “Structure”) • Typographical conventions and terms used in this guide (see “Typographical conventions used in this docu- ment”...
Page 10: Typographical Conventions Used In This Document
Futura type Garamond bold type < > Are you ready? % dir *.* Model 3120 RAS Administrators’ Reference Guide Table 1. Text conventions Meaning Indicates the names of menu bar options. Indicates the names of options on pull-down menus. Indicates the names of ﬁelds or windows.
Page 11: Mouse Conventions
Model 3120 RAS Administrators’ Reference Guide Mouse conventions The following conventions are used when describing mouse actions: Convention Left mouse button This button refers to the primary or leftmost mouse button (unless you have changed the default conﬁguration). Right mouse button This button refers the secondary or rightmost mouse button (unless you have changed the default conﬁguration)
Page 12 About this guide Model 3120 RAS Administrators’ Reference Guide...
Page 13: Chapter Contents
Chapter 1 Introduction Chapter contents Introduction ...14 Logging into the HTTP/HTML Administration Pages ...14 HTTP/HTML and SNMP Object Format ...14 Saving HTTP/HTML Object Changes ...15...
Page 14: Introduction
Patton Enterprise MIB or SNMP MIB II object identiﬁers wherever applicable. The format of the variables will resemble ﬁgure 2. Figure 2. HTTP/HTML and SNMP object format Model 3120 RAS Administrators’ Reference Guide Figure 1. Access server login window Introduction...
Page 15: Saving Http/Html Object Changes
Model 3120 RAS Administrators’ Reference Guide Saving HTTP/HTML Object Changes Sometimes you will need to save changes that you have made in the HTTP/HTML pages. Do the following to make changes to read/write variables: 1. Select the appropriate Modify 2. Make changes to the desired parameter.
Page 16 1 • Introduction Model 3120 RAS Administrators’ Reference Guide Saving HTTP/HTML Object Changes...
Page 17: Home
Chapter 2 Home Chapter contents Introduction ...18 Operating Status Variables ...19 Active Calls (diActive) ...19 Peak Active Calls (diMaxActive) ...19 Total Calls (diTotalCallAttempts) ...19 DSPs Not Working (dspFailed) ...19 Total DRAM Detected (boxDetectedMemory) ...19 Running Since Last Boot (sysUpTime) ...19 Immediate Actions ...20...
Page 18: Introduction
Unlike the Conﬁguration Menu pane, which looks the same no matter which sub- system page you may move to, the conﬁguration/information pane contents will change as you move from one subsystem page to another. Model 3120 RAS Administrators’ Reference Guide Administration Page window—the ﬁrst...
Page 19: Operating Status Variables
Model 3120 RAS Administrators’ Reference Guide 2 • Home Operating Status Variables There are seven system variables which describe the immediate operating status access server. These variables are shown in ﬁgure 4 and are described in the following sections. Figure 4. STATUS menu...
Page 20: Immediate Actions
You will have to re- enter the access server’s Ethernet IP address and netmask using the front panel control port in order to use the HTTP/HTML Manage- ment pages. Model 3120 RAS Administrators’ Reference Guide Figure 5. Immediate Actions buttons Immediate Actions...
Page 21: Import/Export
Chapter 3 Import/Export Chapter contents Introduction ...22 Export Configuration ...22 Import Configuration...24...
Page 22: Introduction
To export the ﬂash conﬁguration, click on the server will display text conﬁguration information resembling that shown in ﬁgure 7. Model 3120 RAS Administrators’ Reference Guide Import/Export under the Figure 6. Import/Export main window , then click on the Record Current Conﬁguration...
Page 23 Model 3120 RAS Administrators’ Reference Guide 3 • Import/Export Figure 7. Typical access server ﬂash memory conﬁguration data To save the displayed data as a text ﬁle, select the option on your browser (see ﬁgure 8). For example, Save under Netscape, select .
Page 24: Import Configuration
ﬂash memory. HOME Conﬁguration Menu Click on under the Actions Note Do not select Record Current Conﬁguration after importing con- ﬁguration parameters. Model 3120 RAS Administrators’ Reference Guide , then click on the Hard Reset button under Immediate Import Configuration...
Page 25: Alarms
Chapter 4 Alarms Chapter contents Introduction ...26 Displaying the Alarms window ...27 Total System Alarms:X (alarmTotal) ...27 Alarm Response Outputs ...28 Alarm Syslog Priority (syslogAlarmPriority) ...28 Alarm SNMP Trap IP 1 (alarmTrapIp0) ...28 Alarm SNMP Trap IP 2 (alarmTrapIp1) ...28 Alarm SNMP Trap IP 3 (alarmTrapIp2) ...28 Alarm SNMP Trap IP 4 (alarmTrapIp3) ...28 Temperature Threshold (boxAlarmTemperature) ...28...
Page 26: Introduction
Blue—Indicates that the alarm has informational value only as designated by the system administrator None—There is no alarm present or the system administrator has chosen for the alarm to be ignored Model 3120 RAS Administrators’ Reference Guide Figure 9. Sample alarm indication...
Page 27: Displaying The Alarms Window
Model 3120 RAS Administrators’ Reference Guide • SYSLOG/SNMP—For external notiﬁcation, the access server can be conﬁgured to send a SYSLOG mes- sage or an SNMP TRAP to an external management host. To conﬁgure the alarm response for either SNMP Traps or SYSLOG messages, click on the alarm response system”...
Page 28: Alarm Response Outputs
The alarm items are grouped into two categories: Box and WAN trunk alarms. The Box group category lists access server temperature and power supply status. The WAN category monitors the T1/E1/PRI ports for yel- low and red alarms. Model 3120 RAS Administrators’ Reference Guide Displaying the Alarms window...
Page 29: Modify Response-Configuring The Alarm Response System
Model 3120 RAS Administrators’ Reference Guide Alarm Severity (alarmSeverity) Shows the alarm severity selected by the system administrator. Time Since Alarm (alarmTicks) Alarm Time column displays the number of seconds the alarm has been activated. Alarm Count (alarmCount) Alarm Count column indicates how many times the alarm has occurred since the last time alarms were cleared.
Page 30: Modify Alarms-Configuring Alarm Severity Levels
Box: Over Temperature—An alarm will trigger if the current temperature exceeds the temperature threshold. • Box: Power Supply 1–2 Fail—An alarm will be triggered if power supply 1 or 2 fails. Model 3120 RAS Administrators’ Reference Guide Figure 12. Modify Alarms settings window Modify Alarms—Configuring alarm severity levels...
Page 31 Model 3120 RAS Administrators’ Reference Guide • Box: Main and Fallback Clock Fail—An alarm will be triggered when either the main or fallback clock fail. • WAN 1–4 Yellow Alarm—When a WAN port detects a yellow alarm condition, the speciﬁc WAN alarm will be set.
Page 32 Model 3120 RAS Administrators’ Reference Guide 4 • Alarms Modify Alarms—Configuring alarm severity levels...
Page 33: Authentication
Chapter 5 Authentication Chapter contents Introduction ...35 Displaying the Authentication window...35 The Statistics section ...35 Validated authentications (auAuthenticationsValidTotal) ...35 Validated via primary server (auAuthenticationsValidPrimary) ...35 Validated via secondary server (auAuthenticationsValidSecondary) ...35 Validated via static database (auAuthenticationsValidStatic) ...36 Denied authentications (auAuthenticationsDenied) ...36 Primary server retries (auPrimaryServerRetrys) ...36 Secondary server retries (auSecondaryServerRetrys) ...36 Accounting server retries (auAccountingServerRetrys) ...36...
Page 34 Adding Static Users ...44 ID (suID) ...44 Username (suUsername) ...44 Password (suPassword) ...44 Service (suService) ...44 Modify Static User ...45 Service IP (suServiceIP) ...46 Service Port (suServicePort) ...46 Service Mask (suServiceMask) ...46 Filter ID (suFilterId) ...46 Model 3120 RAS Administrators’ Reference Guide...
Page 35: Introduction
Model 3120 RAS Administrators’ Reference Guide 5 • Authentication Introduction Authentication Use the pages to set up system security and to provide speciﬁc users with access to appropriate network services. This section describes the authentication parameters. The access server uses static and/or RADIUS authentication to decide which dial-in users can access the system (refer to Appendix A, “Supported...
Page 36: Validated Via Static Database (Auauthenticationsvalidstatic)
5 • Authentication Model 3120 RAS Administrators’ Reference Guide Validated via static database (auAuthenticationsValidStatic) The number of authentications validated by the Static User database since the last access server reset. Denied authentications (auAuthenticationsDenied) The total number of authentication attempts requested but denied since the last access server reset.
Page 37: The Configuration Section
Model 3120 RAS Administrators’ Reference Guide The Conﬁguration section The conﬁguration section of the main method used by the RAS is conﬁgured. Figure 14. Authentication main screen (Conﬁguration section) Validation (auValidation) Selects how the access server will authenticate an incoming call. Select from: •...
Page 38: Host Address (Auhostaddress)
This is the IP address of the accounting server. RADIUS also allows for the recording of accounting informa- tion. Secondary Accounting Address (auSecondaryAcctAddress) When using a remote accounting server (such as RADIUS Accounting) this variable provides the IP address of the accounting server. Model 3120 RAS Administrators’ Reference Guide The Configuration section...
Page 39: Accounting Port (Auacctport)
Model 3120 RAS Administrators’ Reference Guide Accounting Port (auAcctPort) This is the UDP port on the accounting server speciﬁed in Acct Address that the access server should use to transfer accounting information. RFC 2139 states that port 1813 is the standard RADIUS accounting port.
Page 40: Setting Up Authentication
Modify After selecting from the main ters for both RADIUS users and Static users. After conﬁguring the Validation method (see “Validation Model 3120 RAS Administrators’ Reference Guide Authentication screen, you may set up or change authentication parame- Setting Up Authentication...
Page 41: Validation (Auvalidation)
Model 3120 RAS Administrators’ Reference Guide (auValidation)” below), conﬁgure the additional parameters as shown in ﬁgure 17 to conﬁgure RADIUS parameters. See “Static User Authentication” on page 44 to set up Static users. Figure 17. Authentication Conﬁguration screen Validation (auValidation) Selects how the access server will authenticate an incoming call.
Page 42: Host Address (Auhostaddress)
This is the IP address of the accounting server. RADIUS also allows for the recording of accounting informa- tion. Secondary Accounting Address (auSecondaryAcctAddress) When using a remote accounting server (such as RADIUS Accounting) this variable provides the IP address of the accounting server. Model 3120 RAS Administrators’ Reference Guide Setting Up Authentication...
Page 43: Accounting Port (Auacctport)
Model 3120 RAS Administrators’ Reference Guide Accounting Port (auAcctPort) This is the UDP port on the accounting server speciﬁed in Acct Address that the access server should use to transfer accounting information. RFC 2139 states that port 1813 is the standard RADIUS accounting port.
Page 44: Static User Authentication
This option instructs the access server on how to service the incoming call. Select from: • default—This is the default service as speciﬁed under Dial-In (see Chapter 7, “Dial In”). We recommend that you select default. Model 3120 RAS Administrators’ Reference Guide Static User Identiﬁcation Figure 18. Static User Identiﬁcation setup Authentication Conﬁgura-...
Page 45: Modify Static User
Model 3120 RAS Administrators’ Reference Guide • admin—Not currently implemented. • monitor—Not currently implemented. • rlogin—Causes the access server to rlogin into another host. See “Service IP (suServiceIP)” on page 46 for information on conﬁguring the remote host IP addresss.
Page 46: Service Ip (Suserviceip)
Note Explicitly assigning a ﬁlter to a static user will keep default dial-in ﬁlters from being applied. Model 3120 RAS Administrators’ Reference Guide Figure 19. Static User settings window . Once there, click on the Record Current Immediate Actions...
Page 47: Chapter Contents
Chapter 6 Chapter contents Introduction ...48 Configuring the DAX...48 Circuit Type (daxClockMode) ...48 Main Reference (daxClockMainRef) ...49 Fallback Reference (daxClockFallbackRef) ...49 Clock Status (daxClockFailure) ...50...
Page 48: Introduction
• slave(3)—Slave devices provide the system clock references for use by the master or secondary. Model 3120 RAS Administrators’ Reference Guide to display the main window (see ﬁgure 20).
Page 49: Main Reference (Daxclockmainref)
Model 3120 RAS Administrators’ Reference Guide Main Reference (daxClockMainRef) The main reference parameter determines which WAN link will supply the clock for the system. The following settings are available: • none(0)—No clock selection. This would be used in conjunction with either a secondary or slave circuit.
Page 50: Clock Status (Daxclockfailure)
Fallback Reference Fail(2)—The fall back clock reference has failed • Master System Fail(4)—The Master System clock has failed • Secondary System Fail(8)—The Secondary System clock has failed. Figure 21. DAX Clock Status alarm condition Model 3120 RAS Administrators’ Reference Guide Configuring the DAX...
Page 51: Dial In
Chapter 7 Dial In Chapter contents Introduction ...57 Dial In main window ...58 Call Sorting (diPageSort) ...58 Active Calls (diActive) ...58 Peak Active Calls (diMaxActive) ...58 Total Calls (diTotalCallAttempts) ...58 Call ID (diactIndex) ...58 Call ID (diactIndex) ...58 ML ID (diactMultiIndex) ...58 User (diactusername) ...58 State (diactState) ...59 Duration (diactSessionTime) ...59...
Page 52 Success Banner (diSuccessBanner) ...73 Login Attempts Allowed (diAllowAttempts) ...74 Modify Configuration ...74 Link Compression (diLinkCompression) ...74 Default Max Receive Unit (diConfigInitialMRU) ...74 Allow Magic Number Negotiation (diConfigMagicNumber) ...74 Frame Check Sequence Size (diConfigFcsSize) ...74 Compression (diIpConfigCompression) ...74 Model 3120 RAS Administrators’ Reference Guide...
Page 53 Model 3120 RAS Administrators’ Reference Guide MultiLink (diConfigMultilink) ...75 MultiBox (diConfigMMP) ...75 Modify Maximum Time ...75 Maximum Session Time (min) (diSessionTimeout) ...75 Maximum Idle Time (min) (diIdleTimeout) ...75 Time to login (sec) (diLoginTimeout) ...75 Call History Timeout (min) (diLingerTime) ...75 Modify ISDN Configuration ...76...
Page 54 DSP Link (diactDSPIndex) ...91 Interface Link (diactIFIndex) ...91 WAN Link (diactLinkIndex) ...91 Time Slot (diactSlotIndex) ...91 IP Address (diactIP) ...91 Port # on Remote Machine (diactPort) ...91 Session ...91 Start time of call (diactSessionStartTime) ...91 Model 3120 RAS Administrators’ Reference Guide...
Page 55 Model 3120 RAS Administrators’ Reference Guide Time Call Is/Was Active (diactSessionTime) ...91 Minutes Until Timeout (diactRemainingIdle) ...91 Time Left In Session (diactRemainingSession) ...92 Termination Reason (diactTerminateReason) ...92 State at termination (diactTerminateState) ...95 PPP Statistics ...95 Bad Address (diStatBadAddresses) ...96 Bad Controls (diStatBadControls) ...96 Packets Too Long (diStatPacketTooLongs) ...96...
Page 56 Error Correction (diactErrorCorrection) ...102 Data Compression Protocol (diactCompression) ...102 Modulation Symbol Rate (diactSymbolRate) ...102 Locally Initiated Renegotiates (diactLocalRenegotiates) ...102 Locally Initiated Retrains (diactLocalRetrains) ...102 Remote Initiated Renegotiates (diactRemoteRenegotiates) ...102 Remote Initiated Retrains (diactRemoteRetrains) ...102 Model 3120 RAS Administrators’ Reference Guide...
Page 57: Introduction
Model 3120 RAS Administrators’ Reference Guide Introduction The Dial In main window (see ﬁgure 22) is where you can change or view items that are associated with the user dialing in—including call statistics, type of service used, modem speciﬁc statistics, as well as conﬁguration parameters for login, service, domain name service, login attempts, conﬁguration of link, maximum time, and...
Page 58: Dial In Main Window
Subsequent calls in a multilink PPP/ISDN call have a pointer to the bundlehead or originating call. User (diactusername) The user name that the caller entered. This can be a static user or a radius user’s login name. Model 3120 RAS Administrators’ Reference Guide Figure 22. Dial In main window Dial In main window...
Page 59: State (Diactstate)
Model 3120 RAS Administrators’ Reference Guide State (diactState) As the call comes into the access server it can be in one of ﬁve states. • Ringing—The call has been recognized by the access server and is in process of going off hook.
Page 60: Dial Modulations Window
• LcpNegotiate—The link is negotiating LCP parameters. • Authenticating—The access server is in the process of verifying the user’s password by using static or RADIUS authentication. Model 3120 RAS Administrators’ Reference Guide Figure 23. Dial Modulations window Dial Modulations window...
Page 61: Dsp Link (Diactdspindex)
Model 3120 RAS Administrators’ Reference Guide • Online—The access server has completed authentication and the user is now able to access the Internet. • 12tpTunneled—Subsequent multilink call that was answered by another access server and tunneled to the access server that has the originating call.
Page 62: Receive Connection Speed (Diactrxspeed)
Remote Initiated Renegotiates (diactRemoteRenegotiates) The number of times the remote modem has initiated a modem speed renegotiate. Remote Initiated Retrains (diactRemoteRetrains) The number of times the remote modem has initiated a modem carrier retrain. Model 3120 RAS Administrators’ Reference Guide Dial Modulations window...
Page 63: Dial Telco Window
Model 3120 RAS Administrators’ Reference Guide Dial Telco window This window shows the telco characteristics for individual users. Call ID: (diactIndex) Unique identiﬁcation of this active call (for internal use). Username (diactUsername) The caller’s username. State (diactState) Indicates current progress of the selected call.
Page 64: Transmit Connection Speed (Diacttxspeed)
Indicates the value of diactState when the call was terminated. A value of 0 indicates the call is still online. Number Called (diactNumberDialed) The phone number that was used to dial into the access server. Number Called From (diactCallingPhone) The user’s phone number—this is a caller ID feature. Model 3120 RAS Administrators’ Reference Guide Dial Telco window...
Page 65: Dial Protocol Window
Model 3120 RAS Administrators’ Reference Guide Dial Protocol window This window shows the protocol negotiations of the connection for individual users. Call ID: (diactIndex) Unique identiﬁcation of this active call (for internal use). Shared Unique ID (diactMultiIndex) Used for multi-link PPP, this is the unique identiﬁcation shared between multi-link active calls.
Page 66: Protocol (Diactprotocol)
(for more information, refer to “Operational Status (diIpOperStatus)” on page 98). LCP Authentication (LCPAuthOptions) Authentication type used by the dial-in user. The following options are available: • none(1) • pap(2) • chap(3) Model 3120 RAS Administrators’ Reference Guide Dial Protocol window...
Page 67: Local-Remote Vj Protocol Comprsn (Diiplocaltoremotecompprot)
Model 3120 RAS Administrators’ Reference Guide • MSChap(4)—not currently implemented • tacacs(5)—not currently implemented • edp(6) • ShivaPap(7)—not currently implemented Local-Remote VJ Protocol Comprsn (diIpLocalToRemoteCompProt) The IP compression protocol that the local IP entity uses when sending packets to the remote IP entity. The available settings are: •...
Page 68: Dial In Details
7 • Dial In Model 3120 RAS Administrators’ Reference Guide Dial In Details The Dial In Details window (see ﬁgure 26) shows how the system is currently set up to handle dial in users. To Default Details Dial In view this page, select from the main window.
Page 69: Dial In Modify Default Window
Model 3120 RAS Administrators’ Reference Guide Dial In Modify Default window The Dial In Modify Default window (see ﬁgure 27) is where you can make changes to the following: • Login access server parameters (see “Modify Login”) • User login services (see “Modify Service” on page 71) •...
Page 70: Modify Login
The system will go directly to PPP processing. The dial-up user must be conﬁgured for PAP or CHAP authentication. The access server will always request CHAP authentication ﬁrst. Therefore, if a user can negotiate either CHAP or PAP, CHAP authentication will be performed. Model 3120 RAS Administrators’ Reference Guide Dial In Modify Default window...
Page 71: Username Prompt (Diusernameprompt)
Model 3120 RAS Administrators’ Reference Guide • textORchapORpap(6)—This setting enables clear text logins or PPP calls using PAP or CHAP authentication. Username Prompt (diUsernamePrompt) This is what will be displayed when the user ﬁrst connects after the Initial Banner is displayed. The string can be up to 39 characters.
Page 72: Default Service Port (Diserviceport)
The primary Windows name server address to pass to the caller (Win95 PPP). The Windows Internet Naming Service (WINS). Secondary WINS (diSecondaryWINS) The secondary Windows name server address to pass to the caller (Win95 PPP). The Windows Internet Nam- ing Service (WINS). Model 3120 RAS Administrators’ Reference Guide Dial In Modify Default window...
Page 73: Modify Attempts
Model 3120 RAS Administrators’ Reference Guide Modify Attempts This portion of the Dial In Modify Default window (see ﬁgure 28) describes modifying the login attempts parameters for dial in users. Figure 28. Dial In Modify window (modify Attempts, Conﬁguration, and Maximum Time objects) Failure Banner (diFailureBanner) This deﬁnes a message of up to 254 characters in length that will be displayed to a user if authentication fails.
Page 74: Login Attempts Allowed (Diallowattempts)
Changes to this object take effect when the link is restarted. For more information, see Section 4.0, "Van Jacobson TCP/IP Header Compression" of RFC1332. Model 3120 RAS Administrators’ Reference Guide Dial In Modify Default window...
Page 75: Multilink (Diconfigmultilink)
Model 3120 RAS Administrators’ Reference Guide MultiLink (diConﬁgMultilink) MultiLink enables a user to connect using multiple channels. This enables dial-up users whose equipment sup- ports MultiLink PPP or multi-channel ISDN to use multiple channels to get higher data transfer rates.
Page 76: Modify Isdn Configuration
This portion of the Dial In Modify Default window (see ﬁgure 29) describes modifying the V.92 Conﬁgura- tion parameters. V.92 Features (diModemV92Enable) Enables and disables V92 functionality. Model 3120 RAS Administrators’ Reference Guide Figure 29. V.92 Conﬁguration window Dial In Modify Default window...
Page 77: Quick Connect (Div92Quickconnect)
Model 3120 RAS Administrators’ Reference Guide 7 • Dial In Quick Connect (diV92QuickConnect) Quick connect shortens a modem’s time to learn a phone line’s characteristics by reusing some information pre- viously learned. This setting enables or disables quick connect. Modem on Hold (diV92ModemOnHold) Modem on Hold allows a user to accept a phone call without breaking the connecting to the Internet.
Page 78: V34(Dimodemv34Enable)
Normally a guard tone is not required, but one can be inserted. This setting works for Phase Shift Key (PSK) modulations only, not for V.32 or V.34. • tone None(1)—Guard tone is not used Model 3120 RAS Administrators’ Reference Guide Dial In Modify Default window...
Page 79: Carrierlossduration (Dimodemcarrierlossduration)
Model 3120 RAS Administrators’ Reference Guide • tone1800(3)—Guard tone is enabled CarrierLossDuration (diModemCarrierLossDuration) The number of seconds that the carrier signal must be missing before the connection is considered lost. Choos- ing a setting of 25 indicates forever. The range is 1 to 25.
Page 80: Manage Dnis Window
DNIS Ip Pools—clicking on the DNIS Ip Pools link takes you to the page where you can view and change the IP address pools. Refer to “DNIS IP Pools Window” on page 87 Model 3120 RAS Administrators’ Reference Guide Figure 31. Manage DNIS window...
Page 81: Manage Dnis Main Window
Model 3120 RAS Administrators’ Reference Guide Manage DNIS main window ID (dnisPoolID) The identiﬁcation number that uniquely identiﬁes the DNIS conﬁguration. WAN Link (dnisPoolDesrcWan) The WAN link the dial-in user must be connected to in order to use this DNIS conﬁguration.
Page 82: Dnis Entry Window
• notUsed(2)—This conﬁguration will not compared to the inbound call to determine if the dial-in user matches its conditions. • destroy(3)—Deletes the DNIS conﬁguration Model 3120 RAS Administrators’ Reference Guide Figure 32. DNIS Entry window Manage DNIS Window...
Page 83: Dnis Profiles Window
Model 3120 RAS Administrators’ Reference Guide DNIS Proﬁles Window The DNIS Proﬁles Window (see ﬁgure 33) contains the following items: • Information about DNIS proﬁles set-up—To view or modify individual DNIS proﬁles, select an ID in the ID column. For more information about modifying a DNIS proﬁle, refer to “DNIS Proﬁle Entry Window”...
Page 84: Dovbs (Dnisprofiledovbs)
The IP address of the remote machine that the dial-in customer is to be redirected. Status (dnisIpProﬁleStatus) Indicates if the DNIS Proﬁle is used in any DNIS conﬁguration. • active(1)—This proﬁle is used in one or more DNIS conﬁgurations Model 3120 RAS Administrators’ Reference Guide Manage DNIS Window...
Page 85: Add A Dnis Profile
Model 3120 RAS Administrators’ Reference Guide • notUsed(2)—This proﬁle is not used in any conﬁgurations Add a DNIS Proﬁle Use this portion of the window to add a DNIS Proﬁle. 1. Enter a unique ID in the ID ﬁeld. 2. Enter a valid IP Pool Id 3.
Page 86: Dovbs (Dnisprofiledovbs)
Indicates if the DNIS Proﬁle is used in any DNIS conﬁguration. • active(1)—This proﬁle is used in one or more DNIS conﬁgurations • notUsed(2)—This proﬁle is not used in any conﬁgurations • destroy(3)—deletes the DNIS proﬁle Model 3120 RAS Administrators’ Reference Guide Manage DNIS Window...
Page 87: Dnis Ip Pools Window
Model 3120 RAS Administrators’ Reference Guide DNIS IP Pools Window The DNIS IP Pools Window (see ﬁgure 35) contains the following items: • Information about DNIS IP Pools set up—to view or modify individual DNIS IP Pools, select an ID in the ID column.
Page 88: Dnis Ip Pool Entry Window
IP pool is used in one or more DNIS Proﬁles • notUsed(2)—This IP pool is not used in any conﬁgurations • destroy(3)—deletes the IP Address Pool entry Model 3120 RAS Administrators’ Reference Guide Figure 36. DNIS IP Pools Entry window Manage DNIS Window...
Page 89: Dial In User Statistics Window
Model 3120 RAS Administrators’ Reference Guide Dial In User Statistics window This window shows statistics for individual dial-in users. The headings DSP Link, Interface Link, and WAN Link, shown in ﬁgure 37, pertain to the unique time slot deﬁned for each of these links. For speciﬁc details on the function of access server parameters deﬁned under these sections, refer to each under the access server Con-...
Page 90: Call Identification
PPP—The user has a PPP link running. • Slip—The user has a Slip link running • Telnet—The user has a telnet session running Model 3120 RAS Administrators’ Reference Guide State column on the Dial In main window (see Dial In User Statistics window...
Page 91: Security Level (Diactaccesslevel)
Model 3120 RAS Administrators’ Reference Guide • Rlogin —The user has an rlogin session running Security Level (diactAccessLevel) This is the security level assigned to the selected call. Passthru is the default security level. Monitor and Change security levels are used by the access server administrator.
Page 92: Time Left In Session (Diactremainingsession)
The DSP resource pool is split between link A and link B and a call has been routed to a link over and above the number of DSPs allocated to that link. Model 3120 RAS Administrators’ Reference Guide Dial In User Statistics window...
Page 93 Model 3120 RAS Administrators’ Reference Guide • papAuthenticationFailure(49)—Invalid username/password combination • papInvalidPacket(50)—Non-printable characters in username or password received from remote end during authentication • authenServerTimeout(51)—Authentication request timed out. The RADIUS server did not send a response to the authentication request before the timer expired.
Page 94 • pppPutMsgErr(17) • dspIoctlErr(18) • timerErr(19) • pppOpenErr(22) • ipLinkErr(23) • pppLinkErr(25) • tcpOpenErr(26) • tcpPushErr(27) • tcpPutMsgErr(28) • invalidPrim(29) • noTimers(33) • tcpLinkErr(34) • dspLinkErr(35) • dspPutMsgErr(36) Model 3120 RAS Administrators’ Reference Guide Dial In User Statistics window...
Page 95: State At Termination (Diactterminatestate)
Model 3120 RAS Administrators’ Reference Guide • noDsp(37) • lisIpcErr(38) • dspOpenErr(39) • invalidCode(40) • callContention(41) • dspCommErr(42) • unknownBearerContent(43) • dspOutOfState(46) • dspRequestUnsupported(47) • dspBadPrimitive(48) • tcpNoBuffers(68) • udpOpenErr(75) • udpBindErr(76) • l2tpOpenErr(77) • l2tpLinkErr(78) • reLinkErr(79) State at termination (diactTerminateState) Indicates the value of diactState when the call was terminated.
Page 96: Bad Address (Distatbadaddresses)
Multilink maximum receive reconstruction unit for the remote device. LCP Authentication (LCPAuthOptions) Authentication type used by the dial-in user. The following options are available: • none(1) • pap(2) • chap(3) • MSChap(4)—not currently implemented Model 3120 RAS Administrators’ Reference Guide Dial In User Statistics window...
Page 97: Acc Map (Distatlocaltopeeraccmap)
Model 3120 RAS Administrators’ Reference Guide • tacacs(5)—not currently implemented • edp(6) • ShivaPap(7)—not currently implemented ACC Map (diStatLocalToPeerACCMap) The current value of the ACC Map used for sending packets from the local modem to the remote modem. The local modem sends this character map to the remote peer modem to ensure that the data being transferred is interpreted correctly.
Page 98: Transmit Frame Check Seq. Size (Distattransmitfcssize)
The IP compression protocol that the local IP entity uses when sending packets to the remote IP entity. The available settings are: • none(1)—no compression Model 3120 RAS Administrators’ Reference Guide Figure 39. IP window Dial In User Statistics window...
Page 99: Remote-Local Vj Protocol Comprsn (Diipremotetolocalcompprot)
Model 3120 RAS Administrators’ Reference Guide • vjTCP(2)—compression is enabled Remote-Local VJ Protocol Comprsn (diIpRemoteToLocalCompProt) The IP compression protocol that the remote IP entity uses when sending packets to the local IP entity. The available settings are: • none(1)—no compression •...
Page 100: Phone
7 • Dial In Model 3120 RAS Administrators’ Reference Guide Phone This portion of the Dial In User Statistics window (see ﬁgure 40) shows the phone numbers that were used by this caller. Figure 40. User Statistics (Phone, Data, Physical Layer) Number Called (diactNumberDialed) The phone number that was used to dial into the access server.
Page 101: Data
Model 3120 RAS Administrators’ Reference Guide Data This portion of the Dial In User Statistics window (see ﬁgure 40 on page 100) describes the amount of PPP data sent and received by this user. Octets Sent (diactSentOctets) The number of octets (bytes) sent during this call.
Page 102 The number of times the remote modem has initiated a modem speed renegotiate. Remote Initiated Retrains (diactRemoteRetrains) The number of times the remote modem has initiated a modem carrier retrain. Model 3120 RAS Administrators’ Reference Guide Dial In User Statistics window...
Page 103: Dial Out
Chapter 8 Dial Out Chapter contents Introduction ...107 Dial Out Main Window...107 Call Sorting (doPageSort) ...107 Active Calls (doActive) ...107 Call ID (doactIndex) ...107 ML ID (doactMultiIndex) ...107 User (doactUsername) ...108 State (doactState) ...108 Duration (doactSessionTime) ...108 Disconnect Reason (doactTerminateReason) ...108 Modulation (doactModulation) ...110 Speed (doactTxSpeed) ...110 Dial Out Details window ...110...
Page 104 Add Modem Profile ...122 Locations Link ...122 Profile ID (modemProfileId) ...122 Modem Modulation (modemType) ...122 Guard Tone (modemGuardTone) ...123 Carrier Loss Duration (modemCarrierLossDuration) ...123 Retrain(modemRetrain) ...123 Transmit Level (modemTxLevel)—not in use ...123 Protocol (modemProtocol) ...123 Model 3120 RAS Administrators’ Reference Guide...
Page 105 Model 3120 RAS Administrators’ Reference Guide Compression (modemCompression) ...123 Billing Delay (modemBillingDelay) ...124 Status (modemStatus) ...124 View modem profile ...124 Dial Out User Statistics window...124 Call Identification ...125 Call ID (doactIndex) ...125 Username (doactUsername) ...125 Password (doactPassword) ...125 Shared Unique ID (doactMultiIndex) ...125 Dsp Link (doactDSPIndex) ...126...
Page 106 Data Compression Protocol (doactCompression) ...133 Modulation Symbol Rate (doactSymbolRate) ...133 Locally Initiated Renegotiated (doactLocalRenegotiates) ...133 Locally Initiated Retrains (doactLocalRetrains) ...133 Remote Initiated Renegotiates (doactRemoteRenegotiates) ...133 Remote Initiated Retrains (doactRemoteRetrains) ...133 An example section of dialout...133 Model 3120 RAS Administrators’ Reference Guide...
Page 107: Introduction
Model 3120 RAS Administrators’ Reference Guide Introduction The Dial Out PPP feature allows the Remote Access Server to initiate PPP calls to remote locations. The administrator can set locations to be called manually, continuously, or only when needed (dial-on-demand). The Dial Out window (see ﬁgure 41) contains the following items: •...
Page 108: User (Doactusername)
The remote access server has given up trying further to complete the physical connec- tion. Model 3120 RAS Administrators’ Reference Guide Dial Out Main Window...
Page 109 Model 3120 RAS Administrators’ Reference Guide • modemError(7)—an internal DSP error has occurred. • pppClose(8)—This reason will be given after PPP is initiated and the connection is disconnected. An exam- ple would be if LCP negotiations failed. • lcpClose(9)—close initiated by LCP. This is a normal shutdown of a call.
Page 110: Dial Out Details Window
Scroll down the window to view additional Dial Out access server parameters.You can modify Dial Out Modify parameters by clicking on the settings, refer to “Dial Out Modify window” on page 111. Model 3120 RAS Administrators’ Reference Guide … link (see ﬁgure 42). For more information about modifying Dial Out Dial Out Details window...
Page 111: Dial Out Modify Window
Model 3120 RAS Administrators’ Reference Guide Dial Out Modify window The Dial Out Modify window (see ﬁgure 43) is where you can make changes to the following: • Login settings (see “Modify Login”) • Maximum number of login attempts and the authentication failure banner (see “Modify Attempts” on page 113) •...
Page 112: Modify Login
Login Technique (doLoginTechnique) This variable deﬁnes the login sequence that a dial-up user will see. The options are deﬁned below: • none(1)—Simply connecting to the TCP pipe enables dialout. Model 3120 RAS Administrators’ Reference Guide Dial Out Modify window...
Page 113: Username Prompt (Dousernameprompt)
Model 3120 RAS Administrators’ Reference Guide • text(2)—A valid username must be entered. If the username is a static user with no password deﬁned, the connection will complete without requesting a password. Otherwise, a valid password must be entered. Username Prompt (doUsernamePrompt) This prompt for a username is displayed at user authentication time.
Page 114: Modify Maximum Time
8 • Dial Out Model 3120 RAS Administrators’ Reference Guide Modify Maximum Time This portion of the Dial Out Modify window (see ﬁgure 44) describes conﬁguring the maximum session time, idle time, time to login, and call history timeout settings.
Page 115: Time To Login (Sec) (Dologintimeout)
Model 3120 RAS Administrators’ Reference Guide 8 • Dial Out Time to Login (sec) (doLoginTimeout) This is the maximum time (in seconds) that a user is given to log in. This only applies to the time before the user is authenticated. This setting should take into account any time delays incurred when querying a remote authentication server (such as a RADIUS).
Page 116: Modify Modem Configuration
212 modulation is enabled V21 (doModemV21Enable) Allow V.21 or Bell 103 modulations. The following options are available: • disable(0)—Neither option is enabled • enableV21(1)—V.21 modulation is enabled • enableBell103(2)—Bell 103 modulation is enabled Model 3120 RAS Administrators’ Reference Guide Dial Out Modify window...
Page 117: Maximum Speed (Domodemmaxspeed)
Model 3120 RAS Administrators’ Reference Guide Maximum Speed (doModemMaxSpeed) This setting determines the fastest data rate that will be negotiated. Minimum Speed (doModemMinSpeed) This setting determines the slowest data rate that will be negotiated. Guard Tone (doModemGuardTone) Normally a guard tone is not required. But, one can be inserted. This operates for Phase Shift Key modulations only.
Page 118: Dial Out Locations Window
When this is set, no more calls will be placed to this location. Current calls to this location will not be affected. • destroy(7)—(user selectable) set by the administrator to remove the location from the table. Model 3120 RAS Administrators’ Reference Guide Figure 46. Location Table Dial Out Locations Window...
Page 119: Add Location
Model 3120 RAS Administrators’ Reference Guide 8 • Dial Out Add Location Locations are added to the table using the following form at the bottom of the locations window. Figure 47. Add Location Form. Id (locationId) The unique identiﬁer for this location. There are a maximum of 120 locations so the range is from 1 to 120.
Page 120: Multilink (Locationconfigmultilink)
Modem Proﬁle (locationModemProﬁle) ID of the modem proﬁle to use to dial to this location. If no proﬁle is speciﬁed, the default settings from the details page will be used. Model 3120 RAS Administrators’ Reference Guide Dial Out Locations Window...
Page 121: View/Modify Location Details
Model 3120 RAS Administrators’ Reference Guide 8 • Dial Out View/Modify location details To view and/or modify the location details, click on the location ID link on the locations page. From this page, location settings can be modiﬁed and submitted. Any changes made will take effect on the next call to this location.
Page 122: Dial Out Modem Profiles Window
Modem Modulation (modemType) This is the type of modem modulation to use when dialing out. The following options are valid: • digital-64k(1) • analog-v90(2) • analog-k56(3) Model 3120 RAS Administrators’ Reference Guide Figure 49. Modem Proﬁle table Dial Out Locations Window...
Page 123: Guard Tone (Modemguardtone)
Model 3120 RAS Administrators’ Reference Guide • analog-v34(4) • analog-v32(5) • analog-v22bis(6) • analog-v22(7) • analog-v21(8) Guard Tone (modemGuardTone) Normally a guard tone is not required, but one can be inserted. This setting works for Phase Shift Key (PSK) modulations only, not for v.32, v.34, or v.90.
Page 124: Dial Out User Statistics Window
The Dial Out Statistics window is where you can view the following: • Unique ID information • Session information • PPP statistics (for location based calls) • IP statistics (for location based calls) Model 3120 RAS Administrators’ Reference Guide Figure 50. View/modify modem proﬁle. Dial Out User Statistics window...
Page 125: Call Identification
Model 3120 RAS Administrators’ Reference Guide • Phone information • Data transfer statistics • Physical layer conﬁguration information Call Identiﬁcation This portion of the dial out user statistics window shows user information for a unique user ID. Call ID (doactIndex) Unique identiﬁcation of this call (for internal use)
Page 126: Dsp Link (Doactdspindex)
The remote access server has given up trying further to complete the physical connec- tion. • modemError(7)—an internal DSP error has occurred. Model 3120 RAS Administrators’ Reference Guide Dial Out User Statistics window...
Page 127 Model 3120 RAS Administrators’ Reference Guide • pppClose(8)—This reason will be given after PPP is initiated and the connection is disconnected. An exam- ple would be if LCP negotiations failed. • lcpClose(9)—close initiated by LCP. This is a normal shutdown of a call.
Page 128: Ppp Statistics
The number of packets received with bad frame check sequences. LCP Statistics This portion of the Dial Out User Statistics window (see ﬁgure 52) shows LCP statistics of the current user selected. Model 3120 RAS Administrators’ Reference Guide Figure 52. PPP user statistics Dial Out User Statistics window...
Page 129: Local Mru (Dostatlocalmru)
Model 3120 RAS Administrators’ Reference Guide Local MRU (doStatLocalMRU) The current value of the MRU for the local PPP entity. This value is the MRU that the remote entity is using hen sending packets to the local PPP entity. This setting becomes active when the link is in the up—able to pass packets—operational state (for more information, refer to “Operational Status (diIpOperStatus)”...
Page 130: Local Ppp Protocol Compression (Dostatlocaltoremoteprotcomp)
This setting becomes active when the link is in the up—able to pass packets—operational state (for more information, refer to “Operational Status (diIpOperStatus)” on page 97). The values are from 0 to 128. Model 3120 RAS Administrators’ Reference Guide Dial Out User Statistics window...
Page 131: Phone
Model 3120 RAS Administrators’ Reference Guide 8 • Dial Out Phone This portion of the Dial Out User Statistics window (see ﬁgure 53) shows the phone numbers that were used by this caller. Figure 53. Dial Out User Statistics window...
Page 132: Connection Modulation (Doactmodulation)
Error Correction Protocol (doactErrorCorrection) The modem error correction scheme used during this call. • None—No error correction on the call. • V42—Error correction mode • V120—Mode for ISDN B Model 3120 RAS Administrators’ Reference Guide Dial Out User Statistics window...
Page 133: An Example Section Of Dialout
Model 3120 RAS Administrators’ Reference Guide Data Compression Protocol (doactCompression) The modem data compression technique used during this call. • None—No compression. • V42bis—Compression is running. • Stac—Not currently implemented. Modulation Symbol Rate (doactSymbolRate) The modulation symbol rate during the call. This is used only when in V.34 and above modulations.
Page 134 8 • Dial Out Model 3120 RAS Administrators’ Reference Guide An example section of dialout...
Page 135: Callback
Chapter 9 Callback Introduction ...136 Dial-in Modify Configuration ...136 Callback (diCallbackConfig) ...136 Dial-in Main Window...137 State (diactState) ...137 Static User Authentication...138 Callback Configuration (suCallbackConfig) ...138 Callback phone number (suCallbackNumber) ...138 RADIUS Configuration ...138 Accounting information ...139 Dialout ...139...
Page 136: Introduction
9 • Callback Introduction The RAS has the ability to call back any user dialing into it. This can provide extra security since you can verify the user’s identity by calling back to a known number. Callback can also be used to reverse or reduce toll charges by having the server call the user back.
Page 137: Dial-In Main Window
Access Server Administrators’ Reference Guide Dial-in Main Window Figure 55. Dial-in user waiting to be called back State (diactState) • ringing(1)—leave as is • connecting(2)—leave as is • lcpNegotiate(3)—PPP LCP negotiations are currently taking place • authenticating(4)—leave as is • tcpEstablish(5)—telnet or raw TCP based connection is being established •...
Page 138: Static User Authentication
9 • Callback Static User Authentication In the Modify Static User window are two extra settings for callback. The callback type and callback number can be set on a user basis. Figure 56. Static user conﬁguration showing callback conﬁguration Callback Conﬁguration (suCallbackConﬁg) This is the type of callback allowed for this user.
Page 139: Accounting Information
Access Server Administrators’ Reference Guide 9 • Callback Accounting information Before callback is initiated, the accounting start and stop packets will have service-type set to Callback Framed. The accounting stop packet will have the Callback-Number attribute present with the number the server is calling back.
Page 140 9 • Callback Access Server Administrators’ Reference Guide Dialout...
Page 141: Drop And Insert
Chapter 10 Drop and Insert Introduction ...142 Drop and Insert main window...142 Session Timeout (drSessionTimeout) ...142 Call History Timeout (drLingerTime) ...142 Active Calls (drActive) ...142 Session ID (dractIndex) ...142 Originating Link (dractLinkIndex) ...143 Originating Channel (dractChannel) ...143 Passed to Link (dractPassLinkIndex) ...143 Passed to Channel (dractPassChannel) ...143 Number Dialed (dractNumberDialed) ...143 Calling Number (dractCallingPhone) ...143...
Page 142: Session Timeout (Drsessiontimeout)
10 • Drop and Insert Model 3120 RAS Administrators’ Reference Guide Introduction The Drop and Insert window (see ﬁgure 58) contains setup objects associated with using the access server as a drop and insert box to an upstream or downstream location.
Page 143: Remaining Time (Dractremainingsession)
Model 3120 RAS Administrators’ Reference Guide Originating Link (dractLinkIndex) Which WAN link this call originated on. Originating Channel (dractChannel) Which channel this call originated on. Passed to Link (dractPassLinkIndex) Which link this call was passed to. Passed to Channel (dractPassChannel) Which channel this call was passed to.
Page 144: Using Drop And Insert
We do not send digits with the EMWinkStart signalling. What this means is that you can not direct the inbound call to a speciﬁc exten- sion on the PBX. Model 3120 RAS Administrators’ Reference Guide Figure 59. Drop and insert diagram How Drop and Insert works...
Page 145: Digital Signal Processing (Dsp)
Chapter 11 Digital Signal Processing (DSP) Chapter contents Introduction ...147 DSP Settings main window ...147 DSPs Available (dspAvailable) ...147 Detected (dspDetected) ...147 HW Failures (dspFailed) ...148 Calls without an available DSP (dspDspNotAvailable) ...148 DSP Index (dspIndex) ...148 Admin Desire (dspDesiredState) ...148 Instance #1 State (dspStatefirst) ...148 Instance #1 Use (dspUsefirst) ...149 Instance #2 State (dspStateSecond) ...149...
Page 146 Failed Connect (no far modem) (dspFailedConnectPreV8) ...155 Failed Connect (bad negotiation) (dspFailedConnectPostV8) ...156 Remote—Retrain (dspRemoteRetrains) ...156 Remote—Renegotiates (dspRemoteRenegotiates) ...156 Local—Retrain (dspLocalRetrains) ...156 Local—Renegotiates (dspLocalRenegotiates) ...156 Page Requests(dspPageRequests) ...156 Debug Statistics ...156 Reserved A (dspReservedA) ...156 Reserved B (dspReservedB) ...156 Model 3120 RAS Administrators’ Reference Guide...
Page 147: Introduction
Model 3120 RAS Administrators’ Reference Guide Introduction The access server uses between 48 and 60 digital signal processors (DSPs) to pass digital information. Each DSP can accept two incoming calls, one on each “instance.” The DSPs are located on chips that contain eight DSPs each.
Page 148: Hw Failures (Dspfailed)
A successful call will place this instance back into the available state. • available(10)—The instance is fully operational and can be used to take a call Model 3120 RAS Administrators’ Reference Guide DSP Settings main window...
Page 149: Dsp Connection Performance
Model 3120 RAS Administrators’ Reference Guide 11 • Digital Signal Processing (DSP) Instance #1 Use (dspUseﬁrst) Identiﬁes whether the ﬁrst instance of the DSP is in use or free. Instance #2 State (dspStateSecond) Identiﬁes the current state of the second instance of the DSP. See “Instance #1 State (dspStateﬁrst)” for param- eter values.
Page 150: Failure To Negotiate (Dspfailurepercent)
11 • Digital Signal Processing (DSP) Model 3120 RAS Administrators’ Reference Guide Figure 62. DSP Connection Performance window Failure to Negotiate (dspFailurePercent) Indicates the percentage of incoming calls that failed during modem negotiation. Connection Summaries This part of the window shows DSP statistics as a whole.
Page 151: Failed Connect Postv8 (Dsptotalfailedconnectpostv8)
Model 3120 RAS Administrators’ Reference Guide 11 • Digital Signal Processing (DSP) Failed Connect PostV8 (dspTotalFailedConnectPostV8) The number of calls that failed to connect after V8 modulation was completed. Remote Retrains (dspTotalRemoteRetrains) The number of times the remote modem has asked for a retrain to be done.
Page 152: Dsp Connection Totals
11 • Digital Signal Processing (DSP) Model 3120 RAS Administrators’ Reference Guide DSP Connection Totals This portion of the window (see ﬁgure 63) shows statistics on a per-DSP basis. Figure 63. Connection Summary portion of DSP Connection Performance window DSP Index (dspIndex) The unique identiﬁer of the DSP being reported on.
Page 153: Remote-Reneg (Dspremoterenegotiates)
Model 3120 RAS Administrators’ Reference Guide 11 • Digital Signal Processing (DSP) Remote—Reneg (dspRemoteRenegotiates) The number of times the remote modem has asked for a renegotiation to be done. Local—Retrain (dspLocalRetrains) The number of times the local DSP has requested a retrain to be done.
Page 154: Dsp Information Window
DSP unavailable. • availableSecondOnly(18)—Marks the ﬁrst instance of the DSP available. • forceDerail(19)—This is for use by the engineers and technical support for testing purposes only. Do not use. Model 3120 RAS Administrators’ Reference Guide DSP information window...
Page 155: Instance First Used By (Dspusefirst)
Model 3120 RAS Administrators’ Reference Guide Instance First State (dspStateﬁrst) Identiﬁes the current state of the ﬁrst instance of the DSP. • hardwareFailure(1)—During power up a self test routine detected a problem with this DPS. It will not be booted with code or used for calls.
Page 156: Failed Connect (Bad Negotiation) (Dspfailedconnectpostv8)
11 • Digital Signal Processing (DSP) Model 3120 RAS Administrators’ Reference Guide Failed Connect (bad negotiation) (dspFailedConnectPostV8) The number of calls that failed to after V8 modulation was completed. Remote—Retrain (dspRemoteRetrains) The number of times the remote modem has asked for a retrain to be done.
Page 157: Ethernet
Chapter 12 Ethernet Chapter contents Introduction ...159 Ethernet Main Window ...160 Ethernet A ...160 State (boxEtherAState) ...160 PrimaryIPAddress (boxEtherAPrimaryIpAddress) ...160 PrimaryIpFilters (boxEtherAPrimaryIpFilters) ...160 PrimaryIpMask (boxEtherAPrimaryIpMask) ...160 SecondaryIpAddress (boxEtherASecondaryIpAddress) ...160 SecondaryIpMask (boxEtherASecondaryIpMask) ...160 SecondaryIpFilters (boxEtherASecondaryIpFilters) ...160 Technique (boxEtherATechnique) ...160 Ethernet B ...161 State (boxEtherBState) ...161 PrimaryIPAddress (boxEtherBPrimaryIpAddress) ...161 PrimaryIpMask (boxEtherBPrimaryIpMask) ...161...
Page 158 Deferred Transmissions (dot3StatsDeferredTransmissions) ...165 Late Collisions (dot3StatsLateCollisions) ...165 Excessive Collisions (dot3StatsExcessiveCollisions) ...165 Other Errors (dot3StatsInternalMacTransmitErrors) ...165 Carrier Sense Errors (dot3StatsCarrierSenseErrors) ...165 Received Frames Too Long (dot3StatsFrameTooLongs) ...166 Other Received Errors (dot3StatsInternalMacReceiveErrors) ...166 Chip Set ID (dot3StatsEtherChipSet) ...166 Model 3120 RAS Administrators’ Reference Guide...
Page 159: Introduction
Model 3120 RAS Administrators’ Reference Guide Introduction The access server provides management and statistical information in the Detailed information regarding the SNMP MIB II variables may be downloaded from RFC 1643, Deﬁnitions of Managed Objects for the Ethernet-like Interface Types.
Page 160: Ethernet Main Window
ID of a ﬁlter conﬁgured under Filter IP. Separate multiple ﬁlters using a comma (,). Technique (boxEtherATechnique) Turns ethernet port off and on. The remote access server must be reset for this setting to take effect. • disable(0)—Ethernet port is disabled Model 3120 RAS Administrators’ Reference Guide Ethernet Main Window...
Page 161: Ethernet B
Model 3120 RAS Administrators’ Reference Guide • static(1)—Ethernet port is turned on. IP address(es) and mask(s) are obtained from data entered under the Ethernet link. Ethernet B State (boxEtherBState) Indicates the state of the ethernet interface. The following states are valid: •...
Page 162: Ethernet A Modify Window
Filters packets based on the ﬁlters assigned to the Primary IP address of the Ethernet port. Enter the Filter ID of a ﬁlter conﬁgured under Filter IP. Separate multiple ﬁlters using a comma (,). SecondaryIpAddress (boxEtherASecondaryIpAddress) The secondary ethernet IP address. Model 3120 RAS Administrators’ Reference Guide Ethernet from the main window.
Page 163: Ethernet B Modify Window
Model 3120 RAS Administrators’ Reference Guide Note This address is not propagated via RIP. SecondaryIpMask (boxEtherASecondaryIpMask) The secondary IP ethernet IP subnet mask. SecondaryIpFilters (boxEtherASecondaryIpFilters) Filters packets based on the ﬁlters assigned to the Secondary IP address of the Ethernet port. Enter the Filter ID of a ﬁlter conﬁgured under Filter IP.
Page 164: Ethernet Statistics
Alignment Errors (dot3StatsAlignmentErrors) The number of frames received that are not an integral number of octets in length and do not pass the FCS check. Model 3120 RAS Administrators’ Reference Guide Statistics To reach this window select Ethernet Statistics...
Page 165: Fcs Errors (Dot3Statsfcserrors)
Model 3120 RAS Administrators’ Reference Guide 12 • Ethernet Figure 68. Ethernet window FCS Errors (dot3StatsFCSErrors) The number of frames received that are an integral number of octets in length but do not pass the FCS check. Single Collision Frames (dot3StatsSingleCollision Frames) The number of successfully transmitted frames in which there was exactly one collision.
Page 166: Other Received Errors (Dot3Statsinternalmacreceiveerrors)
12 • Ethernet Model 3120 RAS Administrators’ Reference Guide Received Frames Too Long (dot3StatsFrameTooLongs) The number of frames received that exceed the maximum permitted frame size. Other Received Errors (dot3StatsInternalMacReceiveErrors) The number of frames in which reception fails due to an internal MAC sublayer receive error.
Page 167: Filter Ip
Chapter 13 Filter IP Chapter contents Introduction ...168 Defining a filter ...168 Modify Filter ...168 Name (filterIpName) ...169 Direction (filterIpDirection) ...169 Action (filterIpAction) ...170 Source IP ...170 Comparison (filterIpSourceAddressCmp) ...170 Address (filterIpSourceIp) ...170 Mask (filterIpSourceMask) ...170 Destination IP ...171 Comparison (filterIpDestinationAddressCmp) ...171 Address(filterIpDestinationIp) ...171 Mask(filterIpDestinationMask) ...171 Source Port ...171...
Page 168: Introduction
13 • Filter IP Model 3120 RAS Administrators’ Reference Guide Introduction The access server software provides an IP ﬁltering system that enables you to set up security as well as to provi- sion services for selected customers. While IP ﬁlters are typically thought of as a security measure, many pro- viders wish to limit some services a customer may have access to.
Page 169: Name (Filteripname)
Model 3120 RAS Administrators’ Reference Guide The following parameters can be conﬁgured for IP Filtering: Note Any changes to a ﬁlter take place immediately. This can aid in trou- bleshooting a ﬁlter proﬁle while the user is online. Name (ﬁlterIpName) This is the name of the ﬁlter...
Page 170: Action (Filteripaction)
Bit positions that are set to 1 will be compared and 0s will be ignored. Thus, a setting of 0.0.0. will have the effect of dis- abling source IP address comparison. Model 3120 RAS Administrators’ Reference Guide Modify Filter...
Page 171: Destination Ip
Model 3120 RAS Administrators’ Reference Guide Destination IP Applies the action based on the results of the stated comparison to the IP address and subnet mask. Comparison (ﬁlterIpDestinationAddressCmp) • equal(0) – apply the action of the ﬁlter if the destination IP equals the IP address/subnet mask combination supplied •...
Page 172: Port (Filteripdestinationport)
This option applies the ﬁlter to as a default ﬁlter for all dial-in users. If another ﬁlter is speciﬁed, either in RADIUS or in the static user proﬁles, then all dial-in defaults are disabled and only the speciﬁed ﬁlters are applied. The following choices are available: • no(0) • applyToDialin(1) Model 3120 RAS Administrators’ Reference Guide Modify Filter...
Page 173: An Example Of Using A Filter
Model 3120 RAS Administrators’ Reference Guide Figure 71. IP Filter showing default for dialout Default for dialout (ﬁlterIpDefaultDialout) This option applies the ﬁlter as a default for all dialout locations. If a location has a ﬁlter speciﬁcally speciﬁed for that location (see section “Locations Link” on page 121), the default ﬁlter is disabled for that location and only the speciﬁed ﬁlter(s) is/are used.
Page 174 Now if you wanted to add the ability to ping to test the dial-in users connectivity to the network, the following ﬁlter would be created: • ID:4 • Name: PING • Direction: both Model 3120 RAS Administrators’ Reference Guide An example of using a filter...
Page 175 Model 3120 RAS Administrators’ Reference Guide • Action: pass • Source IP and mask: not set • Destination IP and mask: not set • Source Port: no compare • Destination Port: no compare • Protocol: 1 • TCP Established: anyPackets •...
Page 176 13 • Filter IP Model 3120 RAS Administrators’ Reference Guide An example of using a filter...
Page 177: Frame Relay
Chapter 14 Frame Relay Chapter contents Introduction ...179 The Frame Relay main window ...179 Link X (frDlcmiIfIndex) ...180 Status: X (framerelStatus) ...180 HDLC Statistics on Link ...180 Transmit (Bits/Sec) (framerelTxOctets) ...180 Receive (Bits/Sec) (framerelRxOctets) ...180 No Buffers Available (framerelRxNoBufferAvailable) ...180 Data Overflow (framerelRxDataOverflow) ...180 Message Ends (framerelRxMessageEnds) ...180 Packets Too Long (framerelRxPacketTooLong) ...180...
Page 178 14 • Frame Relay Model 3120 RAS Administrators’ Reference Guide Congestion (frameEnableCongestion) ...184...
Page 179: Introduction
Model 3120 RAS Administrators’ Reference Guide Introduction Frame Relay is a high-speed datalink communications technology that is used in hundreds of networks throughout the world to connect LAN, SNA, Internet, and voice applications. Within the network, Frame Relay uses a simple form of packet switching that provides high throughput and reliability. (For more informa- tion, refer to the Frame-Relay MIB: 1315 Management Base for Frame Relay DTEs.)
Page 180: Link X (Frdlcmiifindex)
The number of packets received that were too long. Overﬂow (framerelRxOverﬂow) The number of packets received with overﬂow (as indicated by software). Aborts (FramerelRxAbort) The number of packets received that were aborted. Model 3120 RAS Administrators’ Reference Guide The Frame Relay main window...
Page 181: Dlmi Window
Model 3120 RAS Administrators’ Reference Guide 14 • Frame Relay Bad CRC (framerelRxBadCrc) The number of packets received that had bad CRC values. Invalid Frames (framerelRxInvalidFrame) The number of packets received that had invalid frames. Tx Underrruns (framerelTxUnderrun) The number of times the transmit buffer was not replenished in time to be sent out on the line.
Page 182: Signalling (Frdlcmistate)
Status Enquiry messages. N393 must be greater or equal to N392. The default value is 4. MultiCast Service (frDlcmiMulticast) TBD. Max Virtual Circuits (frDlcmiMaxSupportedVCs) The maximum number of PVCs determines the amount of internal resources are allocated for the Frame Relay system. The default value is 32. Model 3120 RAS Administrators’ Reference Guide DLMI Window...
Page 183: Dlci Window
Model 3120 RAS Administrators’ Reference Guide 14 • Frame Relay LMI Interface (frDlcmiInterface) LMI is used in the generic sense as an in-band signaling system. The signaling is slightly different depending on which end of the Frame Relay Interface it is, or in other words its orientation. The User end issues periodic STATUS ENQUIRY messages and waits for a STATUS reply from the Network.
Page 184: Dlci (Frcircuitdlci)
This is not the IP address of the access server. After the IP address is entered, it will appear as a point-to-point link in the IP routing table with this address. Congestion (frameEnableCongestion) This option enables or disables congestion tracking. • enable(0)—Enables Congestion tracking • disable(1)—Disables Congestion tracking Model 3120 RAS Administrators’ Reference Guide DLCI window...
Page 185: Interfaces
Chapter 15 Interfaces Chapter contents Introduction ...186 Interfaces main window...186 Number (ifIndex) ...186 Type (ifType) ...187 Admin Stat (ifAdminStatus) ...187 Operational Status (ifOperStatus) ...187 Interface Details ...188 Description (ifDescr) ...188 Type (ifType) ...188 Max Transfer Unit (ifMTU) ...189 Speed (ifSpeed) ...189 Physical Address (ifPhysAddress) ...189 Admin Stat (ifAdminStatus) ...189 Operational Status (ifOperStatus) ...189...
Page 186: Introduction
15 • Interfaces Model 3120 RAS Administrators’ Reference Guide Introduction The Interfaces window (see ﬁgure 75) shows the quantity of incoming and outgoing trafﬁc, as well as errors Inter- that cause frames to be discarded for each of the local interfaces. The statistics listed on the access server faces page comprise those contained in RFC 1213—Management Information Base for Network Management of...
Page 187: Type (Iftype)
Model 3120 RAS Administrators’ Reference Guide Type (ifType) The type of interface, distinguished according to the physical/link protocol(s) immediately “below” the net- work layer in the protocol stack. The following valid interface options are available: • other(1) • ethernet-csmacd(6) •...
Page 188: Interface Details
The following interface types are available: • other(1) • ethernet-csmacd(6) • iso88023-csmacd(7) • ds1(18) • e1(19) • basicISDN(20) • primaryISDN(21) • ppp(23) • softwareLoopback(24) Model 3120 RAS Administrators’ Reference Guide Figure 76. Interface Details window Interface Details...
Page 189: Max Transfer Unit (Ifmtu)
Model 3120 RAS Administrators’ Reference Guide • slip(28) • frame-relay(32) Max Transfer Unit (ifMTU) The size of the largest protocol data unit which can be sent/received on the interface, speciﬁed in octets. For interfaces that are used for transmitting network protocol data units, this is the size of the largest network pro- tocol data unit that can be sent on the interface.
Page 190: Received And Discarded W/No Errs (Ifindiscards)
15 • Interfaces Model 3120 RAS Administrators’ Reference Guide Received and Discarded w/No Errs (ifInDiscards) The number of inbound packets which were chosen to be discarded even though no errors had been detected to prevent their being deliverable to a higher layer protocol. One possible reason for discarding such a packet could be to free up buffer space.
Page 191 Chapter 16 Chapter contents Introduction ...194 IP main window ...194 Forwarding (ipForwarding) ...195 Default Time-To-Live (ipDefaultTTL) ...195 Total Datagrams Received (ipInReceives) ...195 Discarded for Header Errors (ipInHdrErrors) ...195 Discarded for Address Errors (ipInAddrErrors) ...195 Forwarded Datagrams (ipForwDatagrams) ...196 Discarded for Unknown Protos (ipInUnknownProtos) ...196 Discarded w/No Errors (ipInDiscards) ...196 Total Deliveries (ipInDelivers) ...196 Out Requests (ipOutRequests) ...196...
Page 192 Entry Subnet Mask (ipAdEntNetMask) ...206 Entry Broadcast Address (ipAdEntBcastAddr) ...206 Entry Reassembly Maximum Size (ipAdEntReasmMaxSize) ...206 Routing Information ...206 Destination (ipRouteDest) ...207 Mask (ipRouteMask) ...207 Gateway (RouteGateway) ...207 Cost (RouteCost) ...207 Interface (ipRouteIfIndex) ...207 Model 3120 RAS Administrators’ Reference Guide...
Page 193 Model 3120 RAS Administrators’ Reference Guide State (RouteState) ...207 Add a route: ...208 Adding the default gateway ...208 Adding a point-to-point route ...208 Adding a static point-to-point route to a remote host ...208 Adding a static routes to a remote network ...209 Advanced…...
Page 194: Introduction
(See “UDP” on page 201.) • ICMP—Displays information about the ICMP protocol such as the number of echo replies sent. (See “ICMP” on page 202.) Model 3120 RAS Administrators’ Reference Guide Figure 77. IP main window to display the window.
Page 195: Forwarding (Ipforwarding)
Model 3120 RAS Administrators’ Reference Guide • Modify—This window is where you can modify forwarding and time-to-live settings (see “Modify” on page 197). • Addressing Info—This window (see “Addressing Information” on page 205) displays IP addressing details for the default address for outgoing IP datagrams, the local or loopback address of the box and the IP address of the box as deﬁned in Chapter 20, “System”.
Page 196: Forwarded Datagrams (Ipforwdatagrams)
Reassembly Timeout (ipReasmTimeout) The maximum number of seconds which received fragments are held while they are awaiting reassembly at this entity. Model 3120 RAS Administrators’ Reference Guide IP main window...
Page 197: Modify
Model 3120 RAS Administrators’ Reference Guide # of Reassembled Fragments (ipReasmReqds) The number of IP fragments received which needed to be reassembled at this entity. # Successfully Reassembled (ipReasmOKs) The number of IP datagrams successfully reassembled. Reassembly Failures (ipReasmFails) The number of failures detected by the IP reassembly algorithm (for whatever reason: timed out, errors, etc.).
Page 198: Tcp
TCP main window The TCP main window contains the tions (see “TCP Details” on page 200), and TCP statistics. Model 3120 RAS Administrators’ Reference Guide Time-To-Live (TTL) ﬁeld in the IP header of datagrams originating from this to display the main window (see ﬁgure 79).
Page 199: Retransmit-Timeout Algorithm (Tcprtoalgorithm)
Model 3120 RAS Administrators’ Reference Guide 16 • IP Retransmit-Timeout Algorithm (tcpRtoAlgorithm) The algorithm that determines the timeout value used for retransmitting unacknowledged octets. Retransmit-Timeout Minimum (tcpRtoMin) The minimum value permitted by a TCP implementation for the retransmission timeout, measured in milli- seconds.
Page 200: Total Retransmitted (Tcpretranssegs)
16 • IP Model 3120 RAS Administrators’ Reference Guide Total Retransmitted (tcpRetransSegs) The total number of segments retransmitted—that is, the number of TCP segments transmitted containing one or more previously transmitted octets. Total Received in Error (tcpInErrs) The total number of segments received in error (e.g., bad TCP checksums).
Page 201: Udp
Model 3120 RAS Administrators’ Reference Guide deleteTCB(12), then this has the effect of deleting the TCB (as deﬁned in RFC 793) of the corresponding con- nection on the managed node, resulting in immediate termination of the connection. • closed(1)—Connection closed •...
Page 202: Icmp
Under normal circumstances, IP makes very efﬁcient use of system resources. However errors, congestion and system malfunctions occur periodically. ICMP (Internet Control Message Protocol) assists network managers with IP routing by sending control and error reporting messages between IP hosts. Model 3120 RAS Administrators’ Reference Guide ICMP...
Page 203: Block Icmp Redirects (Boxblockicmpredirects)
Model 3120 RAS Administrators’ Reference Guide Click on ICMP under the Conﬁguration Menu Block ICMP redirects (boxBLockIcmpRedirects) Enables you to conﬁgure how the access server handles ICMP redirects. Enabling the access server to receive redirected messages is generally considered a security breach.
Page 204: Destinations Unreachable (Icmpindestunreachs, Icmpoutdestunreachs)
Ping is used to test connectivity with a remote host by sending regular ICMP echo request pack- ets and then waiting for a reply. Received echos (icmpInEchos) will increment when the access server is pinged. Model 3120 RAS Administrators’ Reference Guide ICMP...
Page 205: Addressing Information
Model 3120 RAS Administrators’ Reference Guide 16 • IP Echo Replys (icmpInReps, icmpOutReps) The number of ICMP echo reply messages received/sent. An echo reply is a response to an echo request. Send echos (icmpOutEchos) will increment when the access server is pinged.
Page 206: Routing Information
16 • IP Model 3120 RAS Administrators’ Reference Guide Entry Interface Index (ipAdEntIfIndex) The index value that identiﬁes the interface to which this entry applies. Entry Subnet Mask (ipAdEntNetMask) The subnet mask associated with the IP address of this entry. The value of the mask is an IP address with all the network bits set to 1 and all the hosts bits set to 0.
Page 207: Destination (Iproutedest)
Model 3120 RAS Administrators’ Reference Guide The IP Routing Information window also has a link to the O/S forwarding table where the forwarding param- eters are displayed (“O/S forwarding table window” on page 210). Destination (ipRouteDest) The destination IP address of this route. An entry with a value of 0.0.0.0 is considered a default route. Multiple routes to a single destination can appear in the table, but access to such multiple entries is dependent on the table-access mechanisms deﬁned by the network management protocol in use.
Page 208: Add A Route
, type the IP address of the host that will be forwarding packets to the IP address you Destination entered in the ﬁeld in step 1. 4. Click Add Route. Model 3120 RAS Administrators’ Reference Guide Add a route: (see ﬁgure 86) is where static Gateway Routing Information...
Page 209: Adding A Static Routes To A Remote Network
Model 3120 RAS Administrators’ Reference Guide Adding a static routes to a remote network Do the following: Destination 1. Under , type the IP address of the remote network for which you want to provide a static route. 2. Type the appropriate subnet mask in the Gateway 3.
Page 210: O/S Forwarding Table Window
16 • IP Model 3120 RAS Administrators’ Reference Guide O/S forwarding table window The O/S forwarding table window lists forwarding information for all routes. Click on the O/S forwarding table window link on the IP Routing Information page to display this page.
Page 211: Protocol (Iprouteproto)
Model 3120 RAS Administrators’ Reference Guide • invalid(2)—an invalidated route • direct(3)—route to directly connected (sub-)network • indirect(4)—route to a non-local host/network/sub-network Note The values direct(3) and indirect(4) refer to the notion of direct and indirect routing in the IP architecture.
Page 212: Ip Routing Destination Window
IP Routing Information table or via SNMP management tools. • dspf(3)—Not currently implemented. • rip(4)—Learned via reception of RIP packet. Model 3120 RAS Administrators’ Reference Guide window displays this window. Figure 88. Routing Destination window IP Routing Destination window...
Page 213: Address Translation Information
Model 3120 RAS Administrators’ Reference Guide • icmp(5)—Learned via reception of ICMP packet. • radius(6)—Provided in RADIUS response packet. Seconds Since Updated (ipRouteAge) The number of seconds since this route was last updated or otherwise determined to be correct. Tag (RouteTag) An identiﬁer associated with the route.
Page 214: Interface (Ipnettomediaentry)
Proper interpretation of such entries requires examination of the relevant ipNetToMediaType object. • other(1)—none of the following • invalid(2)—an invalidated mapping • dynamic(3)—created by access server • static(4)—created by administrator Model 3120 RAS Administrators’ Reference Guide Address Translation Information...
Page 215: Mfr Version 2
Chapter 17 MFR Version 2 Chapter contents Introduction ...217 MFR Version 2 main window ...217 Line Signalling ...217 Country (lineSigCountry) ...217 Idle Code (lineSigIdleCode) ...218 Forward Seize (lineSigForwardSeize) ...218 Back Acknowledge (lineSigBackAck) ...218 Back Answer (lineSigBackAnswer) ...218 Minimum Transition Time (lineSigMinTransTime) ...218 Minimum Detection Time (lineSigMinDetectTime) ...218 Protocol Timeout (lineSigProtoTimeout) ...218 Interregister Signalling...218...
Page 216 17 • MFR Version 2 Last Response Code (interRegCallingNumLast)... 224 Speech Condition Set-up (interRegGroupBAck ... 225 Model 3120 RAS Administrators’ Reference Guide...
Page 217: Introduction
Model 3120 RAS Administrators’ Reference Guide 17 • MFR Version 2 Introduction The MFR Version 2 window (see ﬁgure 90) contains objects for networks that use Signalling System R2. (To set up R2 Signalling in the access server, refer to Recommendations Q.400—Q.490 and to the host country’s PTT for national signalling speciﬁcations).
Page 218: Interregister Signalling
17 • MFR Version 2 Model 3120 RAS Administrators’ Reference Guide Idle Code (lineSigIdleCode) Code to indicate that a line is in use. Forward Seize (lineSigForwardSeize) Code to indicate there is a desire to use a line. Back Acknowledge (lineSigBackAck) Code to indicate there is an agreement to use a line.
Page 219: Mfr Version 2-Modify
Model 3120 RAS Administrators’ Reference Guide MFR Version 2—Modify In the MFR Version 2 Modify window (see ﬁgure 91) you can modify Line Signalling parameters. The Line Signalling parameters are link-by-link digital signals that use two signalling channels in each direction per cir- cuit.
Page 220 • abcd-0001(1) • abcd-0010(2) • abcd-0011(3) • abcd-0100(4) • abcd-0101(5) • abcd-0110(6) • abcd-0111(7) • abcd-1000(8) • abcd-1001(9) • abcd-1010(10) • abcd-1011(11) • abcd-1100(12) • abcd-1101(13) • abcd-1110(14) • abcd-1111(15) Model 3120 RAS Administrators’ Reference Guide MFR Version 2—Modify...
Page 221 Model 3120 RAS Administrators’ Reference Guide Forward Seize (lineSigForwardSeize) Code to indicate there is a desire to use a line. • abcd-0000(0) • abcd-0001(1) • abcd-0010(2) • abcd-0011(3) • abcd-0100(4) • abcd-0101(5) • abcd-0110(6) • abcd-0111(7) • abcd-1000(8) • abcd-1001(9) •...
Page 222 The Interregister Signalling parameters are end-to-end 2-out-of-6 in-band code signals that use backward and forward-compelled signalling. Set the access server objects based upon codes that pertain to Forward Line Sig- nals, Forward Register Signals, Backward Line, and Backward Register Signals. Model 3120 RAS Administrators’ Reference Guide MFR Version 2—Modify...
Page 223 Model 3120 RAS Administrators’ Reference Guide Note Interregister Signalling setup codes are country-speciﬁc. Please refer to Recommendation Q.400 -Q.490 and to the host country’s PTT for national signalling speciﬁcations. Called Number Total Digits (interRegCalledNumDig). The number of digits expected for the called number.
Page 224 • a15(15) Last Response Code (interRegCallingNumLast). The code specifying what is done after the last digit is sent for the calling number. • a1(1) • a2(2) • a3(3) • a4(4) Model 3120 RAS Administrators’ Reference Guide MFR Version 2—Modify...
Page 225 Model 3120 RAS Administrators’ Reference Guide • a5(5) • a6(6) • a7(7) • a8(8) • a9(9) • a10(10) • a11(11) • a12(12) • a13(13) • a14(14) • a15(15) Speech Condition Set-up (interRegGroupBAck. The code sent when acknowledging the Group B digit to set-up speech conditions.
Page 226 17 • MFR Version 2 Model 3120 RAS Administrators’ Reference Guide MFR Version 2—Modify...
Page 227: Rip Version 2
Chapter 18 RIP Version 2 Chapter contents Introduction ...228 RIP Version 2 main window...228 Route Changes Made (rip2GlobalRouteChanges) ...228 Responses Sent (rip2GlobalQueries) ...228 Address (rip2IfConfAddress) ...228 Send (rip2IfConfSend) ...228 Receive (rip2IfConfReceive) ...229 Adding a RIP address ...229 RIP Version 2—Configuration...230 Address (rip2IfConfAddress) ...230 Domain (rip2IfConfDomain) ...230 Authentication Type (rip2IfConfAuthType) ...230...
Page 228: Introduction
The IP address of the interface on the access server. Send (rip2IfConfSend) The types of RIP packets the router sends on this interface. • doNotSend (1) Model 3120 RAS Administrators’ Reference Guide Figure 92. RIP Version 2 window Conﬁguration Menu to display the RIP Version 2 main window. Introduction...
Page 229: Receive (Rip2Ifconfreceive)
Model 3120 RAS Administrators’ Reference Guide • ripVersion1 (2)—Send RIP updates compliant with RFC 1058 • rip1Compatible (3)—Broadcast RIP-2 updates using RFC 1058 route subsumption rules • ripVersion2 (4)—Send multicasting RIP-2 updates Receive (rip2IfConfReceive) This indicates which version of RIP updates are to be accepted. Note that rip2 and rip1OrRip2 implies recep- tion of multicast packets.
Page 230: Rip Version 2-Configuration
The types of RIP packets the router sends on this interface. • doNotSend (1) • ripVersion1 (2)—Send RIP updates compliant with RFC 1058 • rip1Compatible (3)—Broadcast RIP-2 updates using RFC 1058 route subsumption rules • ripVersion2 (4)—Send multicasting RIP-2 updates Model 3120 RAS Administrators’ Reference Guide RIP Version 2—Configuration...
Page 231: Rip Version 2 (Statistics)
Model 3120 RAS Administrators’ Reference Guide Receive (rip2IfConfReceive) This indicates which version of RIP updates are to be accepted. Note that rip2 and rip1OrRip2 implies recep- tion of multicast packets. • rip1 (1)—Accept RIP updates compliant with RFC 1058 •...
Page 232: Sent Updates (Rip2Ifstatsentupdates)
18 • RIP Version 2 Model 3120 RAS Administrators’ Reference Guide Sent Updates (rip2IfStatSentUpdates) The number of triggered RIP updates actually sent on this interface. This explicitly does NOT include full updates sent containing new information. Status (rip2IfStatStatus) Indicates validity of this interface.
Page 233: Snmp
Chapter 19 SNMP Chapter contents Introduction ...234 SNMP window...234 In ...235 Packets (snmpInPkts) ...235 Bad Version (snmpInBadVersions) ...235 Bad Community Names (snmpInBadCommunityNames) ...235 Bad Community Uses (snmpInBadCommunity) ...235 ASN ParseErrors (snmpInASNParseErrs) ...235 Error Status “Too Big” (snmpInTooBigs) ...235 No Such Names (snmpInNoSuchNames) ...235 Bad Values (snmpInBadValues) ...235 Error Status “Read Only”...
Page 234: Introduction
1406—Deﬁnitions of Managed Objects for the DS1 and E1 Interface Types • 1643—Deﬁnitions of Managed Objects for the Ethernet-like Interface Types Model 3120 RAS Administrators’ Reference Guide to display the SNMP window (see ﬁgure 95). Figure 95. SNMP window Introduction...
Page 235: Bad Community Names (Snmpinbadcommunitynames)
Model 3120 RAS Administrators’ Reference Guide 19 • SNMP Packets (snmpInPkts) The total number of Messages delivered to the SNMP entity from the transport service. Bad Version (snmpInBadVersions) The total number of SNMP Messages that were delivered to the SNMP protocol entity and were for an unsup- ported SNMP version.
Page 236: Out
19 • SNMP Model 3120 RAS Administrators’ Reference Guide Set Variables (snmpInTotalSetVars) The total number of MIB objects that have been altered successfully by the SNMP protocol entity as the result of receiving valid SNMP Set-Request PDUs. Get Requests (snmpInGetRequests) The total number of SNMP Get-Request PDUs that have been accepted and processed by the SNMP protocol entity.
Page 237: Get Next Requests (Snmpoutgetnexts)
Model 3120 RAS Administrators’ Reference Guide Get Next Requests (snmpOutGetNexts) The total number of SNMP Get-Next PDUs that have been generated by the SNMP protocol entity. Set Requests (snmpOutSetRequests) The total number of SNMP Set-Request PDUs that have been generated by the SNMP protocol entity.
Page 238 19 • SNMP Model 3120 RAS Administrators’ Reference Guide...
Page 239: System
Chapter 20 System Chapter contents Introduction ...241 System main window...241 SNMP and HTTP ...241 Version (boxSnmpVersion) ...241 Super User Password (boxSnmpMasterPassword) ...241 User Password (boxSnmpMonitorPassword) ...242 Web Page Refresh Rate (boxWebRefreshRate) ...242 Manufacturer ...242 Serial Number (boxManufactureDatecode) ...242 PCB Revision (boxManufacturePcbRevision) ...242 General Information (boxManufactureGeneralInfo) ...242 Message Blocks ...242 Packet Holding Message Blocks...
Page 240 Web Settings (boxBackgroundFlag) ...248 Monitor Privilege (boxMonitorPrivilege) ...248 System—Packet Holding Message Blocks...248 Buffer Size (boxbuffersize) ...249 No. of Buffers (boxbuffercount) ...249 No. Free (boxbuffersfree) ...249 No. of Tasks Waited (boxCountBufferTaskWait) ...249 No. of Times Unavailable(boxCountBufferUnavailable) ...249 Model 3120 RAS Administrators’ Reference Guide...
Page 241: Introduction
Model 3120 RAS Administrators’ Reference Guide Introduction The System main window (see ﬁgure 96) contains general setup information about the access server. System parameters are Patton Enterprise MIB object identiﬁers, though some are contained in RFC 1213, Manage- ment Information Base for Network Management of TCP/IP-based internets: MIB-II. Click on Conﬁguration Menu...
Page 242: User Password (Boxsnmpmonitorpassword)
20 • System Model 3120 RAS Administrators’ Reference Guide User Password (boxSnmpMonitorPassword) This displays the user monitoring password for SNMP and HTTP. Web Page Refresh Rate (boxWebRefreshRate) The rate at which the main dial-in web page automatically refreshes. The refresh rate can be set from 5 seconds to 5 minutes.
Page 243: Operating System Heap Memory
Model 3120 RAS Administrators’ Reference Guide 20 • System Figure 97. System main window (Operating System Heap Memory, Enclosure System, Payable Features, Installation, and Other) Operating System Heap Memory This portion of the System main window contains information described in the following sections (see ﬁgure 97).
Page 244: Enclosure System
20 • System Model 3120 RAS Administrators’ Reference Guide Enclosure System This portion of the System main window contains information described in the following sections (see ﬁgure 97 on page 243). Internal Temperature (boxTemperature) Displays the current temperature in celsius (centigrade).
Page 245 Model 3120 RAS Administrators’ Reference Guide Physical Location (sysLocation) The physical location of this node (e.g., telephone closet, 3rd ﬂoor), as deﬁned in RFC 1213. System Services (sysServices) A value which indicates the set of services that this entity primarily offers, as deﬁned in RFC 1213.
Page 246: System-Modify Window
20 • System Model 3120 RAS Administrators’ Reference Guide System—Modify window The System—Modify window (see ﬁgure 98) is where you can change SNMP and HTTP, payable features, country of installation, and other parameters. Figure 98. System—Modify window SNMP and HTTP This portion of the System—Modify window contains information described in the following sections.
Page 247: User Password Verification
Model 3120 RAS Administrators’ Reference Guide User Password Veriﬁcation Again type the user monitoring password for SNMP and HTTP. Web Page Refresh Rate (boxWebRefreshRate) The rate at which the main dial-in web page automatically refreshes. The refresh rate can be set from 5 seconds to 5 minutes.
Page 248: System-Packet Holding Message Blocks
The access server system manages the I960 processor utilization by allocating message blocks for data transfers. This Message Blocks window (see ﬁgure 99) buffer usage of access server message blocks based upon message block sizes. Figure 99. Packet Holding Message Blocks window Model 3120 RAS Administrators’ Reference Guide System—Packet Holding Message Blocks...
Page 249: Buffer Size (Boxbuffersize)
Model 3120 RAS Administrators’ Reference Guide 20 • System Buffer Size (boxbuffersize) The size in bytes of the buffer. No. of Buffers (boxbuffercount) The number of buffers this size which are currently free for use No. Free (boxbuffersfree) The number of buffers this size which are currently free for use No.
Page 250 20 • System Model 3120 RAS Administrators’ Reference Guide System—Packet Holding Message Blocks...
Page 251: System Log
Chapter 21 System Log Chapter contents Introduction ...252 System Log Main Window ...252 System Log—Modify ...253 Daemons ...253 SysLog Daemon IP Address(syslogDaemonIP) ...253 SNMP Trap Daemon IP Address (syslogTrapIP) ...253 Priority ...253 Min Priority for SysLog Daemon (syslogDaemonPriority) ...253 Min Priority for Console RS-232 (syslogConsolePriority) ...254 Min Priority for Flash Storage (syslogFlashPriority) ...254 Min Priority for SNMP Trap Daemon (syslogTrapPriority) ...254 Min Priority for RAM (SyslogTablePriority) ...255...
Page 252: Introduction
DSP Event Log—Clicking on this link exports or “dumps” the last 100 DSP events to a text ﬁle. It is intended for debugging purposes System Log Conﬁguration Menu Click on under the Model 3120 RAS Administrators’ Reference Guide Figure 100. System Log main window to display the System Log main window. Introduction...
Page 253: System Log-Modify
Model 3120 RAS Administrators’ Reference Guide 21 • System Log System Log—Modify The System Log—Modify window (see ﬁgure 101) displays syslog and SNMP trap daemon locations, priority and maintenance information. Figure 101. System Log—Modify window Daemons This portion of the System Log—Modify window contains information described in the following sections.
Page 254: Min Priority For Console Rs-232 (Syslogconsolepriority)
The lower the number next to the priority listed below, the more details system logging will provide. PriorityVerbose will generate the most messages, while priorityDisable will turn off all messages. • priorityVerbose(5) • priorityDebug(10) Model 3120 RAS Administrators’ Reference Guide System Log—Modify...
Page 255: Min Priority For Ram (Syslogtablepriority)
Model 3120 RAS Administrators’ Reference Guide • priorityInfo(20) • priorityOddity(40) • priorityService(60) • prioritySystem(80) • priorityDisable(1000) Min Priority for RAM (SyslogTablePriority) System messages which have a priority equal to or greater than this setting will appear in System Log—Volatile Memory. The lower the number next to the priority listed below, the more details system logging will provide.
Page 256: Call Trace (Syslogcalltrace)
To empty the Flash PROM, click on the Set Factory Default Conﬁguration button (refer to section “Immediate Actions” on page 20), then click on Record Current Conﬁguration. • syslogFlashClear(2)—Erase system messages stored in Flash. Model 3120 RAS Administrators’ Reference Guide System Log—Modify...
Page 257: System Log-Volatile Memory
Model 3120 RAS Administrators’ Reference Guide 21 • System Log System Log—Volatile Memory The System Log—Volatile Memory window (see ﬁgure 102) displays timestamp and stored system log message information. Figure 102. System Log—Volatile Memory window Time (slTick) The time stamp in 10 ms intervals of the stored message.
Page 258: System Log-Non-Volatile Memory
CPU driver code. The DSP group refers to which group of 8 DSPs were rebooted. DSPs 1-8 are in group 0. Model 3120 RAS Administrators’ Reference Guide System Log—Non-Volatile Memory...
Page 259: T1/E1 Link
Chapter 22 T1/E1 Link Chapter contents Introduction ...262 T1/E1 Link Activity main window ...263 Link (dsx1LineIndex) ...263 Type (dsx1LineType) ...263 Circuit ID (dsx1CircuitIdentifier) ...264 Alarms Present...264 Physical Line Alarms (dsx1LineStatus) ...264 Far End Alarm Failure ...264 Alarm Indication Signal (AIS) Failure ...265 Loss Of Frame Failure ...265 Loss Of Signal Failure ...265 Loopback Pseudo-Failure ...265...
Page 260 Bursty ErroredSeconds (dsx1TotalBESs) ...279 Degraded Minutes (dsx1TotalDMs) ...279 Line Code Violations (dsx1TotalLCVs) ...279 Far End Line Statistics—Current...280 Time Elapsed (dsx1FarEndTimeElapsed) ...280 Errored Seconds (dsx1FarEndCurrentESs) ...280 Severely Errored Seconds (dsx1FarEnd CurrentSESs) ...280 Severely Errored Frame Seconds (dsx1FarEndCurrentSEFSs) ...280 Model 3120 RAS Administrators’ Reference Guide...
Page 261 Model 3120 RAS Administrators’ Reference Guide Unavailable Seconds (dsx1FarEndCurrentUASs) ...280 Controlled Slip Seconds (dsx1FarEndCurrentCSSs) ...280 Line Errored Seconds (dsx1FarEndCurrentLESs) ...280 Path Code Violations (dsx1FarEndCurrentPCVs) ...281 Bursty Errored Seconds (dsx1FarEndCurrentBESs) ...281 Degraded Minutes (dsx1FarEndCurrentDMs) ...281 Far End Line Statistics—History ...281 Far End Interval (dsx1FarEndIntervalNumber) ...281 Errored Seconds (dsx1FarEndIntervalESs) ...281...
Page 262: Introduction
WAN Circuit Channel Assignment window, where T1/E1 lines are segmented into individual channels or time slots. For more information about this page, refer to “Line Status—Channel Assignment” on page 274. Model 3120 RAS Administrators’ Reference Guide Figure 104. T1/E1 Link Activity main window to display the T1/E1 Link Activity main window.
Page 263: T1/E1 Link Activity Main Window
Model 3120 RAS Administrators’ Reference Guide Near End Line Statistics—Current… • tics for the current 15-minute interval. For more information about this page, refer to “Near End Line Sta- tistics—Current” on page 275. Near End Line Statistics—History… • tics for previous 15-minute intervals. For more information about this page, refer to “Near End Line Statis- tics—History”...
Page 264: Alarms Present
22 • T1/E1 Link Model 3120 RAS Administrators’ Reference Guide Circuit ID (dsx1CircuitIdentiﬁer) This is the transmission vendor’s circuit identiﬁer. Knowing the circuit ID can be helpful during troubleshooting. Alarms Present This window indicates alarms on the physical line and in the case of a PRI the status of Layer 2.
Page 265: Alarm Indication Signal (Ais) Failure
Model 3120 RAS Administrators’ Reference Guide For E1 links, the Far End Alarm failure is declared when bit 3 of time-slot zero is received set to 1 on two con- secutive occasions. The Far End Alarm failure is cleared when bit 3 of time-slot zero is received set to zero.
Page 266: Isdn Signaling Alarms (Linksignalstatus)
ISDN Signaling Alarms (linkSignalStatus) Note ISDN Signaling Alarms will only appear if the T1/E1 is conﬁgured as a PRI. Model 3120 RAS Administrators’ Reference Guide No Alarm Present Far end LOF (a.k.a., Yellow Alarm) Near end sending LOF Indication Far end sending AIS Near end sending AIS Near end LOF (a.k.a., Red Alarm)
Page 267: Snmp Mib Definition
Model 3120 RAS Administrators’ Reference Guide • Class Resource—for future use • Class Syntax—for future use • Class State—for future use • Class Unknown—for future use • Q3 Close Anchor—indicates that the D channel is down • Q3 Invalid Parameter—invalid parameter an information element for last call according to Q.931 speciﬁ- cation •...
Page 268: Line Status-Configuration
The number of previous intervals for which valid data was collected. The value will be 96 unless the interface was brought on-line within the last 24-hours, in which case the value will be the number of complete 15- minute intervals since the interface has been online. Model 3120 RAS Administrators’ Reference Guide Line Status—Configuration...
Page 269: Wan Configuration-Modify
Model 3120 RAS Administrators’ Reference Guide WAN Conﬁguration—Modify Clicking on the Conﬁguration link in the T1/E1 Link Activity window displays the WAN Conﬁguration— Modify window. From this window, you can change line interface settings, signalling settings, test settings, and change the T1/E1 pulse shapes.
Page 270: Line Coding (Dsx1Linecoding)
T1 receiver end. The default is t1pulse0dB, which should be adequate for most situations. • triState(0) • e1pulse(1)—Select for E1 conﬁguration • t1pulse0dB(2)—Strong pulse shape. Model 3120 RAS Administrators’ Reference Guide WAN Configuration—Modify...
Page 271: Yellow Alarm Format (Linkyellowformat)
Model 3120 RAS Administrators’ Reference Guide • t1pulse-7dB(3)—Medium pulse shape. • t1pulse-15dB(4)—Weak pulse shape. Yellow Alarm Format (linkYellowFormat) This variable identiﬁes which standard will be used to transmit and identify the Yellow Alarm. • link YellowFormatBit2(1)—Bit-2 equal zero in every channel •...
Page 272: Message-Oriented Switch Type (Linkisdnswitchtype)
The val- ues mean: • dsx1NoLoop—Not in the loopback state. A device that is not capable of performing a loopback on the interface shall always return this as it's value. Model 3120 RAS Administrators’ Reference Guide WAN Configuration—Modify...
Page 273: Send Code (Dsx1Sendcode)
Model 3120 RAS Administrators’ Reference Guide • dsx1PayloadLoop—The received signal at this interface is looped through the device. Typically the received signal is looped back for retransmission after it has passed through the device's framing function. • dsx1LineLoop—The received signal at this interface does not go through the device (minimum penetra- tion) but is looped back out.
Page 274: Line Status-Channel Assignment
When dialing out of the server, the ﬁrst available channel set to dialout will be used (see ﬁgure 110). If no dialout channels are available, the server will search for the next available dialin channel. Model 3120 RAS Administrators’ Reference Guide Line Status—Channel Assignment...
Page 275: Currentstate(Channelstate)
Model 3120 RAS Administrators’ Reference Guide • frameRelay(3)—64 k frame relay connection • privateLine(4)—channel is a dedicated modem connection • dropinsert(7)—the channel passes the data through to another channel on a different WAN port. See How Drop and Insert Works on page xxxx •...
Page 276: Severely Errored Frame Seconds (Dsx1Currentsefss)
22 • T1/E1 Link Model 3120 RAS Administrators’ Reference Guide Errored Seconds (dsx1CurrentESs) The number of errored seconds, encountered by a DS1 interface in the current 15-minute interval. Severely Errored Seconds (dsx1CurrentSESs) The number of severely errored seconds encountered by a DS1 interface in the current 15-minute interval.
Page 277: Near End Line Statistics-History
Model 3120 RAS Administrators’ Reference Guide 22 • T1/E1 Link Near End Line Statistics—History Click on Near End Line Statistics—History to display line statistics for previous 15-minute intervals (96 previ- ous intervals will be shown unless the remote access server has been reinitialized in the last 24 hours). See ﬁgure 112.
Page 278: Near End Line Statistics-Totals
22 • T1/E1 Link Model 3120 RAS Administrators’ Reference Guide Controlled Slip Seconds (dsx1IntervalCSSs) The number of controlled slip seconds encountered by a DS1 interface in one of the previous 96, individual 15-minute, intervals. Path Code Violations (dsx1IntervalPCVs) The number of path coding violations encountered by a DS1 interface in one of the previous 96, individual 15-minute, intervals.
Page 279: Severely Errored Frame Seconds (Dsx1Totalsefss)
Model 3120 RAS Administrators’ Reference Guide 22 • T1/E1 Link Severely Errored Seconds (dsx1TotalSESs) The number of severely errored seconds encountered by a DS1 interface in the previous 24-hour interval. Severely Errored Frame Seconds (dsx1TotalSEFSs) The number of severely errored framing seconds encountered by a DS1 interface in the previous 24-hour interval.
Page 280: Far End Line Statistics-Current
22 • T1/E1 Link Model 3120 RAS Administrators’ Reference Guide Far End Line Statistics—Current Click on Near End Line Statistics—Current to display far-end statistics for the current 15-minute interval (96 previous intervals will be shown unless the remote access server has been reinitialized in the last 24 hours). See ﬁgure 114).
Page 281: Far End Line Statistics-History
Model 3120 RAS Administrators’ Reference Guide 22 • T1/E1 Link Path Code Violations (dsx1FarEndCurrentPCVs) The number of far-end path coding violations reported via the far-end block error count encountered by a DS1 interface in the current 15-minute interval. Bursty Errored Seconds (dsx1FarEndCurrentBESs) The number of far-end bursty errored seconds (BESs) encountered by a DS1 interface in the current 15- minute interval.
Page 282: Severely Errored Frame Seconds (Dsx1Farendintervalsefss)
22 • T1/E1 Link Model 3120 RAS Administrators’ Reference Guide Severely Errored Seconds (dsx1FarEndIntervalSESs) The number of far-end severely errored seconds encountered by a DS1 interface in one of the previous 96, individual 15-minute, intervals. Severely Errored Frame Seconds (dsx1FarEndIntervalSEFSs) The number of far-end severely errored framing seconds encountered by a DS1 interface in one of the previous 96, individual 15-minute, intervals.
Page 283: Far End Line Statistics-Totals
Model 3120 RAS Administrators’ Reference Guide 22 • T1/E1 Link Far End Line Statistics—Totals Click on Far End Line Statistics—Totals to display the total statistics of errors that occurred during the previ- ous 24-hour period (see ﬁgure 116). Figure 116. Far End Performance window Errored Seconds (dsx1FarEndTotalESs) The number of far-end errored seconds encountered by a DS1 interface in the previous 24-hour interval.
Page 284: Bursty Errored Seconds (Dsx1Farendtotalbess)
22 • T1/E1 Link Model 3120 RAS Administrators’ Reference Guide Bursty Errored Seconds (dsx1FarEndTotalBESs) The number of far-end bursty errored seconds (BESs) encountered by a DS1 interface in the previous 24-hour interval. Degraded Minutes (dsx1FarEndTotalDMs) The number of far-end degraded minutes (DMs) encountered by a DS1 interface in the previous 24-hour interval.
Page 285: Sync Ppp
Chapter 23 Sync PPP Introduction ...287 WAN Circuit CONFIGURATION window ...287 Line Status—Channel Assignment ...287 Desired Function (slotfunction) ...288 Current State (ChannelState) ...288 PPP configuration ...288 PPP Main Window ...288 PPP ID (pppIndex) ...288 User (pppAuthenticationUsername) ...288 State (pppActState) ...289 Ip Address (pppServiceIpAddress) ...289 Ip Mask (pppServiceIpMask) ...289 Default Settings ...289...
Page 286 23 • Sync PPP Authentication Side (pppAuthenticationSide) ...293 Authentication Username (pppAuthenticationUsername) ...293 Authentication Password (pppAuthenticationPassword) ...293 Security Level (pppAccessLevel) ...293 MRU (pppInitialMRU) ...293 IP Address (pppServiceIpAddress) ...293 IP Mask (pppServiceIpMask) ...293 IP Compression (pppIpCompression) ...293 IP Force Next Hop (pppForceNextHop) ...293 Link Compression (pppLinkCompression) ...294 Allow Magic Number Negotiation (pppMagicNumber) ...294 PPP Statistics ...294...
Page 287: Introduction
Access Server Administrators’ Reference Guide Introduction Point-to-point protocol (PPP) is a widely used data link layer protocol for connecting remote devices in point- to-point conﬁguration. Mainly used in dial-up applications and in network core applications, PPP is used for multiplexed transport over a point-to-point link, it operates on all full-duplex media, and is a symmetric peer- to-peer protocol, which consists of the following major components: •...
Page 288: Ppp Configuration
23 • Sync PPP Access Server Administrators’ Reference Guide Desired Function (slotfunction) ppp(5)—channel is set for synchronous PPP Current State (ChannelState) ppp(7)—Sync PPP connection is up on this channel Figure 118. Channel assignment showing PPP conﬁg PPP conﬁguration Once the WAN Link has been set for PPP, proceed to conﬁgure the PPP parameters. PPP Main Window Clicking on the link on the left pane of the screen shows the PPP main window.
Page 289: Default Settings
Access Server Administrators’ Reference Guide State (pppActState) This is the current state of the PPP negotiation process. • restarting(1)—the link is currently restarting due to a conﬁguration change or line error • connecting(2)—the link is currently connecting • lcpNegotiate(3)—PPP LCP negotiation is in progress •...
Page 290 23 • Sync PPP Authentication Technique (pppDefaultAuthenticationTechnique) Technique to be used for authenticating • none(0)—no authentication will be used • pap(3)—password authentication protocol will be used • chap(4)—challenge handshake authentication protocol will be used • chapORpap(5)—chap will be negotiated ﬁrst, if that fails, pap will be attempted Authentication Side (pppDefaultAuthenticationSide) This is the side of the link which will be authenticating •...
Page 291 Access Server Administrators’ Reference Guide Compression (pppDefaultIpCompression) If none(1) then the local node will not attempt to negotiate any IP Compression option. Otherwise, the local node will attempt to negotiate compression mode indicated by the enumerated value. Changing this object will have effect when the link is next restarted.
Page 292: Link Configuration
23 • Sync PPP RECEIVE (framerelRxOctets) Receive rate in bits per second. No Buffers Available (framerelRxNoBufferAvailable) The number of packets received when no receive buffers were available. Data Overﬂow (framerelRxDataOverﬂow) The number of packets received with overﬂow indicated by the hardware. Message Ends (framerelRxMessageEnds) The number of packets received with message-correct endings.
Page 293: Authentication Side (Pppauthenticationside)
Access Server Administrators’ Reference Guide • pap(3)—password authentication protocol will be used • chap(4)—challenge handshake authentication protocol will be used • chapORpap(5)—chap will be negotiated ﬁrst, if that fails, pap will be attempted Authentication Side (pppAuthenticationSide) Side of the link which will be authenticating •...
Page 294: Link Compression (Ppplinkcompression)
23 • Sync PPP Link Compression (pppLinkCompression) This object enables the PPP link layer address and protocol ﬁeld compression. When enabled the PPP negotia- tions will DESIRE link compression but may disable the compression due the other end of the link not accept- ing link compression.
Page 295: Lcp Authentication(Pppstatlcpauth)
Access Server Administrators’ Reference Guide LCP Authentication(pppStatLcpAuth) Authentication type used. The following options are available: • none(1) • pap(2) • chap(3) • MSChap(4)—not currently implemented • tacacs(5)—not currently implemented • edp(6) • ShivaPap(7)—not currently implemented ACC Map (pppStatLocalToPeerACCMap) The current value of the ACC Map used for sending packets from the local server to the remote unit. The local unit sends this character map to the remote unit to ensure that the data being transferred is interpreted cor- rectly.
Page 296: Remote-Local Ac Comprsn (Pppstatremotetolocalaccomp)
23 • Sync PPP • enabled(1)—ACC is enabled Remote-Local AC Comprsn (pppStatRemoteToLocalACComp) Indicates whether the remote PPP entity will use address and control compression (ACC) when transmitting packets to the local PPP entity. This setting becomes active when the link is in the up—able to pass packets— operational state.
Page 297: Remote Max Slot Id (Pppipremotemaxslotid)
Access Server Administrators’ Reference Guide 23 • Sync PPP Remote Max Slot ID (pppIpRemoteMaxSlotId) The Max-Slot-Id access server parameter that the remote node has announced and that is in use on the link. If vjTCP header compression is not in use on the link, the value of this object will be 0. The range is from 0 to 255.
Page 298: Modify Link Configuration Window
23 • Sync PPP Modify Link Conﬁguration Window Modify… Clicking on the link in the PPP link window will allow conﬁguration of the individual link settings. Refer to section “Default Settings” on page 289 for a description of the following options: •...
Page 299: About
Chapter 24 About Chapter contents Introduction ...300 Patton Electronics Company contact information ...300...
Page 300: Introduction
24 • About Model 3120 RAS Administrators’ Reference Guide Introduction About link displays Patton Electronics Company contact information (see “Patton Electronics Company About Conﬁguration Menu About contact information”). Click on under the to display the main window (see ﬁgure 123).
Page 301: License
Chapter 25 License Chapter contents Introduction ...302 End User License Agreement ...302 1. Definitions: ...302 2. Title: ...303 3. Term: ...303 4. Grant of License: ...303 5. Warranty: ...303 6. Termination: ...303...
Page 302: Introduction
25 • License Model 3120 RAS Administrators’ Reference Guide Introduction License License link presents the End User License Agreement for the access server software. Click on Conﬁguration Menu License under the to display the main window (see ﬁgure 124). Figure 124. License window By opening the access server, operating the Designated Equipment or downloading the Program(s) electroni- cally, the End User agrees to the conditions in the “End User License Agreement”...
Page 303: Grant Of License
Model 3120 RAS Administrators’ Reference Guide 25 • License 2. Title: Title to the Program(s), all copies of the Program(s), all patent rights, copyrights, trade secrets and proprietary information in the Program(s), worldwide, remains with Patton Electronics Company or its licensors.
Page 304 25 • License Model 3120 RAS Administrators’ Reference Guide End User License Agreement...
Page 305: Supported Radius Attributes
Appendix A Supported RADIUS Attributes Chapter contents Access-Accept Attributes...306 Access-Request Attributes ...306 Access-Challenge Attributes...307 Accounting-Start Attributes...307 Accounting-Stop Attributes ...308...
Page 306: Access-Accept Attributes
Login-IP-Host Login-Service Login-Port Reply-Message Callback-Number State Class Session-Timeout Idle-Timeout Termination-Action Port-Limit Primary-DNS(Ascend Compatibility) Secondary-DNS(Ascend Compatibility) Assign-DNS(Ascend Compatiblity) Force-Next-Hop Access-Request Attributes User-Password CHAP-Password NAS-IP-Address NAS-Port Service-Type Framed-Protocol State Called-Station-Id Calling-Station-Id NAS-Identiﬁer CHAP-Challenge NAS-Port-Type Model 3120 RAS Administrators’ Reference Guide Access-Accept Attributes...
Page 307: Access-Challenge Attributes
Model 3120 RAS Administrators’ Reference Guide Access-Challenge Attributes State Session-Timeout Idle-Timeout Accounting-Start Attributes User-Name NAS-IP-Address NAS-Port Service-Type Framed-Protocol Framed-IP-Address Class Called-Station-Id Calling-Station-Id NAS-Identiﬁer Account-Status-Type Account-Delay-Time Account-Session-Id Account-Authentic Account-Multiple-Session-Id NAS-Port-Type Data-Rate(RX) Xmit-Rate(TX) Access-Challenge Attributes A • Supported RADIUS Attributes...
Page 308: Accounting-Stop Attributes
A • Supported RADIUS Attributes Accounting-Stop Attributes User-Name NAS-IP-Address NAS-Port Service-Type Framed-Protocol Framed-IP-Address Class Called-Station-Id Calling-Station-Id NAS-Identiﬁer Account-Status-Type Account-Delay-Time Account-Input-Octets Account-Output-Octets Account-Session-Id Account-Authentic Account-Session-Time Account-Input-Packets Account-Output-Packets Account-Terminate-Cause Account-Multiple-Session-Id NAS-Port-Type Data-Rate(RX) Xmit-Rate(TX) Model 3120 RAS Administrators’ Reference Guide Accounting-Stop Attributes...
Page 309: A Mib Trees
Appendix B MIB trees Chapter contents Model 2960 MIB Tree Structure...310...
Page 310: Model 2960 Mib Tree Structure
B • MIB trees Model 3120 RAS Administrators’ Reference Guide Model 2960 MIB Tree Structure Model 2960 MIB Tree Structure...
Page 311: B Technical Reference
Appendix C Technical Reference Chapter contents Introduction ...312 Configuring a RADIUS server...312 What Is RADIUS? ...312 RADIUS Client/Server Architecture ...312 RADIUS Services ...313 RADIUS Authentication Procedure ...314 RADIUS Standards ...314 RADIUS—Where Can I Get It? ...315 RADIUS Resources ...315 Configuring RADIUS ...316 Overview ...316 Configuring RADIUS Authentication ...316 On your radius server ...
Page 312: Introduction
RADIUS servers may reside on separate machines. Net- work managers may conﬁgure a RADIUS Client to use RADIUS security services, RADIUS accounting ser- vices, or both. Model 3120 RAS Administrators’ Reference Guide Figure 125. RADIUS diagram Introduction...
Page 313 Model 3120 RAS Administrators’ Reference Guide A RADIUS client consists of a Network Access Server (NAS)—such as your Patton RAS—which provides one or more remote users with access to network resources. A single RADIUS Server can serve hundreds of RADIUS cli- ents and up to tens of thousand of end users.
Page 314 Patton remote access servers (RAS) support the April 1977 standards for RADIUS (RFC2138) and RADIUS Accounting (RFC2139). The RADIUS attributes Patton RAS supports are listed in Appendix A of the Access Server Administrator’s Reference Guide, available online at Model 3120 RAS Administrators’ Reference Guide http://www.patton.com/manuals/AccessServer_Admin-D_lo-res.pdf Configuring a RADIUS server...
Page 315 Model 3120 RAS Administrators’ Reference Guide RADIUS—Where Can I Get It? RADIUS available for free Microsoft’s RADIUS implementation for WindowsNT is called IAS and comes included with the Win- dowsNT operating system. Another freeware option is WinRADIUS, available at http://www.itconsult2000.com/en/product/WinRadius.html...
Page 316: Configuring Radius
On your Patton RAS. In the following procedure you will conﬁgure your RAS with the information collected previously. RAS Conﬁguration Menu 1. From your edit the conﬁgurable parameter ﬁelds, shown below. Model 3120 RAS Administrators’ Reference Guide Secret my_red_ras1_shared_secret my_red_ras2_shared_secret Authentication...
Page 317 Model 3120 RAS Administrators’ Reference Guide Authentication 2. On the page, deﬁne values for the parameters as follows: – Validation: Select staticThenRadius(4) Note We recommend you select RAS’s user database. This will provide you an alternate login method so you can still manage your RAS if RADIUS authentication should fail.
Page 318: Using Snmp With The Access Server
The Access Server Guide gives the SNMP name for each parameter that appears on the web interface. The total number of active calls can be found on the dial-in screen. The description for that parameter gives the following information: Model 3120 RAS Administrators’ Reference Guide Figure 128. Parameter format Using SNMP with the Access Server...
Page 319: Finding The Section Of The Mib Tree In Which The Snmp Parameter Resides
Model 3120 RAS Administrators’ Reference Guide Finding the section of the MIB tree in which the SNMP parameter resides Refer to ﬁgure 129 on page 320 and look at the Model 2960 MIB tree. There two sections in the tree: •...
Page 320 C • Technical Reference Model 3120 RAS Administrators’ Reference Guide Figure 129. MIB tree for Model 3120 access server Using SNMP with the Access Server...
Page 321: Configuring Non-Facility Associated Signaling (Nfas)
Model 3120 RAS Administrators’ Reference Guide Conﬁguring Non-Facility Associated Signaling (NFAS) NFAS allows PRIs to be fully utilized by increasing the number of data channels. Now PRIs can have 24 B- channels for data rather than the traditional 23 B-channels for data and a D-channel for signaling.
Page 322: Configuring Frame Relay
Conﬁguration window. Click on nected to port 2, you would click on 3. Click on Modify Model 3120 RAS Administrators’ Reference Guide Conﬁguration Menu to display the Link: x in the appropriate section (for example, if the T1/E1 cable was con- Link: 2 Conﬁguration...
Page 323: Wan Channel Assignment Main Screen
Model 3120 RAS Administrators’ Reference Guide The following settings must match the line conﬁguration provided by the local telephone company. For more information on setting up your T1/E1, see the Getting Started guide that came with your access server. Line Type 4.
Page 324: Configuring Frame Relay Link Parameters
The Frame Relay link is now conﬁgured and should be available. The ﬁnal stage will be to conﬁgure PVCs and IP routing so trafﬁc can be routed to the new link(s). Model 3120 RAS Administrators’ Reference Guide Frame Relay to display the Figure 130.
Page 325 Model 3120 RAS Administrators’ Reference Guide Conﬁguring Permanent Virtual Circuits The data link connection identiﬁer (DLCI) provides each PVC with a unique identiﬁer at both the access server and the Frame Relay switch. Within each link (DLMI) there can be multiple permanent virtual circuits (PVC).
Page 326 Routing Info Note To add a network route, use the second set of entry items which allow for a destination, mask and gateway: Model 3120 RAS Administrators’ Reference Guide to display the window (see ﬁgure 77 on page 194). Conﬁguration Menu...
Page 327 Model 3120 RAS Administrators’ Reference Guide Destination 2. Type in the network (see ﬁgure 133). This number must correspond to the mask speciﬁed. (For example, if you wish to forward a C class address you would leave the last octet as 0.) 3.
Page 328: Configuring Dnis
Submit Query button. Setting up a DNIS group Set up a DNIS group (see ﬁgure 31 on page 80) as follows: 1. Enter an ID number to identify the speciﬁc DNIS proﬁle. Model 3120 RAS Administrators’ Reference Guide Configuring DNIS...
Page 329: Configuring A Leased Line/Dedicated Line Connection
Model 3120 RAS Administrators’ Reference Guide 2. If you wish to apply the parameters speciﬁed in steps 1 and 2 based on WAN port then enter the appropri- ate WAN port. Enter 0 if you want to apply the parameters based on number dialed only.
Page 330: Configuring The Remote End Using Microsoft Windows
3. Set the phone number to 1. This phone number is required to make the dial-up connect work as it is pro- vided by windows. The phone number is not used for the dedicated line. Model 3120 RAS Administrators’ Reference Guide Wait for dial tone before dialing Figure 137.
Page 331 Model 3120 RAS Administrators’ Reference Guide C • Technical Reference Figure 138. Leased Line Properties window—General tab Options Redial attempts 4. Under the tab: set to a high number. Time between redial attempts 5. Set to 3. 6. Disable the idle timer 7.
