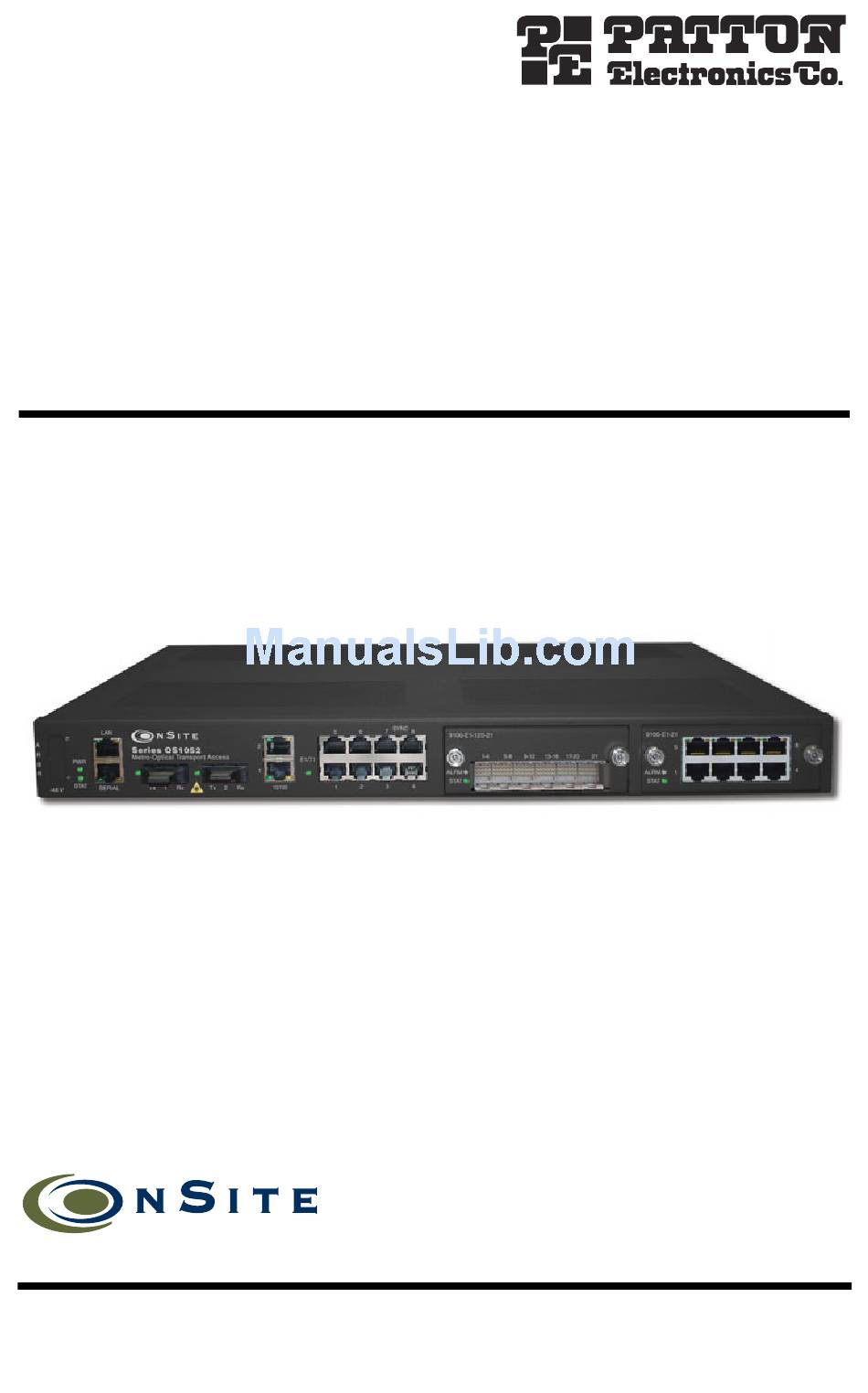

Page 1: Quick Start Guide
OnSite 1052 & 1063 Series Metro-Optical Transport Access Nodes Quick Start Guide Sales Office: +1 (301) 975-1000 Part Number: 07MOS10xx-QS, Rev. A Technical Support: +1 (301) 975-1007 E-mail: support@patton.com Revised: November 19, 2009 WWW: www.patton.com... -
Page 2: Unpacking And Installation
Read the safety information in the OnSite Series Getting Started Guide and Administrator’s Reference Guide thoroughly before installing and operating your OS-10 Series system. Failure to follow this safety infor- WARNING mation can lead to personal injury or damage to the equipment. 1.0 Unpacking and Installation Check the contents of the shipping container and accessories box or bag against the content list and the packing slip. - Page 3 3.0 Accessing and Configuring the System To access the system management functions for the first time, your may use either the SERIAL or the Ethernet LAN management port. Refer to the Installation and Operation Guide for access through the SERIAL port. For first time access through the Ethernet LAN management port, follow these steps: Connect a PC to the Ethernet LAN management port using the RJ-45 connector.
-
Page 4: Additional Information
3.2 Saving the System Configuration To save the system configuration to the flash memory, follow these steps: Select the SYSTEM folder from the OnSight DM web-based GUI navigation menu. From the expanded SYSTEM folder, select the Actions folder. From the expanded Actions folder, select Save Configuration. A warning window opens to alert you to the start of the save-configuration process.
