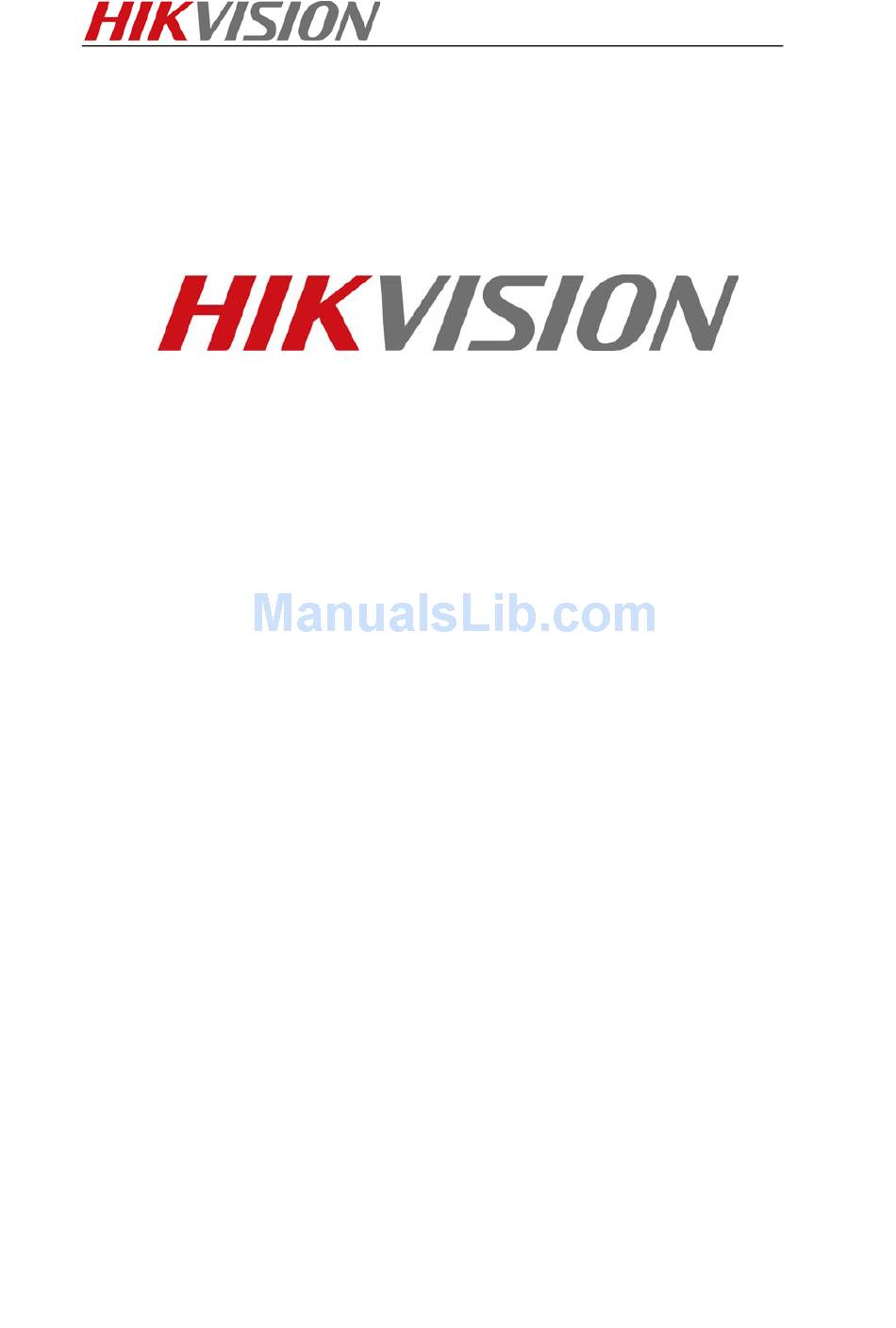

  • Page 1 Technical Manual DS-9100HFI-SH Embedded Net DVR Technical Manual ©2006 – 2010 by HIKVISION. All rights reserved.
  • Page 2 HIKVISION and then only on the condition that this notice is included in any such reproduction. No information as to the contents or subject...
  • Page 3 DVR, which can work as a standalone DVR, and as well as to build a powerful network for security system. DS-9100HFI-SH series net DVR can be widely applied in the fields of finance, public security, forces, telecom, transportation, electricity, education, water conservancy, and etc.

  • Page 4: Order Models

    Technical Manual Order Models DS-9104HFI-SH, DS-9108HFI-SH, DS-9112HFI-SH, DS-9116HFI-SH Note: 1. The default DVRs are without HDD or CD-R/W. 2. A factory recommended HDD should be used for this device. ©2006 – 2010 by HIKVISION. All rights reserved.

  • Page 5: Main Features

    Easy installation and maintenance of HDDs by opening the front  panel Smart search and playback for recorded video with moving  object Support hard disk group management  NTP, SADP, SMTP and NFS protocols supported  ©2006 – 2010 by HIKVISION. All rights reserved.

  • Page 6: Local Functions

     Motion detection, video tampering, video exception and video loss alarm modes  Privacy mask  Various decoder control protocols and HIKVISION control protocol  Preset, patrol and pattern settings and callup  Zoom in by clicking the mouse and trace function by dragging mouse...
  • Page 7 Alarm in handle methods, including recording of any channel, alarm out,  on screen warning, audile warning and upload to center Various exceptions alarm, including hard disk full, illegal login, network  ©2006 – 2010 by HIKVISION. All rights reserved.
  • Page 8 Support voice talk and broadcast  Build-in WEB Server  Development Provide Windows and Linux SDK  Provide software source code as demo  Provide development support and application system training  ©2006 – 2010 by HIKVISION. All rights reserved.

  • Page 9: Front Panel

    ② Power Button ③ IR receiver ④ DVD-ROM ⑤ DIRECTION/ENTER Buttons ⑥ Front Panel Lock ⑦ USB Ports ⑧ Control Buttons ⑨ Alphanumeric Buttons ⑩ JOG SHUTTLE Control ⑪ Left and Right Button ©2006 – 2010 by HIKVISION. All rights reserved.

  • Page 10: Rear Panel

    ⑬ GND, when cascading multiple devices, it is required that grounding through GND first, and then connecting to the protection ground of control keyboard and power input. ⑭ 100~240VAC Power Input ⑮ HDMI interface ©2006 – 2010 by HIKVISION. All rights reserved.

  • Page 11: Specifications

    Each interface supports more than 2TB capacity Network 1, RJ45 10M/100M/1000M adaptive Ethernet interface External 1 RS-232 interface (for parameters configuration, interface Serial maintenance, transparent channel); interface 1 RS-485 interface (for PTZ control); ©2006 – 2010 by HIKVISION. All rights reserved.
  • Page 12 Alarm in Alarm out Power supply 100~240VAC, 6.3A, 50~60Hz Consumption ≤70W (without hard disk or DVD-R/W) Working -10℃~+55℃ temperature Others Working 10%~90% humidity Size 450mm(D)*450mm(W)*95mm(H) Weight ≤8Kg (without hard disk or DVD-R/W) ©2006 – 2010 by HIKVISION. All rights reserved.
